Micro 100 RSCM-100-2 1/8 in Double-End Solid Carbide Center Drill
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

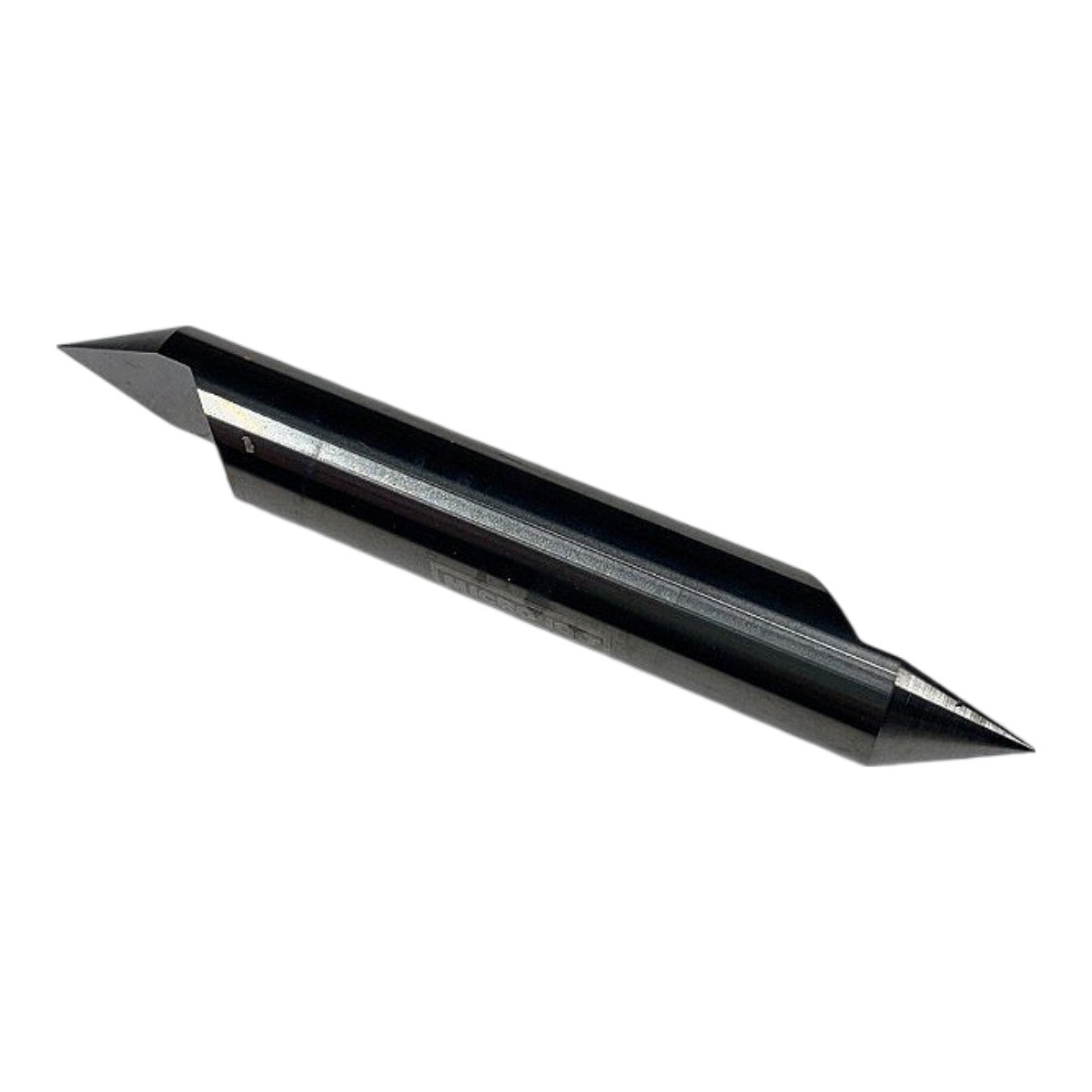

The Micro 100 RSCM-100-2 is a new, double-ended solid carbide combination drill and countersink (center drill) with a 60° included angle point on each end, designed for precise center-drilling operations on lathes and machining centers. Decoding the part number: RSCM = Right & left hand Solid Carbide combination drill/countersink with Micro 100's "super carbide" solid carbide substrate; 100 = 1/8 in (0.100 in) body diameter; 2 = 2-flute. The tool features Micro 100's proprietary black oxide-like DLC/TiN-free hard coating visible in the photos, providing lubricity and surface hardness to reduce built-up edge in ferrous materials. Both ends are fully ground to tight tolerances and are interchangeable, effectively doubling tool life before re-sharpening is required. This tool is manufactured in the USA and is suited for creating accurate center holes in steel, stainless, aluminum, and cast iron on manual lathes, CNC turning centers, and drill presses.
Product Specifications
| Brand | Micro 100 |
| Part Number | RSCM-100-2 |
| Tool Type | Double-End Combination Drill & Countersink (Center Drill) |
| Body Diameter | 1/8 in (0.100 in) |
| Number of Flutes | 2 |
| Point Angle | 60° |
| Ends | Double-End (2 usable ends) |
| Material / Substrate | Solid Carbide |
| Coating | Black (DLC-style surface treatment) |
| Shank Style | Round, straight shank |
| Country of Origin | USA |
| Condition | New |
