Micro 100 SDH-250-03X 1/4in 3-Flute AlTiN Carbide Square End Mill
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

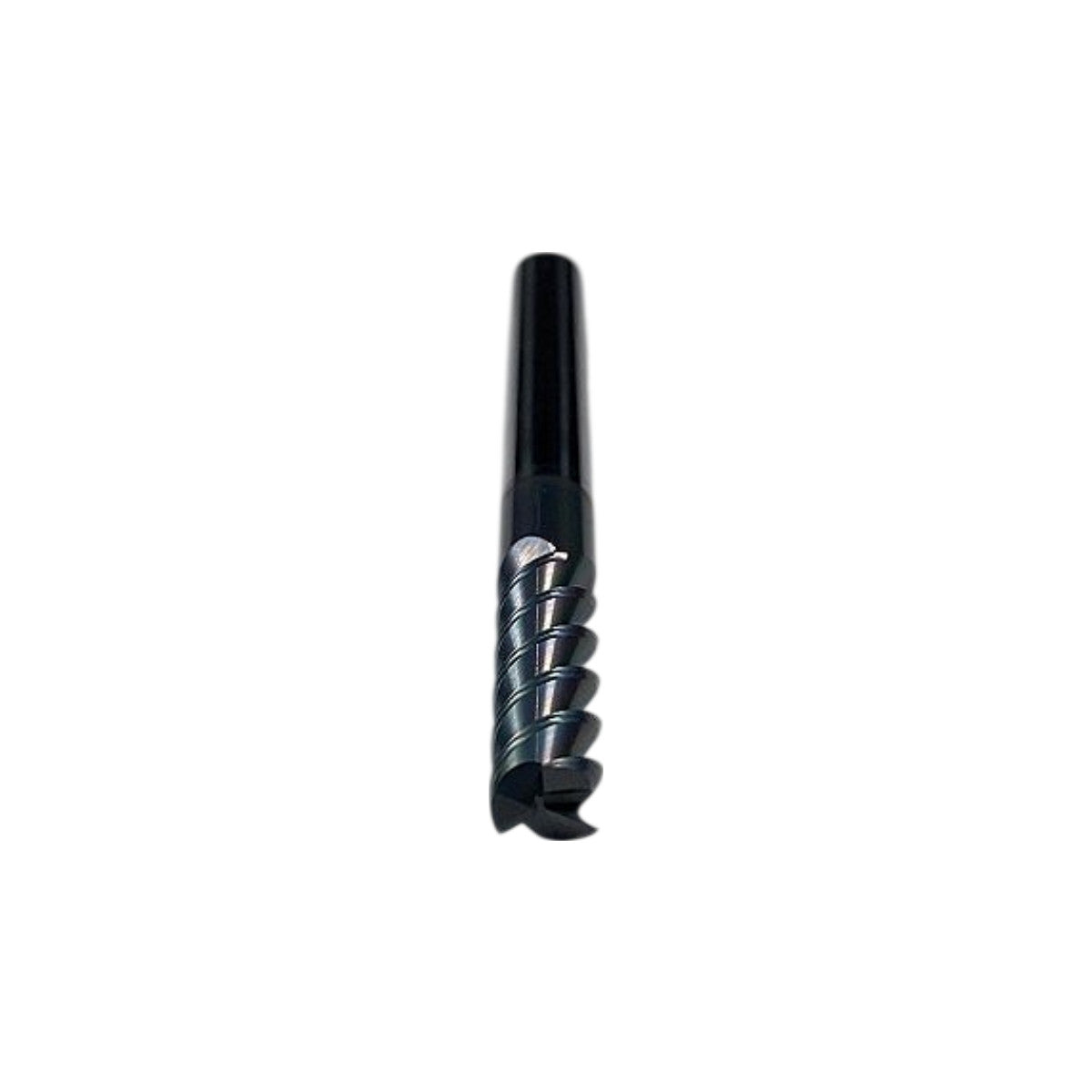

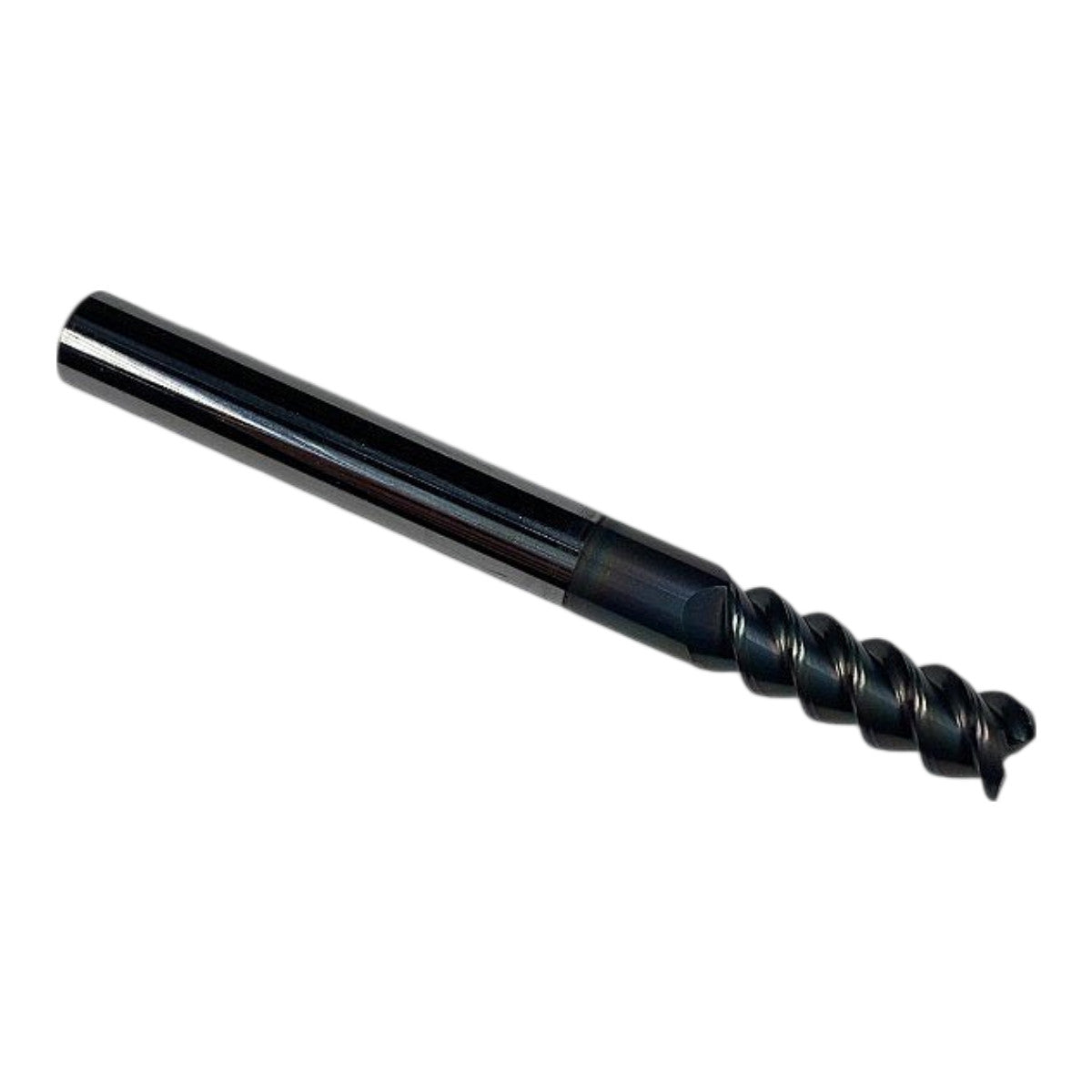

The Micro 100 SDH-250-03X is a new, solid submicron-grain carbide square end mill from Micro 100's "Super Drill/End Mill" (SDH) series, manufactured in the USA. Decoding the part number: SDH = Square end mill, Double-flute High-helix series; 250 = 0.250 in (1/4 in) cutting diameter; 03 = 3 flutes; X = extended length variant. The tool features a dark AlTiN (Aluminum Titanium Nitride) PVD coating, visible in the photos as the characteristic near-black finish, which provides superior hardness and oxidation resistance up to approximately 1,470°F, making it well-suited for dry or semi-dry machining of steels, stainless steels, and cast irons. The 1/4 in shank fits standard ER collets, end mill holders, and shrink-fit chucks. As an SDH-series tool, it is designed for high-feed, high-efficiency milling with a high helix angle that promotes efficient chip evacuation in ferrous materials.
Product Specifications
| Brand | Micro 100 |
| MPN | SDH-250-03X |
| Country of Manufacture | USA |
| Cutting Diameter | 0.250 in (1/4 in) |
| Number of Flutes | 3 |
| Shank Diameter | 0.250 in (1/4 in) |
| Series | SDH (Square End, High Helix) |
| Length Variant | Extended (X) |
| End Geometry | Square (Flat) |
| Material | Submicron-grain solid carbide |
| Coating | AlTiN (Aluminum Titanium Nitride) PVD |
| Helix Angle | High helix (~45°) |
| Compatible Toolholding | ER collets, end mill holders, shrink-fit |
| Condition | New |
