Micro 100 SEM-375-02 3/8 in 2-Flute AlTiN Carbide Square End Mill

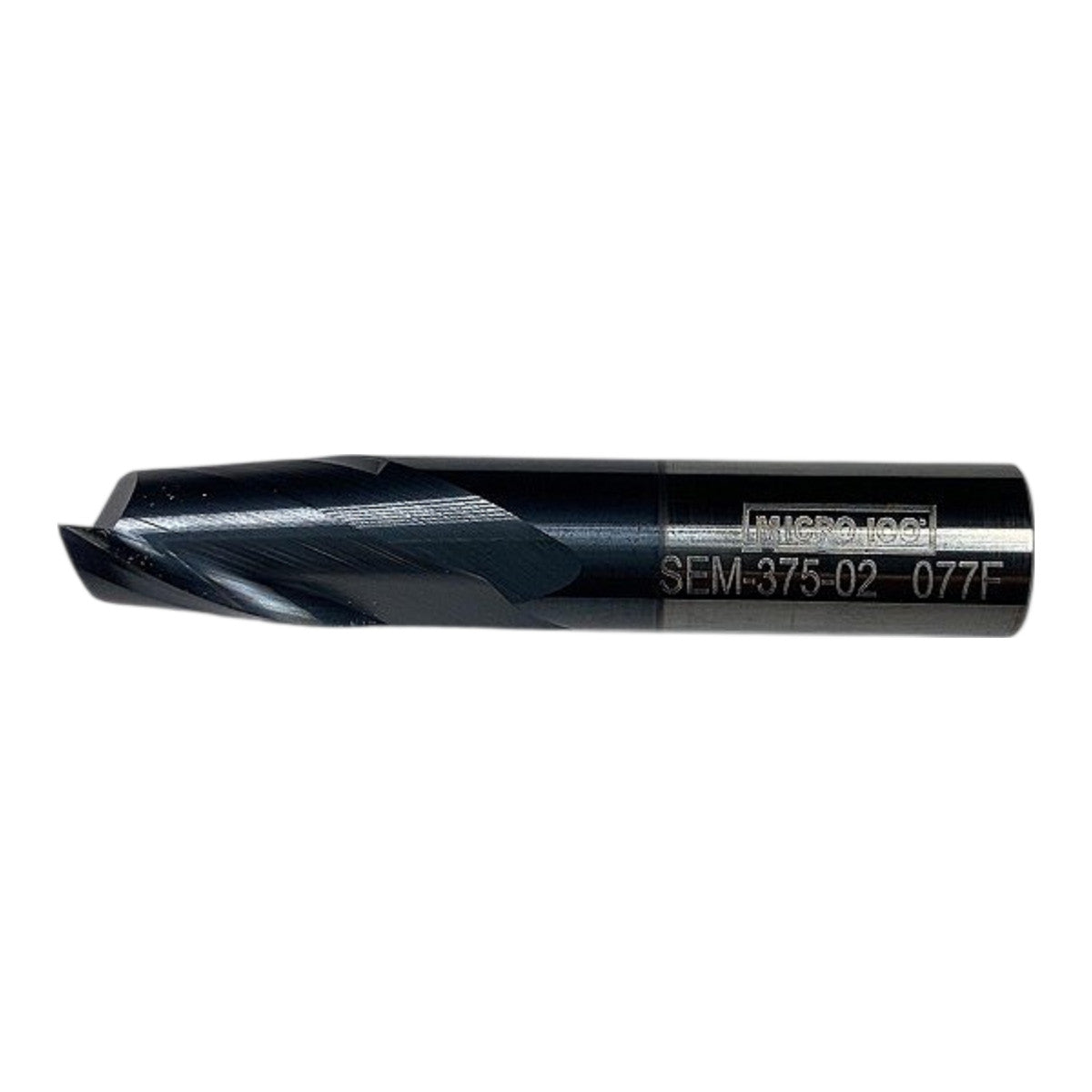

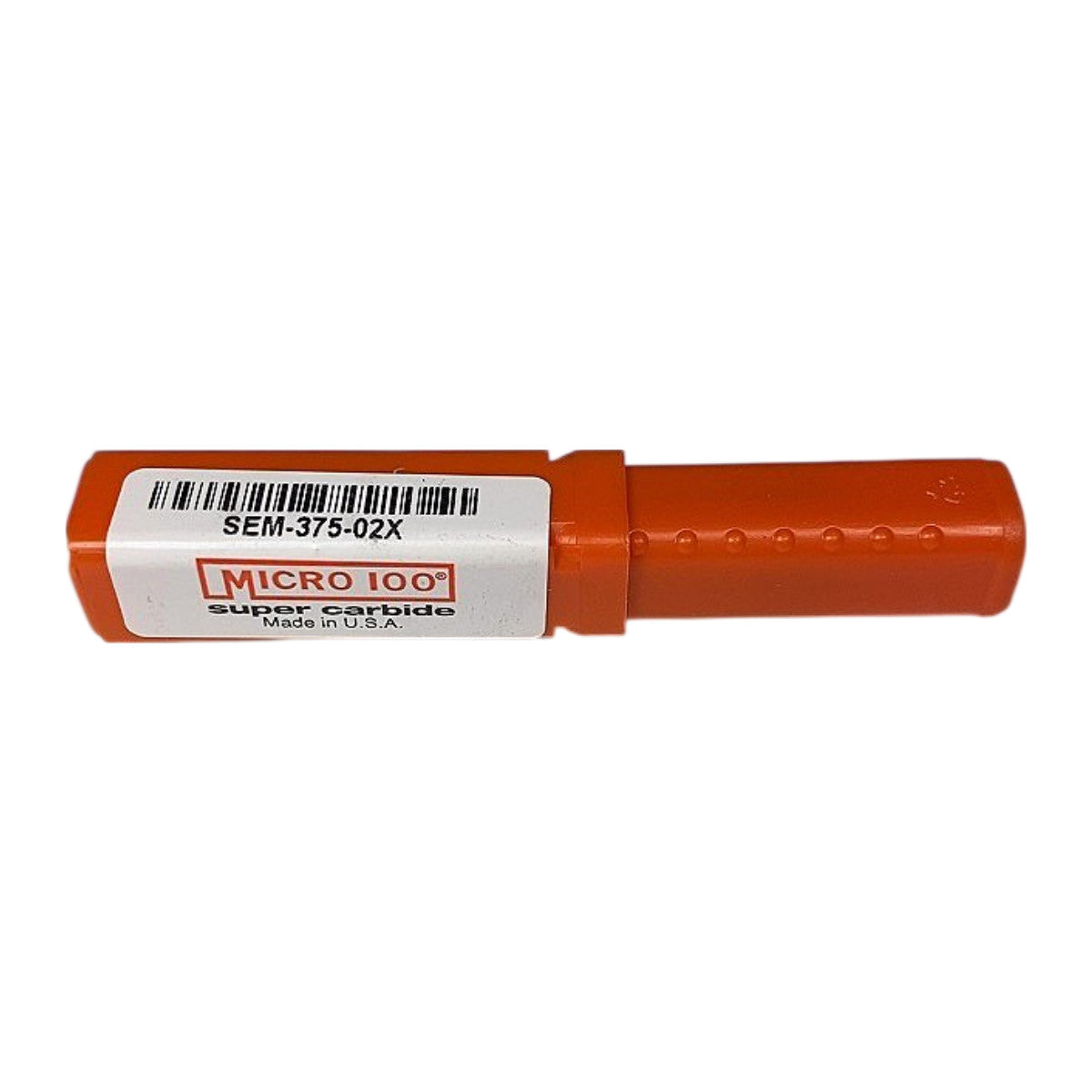

The Micro 100 SEM-375-02 is a new, USA-made solid carbide square end mill from Micro 100's "Super Carbide" line, ground from submicron-grain carbide for exceptional hardness and wear resistance. The part number decodes as follows: SEM = Square End Mill, 375 = 3/8 in (0.375 in) cutting diameter, 02 = 2 flutes; the "X" suffix on the packaging label (SEM-375-02X) denotes the AlTiN (Aluminum Titanium Nitride) PVD coating visible as the dark black-violet finish on the tool, which provides elevated hardness (~3200 HV), oxidation resistance up to ~1470°F, and reduced friction for dry or near-dry machining. This geometry features a square (flat) end profile, a standard 3/8 in shank diameter matching the cutting diameter, and a right-hand helix/cut suited for peripheral and slot milling in steels, stainless steels, cast iron, titanium, and high-temperature alloys. The tool is compatible with standard 3/8 in ER, Weldon, or set-screw toolholders and is manufactured to close tolerances expected of a precision USA-made carbide end mill.

Product Specifications
