Micro 100 SME-029-2X Tapered Reach 2-Flute Carbide End Mill
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

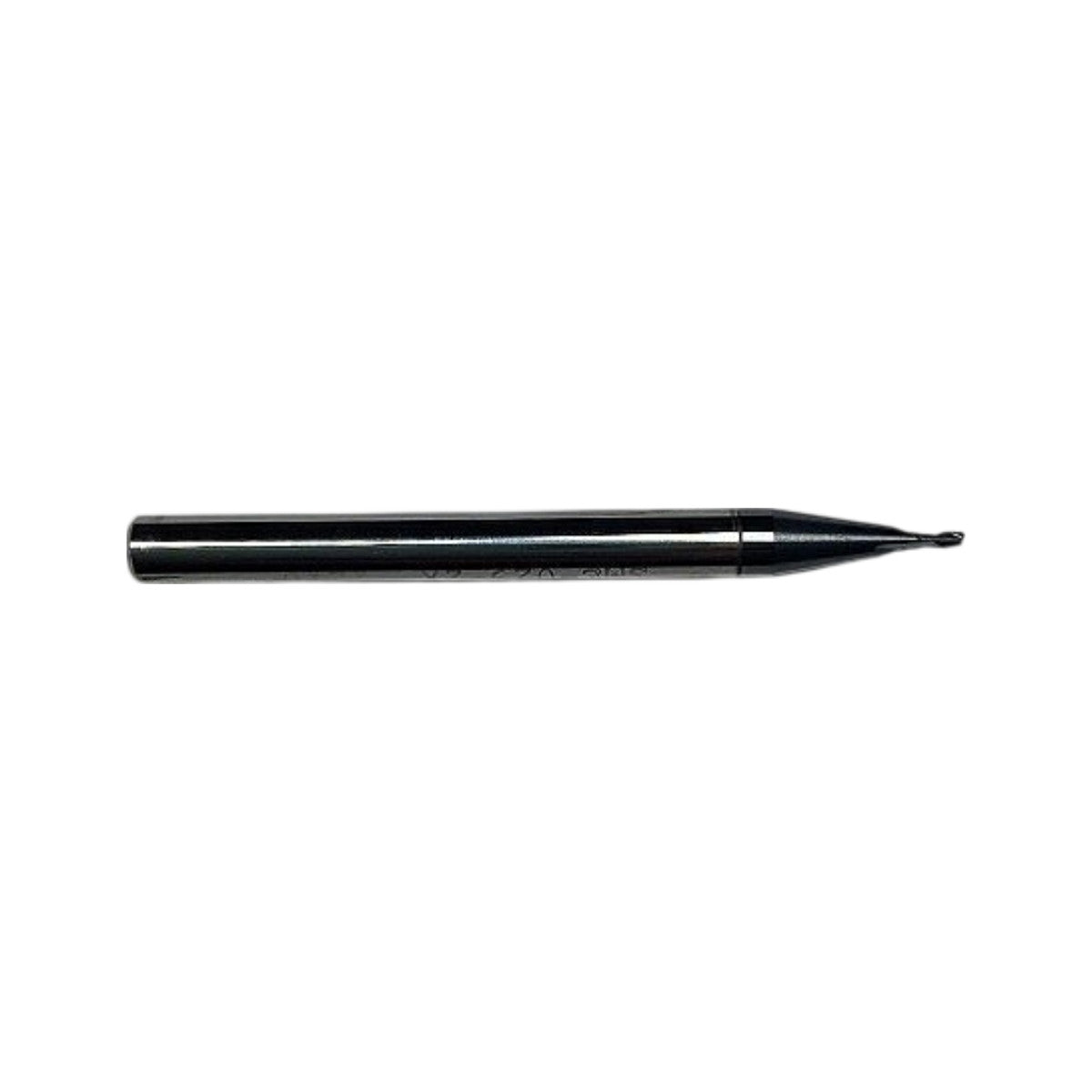

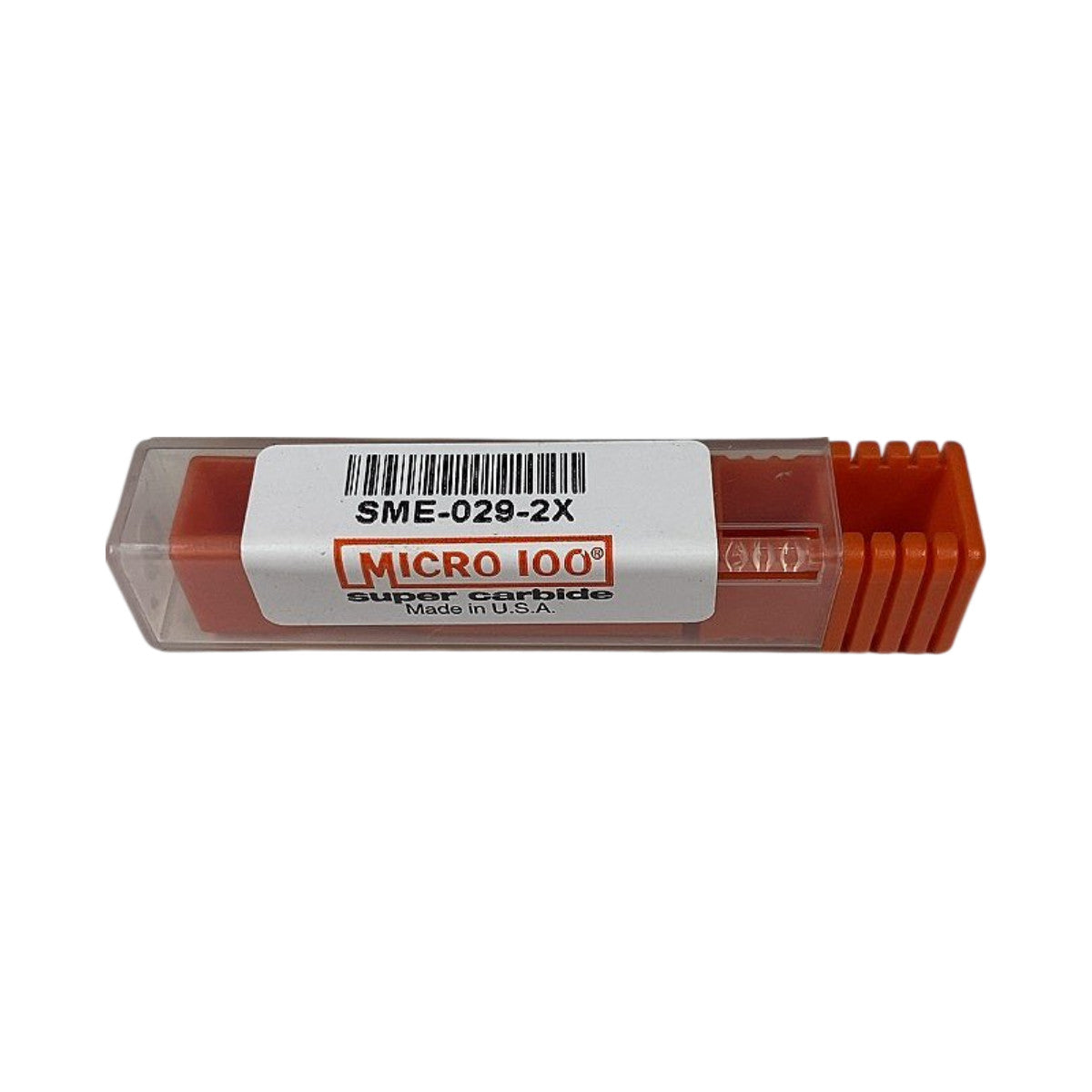

The Micro 100 SME-029-2X is a new, USA-made solid carbide square-end end mill from the SME (Square End — Extended Reach / Tapered Shank) series, featuring a 0.029" cutting diameter on a tapered-reach neck with a 2-flute geometry. Manufactured from Micro 100's proprietary "super carbide" submicron-grain tungsten carbide substrate and finished with a black AlTiN-style PVD coating visible in the photos, this tool is engineered for deep-reach slotting and profiling in tight-cavity and mold/die work. The tapered shank body reduces deflection at extended reach while maintaining clearance from workpiece walls, making it well-suited for machining hardened steels, stainless, titanium, and non-ferrous alloys in CNC milling centers. The 2-flute configuration optimizes chip evacuation in slot milling and is compatible with standard 1/8" or 3/16" collets depending on the shank diameter specified for this series.
Product Specifications
| Brand | Micro 100 |
| MPN | SME-029-2X |
| Series | SME (Square End, Extended/Tapered Reach) |
| Cutting Diameter | 0.029 in |
| Number of Flutes | 2 |
| End Type | Square (Flat) End |
| Reach Style | Tapered neck, extended reach |
| Material | Solid submicron-grain carbide |
| Coating | AlTiN-style PVD (black) |
| Country of Origin | USA |
| Condition | New |
