Micro 100 TMM-045075X Carbide Thread Mill 4-40 UNC AlTiN Coated
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

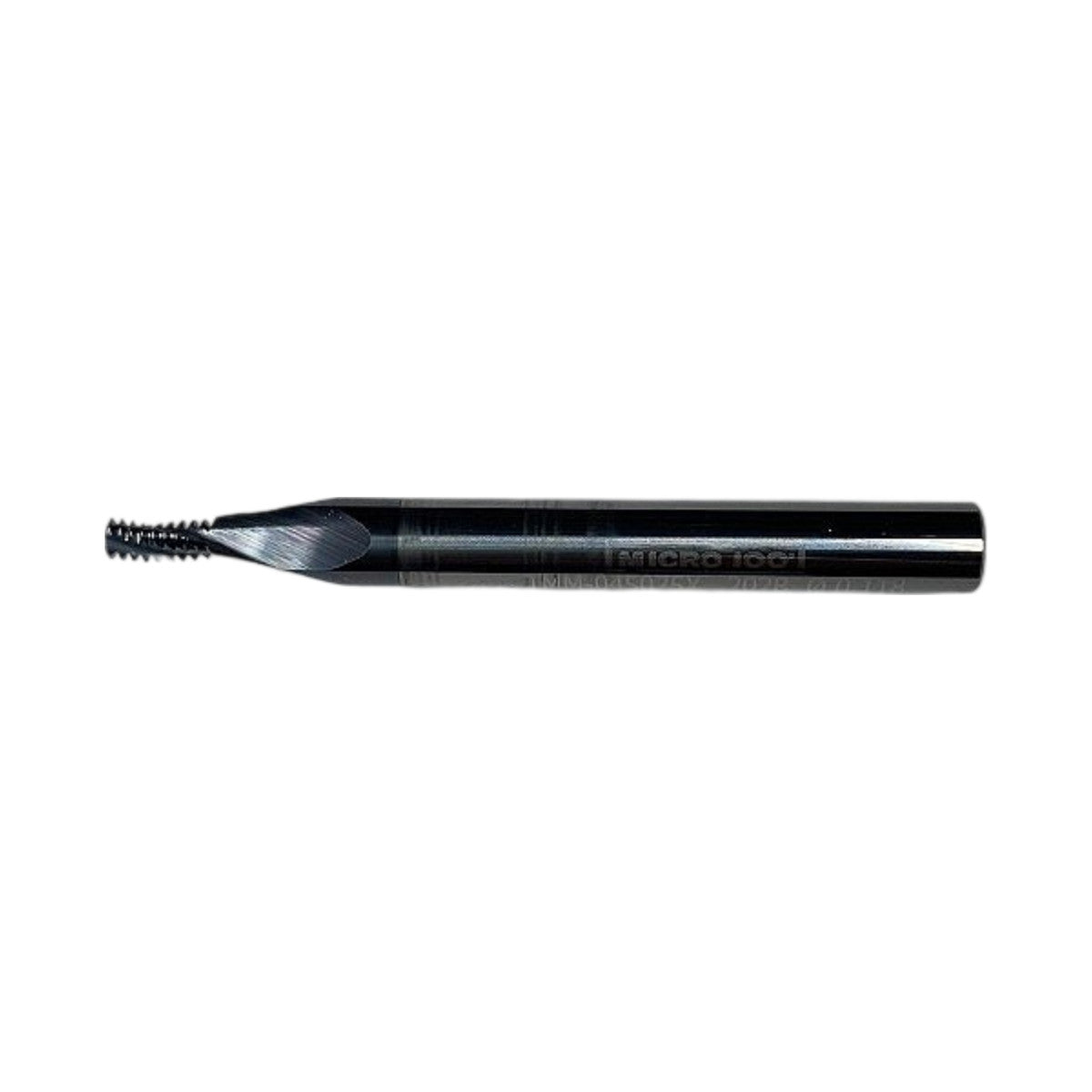

The Micro 100 TMM-045075X is a new, solid carbide single-form thread mill designed to cut 4-40 UNC internal threads in a single helical interpolation pass on a CNC machining center. The "X" suffix in the part number designates an AlTiN (aluminum titanium nitride) PVD coating, which is visible as the dark black finish on the tool body and cutting end; this coating provides increased hardness and heat resistance for improved tool life in steels, stainless, and aluminum. Decoded from the part number, "TMM" = Thread Mill Metric/Mini (Micro 100's multi-form mini thread mill series), "045" = 0.045 in cutting diameter, and "075" = 0.075 in shank diameter; the larger shank relative to the cutting head creates the stepped-down neck geometry clearly visible in the photos, maximizing rigidity while allowing reach into blind holes. This tool is made in the USA from Micro 100's proprietary "super carbide" substrate (per label) and is suited for use in CNC mills with helical interpolation capability; compatible with standard 3/32 in (0.075 in) round shank collet chucks or tool holders.
Product Specifications
| Brand | Micro 100 |
| MPN | TMM-045075X |
| Thread Size | 4-40 UNC |
| Thread Standard | UNC (Unified National Coarse) |
| Cutting Diameter | 0.045 in |
| Shank Diameter | 0.075 in |
| Coating | AlTiN (X suffix = AlTiN PVD) |
| Substrate | Solid Carbide (Super Carbide) |
| Tool Type | Single-Form Thread Mill |
| Shank Style | Straight / Reduced Neck |
| Country of Origin | USA |
| Condition | New |
