Miller MTL-OHS1-71/9FT TurboLite Scorpion 9ft Self-Retracting Fall Limiter

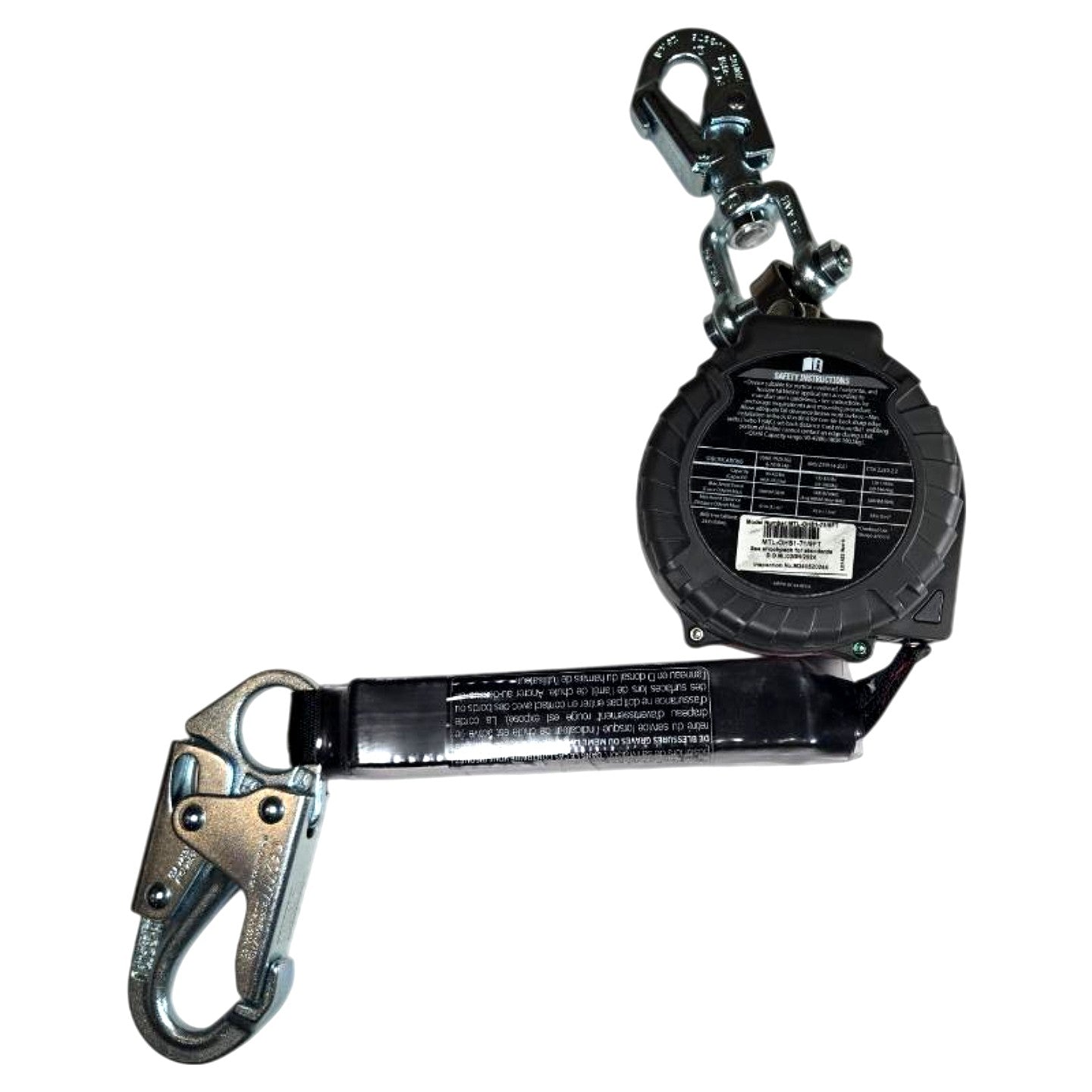

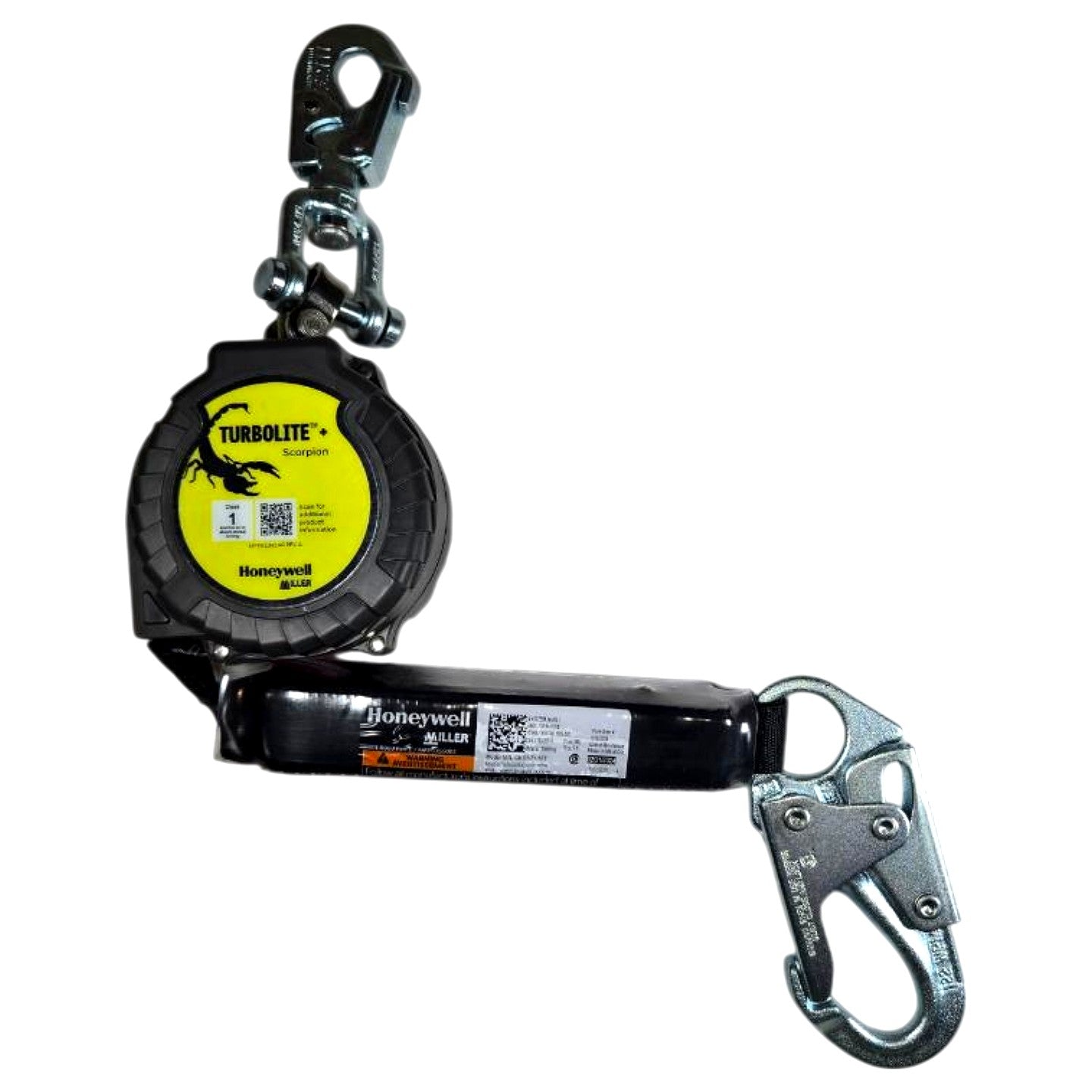

The Honeywell Miller MTL-OHS1-71/9FT is a new TurboLite+ Scorpion personal fall limiter (PFL) featuring a 9-foot retractable web lifeline housed in a lightweight thermoplastic resin casing with a swivel anchorage connector at the top and a snap hook at the harness end. The anchorage end is equipped with a self-locking, swiveling steel snap hook rated for overhead horizontal and vertical anchorage points, while the user end terminates in a steel rebar hook designed for D-ring connection on a full-body harness dorsal ring. The unit is designed to arrest a fall with minimal free fall distance and reduced arrest forces compared to a standard shock-absorbing lanyard, meeting OSHA 29 CFR 1926.502 and ANSI/ASSP Z359.14 standards for Class 1 (1-person) self-retracting lanyards. The model designation MTL-OHS1-71/9FT decodes as: Miller TurboLite (MTL), overhead horizontal/swing-fall rated (OHS), single-leg (1), Series 7 housing, 1-person capacity, 9-foot web length. Suitable for construction, steel erection, concrete work, and general industry applications where overhead or horizontal anchorage is present.
