Millstar HFM4-08-HSN 8mm 4-Flute Carbide Hi-Feed Square End Mill
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

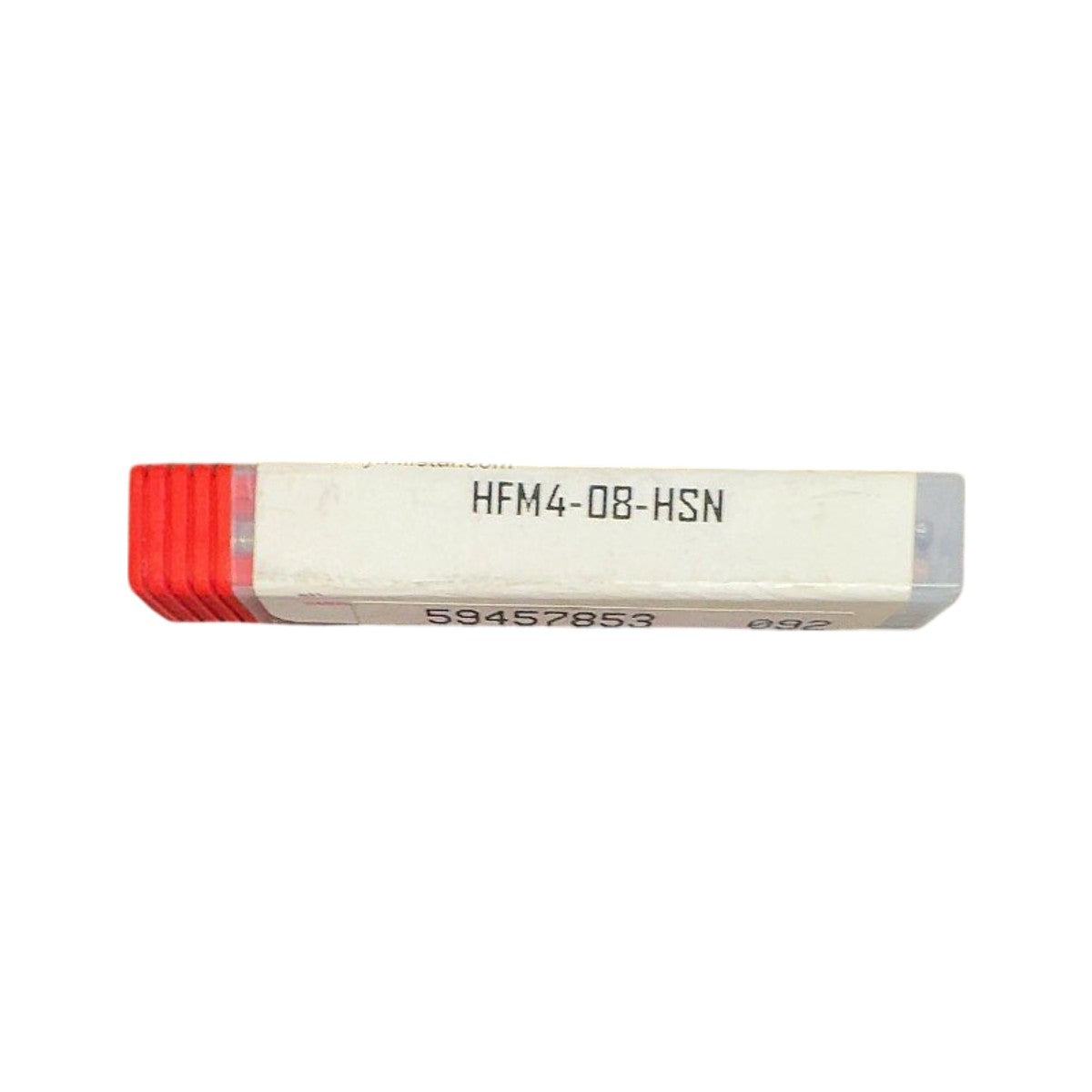

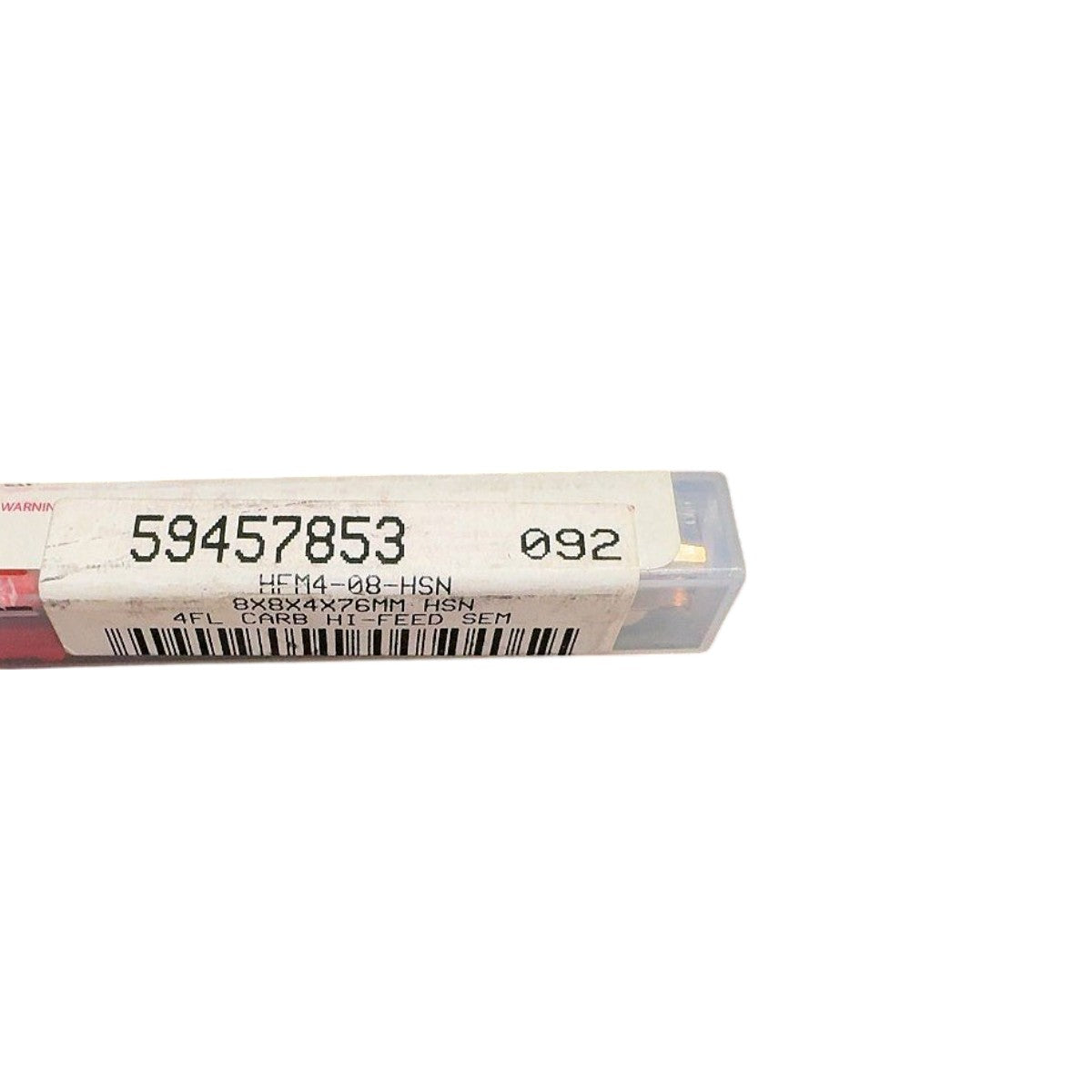

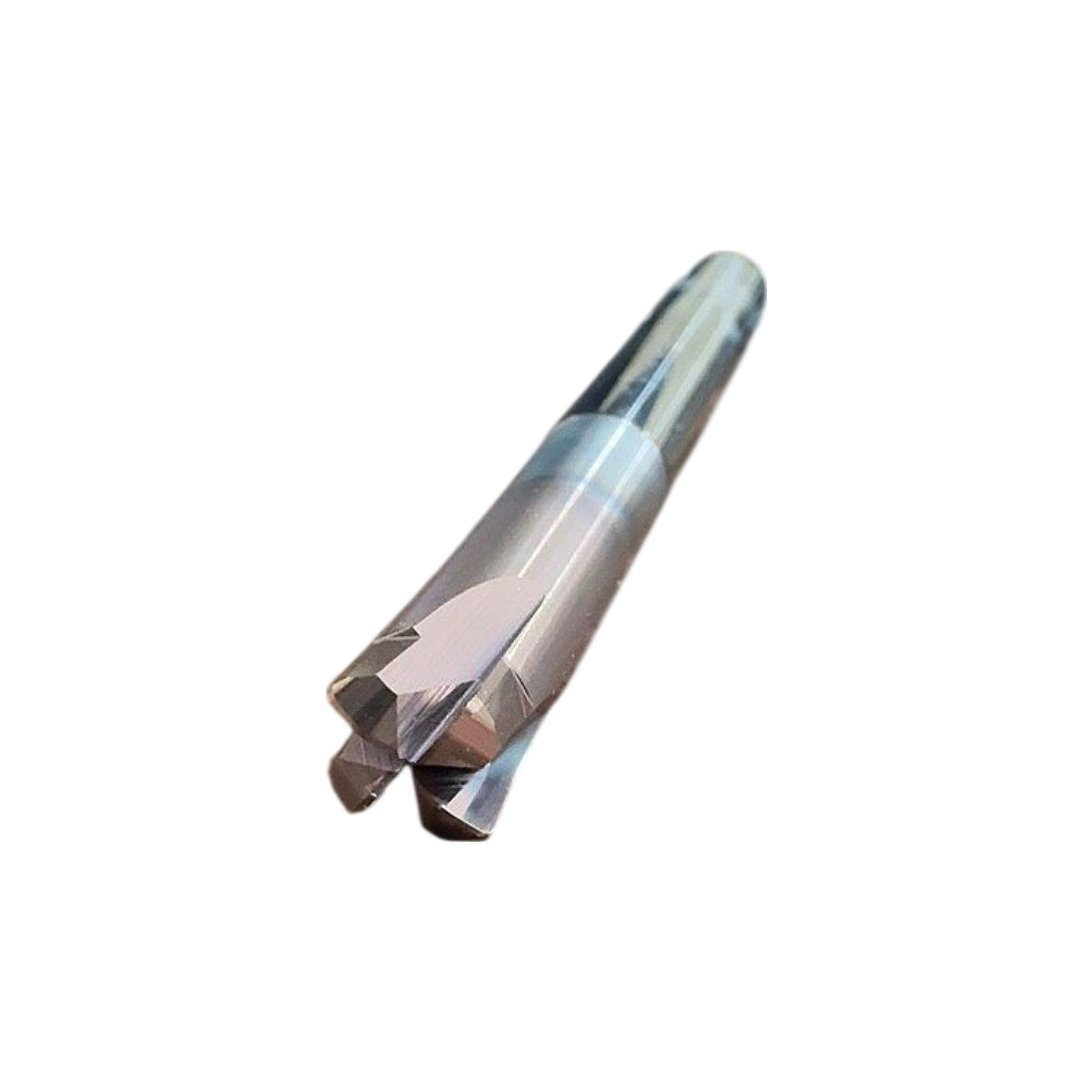

The Millstar HFM4-08-HSN is a new, solid carbide 4-flute high-feed end mill in the HFM (High-Feed Mill) series, sized 8mm cutting diameter × 8mm shank diameter × 4mm cutting length × 76mm overall length, as confirmed directly on the package label ("8X8X4X76MM"). The tool features Millstar's HSN (High-Speed Nanocomposite) PVD coating — a nano-structured TiSiN/TiAlN multilayer coating engineered for elevated hardness, heat resistance, and extended tool life in high-speed, high-feed machining strategies. The geometry employs a low lead angle (high-feed / trochoidal milling geometry) with four flutes, enabling aggressive feed rates at shallow depths of cut (ap), minimizing radial cutting forces and reducing deflection — making it well-suited for machining hardened steels, stainless steels, and difficult-to-cut alloys. It accepts a standard 8mm collet or milling chuck (ER11/ER16/ER20 compatible) and is designed for use in CNC machining centers running high-feed milling strategies.
Product Specifications
| Brand | Millstar |
| MPN | HFM4-08-HSN |
| Series | HFM (High-Feed Mill) |
| Cutting Diameter | 8 mm |
| Shank Diameter | 8 mm |
| Cutting Length (LOC) | 4 mm |
| Overall Length (OAL) | 76 mm |
| Number of Flutes | 4 |
| End Geometry | Square (Flat) End |
| Tool Material | Solid Carbide |
| Coating | HSN (High-Speed Nanocomposite PVD) |
| Milling Style | High-Feed (Hi-Feed) |
| Shank Type | Straight Shank |
| Condition | New |
