Mitsubishi CNMA120408 MC5005 CNMA432 Coated Carbide Turning Insert (10 pcs)
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

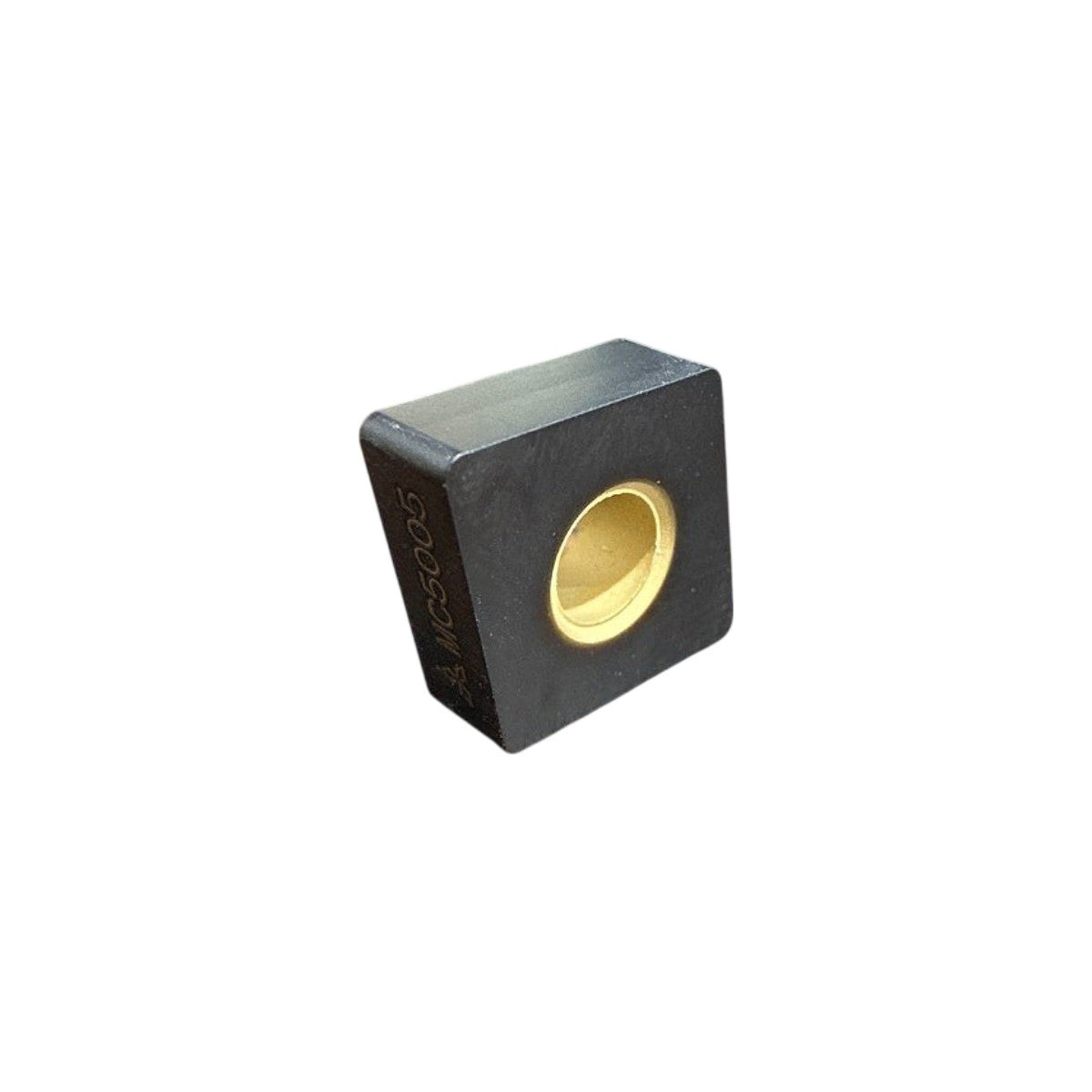

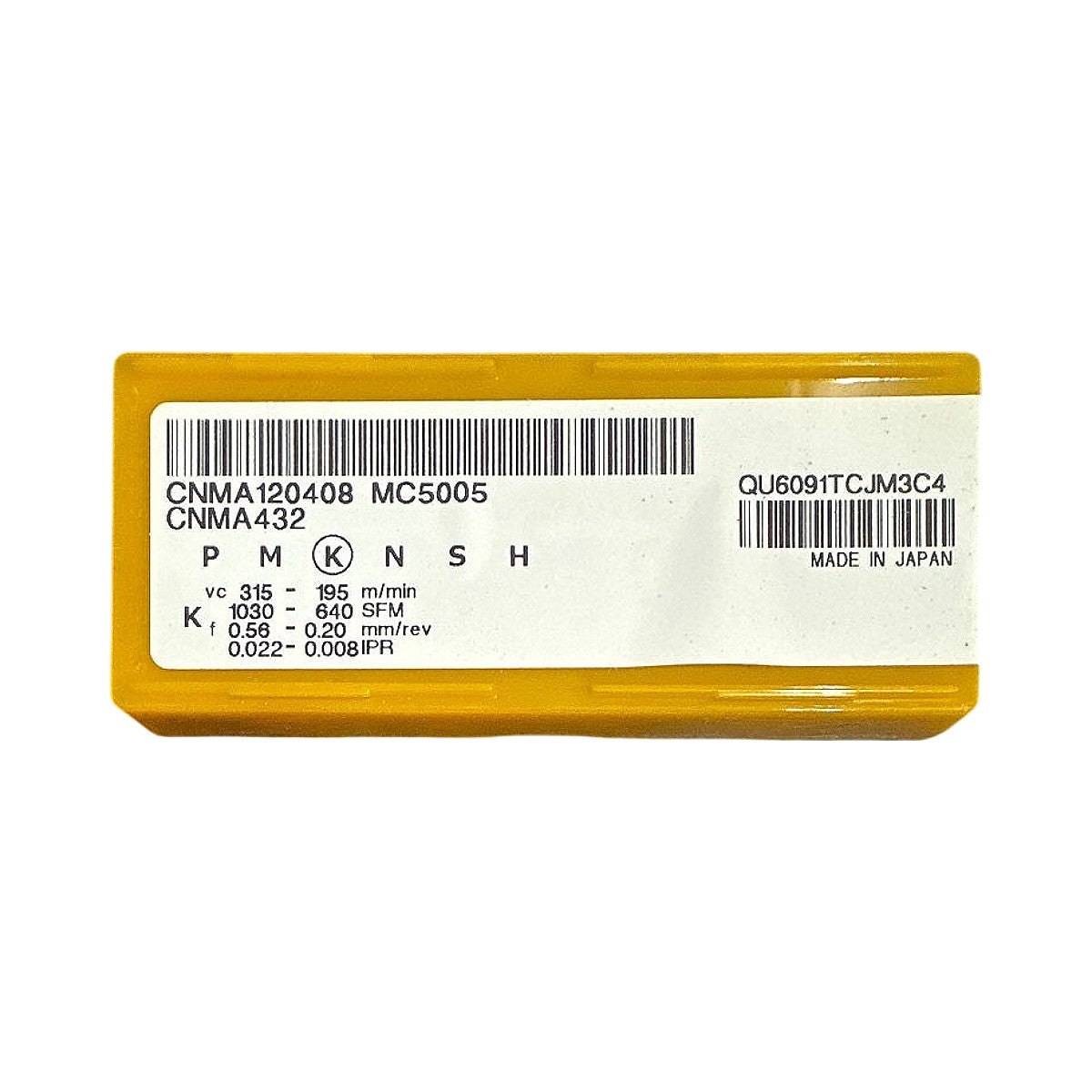

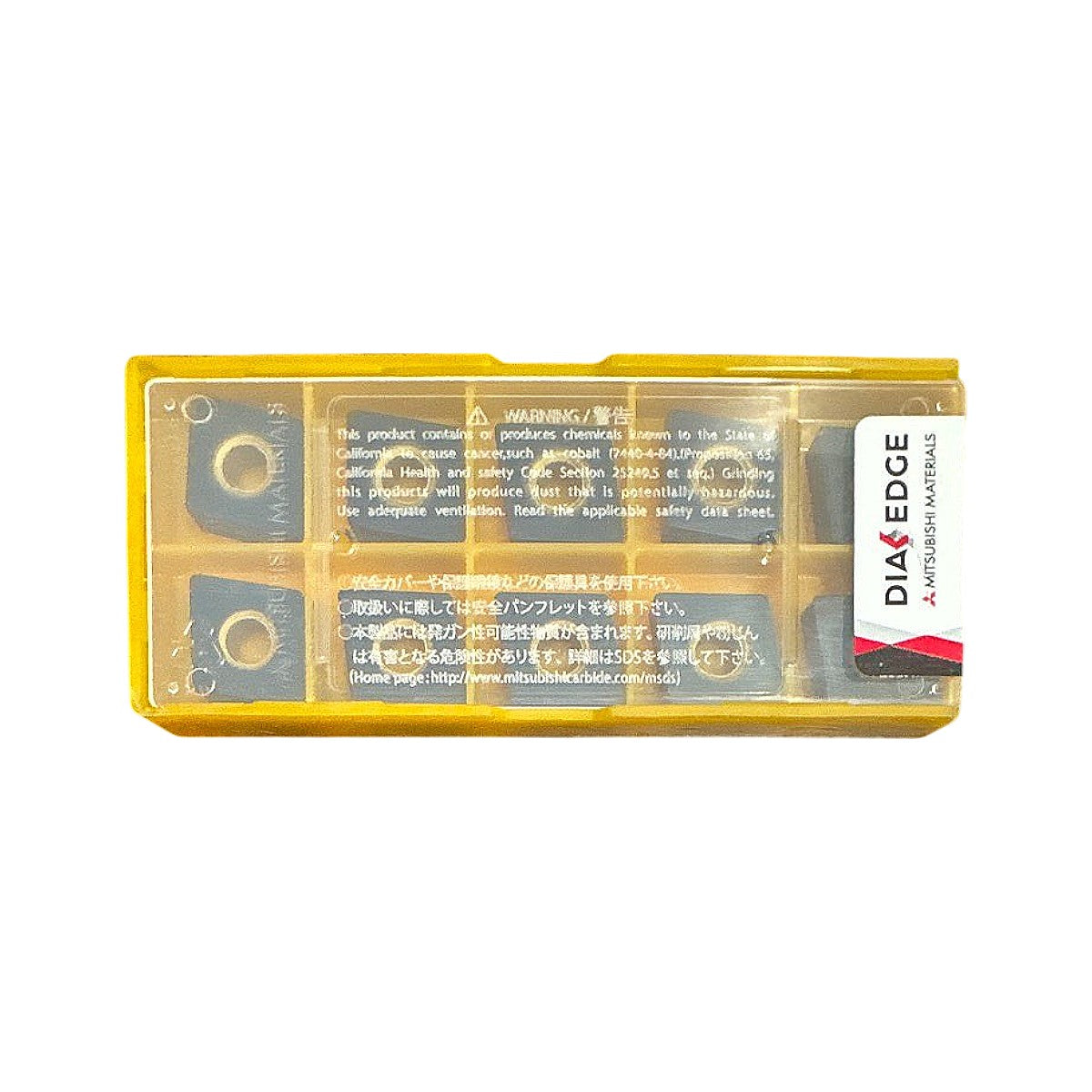

This Mitsubishi Materials DIAEDGE CNMA120408 (ANSI CNMA432) negative-rake turning insert is in MC5005 grade, a coated grade made for turning cast iron (ISO K), as marked on the package with the K application circled. The designation decodes to an 80-degree rhombic (C) shape, 0 degree clearance (N), M-class tolerance, a cylindrical hole with no chipbreaker (A), 12 mm cutting edge length, 4.76 mm (3/16 in) thickness and 0.8 mm (1/32 in) nose radius. Package-printed cutting data for ISO K lists 195-315 m/min (640-1030 SFM) at 0.20-0.56 mm/rev (0.008-0.022 IPR). Made in Japan and supplied new in the original Mitsubishi case with multiple inserts; fits holders for CN-style negative 80-degree inserts with a center hole.
Product Specifications
| Brand | Mitsubishi Materials |
| Series | DIAEDGE |
| MPN | CNMA120408 MC5005 |
| ANSI Designation | CNMA432 |
| Grade | MC5005 |
| Insert Shape | C (80 Degree Rhombic) |
| Clearance Angle | N (0 Degree) |
| Tolerance Class | M |
| Hole/Chipbreaker Type | A (Cylindrical Hole, No Chipbreaker) |
| Cutting Edge Length | 12 mm |
| Thickness | 4.76 mm (3/16 in) |
| Nose Radius | 0.8 mm (1/32 in) |
| Insert Material | Carbide |
| Coating | Coated |
| Operation | Turning |
| Workpiece Material | ISO K (Cast Iron) |
| Cutting Speed (vc) | 195-315 m/min (640-1030 SFM) |
| Feed Rate (f) | 0.20-0.56 mm/rev (0.008-0.022 IPR) |
| Rake | Negative |
| Country of Origin | Japan |
