Mitsubishi CTAHR-062S Dia-Edge 3/8in Shank RH Grooving Toolholder

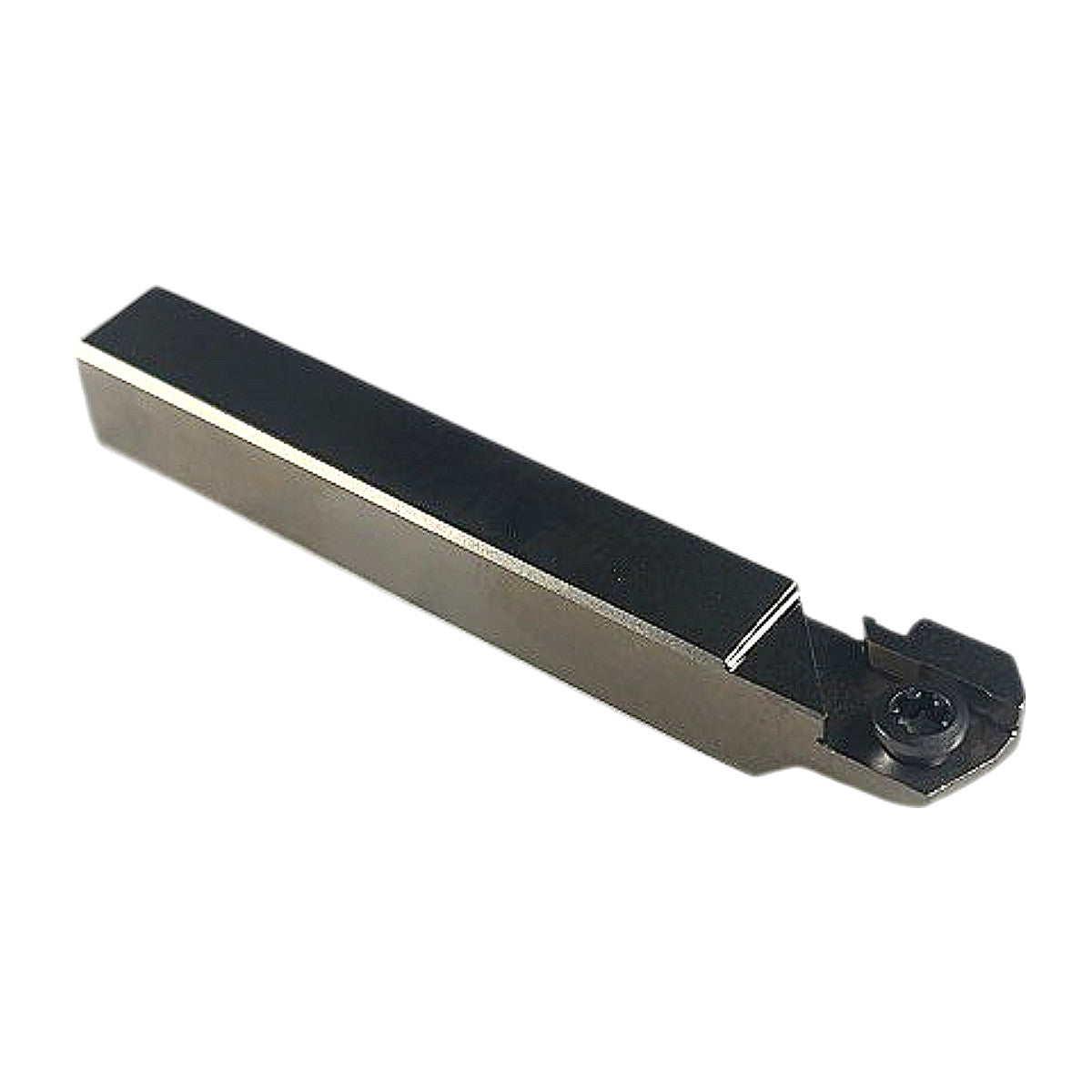

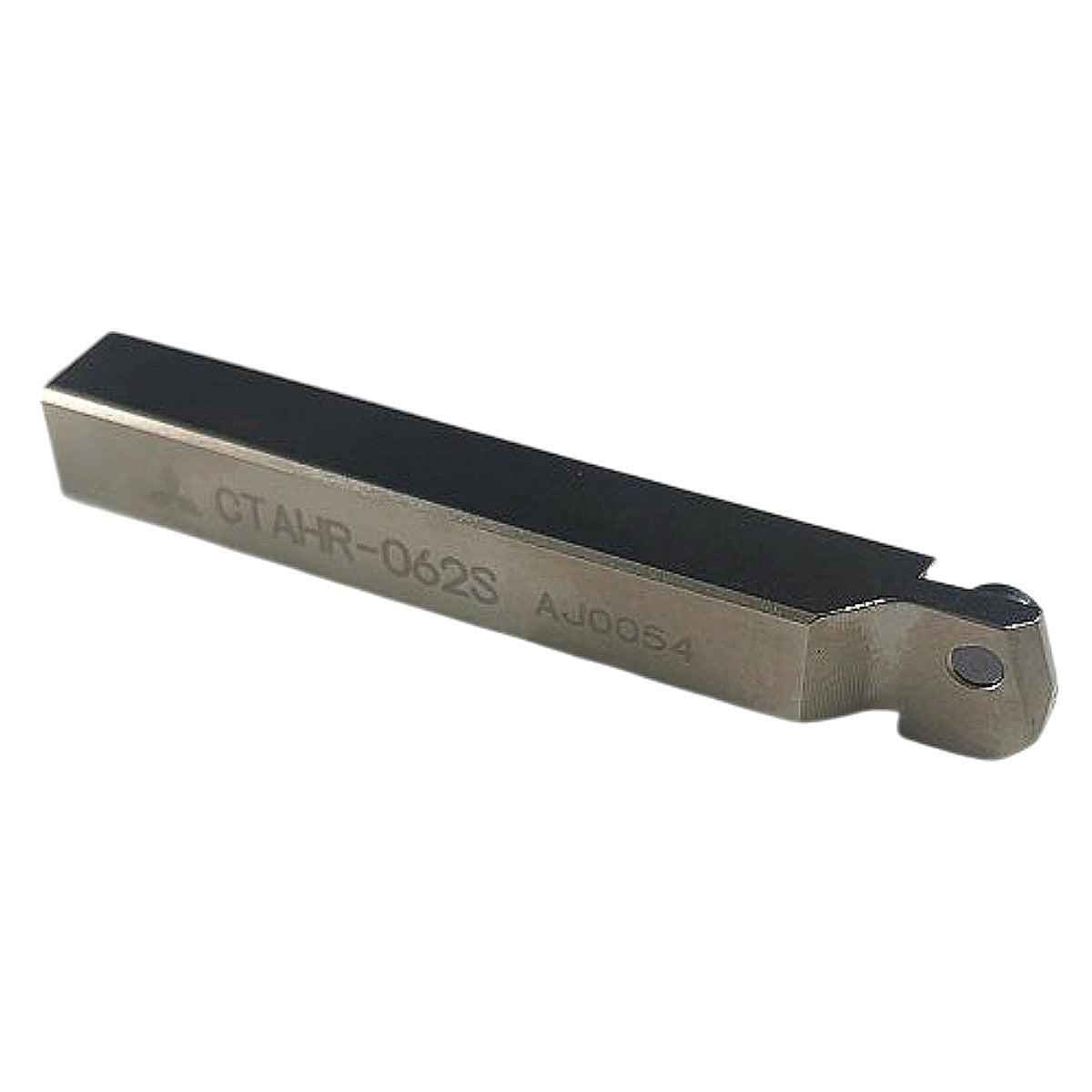

The Mitsubishi Materials CTAHR-062S is a new, right-hand straight-shank external grooving and cutoff toolholder from the Dia-Edge product line, designed to accept GBA / GTR-series grooving inserts. Decoding the part number: CT = Clamp-type toolholder for GBA grooving inserts; A = straight shank (no offset); H = right-hand cutting direction; R = right-hand orientation confirmation; 062 = 3/8 in (0.625 in) square shank; S = metric insert size designation for the GBA 32-series insert width. The holder body is precision-ground steel with a black-oxide-finished top face and a bright shank, using a top-clamp / screw-on clamping mechanism (torx screw visible in photos) to secure the single-sided grooving insert firmly against the hardened seat. This toolholder is made in Japan, as confirmed by the box label, and is sold individually in Mitsubishi's standard retail packaging. Compatible inserts include Mitsubishi GBA32R/L and GTR32-series grooving/cutoff inserts; intended for use on CNC and manual lathes in external grooving, parting, and face-grooving operations on steel, stainless, cast iron, and non-ferrous materials.

Product Specifications
