Mitsubishi DCGT070201-FJ VP10RT 55° Diamond Carbide Turning Insert (10pc)
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

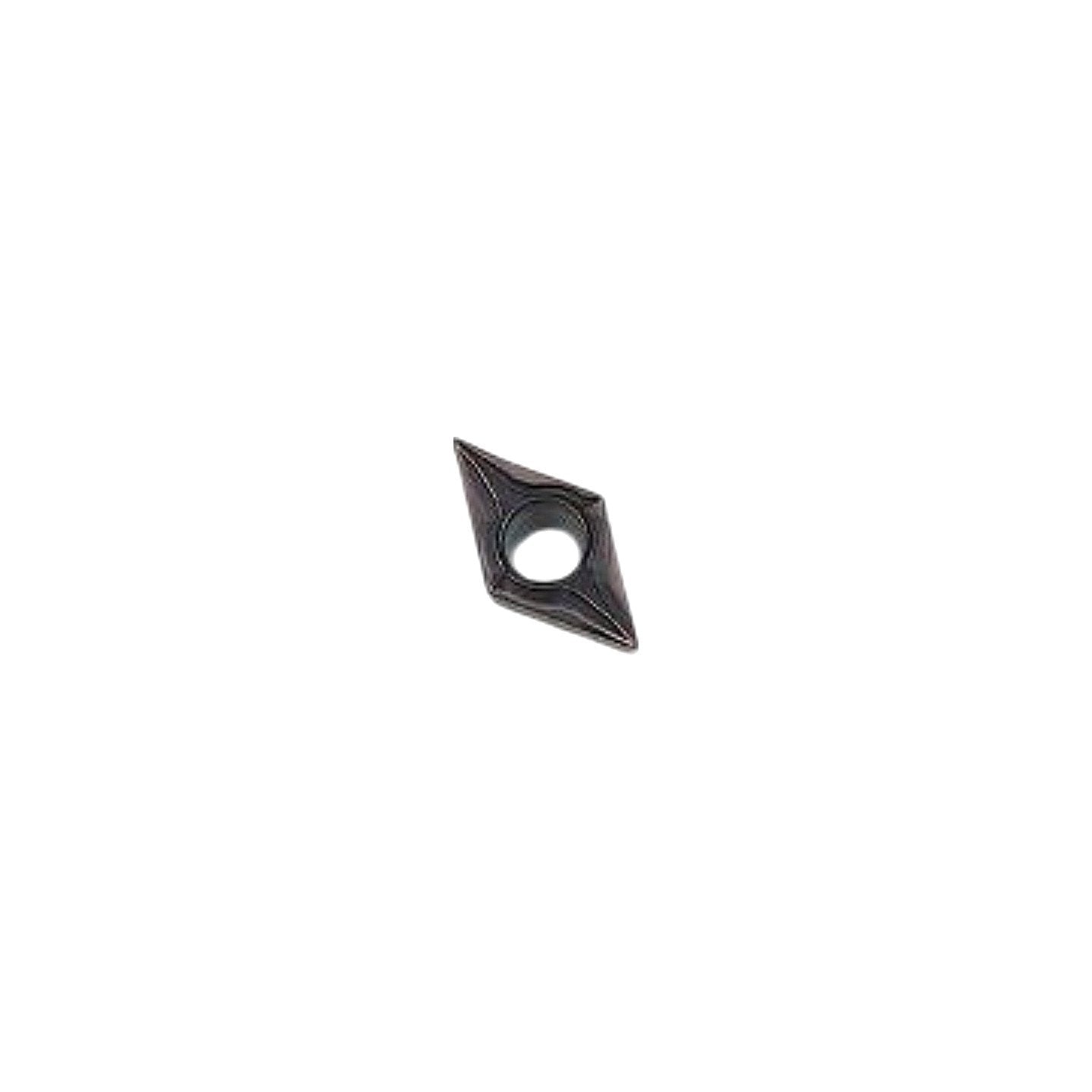

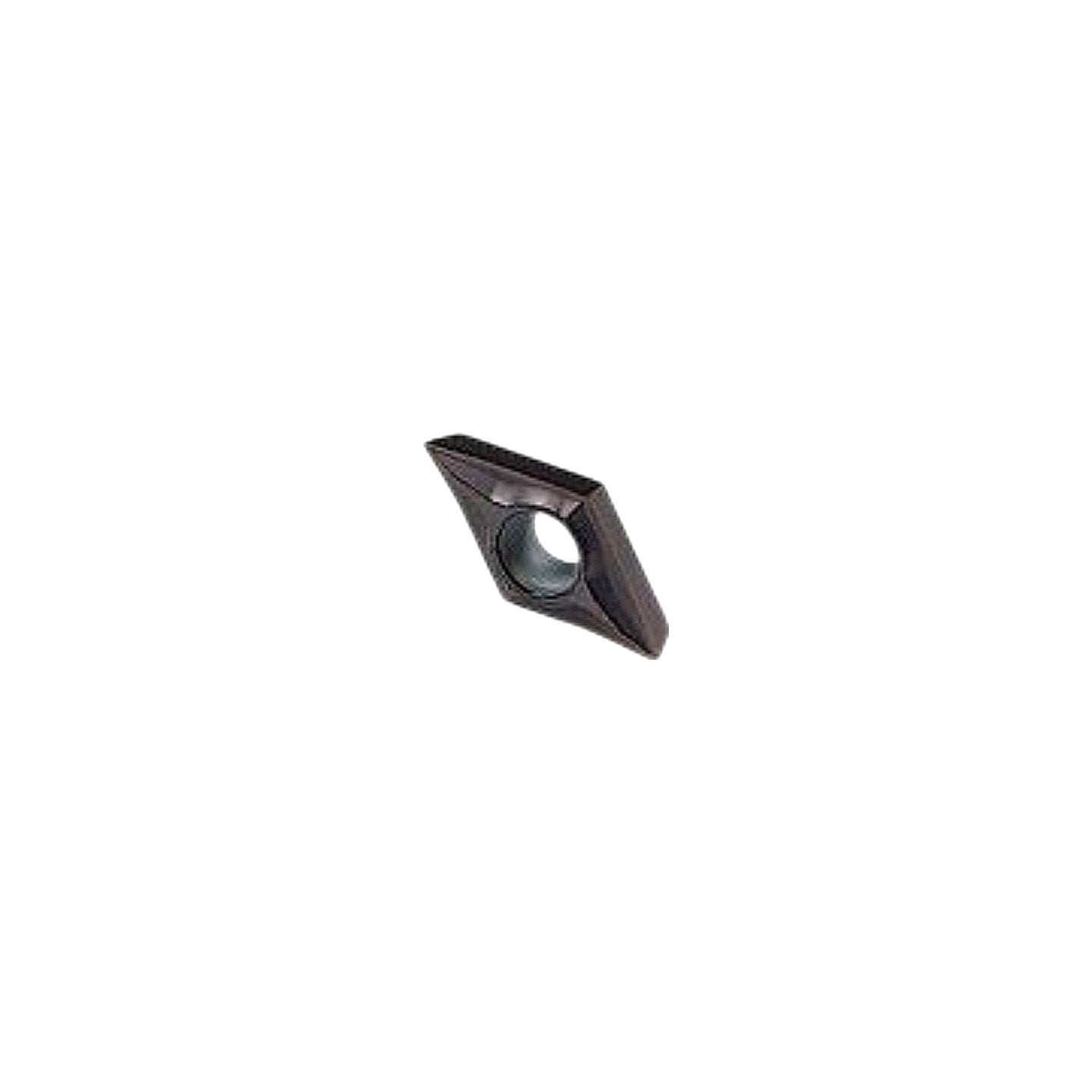

The Mitsubishi Materials DCGT070201-FJ VP10RT is a new, 55° diamond-shaped (D) positive-rake carbide turning insert in Mitsubishi's Dia-Edge line, conforming to ISO designation DCGT21.50.2FJ. The VP10RT grade is an uncoated ultra-fine grain cemented carbide specifically engineered for finishing and super-finishing of non-ferrous metals — primarily aluminum, copper, and brass alloys — where a sharp, honed edge and excellent surface finish are required. The insert geometry features a 7° clearance angle (C), ground-precision tolerance (G), with a T-type (top) chipbreaker and central mounting hole; the FJ chipbreaker geometry is optimized for low cutting forces and superb chip control at light depths of cut (ap ≤ 1.0 mm) and fine feeds. Each box contains 10 inserts and is compatible with SDJC/SDDC-style toolholders accepting DCGT 07 02 inserts (e.g., Mitsubishi SDJCL/R 10K-07 series). Made in Japan.
Product Specifications
| Brand | Mitsubishi Materials / Dia-Edge |

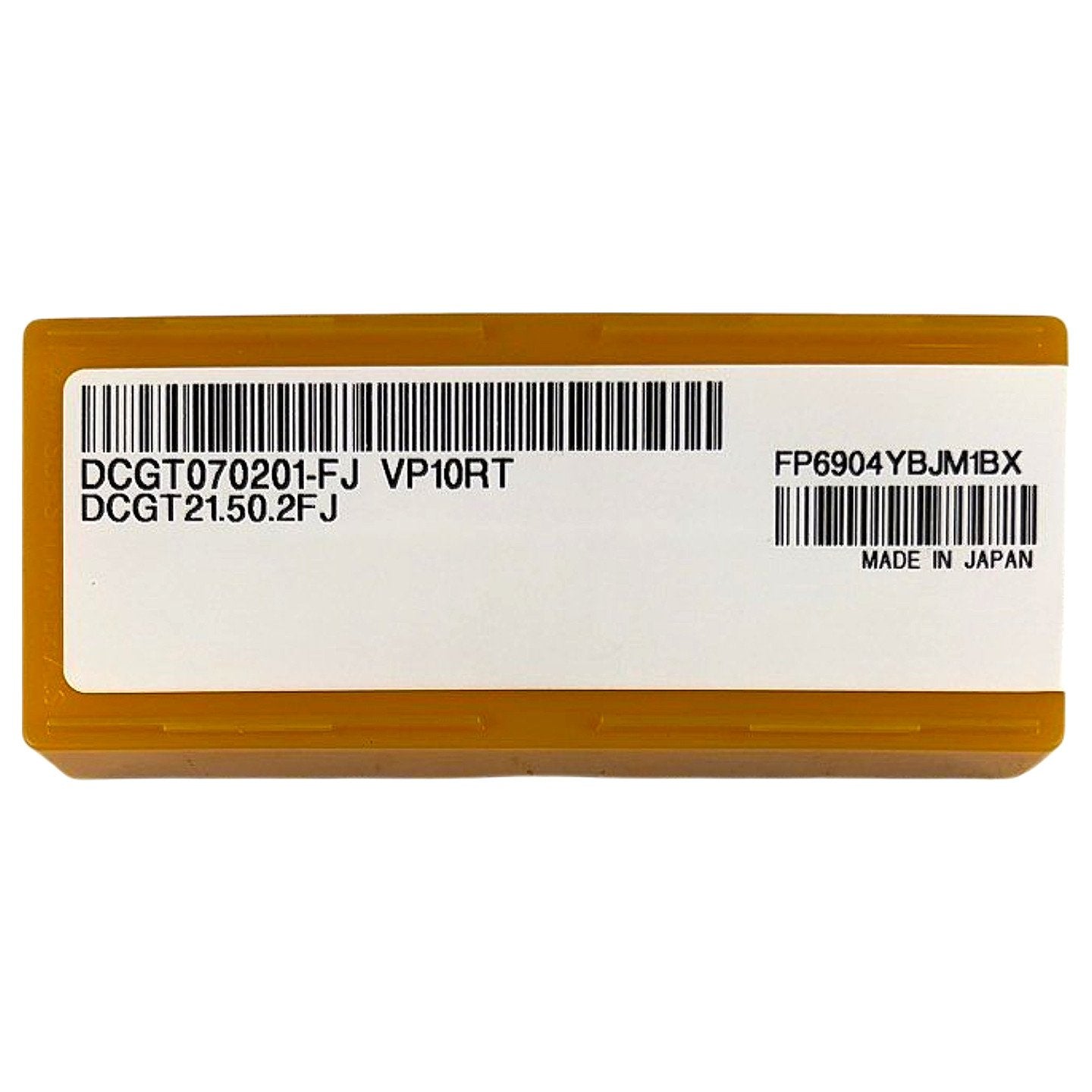

| MPN | DCGT070201-FJ VP10RT |
| ISO Designation | DCGT 21.50.2 FJ |
| Insert Shape | D – 55° Diamond |
| Clearance Angle | C – 7° positive |
| Tolerance Class | G – Precision ground |
| Chipbreaker | FJ – Finishing, low cutting force |
| Inscribed Circle (IC) | 7.0 mm (0.275 in) |
| Insert Thickness (S) | 2.38 mm (3/32 in) |
| Nose Radius | 0.2 mm (0.008 in) |
| Grade | VP10RT |
| Grade Material | Ultra-fine grain uncoated carbide |
| Application Material | Non-ferrous metals (aluminum, copper, brass) |
| Cutting Operation | Finishing / Super-finishing |
| Hole Type | Central cylindrical hole |
| Number of Cutting Edges | 2 |
| Country of Origin | Japan |

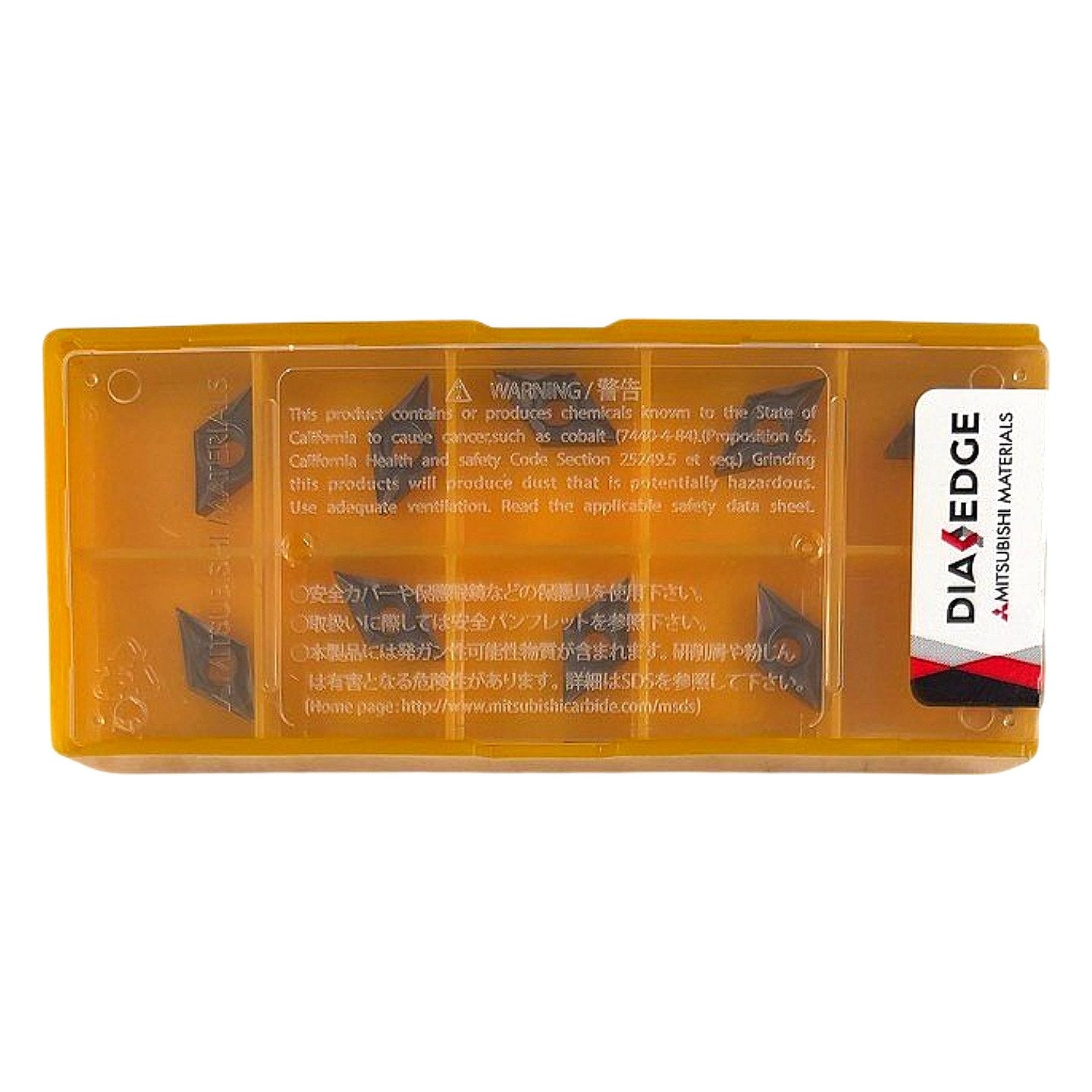

| Quantity per Box | 10 inserts |
| Compatible Toolholder Style | SDJC / SDDC style, 07 02 pocket |
