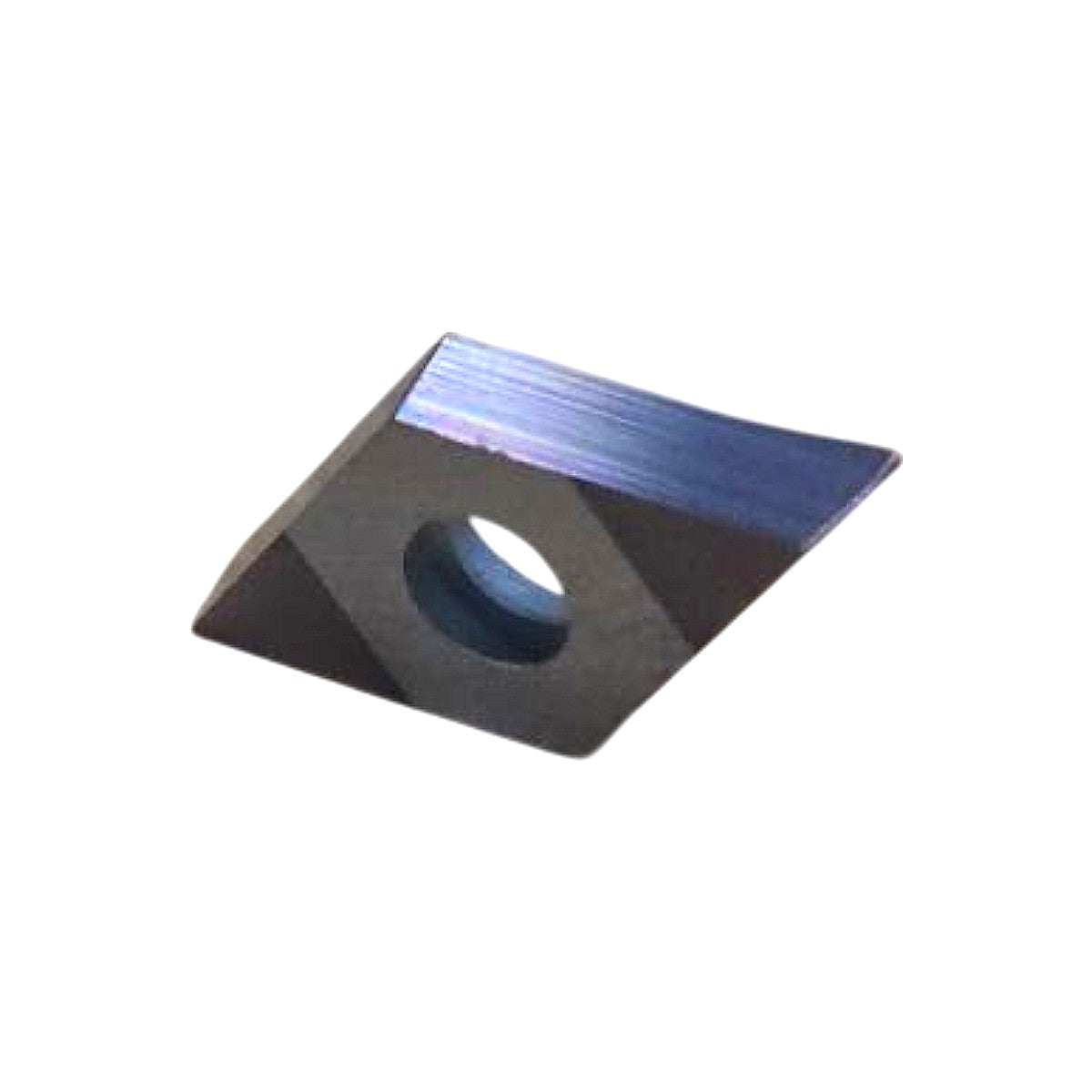

Mitsubishi DCGT070202-FJ VP10RT PVD Carbide Turning Insert (10 Pcs)

The Mitsubishi Materials DCGT070202-FJ VP10RT is a 55° diamond-shaped (D) PVD-coated carbide turning insert in the Dia-Edge product line, designed for precision finish turning of stainless steel (ISO M), heat-resistant superalloys (ISO S), and non-ferrous materials. Decoded per ISO 1832: D = 55° rhombic shape, C = 7° clearance angle, G = ±0.025 mm / ±0.013 mm tolerance class, T = with chipbreaker/top clamp hole, 07 = 7.94 mm inscribed circle (IC), 02 = 2.38 mm thickness, 02 = 0.2 mm nose radius, FJ = Mitsubishi's flat chipbreaker geometry optimized for light finishing cuts with excellent surface finish on stainless and superalloys. The VP10RT carbide grade features a fine-grain substrate with a PVD (TiAlN-based) coating that provides high toughness, sharp cutting edge retention, and superior resistance to chipping and built-up edge at the low-to-moderate cutting speeds typical of heat-resistant alloy machining. Compatible toolholders use DCLNR/L, SDJCR/L, or equivalent 55° diamond-seat holders requiring DCGT-style inserts with a top-clamping hole; the metric equivalent designation DCGT21.50.5FJ confirms the 21.5 mm × 0.5 mm size/nose radius per metric ISO coding. This listing is new, factory-sealed in the original Mitsubishi Dia-Edge amber plastic box, 10 pieces per package, made in Japan.

Product Specifications
