Mitsubishi DCGT11T308-MJ VP10RT Carbide Turning Insert (10 Pcs)
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

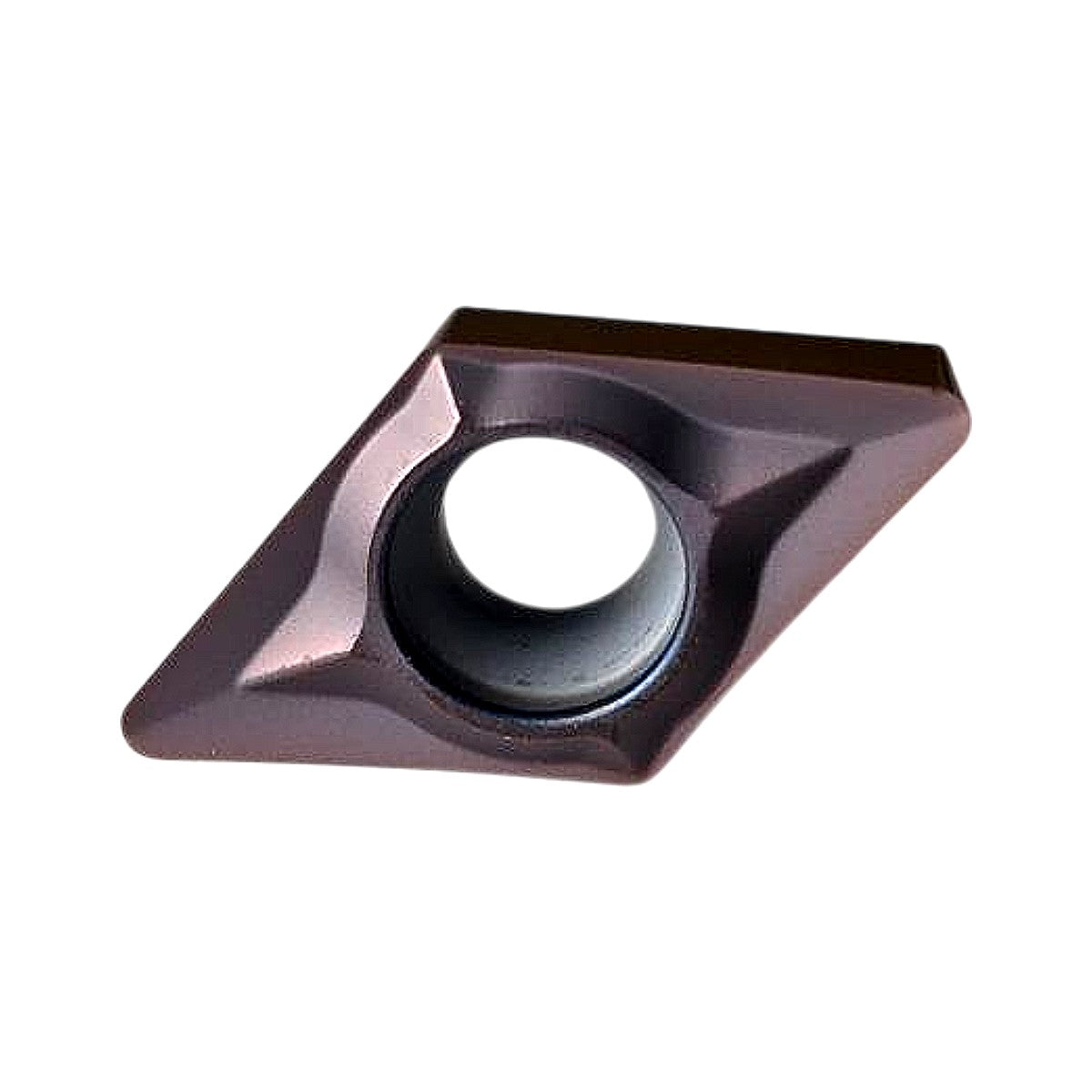

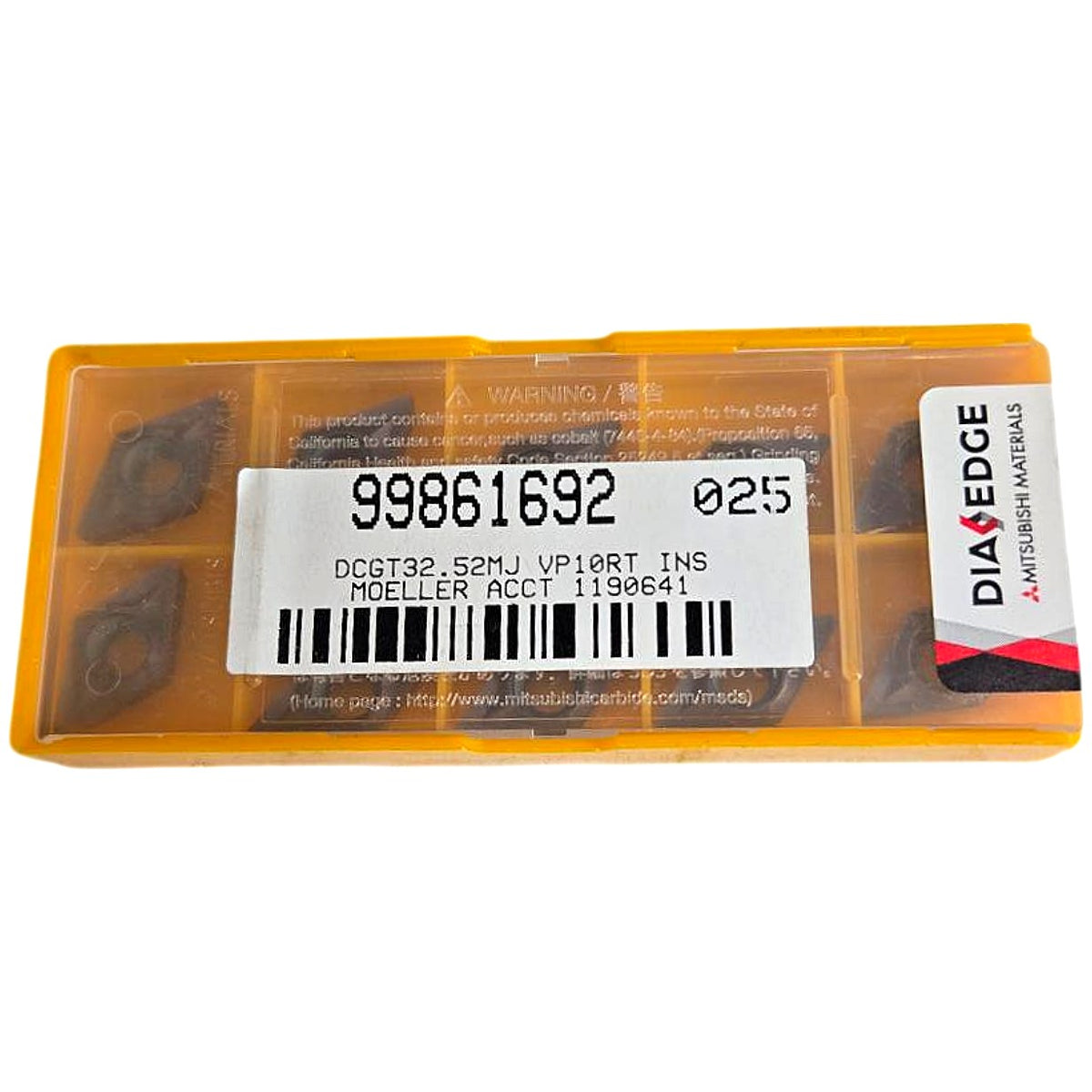

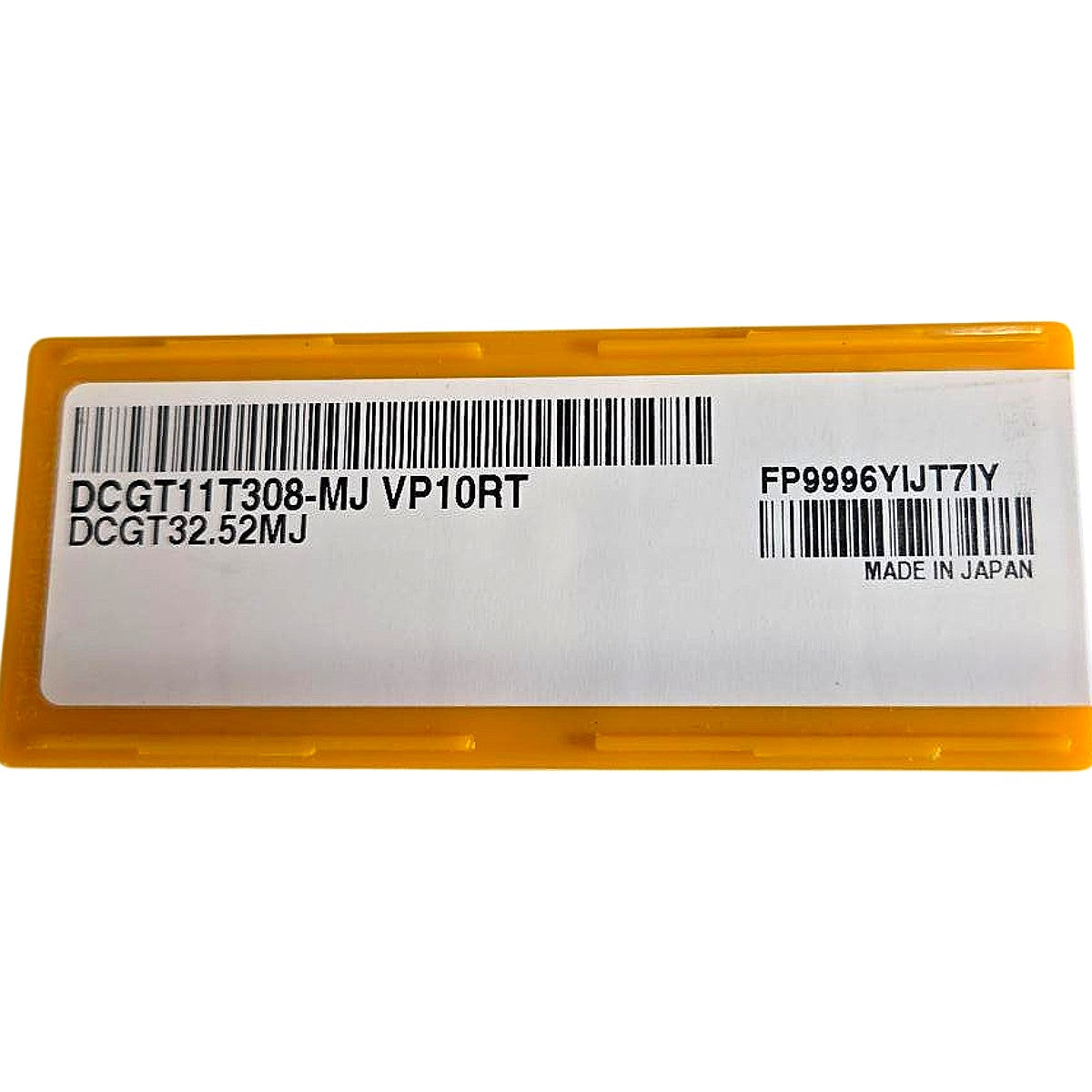

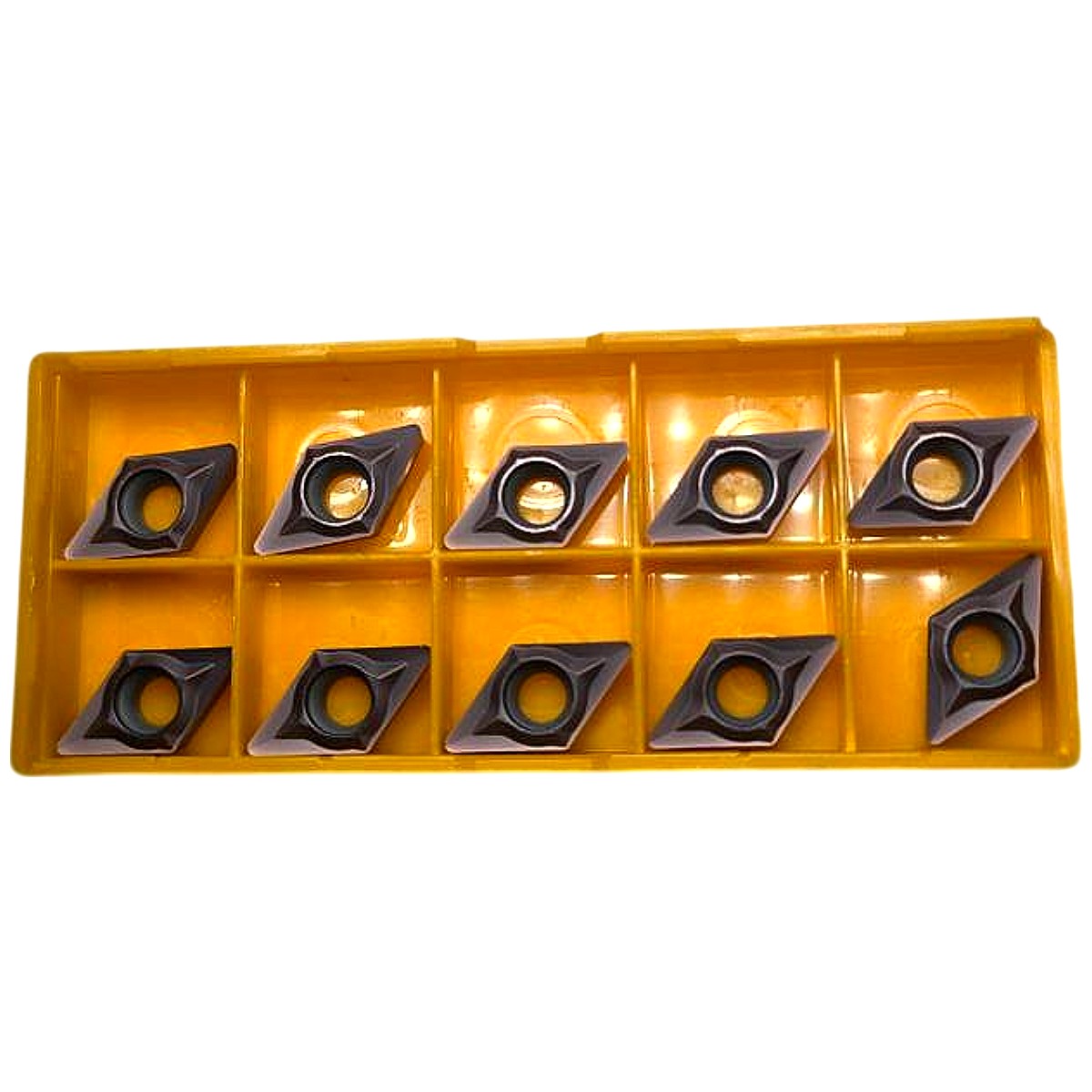

This Mitsubishi Materials DCGT11T308-MJ insert in grade VP10RT (ANSI DCGT32.52MJ) is a 55 degree diamond, positive-rake carbide turning insert with a 7 degree clearance angle, G-class tolerance, a single-sided MJ chipbreaker and a central mounting hole. It has an 11 mm cutting edge length, a 3.97 mm thickness (T3) and a 0.8 mm nose radius, and the dark purple-bronze finish shows it is a coated grade. It is designed for finishing and light to medium turning and profiling on lathes using holders that take DC-style inserts, and the inserts are secured with a center screw. This item is new, supplied as a box of 10 inserts in the original Mitsubishi Diaedge packaging and made in Japan.
Product Specifications
| Brand | Mitsubishi Materials |
| Series | Diaedge |
| MPN | DCGT11T308-MJ |
| Alternate Part Number | 99861692 |
| ANSI Designation | DCGT32.52MJ |
| Grade | VP10RT |
| Insert Shape | D, 55 deg Diamond |
| Clearance Angle | 7 deg |
| Tolerance Class | G |
| Insert Type | T, Single-Sided w/ Hole and Chipbreaker |
| Cutting Edge Length | 11 mm |
| Insert Thickness | 3.97 mm |
| Nose Radius | 0.8 mm (0.031 in) |
| Chipbreaker | MJ |
| Material | Carbide |
| Coating | PVD Coated |
| Operation | Turning |
| Quantity per Pack | 10 |
| Country of Origin | Japan |
