Mitsubishi DS5MHD1/4SS Diamond Star 1/4in 5-Flute Carbide Roughing End Mill
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

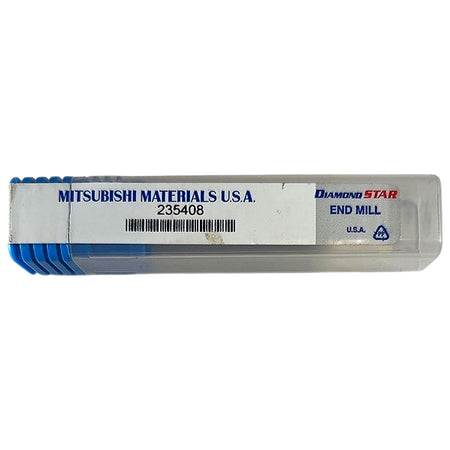

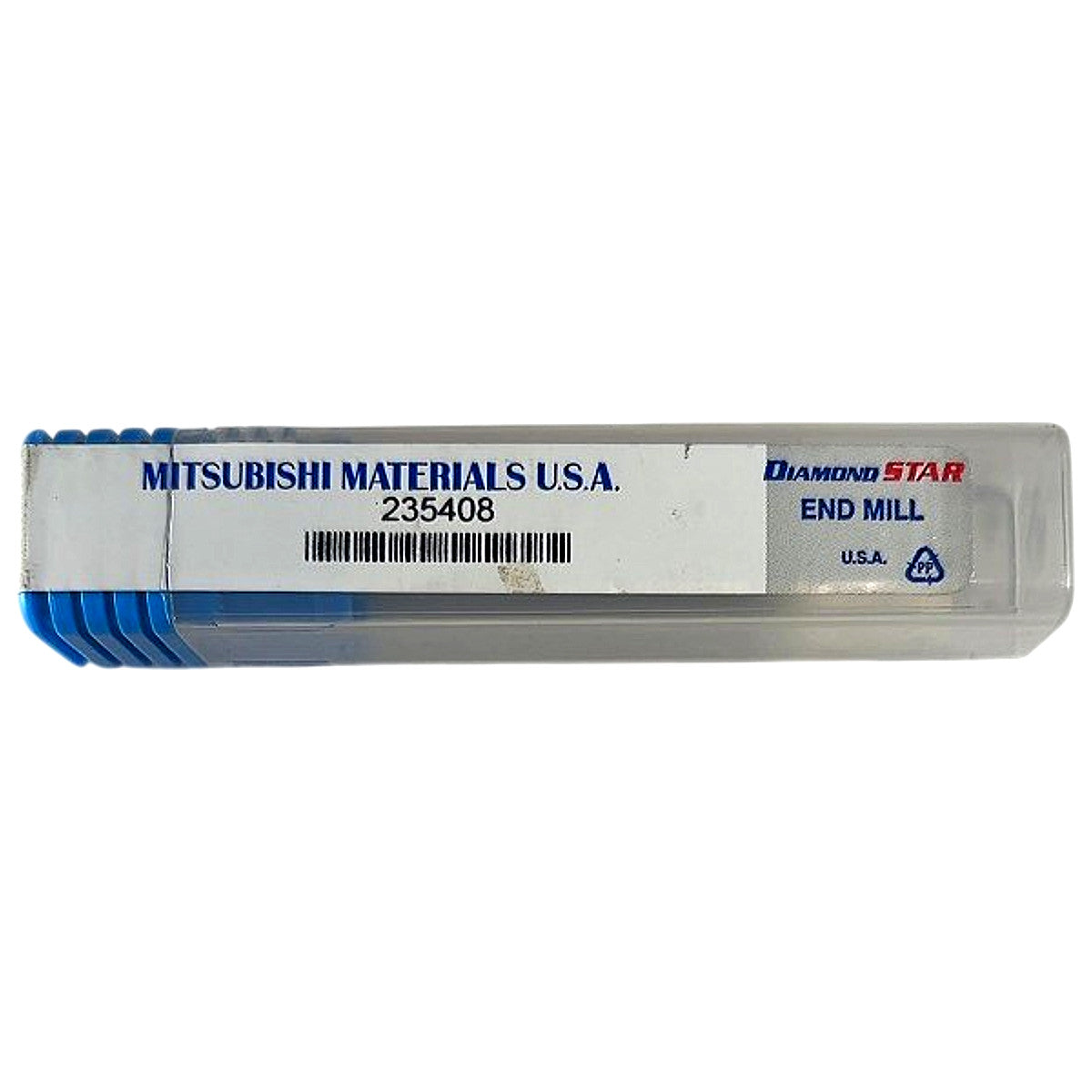

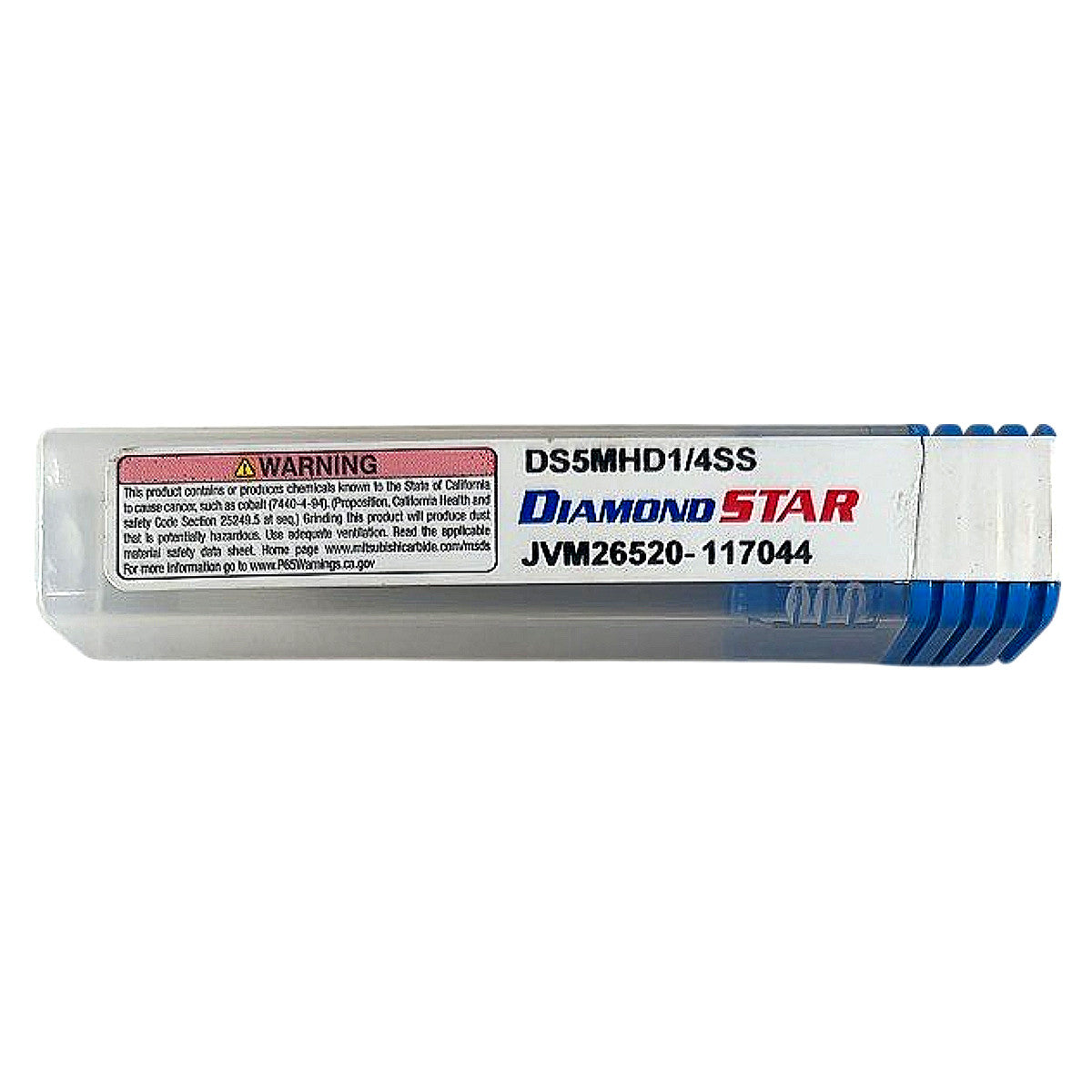

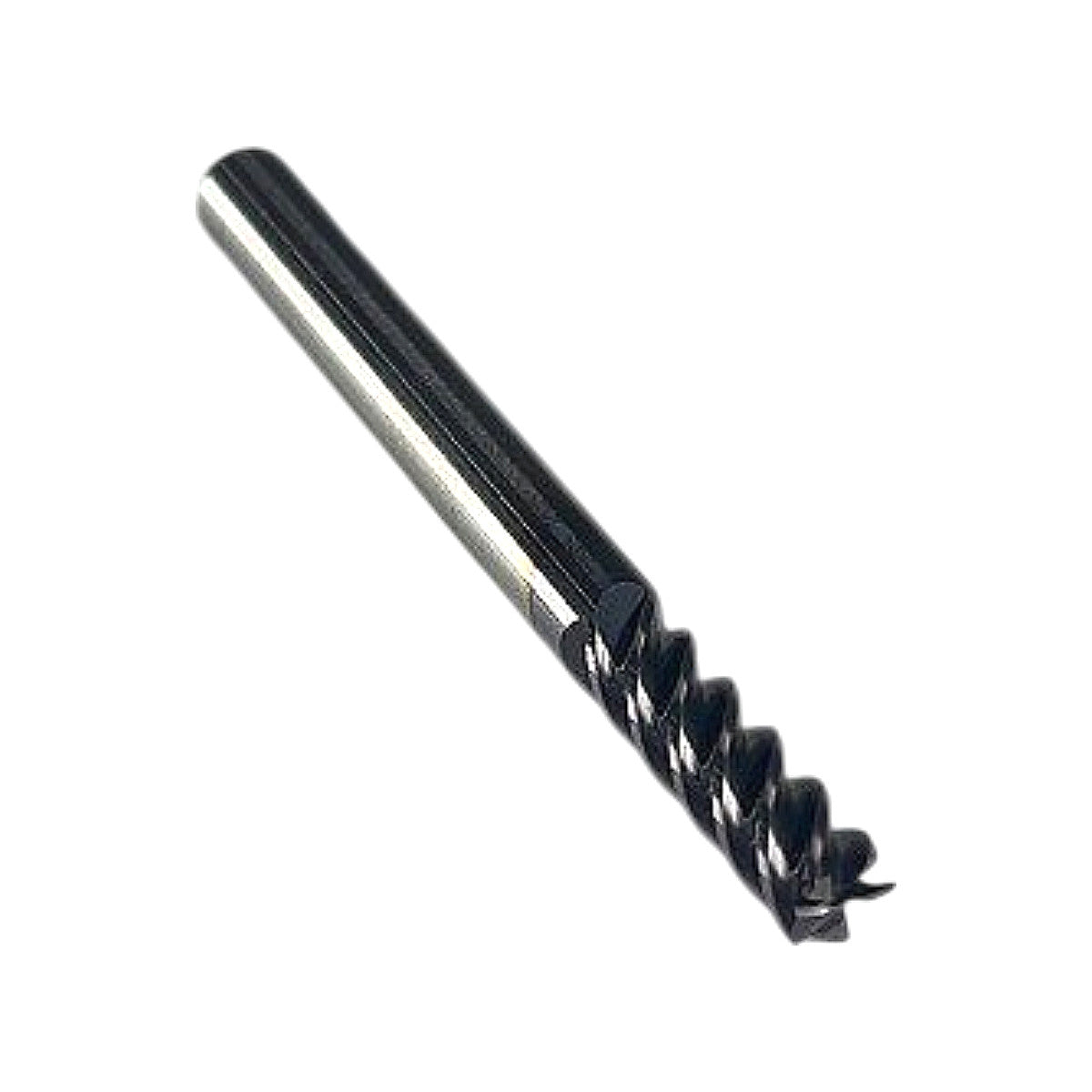

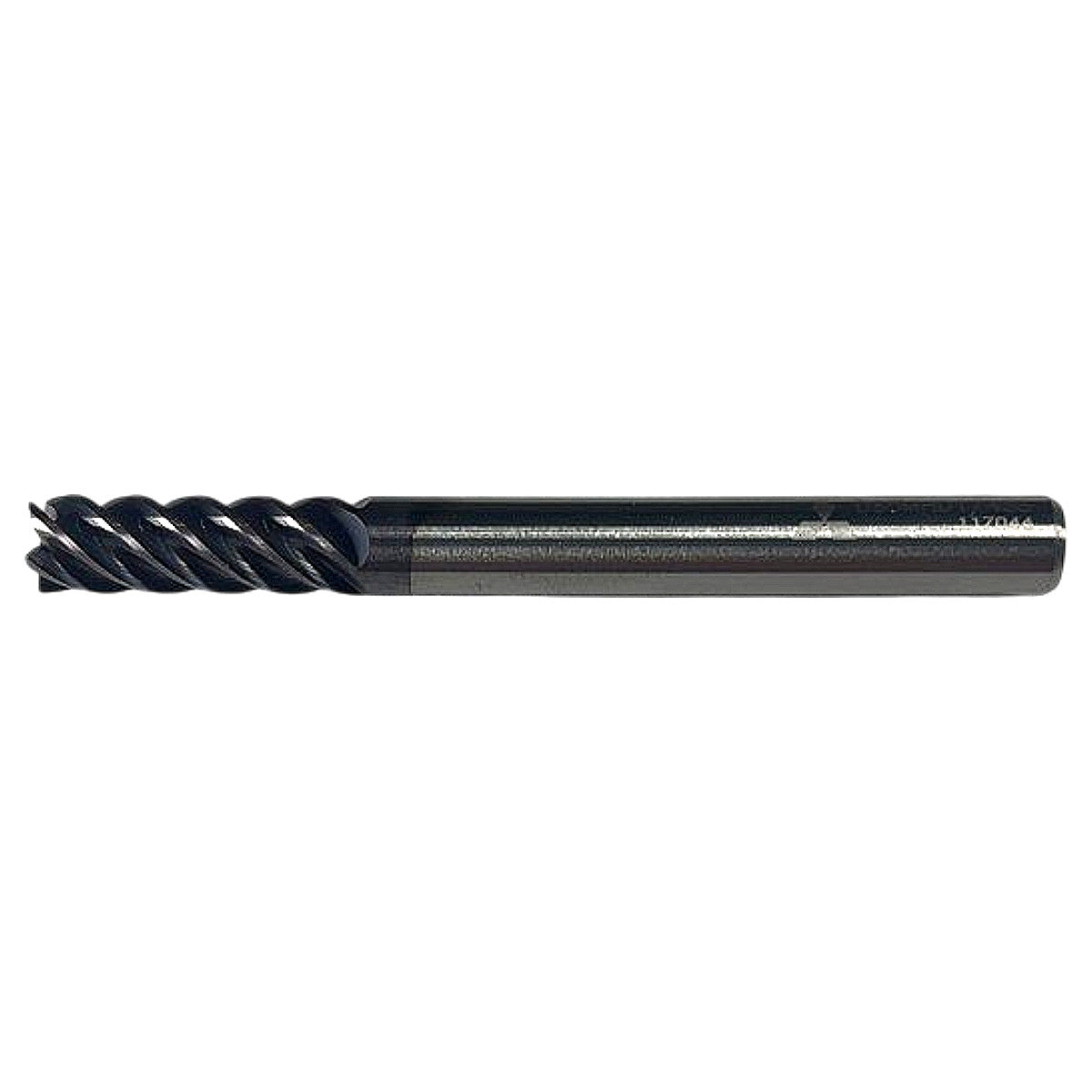

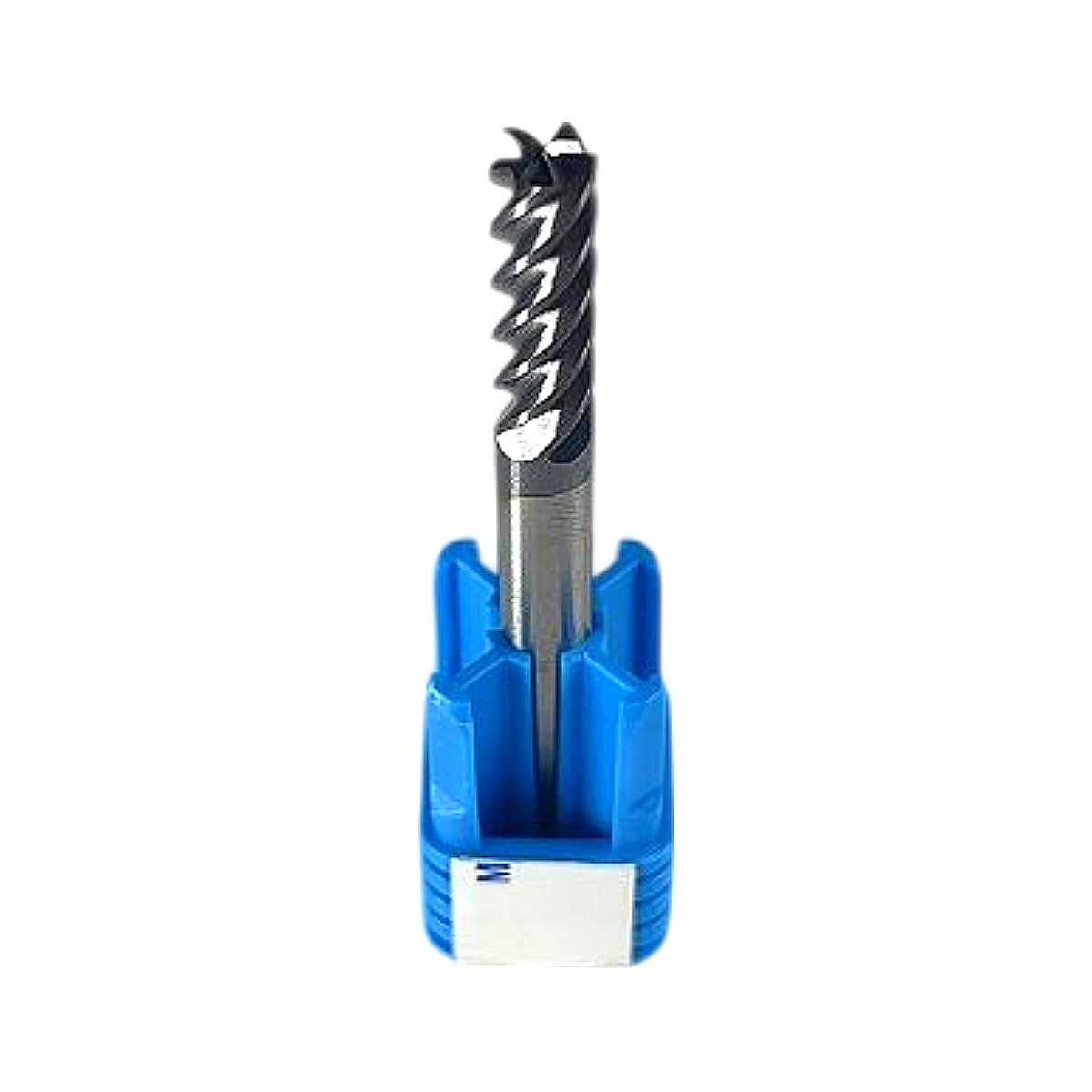

The Mitsubishi Materials Diamond Star DS5MHD1/4SS is a 1/4 in diameter, 5-flute solid carbide roughing end mill manufactured in the USA and sold new in the original plastic clamshell case. The "MHD" designation indicates a medium-helix, high-density tooth-form (wave-style chipbreaker serrations along the flute length) engineered for aggressive material removal in steels, stainless steels, and other ferrous alloys while reducing cutting forces and vibration. The tool is finished with a dark TiAlN-based PVD coating — clearly visible in the photos as the uniform blue-black surface on both the flute zone and shank — which provides elevated hot hardness, oxidation resistance, and extended tool life in dry or semi-dry cutting conditions. The straight 1/4 in shank is compatible with standard ER16/ER20 collets, end mill holders, and Weldon-style holders accepting 1/4 in shanks; the "SS" suffix denotes a square (flat) end geometry with center-cutting capability.
Product Specifications
| Brand | Mitsubishi Materials USA |
| Series | Diamond Star |
| MPN | DS5MHD1/4SS |
| Catalog Number | 235408 |
| Country of Origin | USA |
| End Mill Type | Roughing (wave chipbreaker serrations) |
| End Geometry | Square (flat) end, center-cutting |
| Number of Flutes | 5 |
| Cutting Diameter | 1/4 in (0.250 in) |
| Shank Diameter | 1/4 in (0.250 in) |
| Substrate | Solid carbide |
| Coating | TiAlN PVD (dark blue-black) |
| Helix Designation | Medium helix (MHD) |
| Condition | New |
