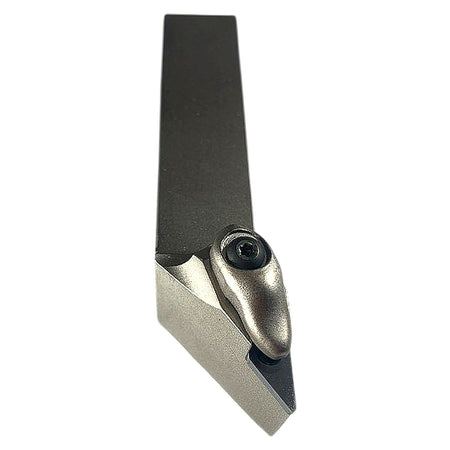

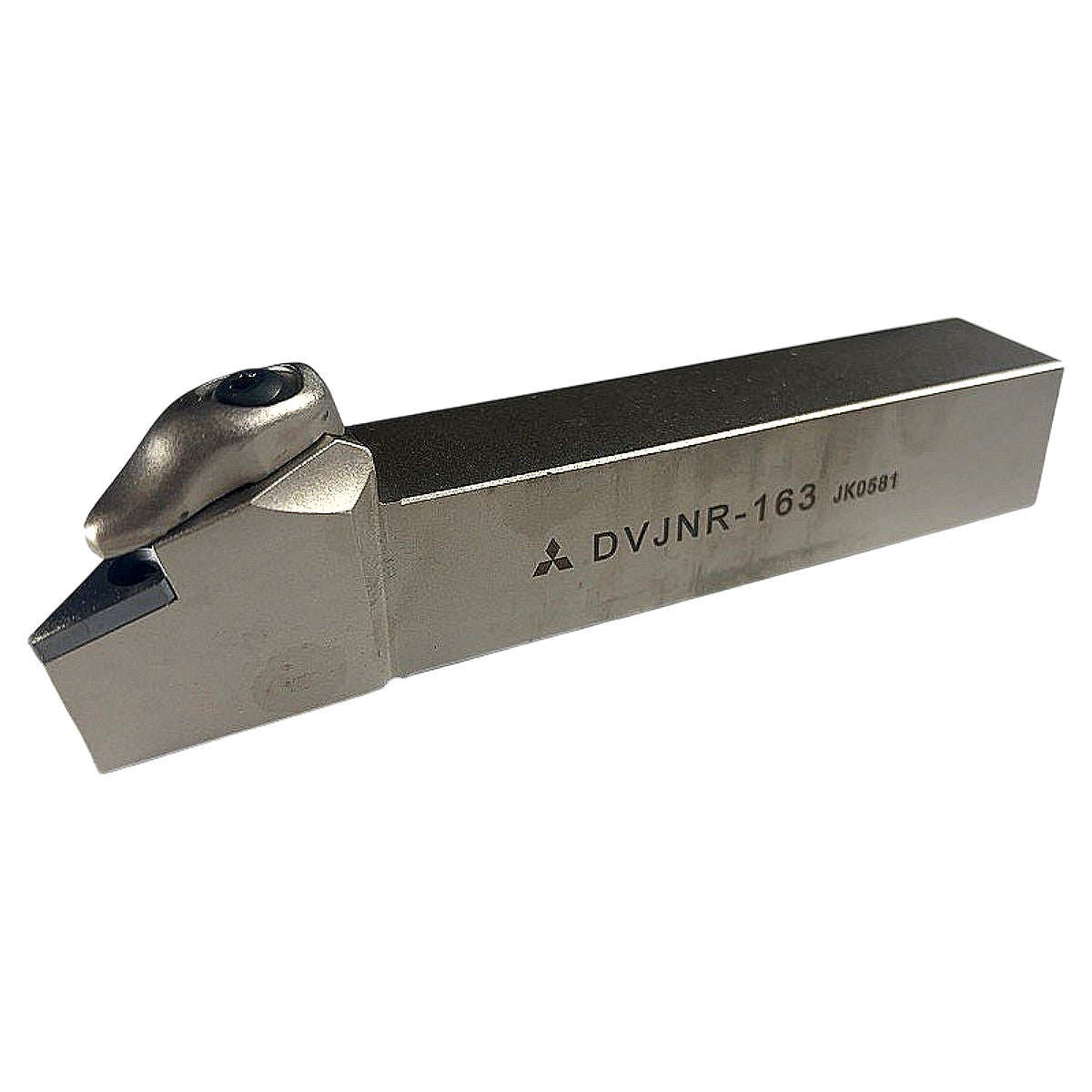

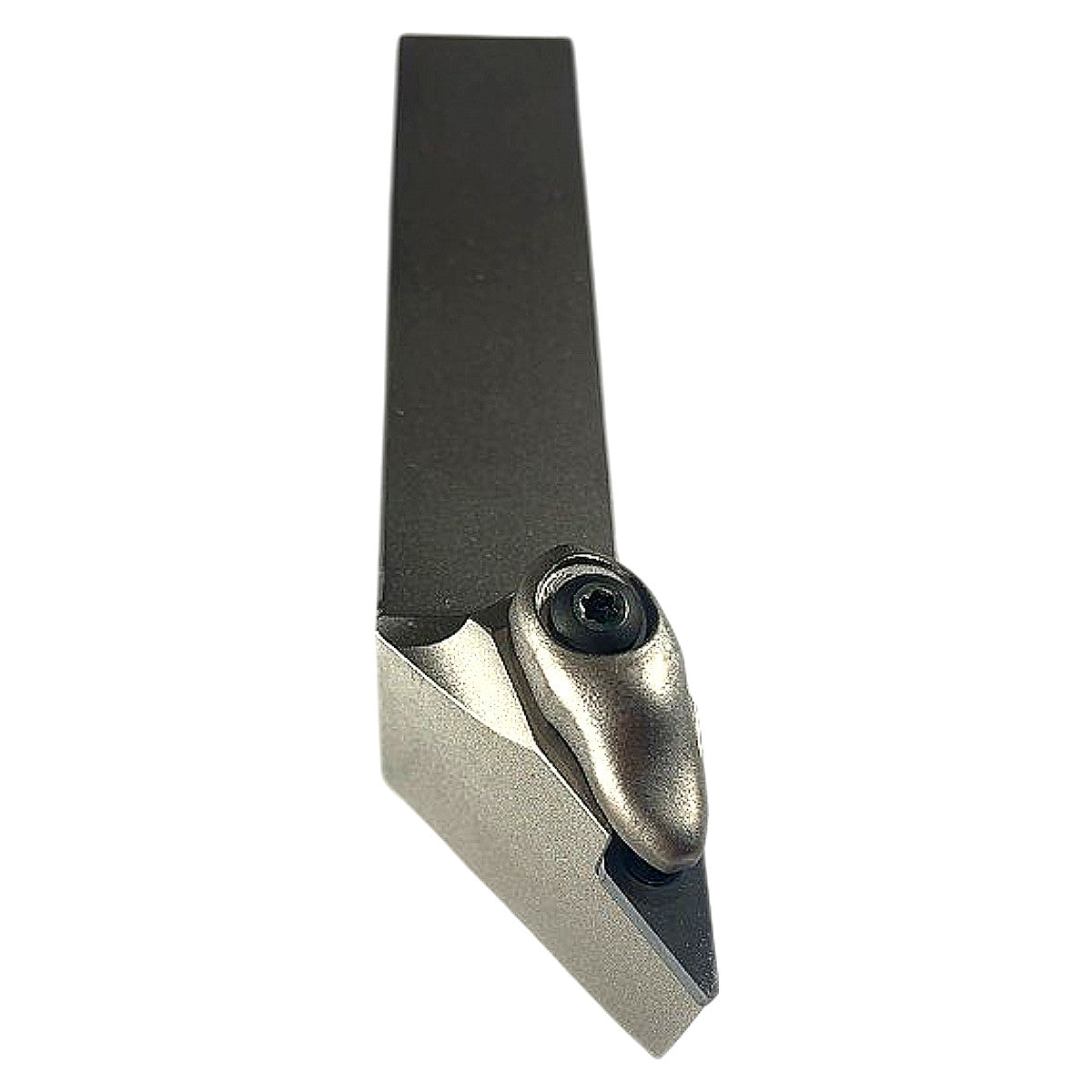

Mitsubishi DVJNR-163 Dia/Edge 1x1in RH Turning Toolholder
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

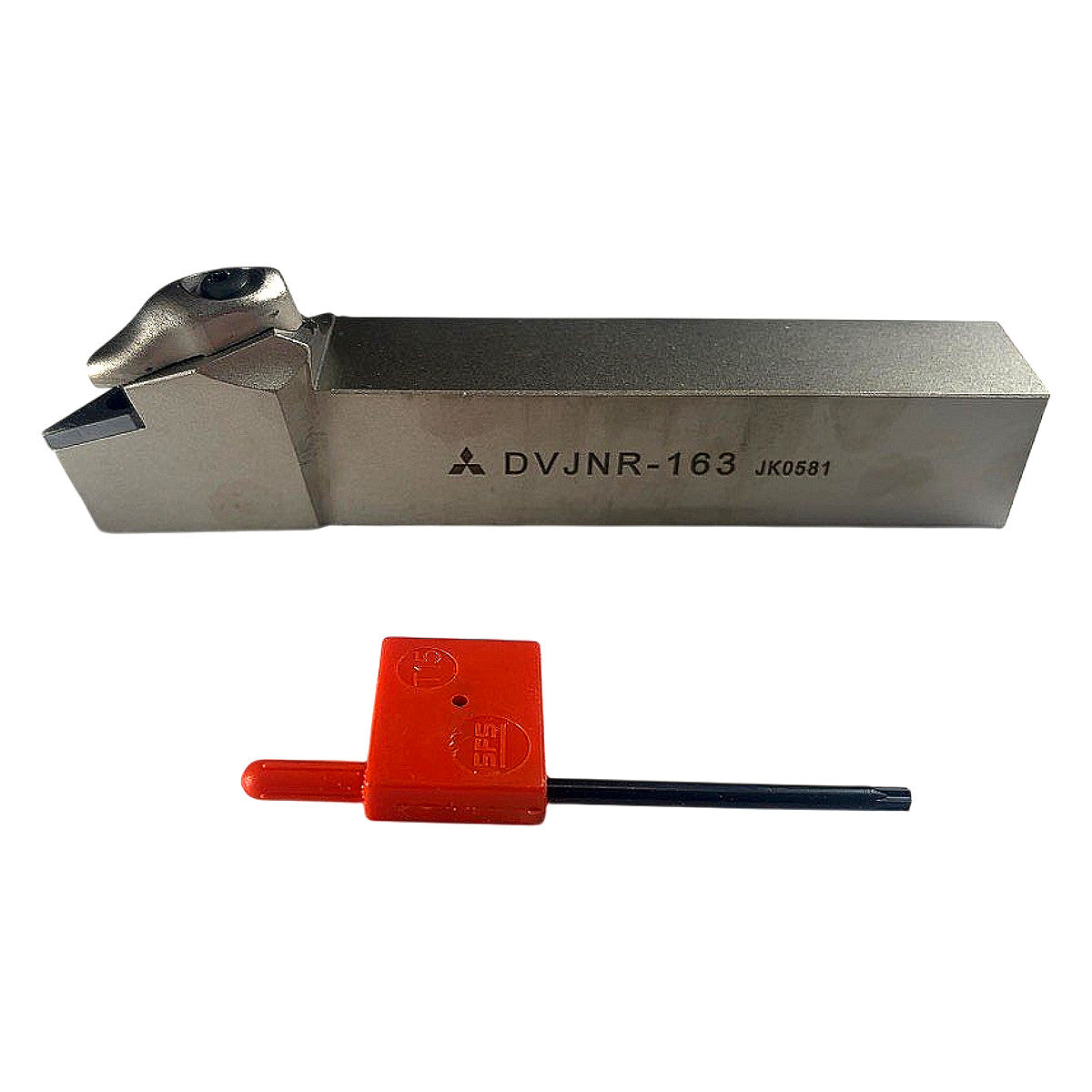

The Mitsubishi Materials DVJNR-163 is a new, right-hand external turning toolholder from the Dia/Edge product line, manufactured in Taiwan to ISO/ANSI standards. Decoding the designation: D = shank style (screw-on/pin-lock clamping), V = 35° diamond (V-shape) insert seat, J = clearance angle N (0°) with negative rake, N = neutral/straight shank, R = right-hand cutting direction, 163 = 1 in × 1 in shank cross-section with 6 in overall length. The holder accepts VNMG-style negative-rake 35° diamond carbide inserts (VNMG 16 series, e.g. VNMG 332 / VNMG 160408) secured via a top-clamp/pin-lock mechanism, and is compatible with standard 1 in square tool post and quick-change tool post systems. The 35° V-shape insert geometry allows profiling, contouring, and finish turning in both longitudinal and facing directions; the included Torx wrench (T15) enables secure insert indexing in the field.
Product Specifications
| Brand | Mitsubishi Materials |
| Series | Dia/Edge |
| MPN | DVJNR-163 |
| Lot / Batch Code | JK0581 |
| Clamping Style | D — screw-on / pin-lock top clamp |
| Insert Shape | V — 35° diamond (VNMG) |
| Insert Clearance Angle | N — 0° (negative rake) |
| Cutting Direction | R — right-hand |
| Shank Width | 1 in (25.4 mm) |
| Shank Height | 1 in (25.4 mm) |
| Overall Length | 6 in (152 mm) |
| Compatible Insert | VNMG 16__ (VNMG 332 / VNMG 160408) |
| Rake Type | Negative |
| Lead Angle | 17.5° (from 35° V insert geometry) |
| Wrench Included | Yes — T15 Torx |
| Country of Origin | Taiwan |
| Condition | New |
