Mitsubishi IMX12B4HV0500ME EP7020 1/2in 4-Flute Ball Nose iMX End Mill Head
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

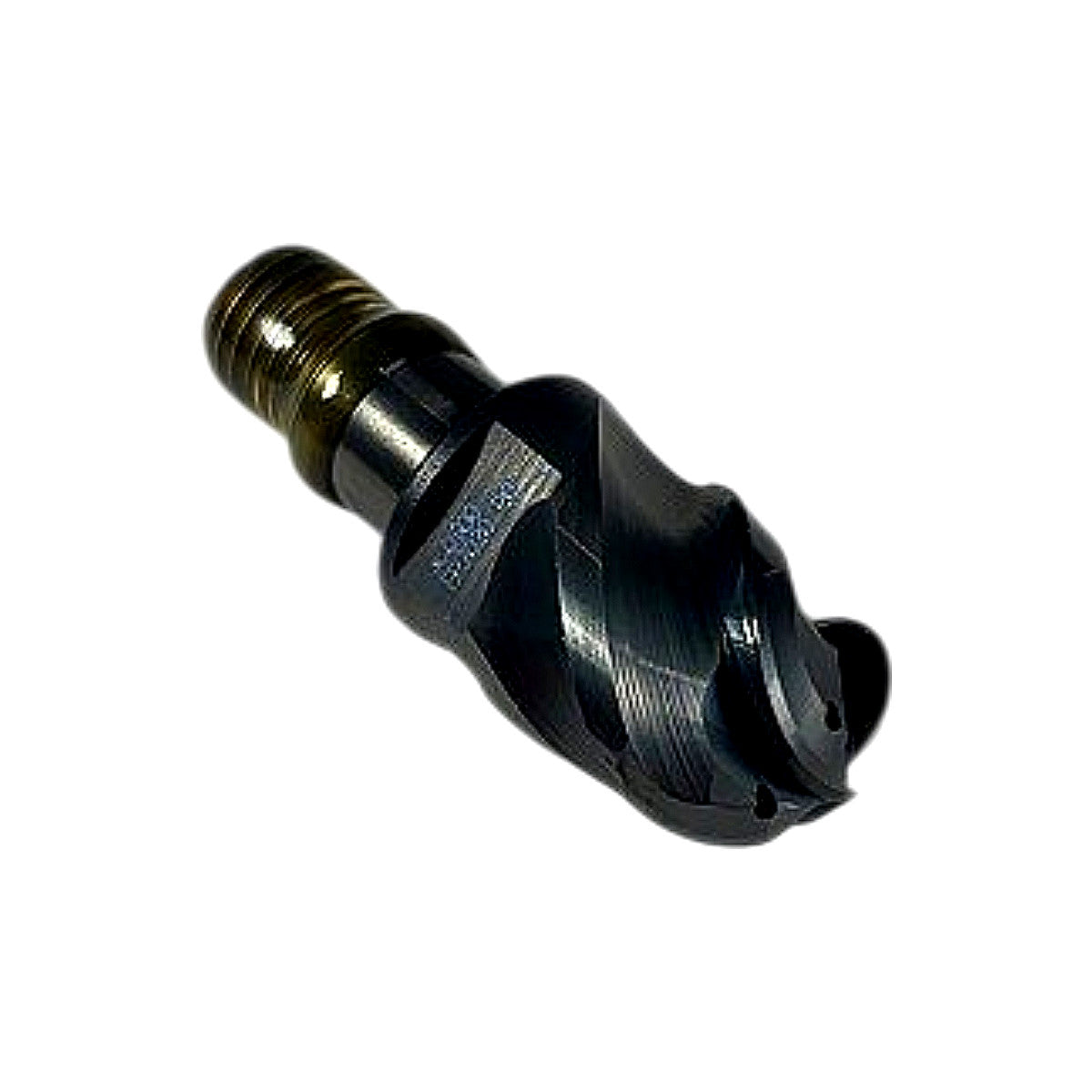

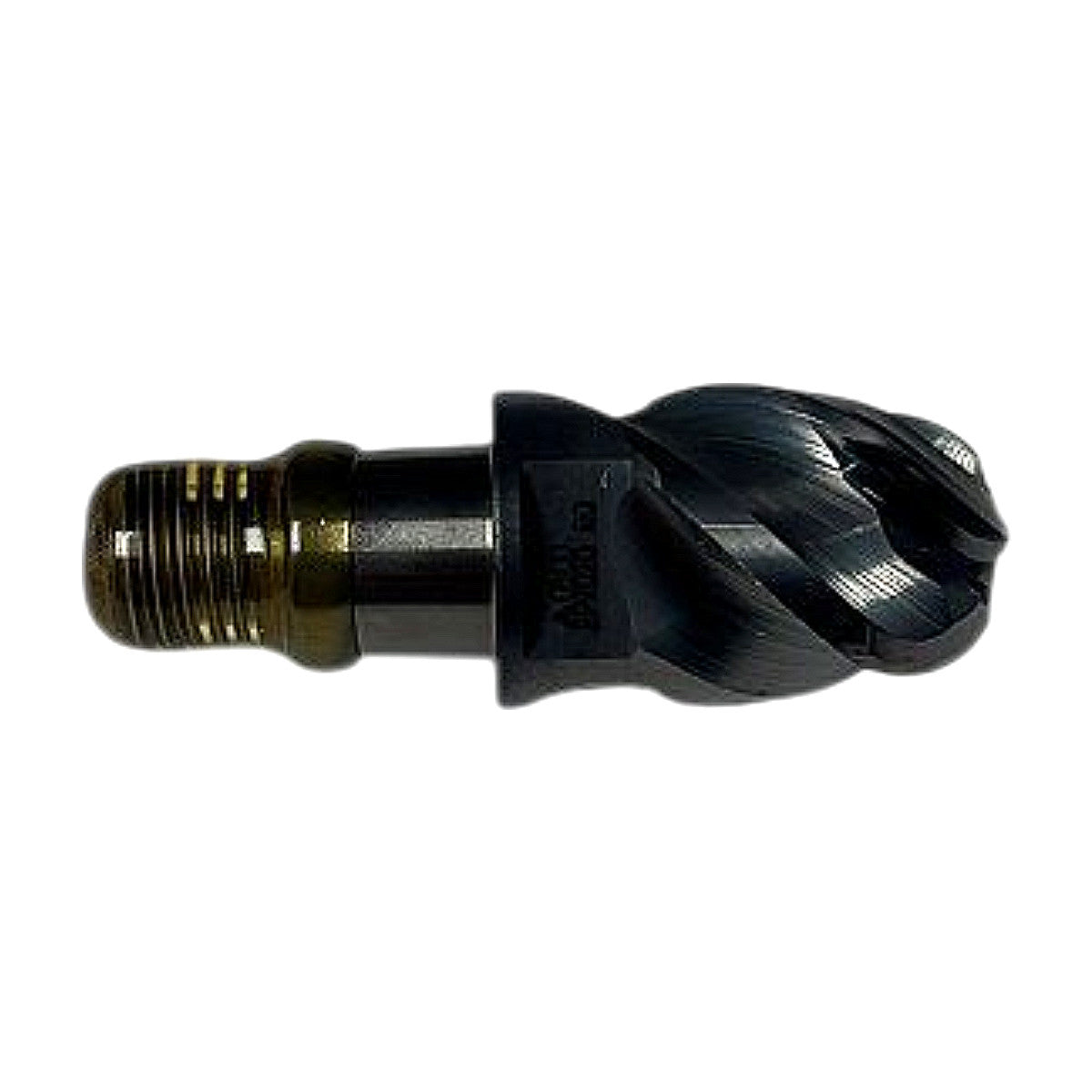

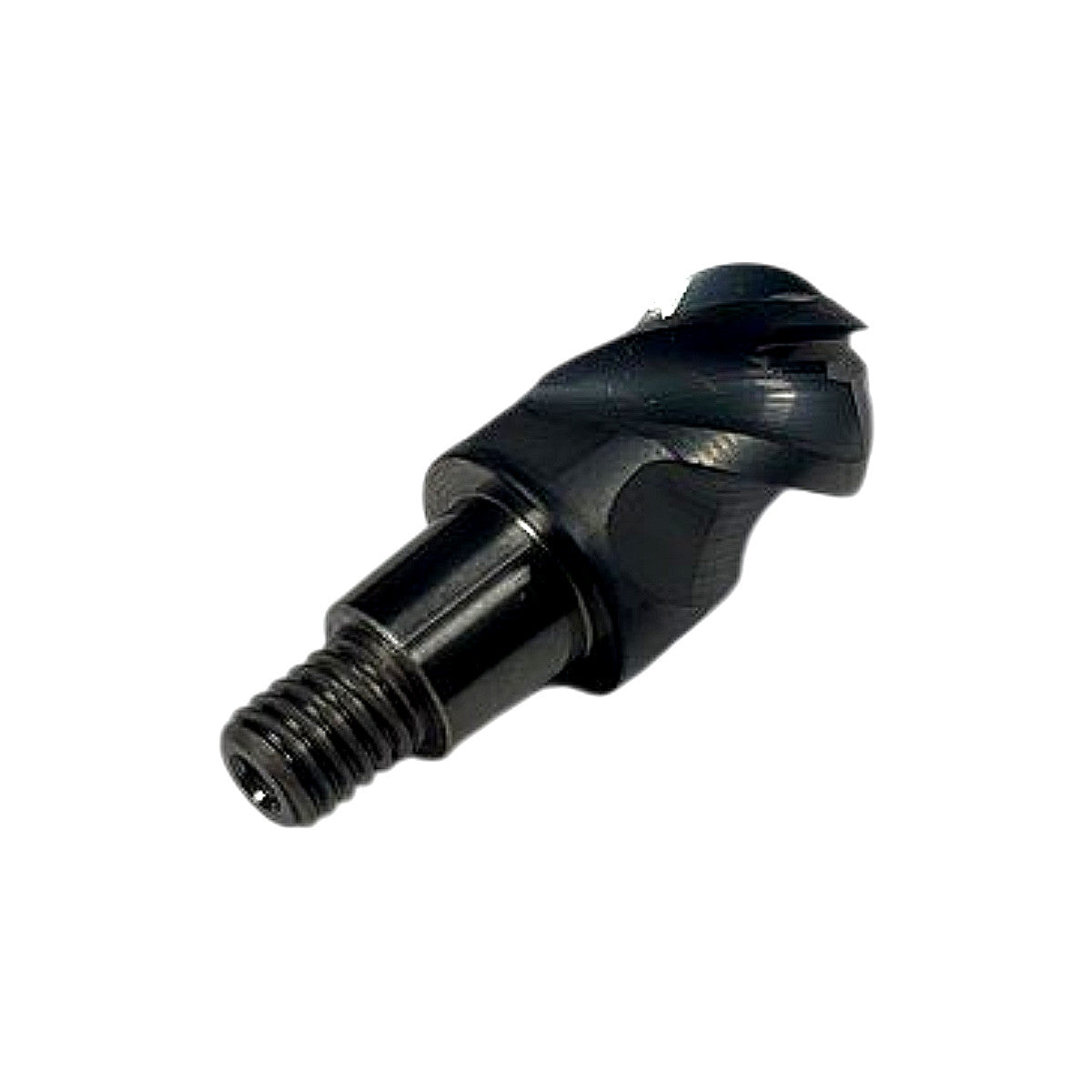

The Mitsubishi Materials IMX12B4HV0500ME is a new, genuine iMX series exchangeable solid carbide ball nose end mill head in grade EP7020, designed for the iMX modular end mill system with a threaded shank interface (M12 thread per the "12" in the part number). Decoded: IMX = iMX series, 12 = M12 threaded coupling, B4 = ball nose 4-flute, HV = high-helix variable flute spacing, 0500 = 1/2 in (12.70 mm) cutting diameter, ME = medium-length cutting edge; grade EP7020 is Mitsubishi's PVD-coated (DIA EDGE line) cemented carbide grade optimized for high-hardness steels and difficult-to-cut materials. The four-flute variable-helix geometry suppresses chatter and improves surface finish in 3D profiling, contouring, and semi-finish/finish milling of hardened steels, alloy steels, and stainless steels. This head interfaces with all standard Mitsubishi iMX series arbors and shanks accepting the M12 threaded coupling, enabling quick head changes without removing the holder from the spindle. Made in Japan.
Product Specifications
| Brand | Mitsubishi Materials |
| Part Number (MPN) | IMX12B4HV0500ME |
| Grade | EP7020 |
| Series | iMX Exchangeable Carbide Head |
| Cutting Diameter | 1/2 in (0.500 in / 12.7 mm) |
| End Type | Ball Nose |
| Number of Flutes | 4 |
| Flute Geometry | High-helix variable pitch (HV) |
| Coupling Thread | M12 threaded shank interface |
| Length Type | Medium (ME) |
| Coating / Grade Type | PVD DIA EDGE (EP7020) |
| Tool Material | Solid carbide |
| Country of Origin | Japan |
| Condition | New (factory sealed) |
| Compatible System | Mitsubishi iMX modular end mill system |
