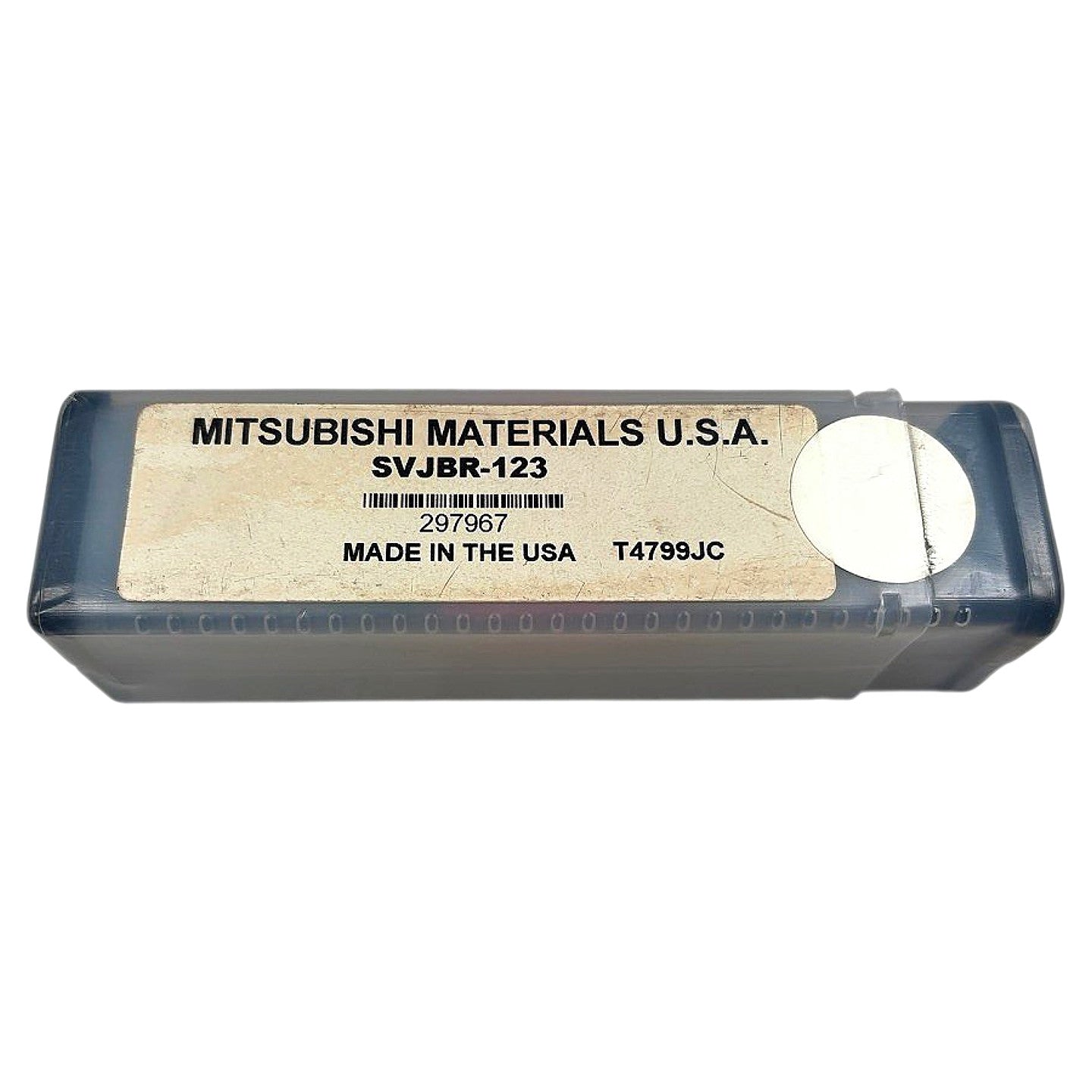

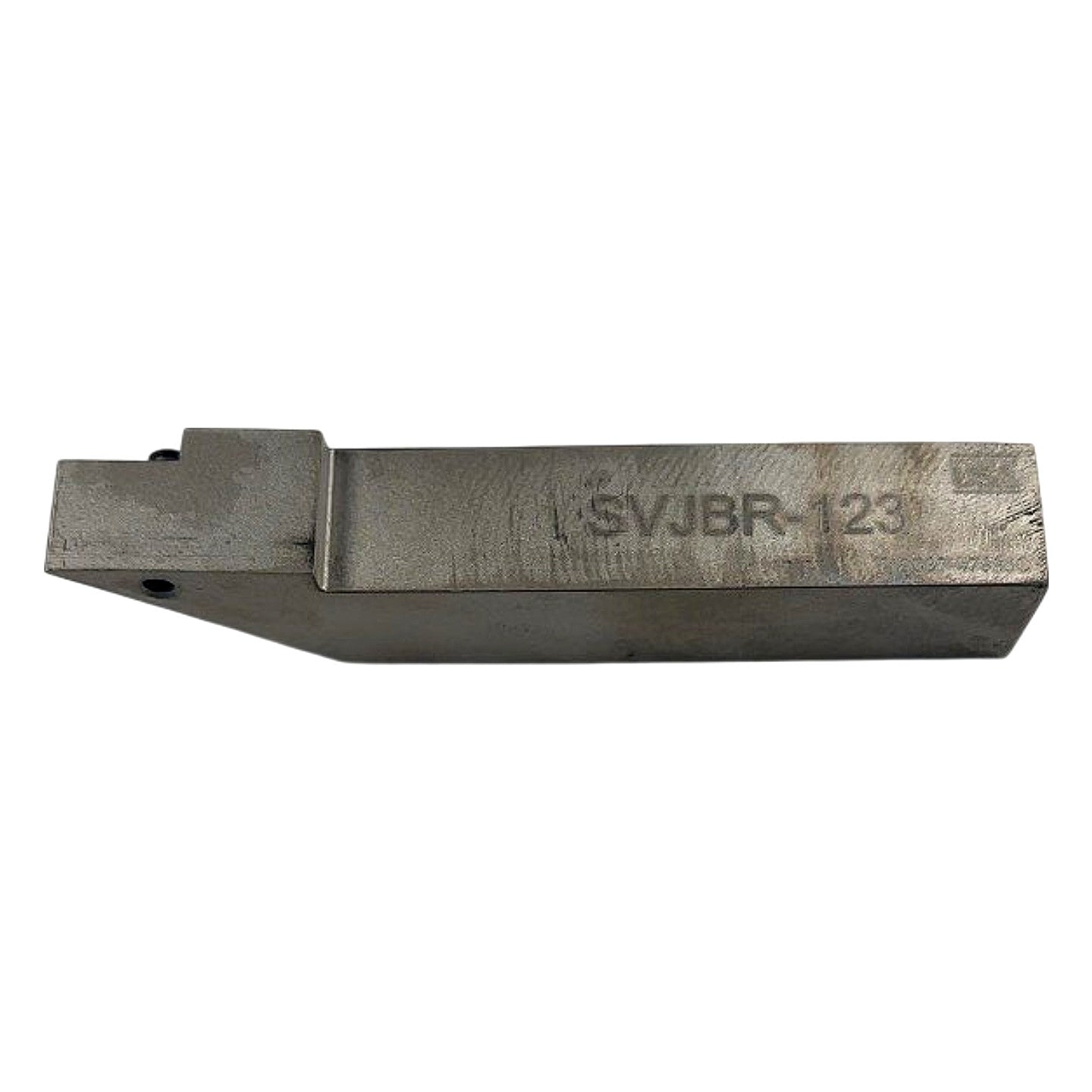

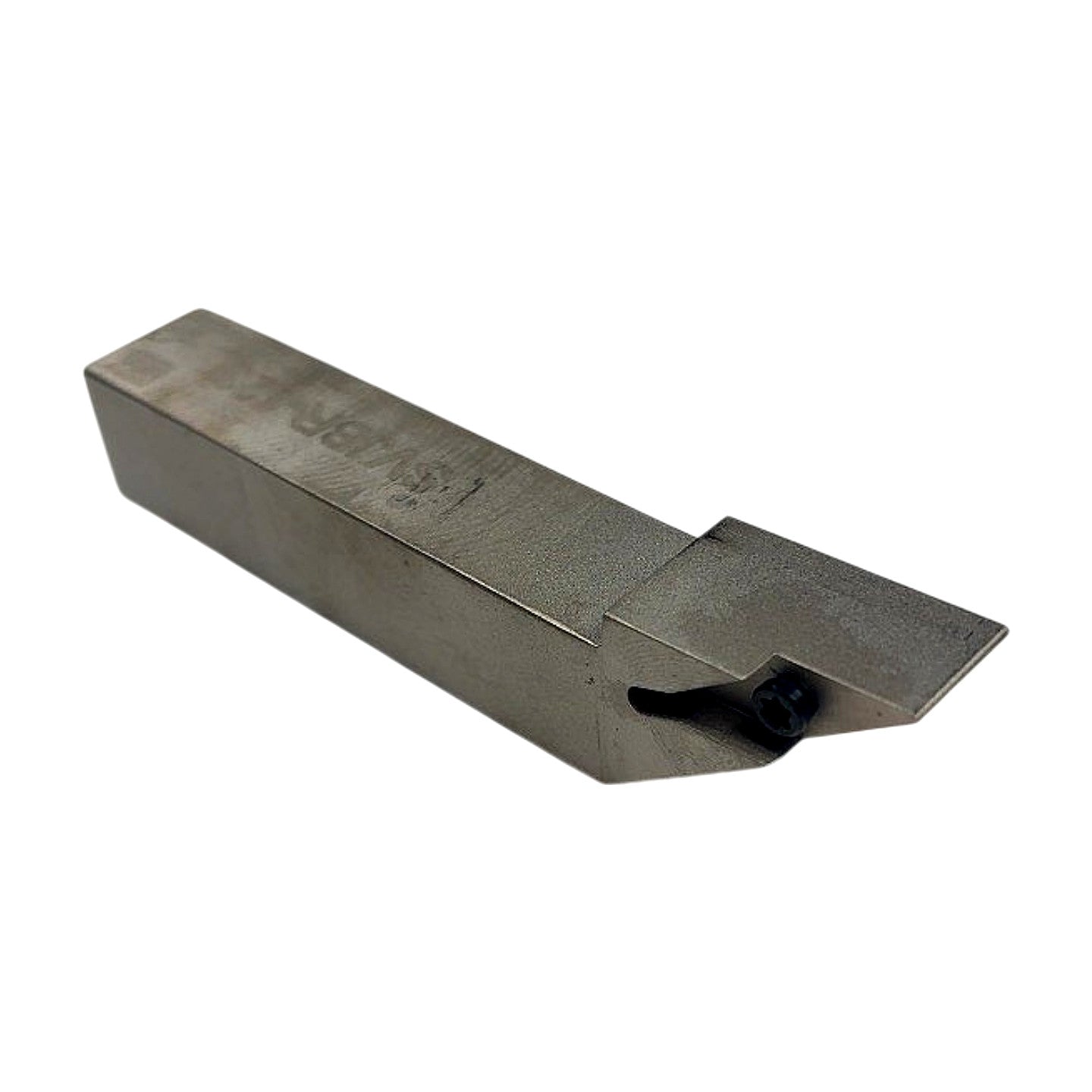

The Mitsubishi Materials SVJBR-123 is a new, right-hand, square-shank indexable turning toolholder made in the USA, designed for VBMT/VBGT style 35° diamond inserts (V-shape, 35° included angle). Decoding the designation: S = square shank, V = 35° diamond insert shape (V), J = 93° lead angle side cutting edge angle, B = insert seat with 0° back rake (top clamp), R = right-hand cutting direction, 123 = 3/4 in × 3/4 in shank cross-section × 4-1/2 in overall length (1 = 3/4 in width, 2 = 3/4 in height, 3 = 4-1/2 in OAL per ANSI B212.5 size coding). The holder uses a screw-and-clamp (pin-lock) clamping system, accepts VBMT/VBGT 16 series inserts (IC ~3/8 in), and is suitable for general external turning, facing, and profiling operations on CNC lathes and manual engine lathes. Included with the holder are a spare clamp screw and a Torx/hex key wrench. The steel body provides rigid insert support for finishing to medium roughing cuts in steel, stainless, cast iron, and non-ferrous materials.
Product Specifications
| Brand | Mitsubishi Materials |
| MPN | SVJBR-123 |
| Country of Origin | USA |
| Shank Style | Square |
| Insert Shape | V - 35° Diamond (VBMT/VBGT) |
| Lead Angle (Side Cutting Edge) | 93° |
| Clamping Style | Top Clamp / Screw (B-style) |
| Cutting Direction | Right Hand (R) |
| Shank Width | 3/4 in (19.05 mm) |
| Shank Height | 3/4 in (19.05 mm) |
| Overall Length (OAL) | 4-1/2 in (114.3 mm) |
| Compatible Insert | VBMT/VBGT 16__ series (IC 3/8 in) |
| Insert Included Angle | 35° |
| Condition | New |

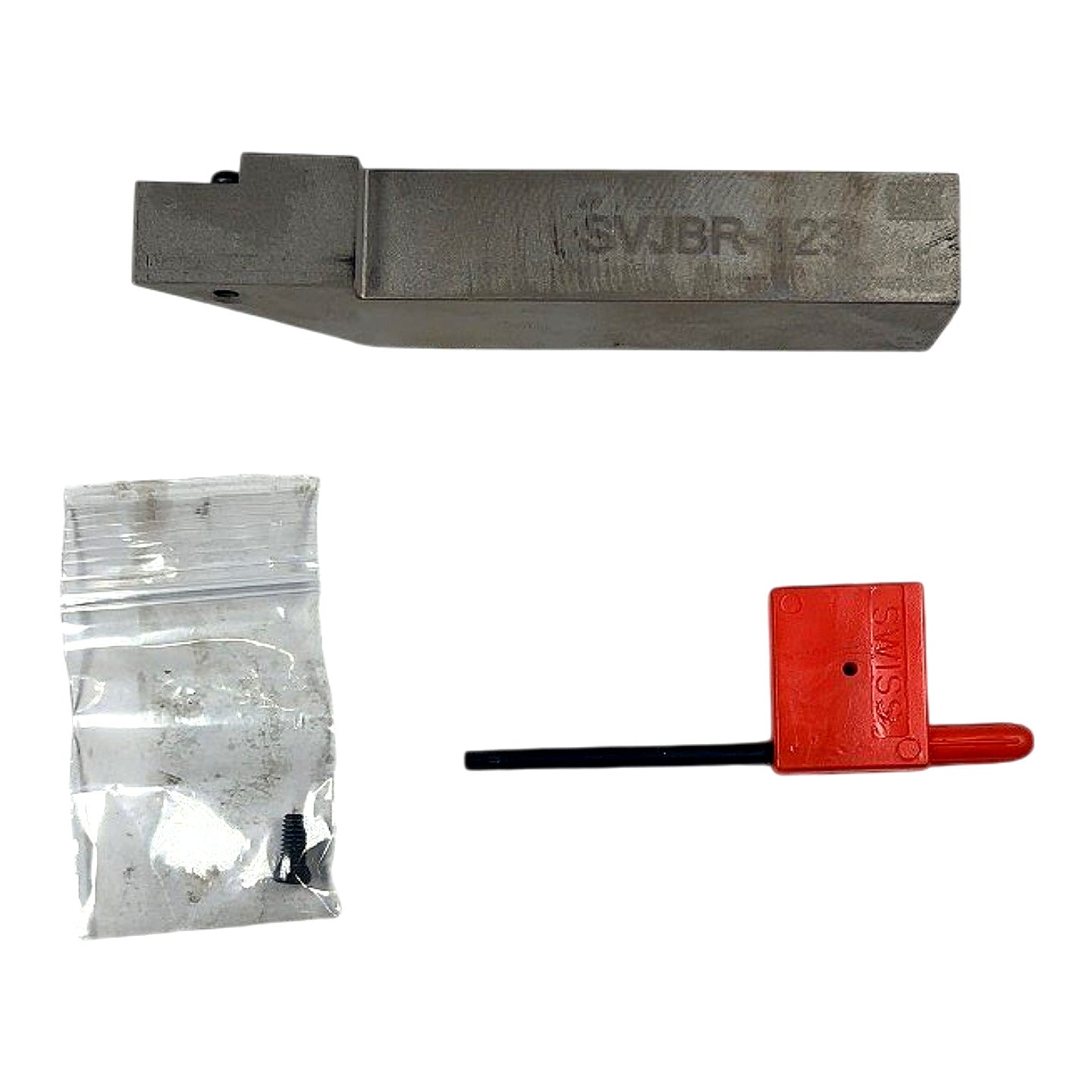

| Included Accessories | Spare clamp screw, hex/Torx key wrench |
