Mitsubishi MFE0590X02S060 DP1020 5.9mm 2xD Carbide MFE Drill
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

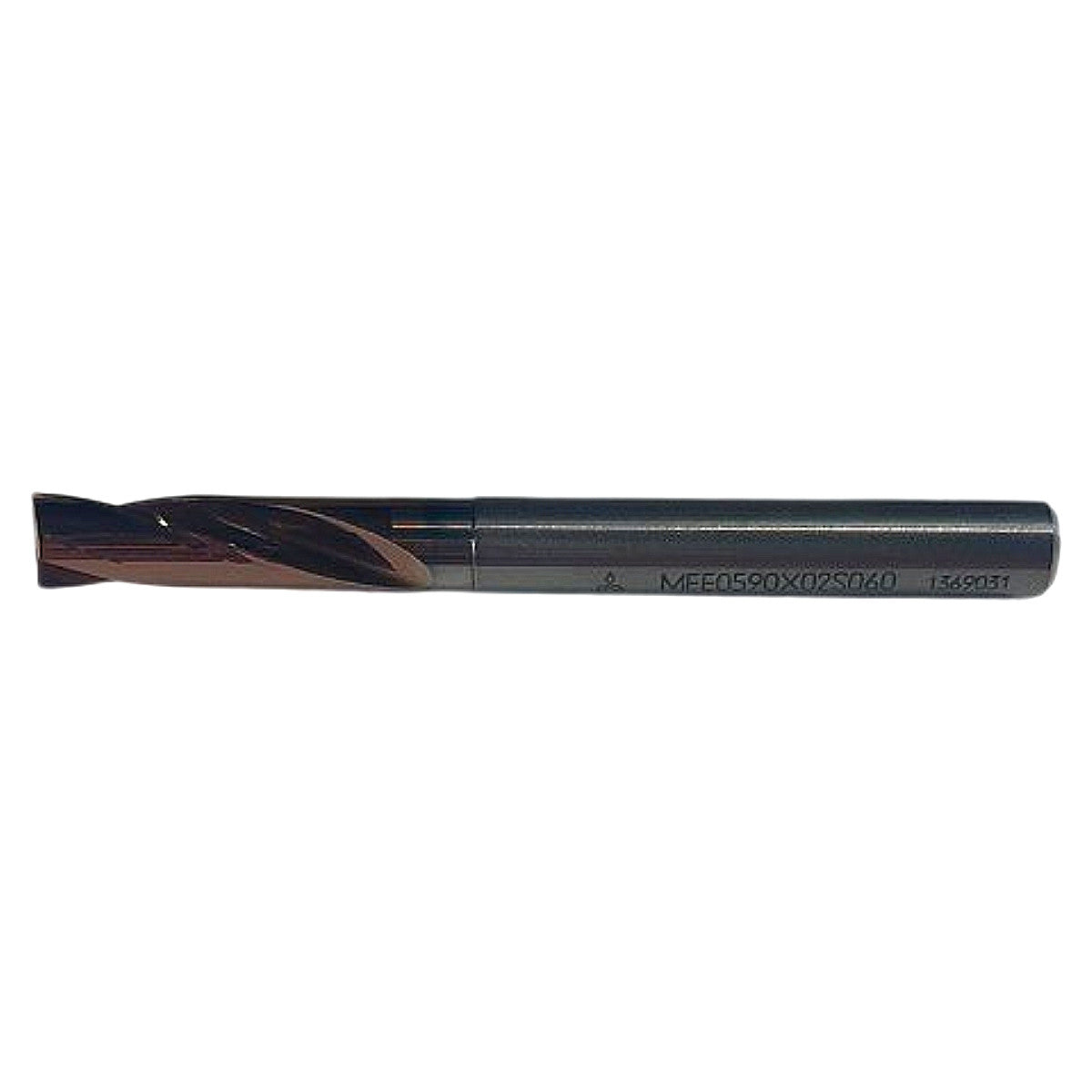

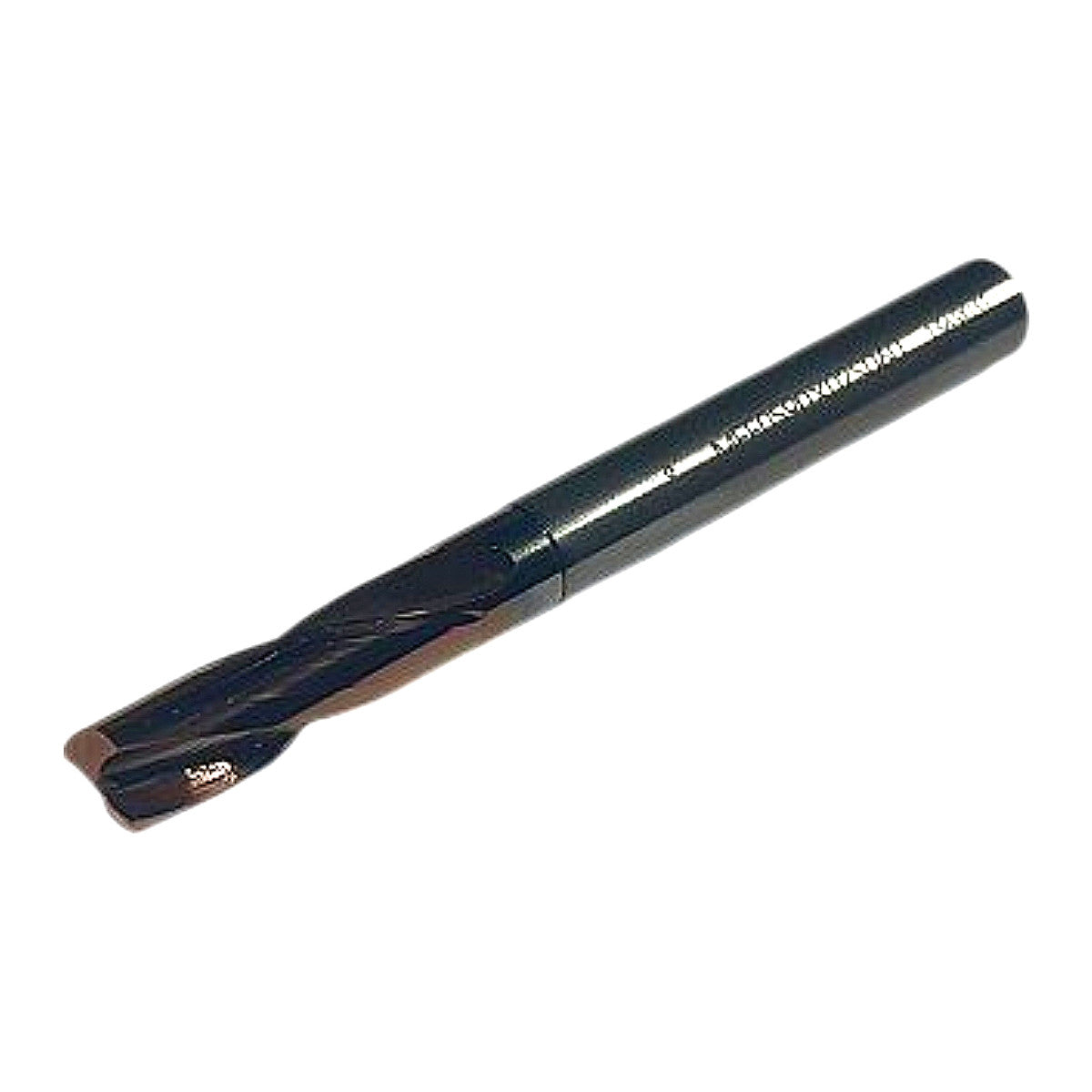

The Mitsubishi Materials DIA∙EDGE MFE0590X02S060 is a new, solid carbide 2-flute MFE-series drill in grade DP1020, manufactured in Japan and designed for high-efficiency drilling in steel, cast iron, and stainless steel. Decoding the MPN: MFE = MFE Drill series; 0590 = 5.90 mm cutting diameter; X02 = 2×D (shallow) depth-of-cut ratio (max drilling depth 2× diameter, approximately 11.8 mm); S060 = 6.0 mm straight shank diameter. The DP1020 carbide grade features a PVD TiAlN-based multi-layer coating (evidenced by the characteristic dark/violet finish visible in photos) engineered for high heat resistance and extended tool life in steel and stainless-steel applications. The 6.0 mm straight shank is compatible with ER collet chucks, hydraulic chucks, and shrink-fit toolholders with a 6 mm bore; the tool is suited for CNC machining centers and drilling machines requiring repeatable, high-precision hole quality.
Product Specifications
| Brand | Mitsubishi Materials (DIA∙EDGE) |
| MPN | MFE0590X02S060 |
| Grade | DP1020 |
| Series | MFE Drill |
| Cutting Diameter | 5.90 mm |
| Shank Diameter | 6.0 mm |
| Shank Type | Straight (cylindrical) |
| Number of Flutes | 2 |
| Depth-of-Cut Ratio | 2×D (approx. 11.8 mm max drilling depth) |
| Coating | PVD TiAlN-based multilayer |
| Substrate | Solid Carbide |
| Country of Origin | Japan |
| Condition | New |
