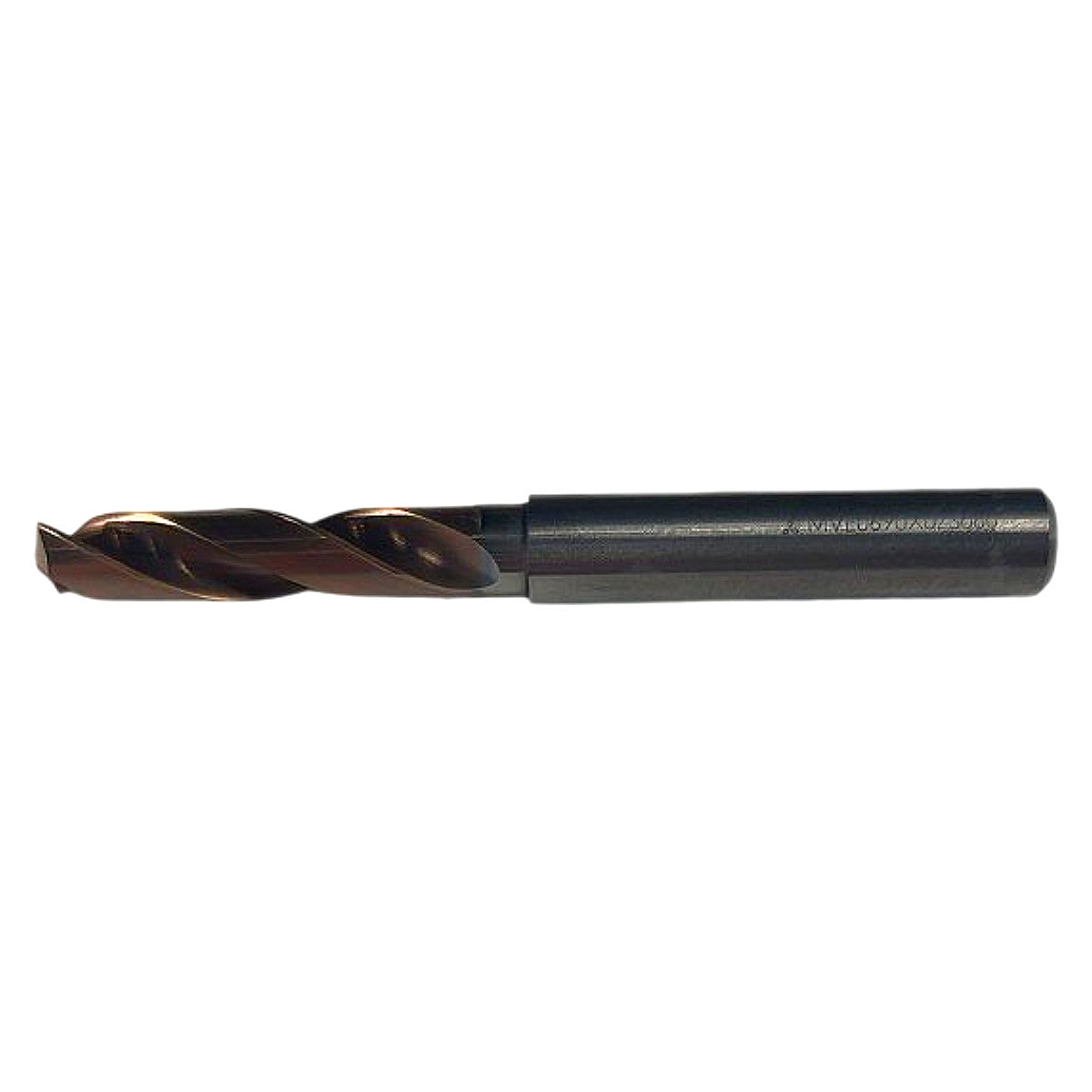

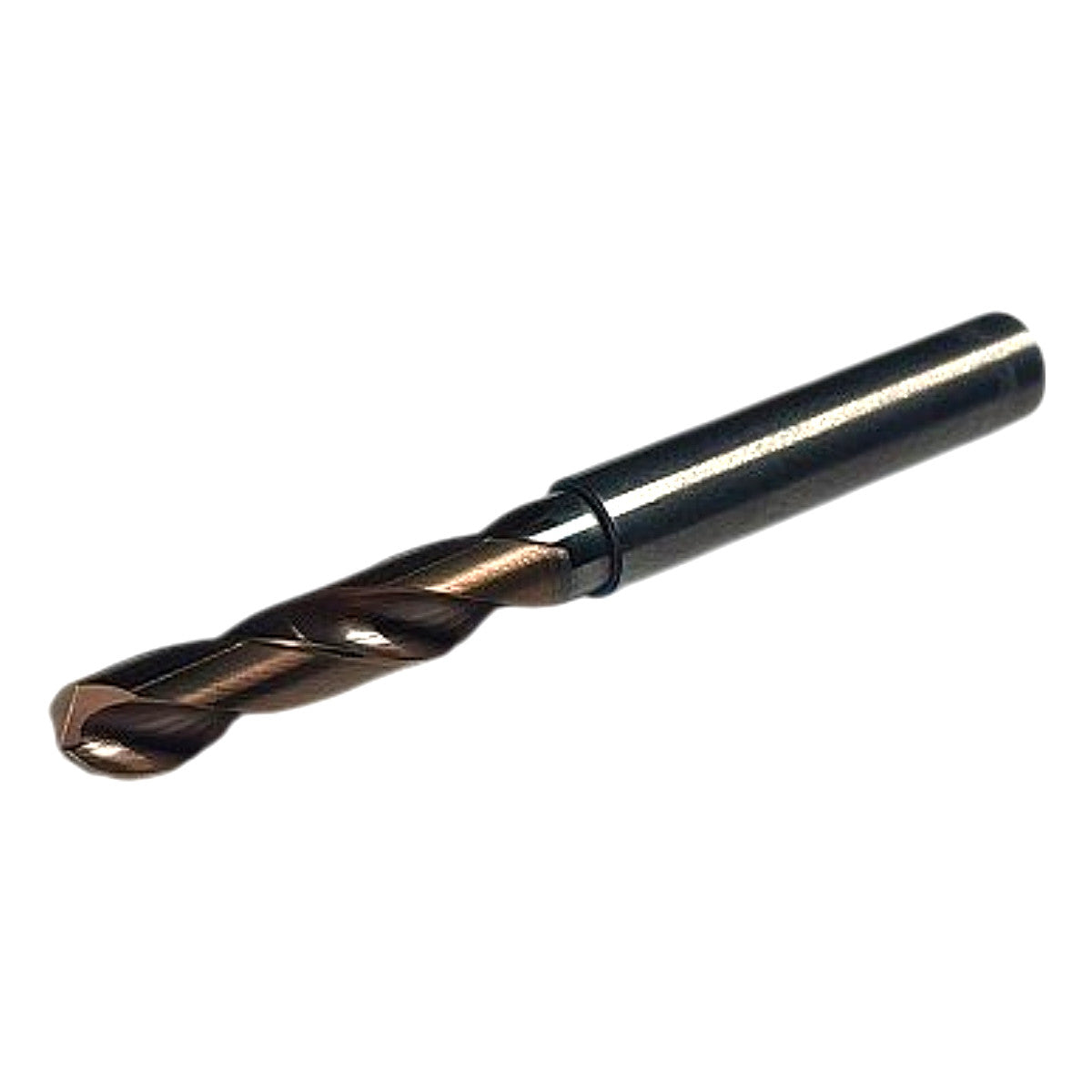

Mitsubishi MVE0690X02S080 DP1020 6.9mm 2xD WSTAR Solid Carbide Drill
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

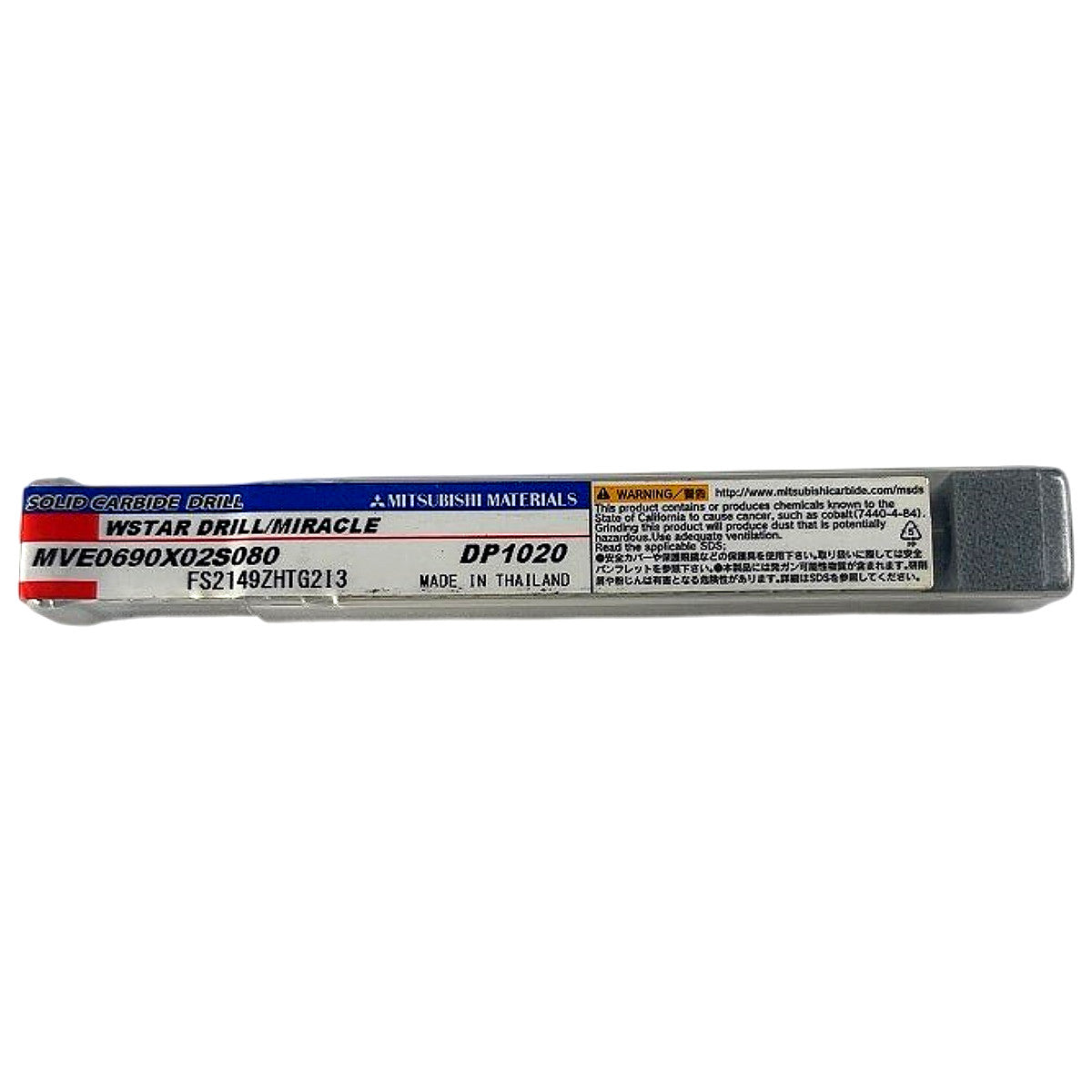

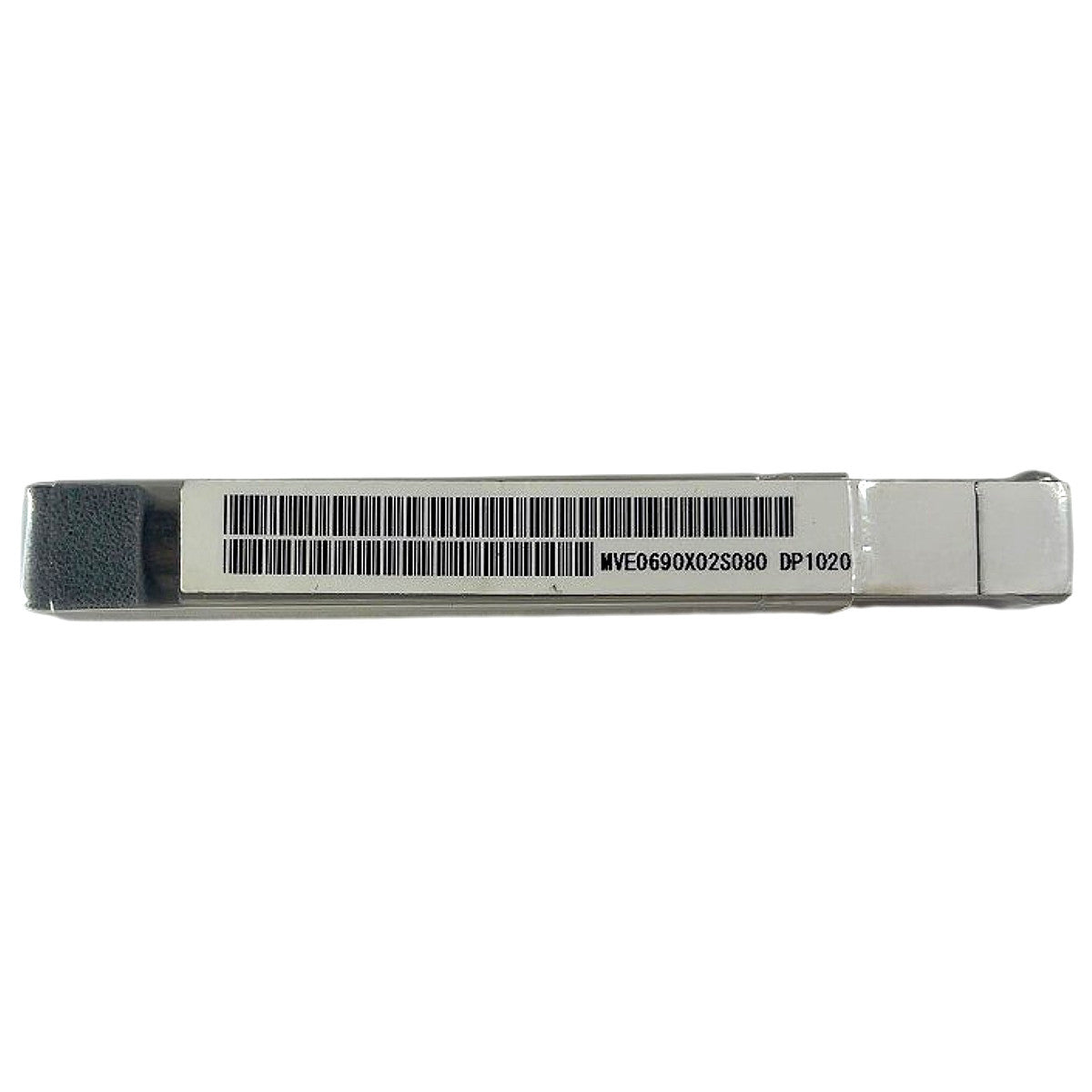

The Mitsubishi Materials MVE0690X02S080 is a new solid carbide drill from the WSTAR Miracle series, grade DP1020, featuring a 6.9 mm cutting diameter, 2×D (shallow/stub) flute length, and an 8.0 mm straight cylindrical shank. The DP1020 grade uses Mitsubishi's proprietary MIRACLE coating — a multilayer PVD TiAlN-based coating — engineered for high hardness and heat resistance, making this drill well suited for machining steel, stainless steel, cast iron, and hardened materials. The MVE series WSTAR drill employs a web-thinned, S-shaped point geometry that reduces thrust force and improves centering without a pilot hole, and the two-flute design promotes efficient chip evacuation in short-hole (≤2×D) drilling applications. The 8.0 mm shank (S080 suffix) is compatible with standard ER collet chucks and hydraulic toolholders sized for 8 mm bores. Manufactured in Thailand to Mitsubishi Materials' published tolerances; supplied in the original factory case, unused.
Product Specifications
| Brand | Mitsubishi Materials |
| MPN | MVE0690X02S080 |
| Grade | DP1020 |
| Series | WSTAR Drill / MIRACLE |
| Tool Type | Solid Carbide Drill |
| Cutting Diameter | 6.9 mm |
| Drill Depth (L/D Ratio) | 2xD (shallow/stub) |
| Shank Diameter | 8.0 mm |
| Shank Type | Straight Cylindrical |
| Number of Flutes | 2 |
| Coating | MIRACLE PVD TiAlN-based multilayer |
| Point Geometry | S-shaped web-thinned point (WSTAR) |
| Country of Origin | Thailand |
| Condition | New |
