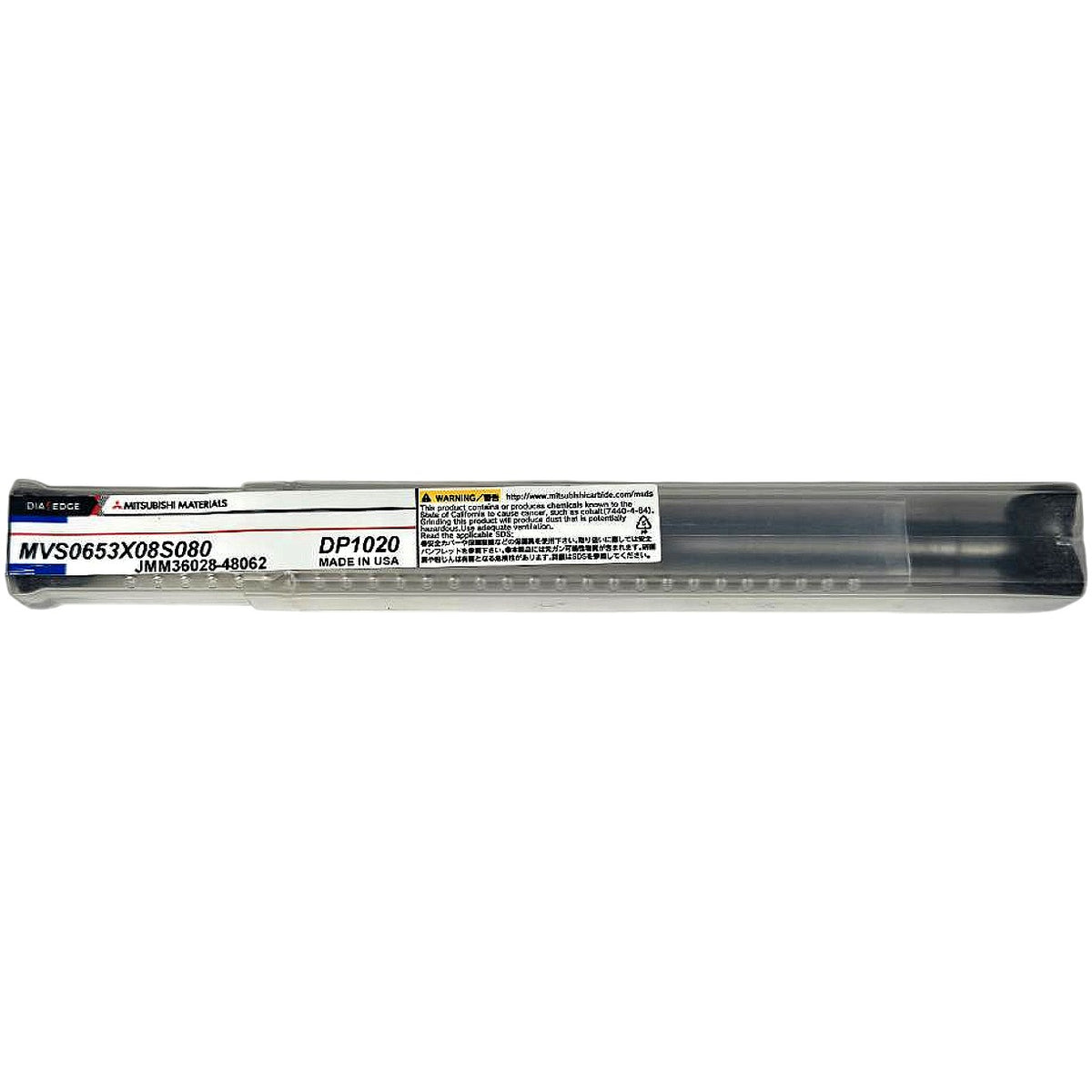

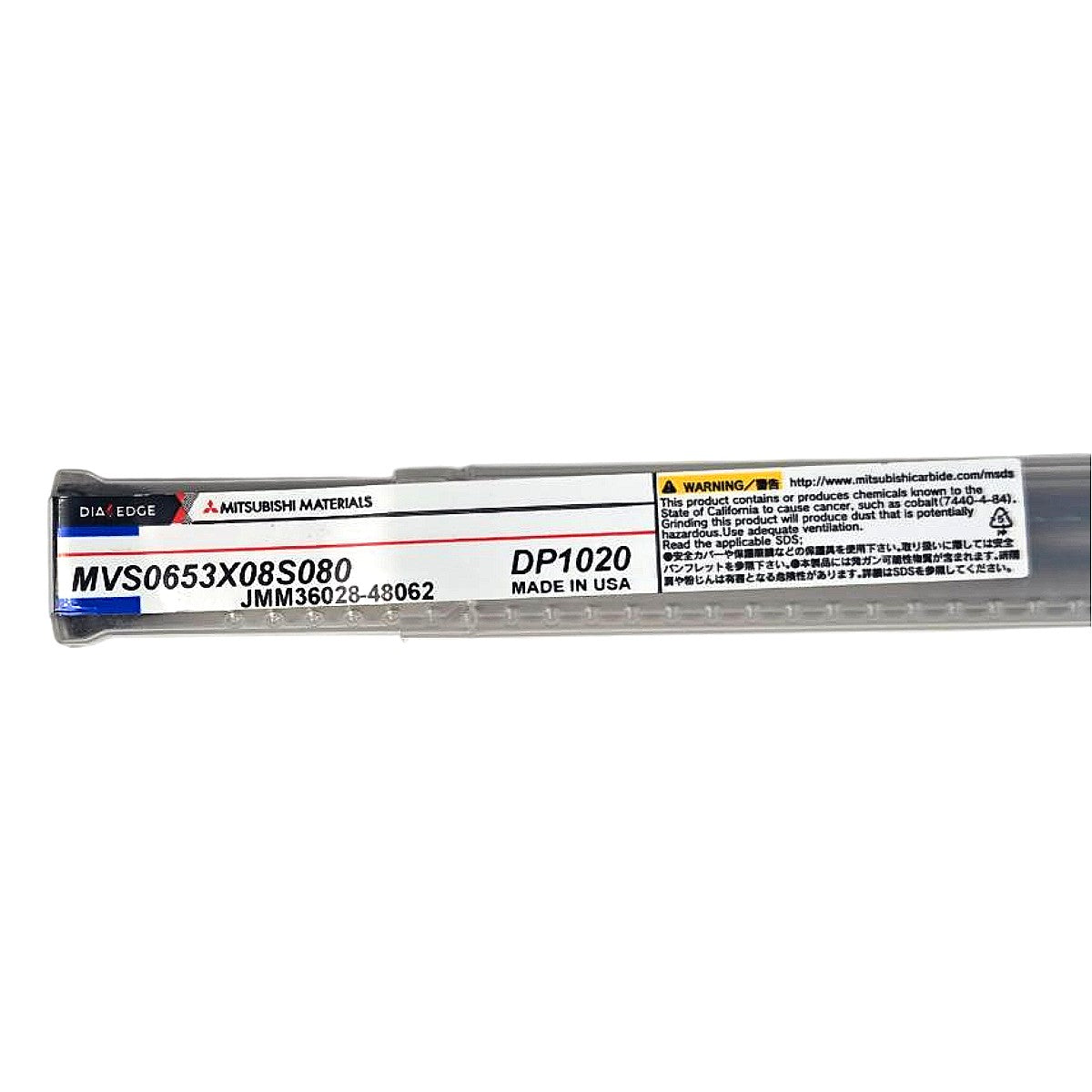

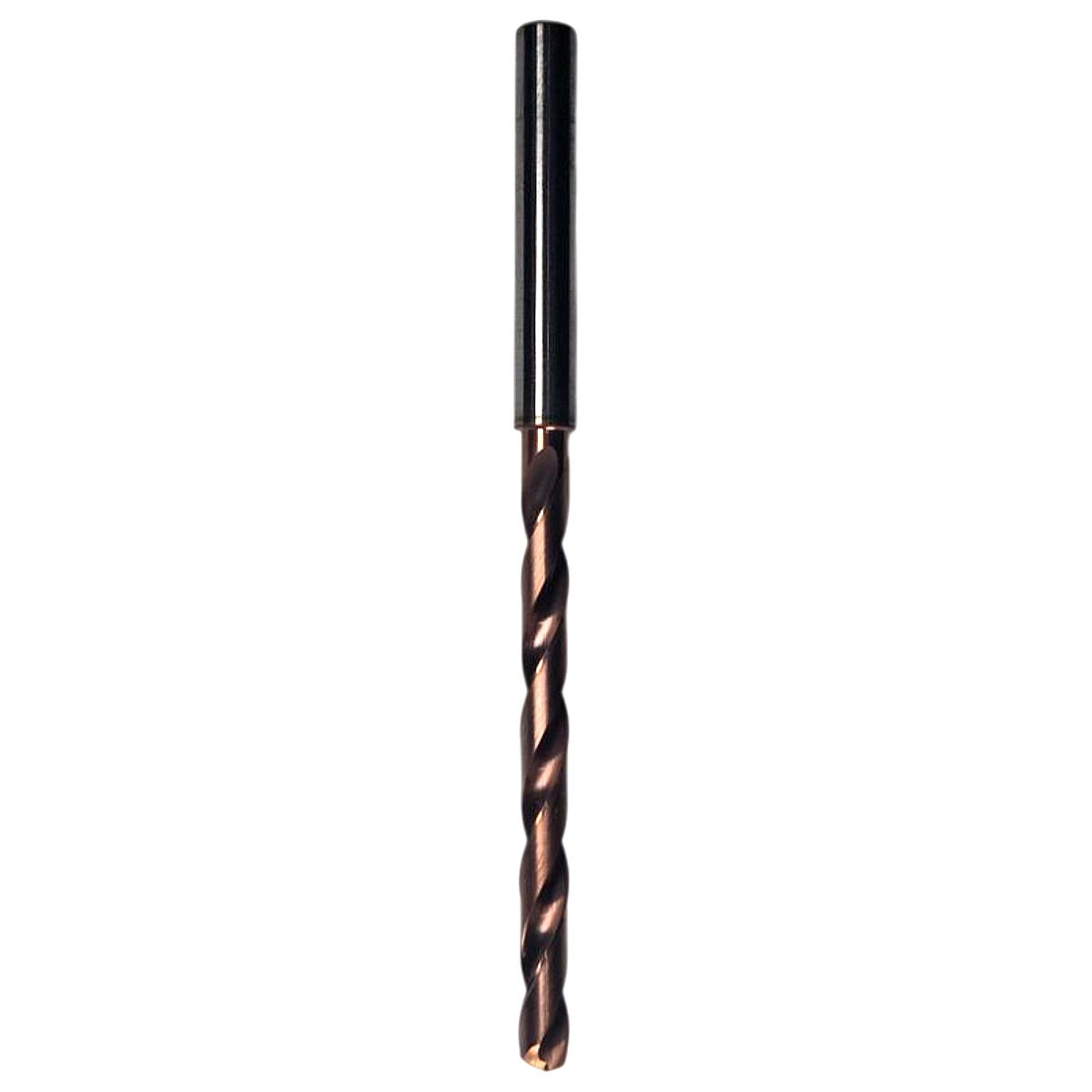

Mitsubishi MVS0653X08S080 DP1020 6.53mm Coolant-Through Carbide Drill
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

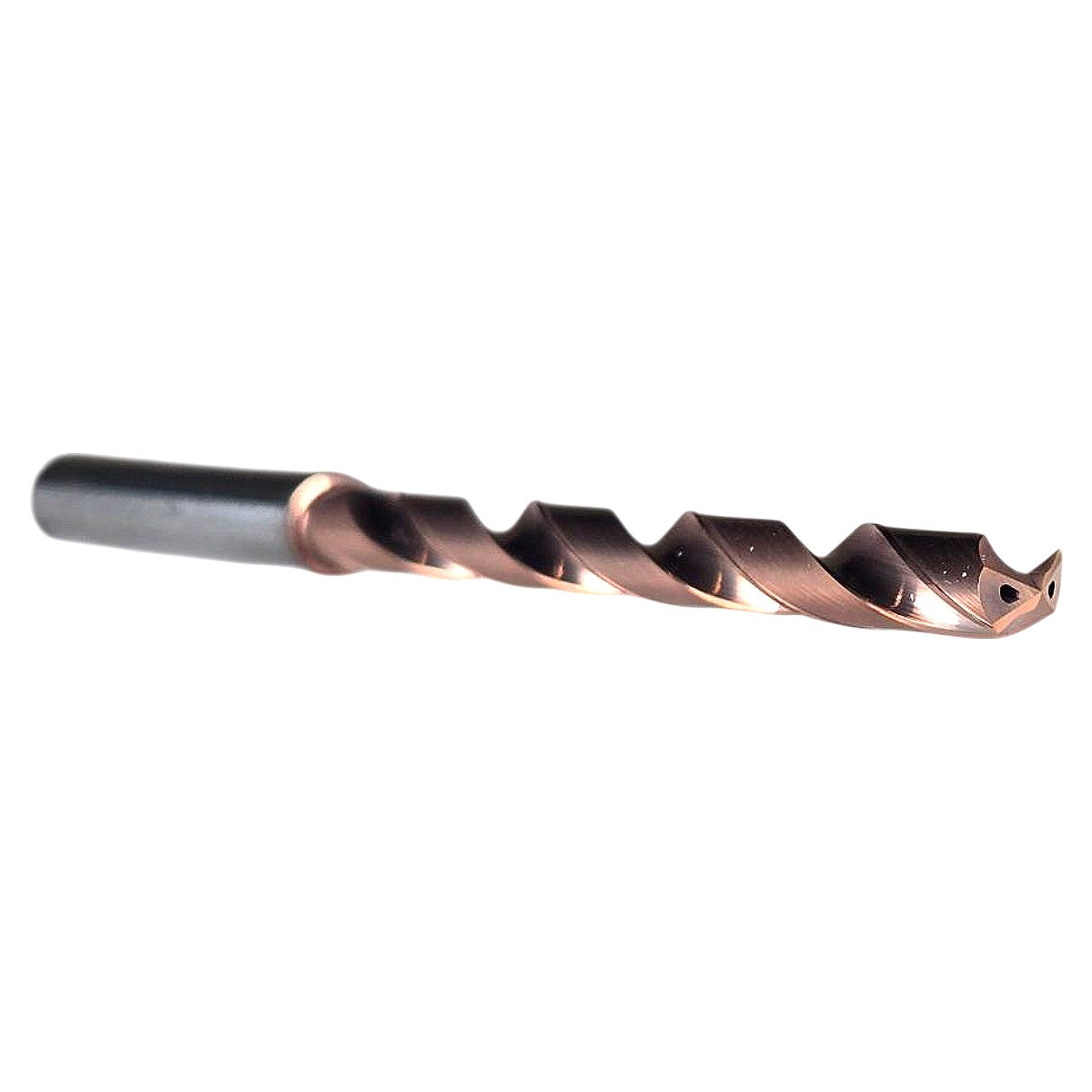

The Mitsubishi Materials MVS0653X08S080 is a new solid carbide, coolant-through twist drill from the DIAEDGE MVS series, ground in grade DP1020 — a PVD-coated (copper-bronze colored AlCrN-type) ultra-fine grain carbide substrate engineered for high-speed drilling of steel, stainless steel, and cast iron. Decoding the part number: MVS = Multi-purpose V-flute Series; 0653 = 6.53 mm drill diameter; X08 = 8×D flute length (extra-long, approximately 52 mm flute); S080 = 8.0 mm straight cylindrical shank diameter, confirming the drill uses a reduced/over-shank design for use in standard 8 mm collet or hydraulic chucks. Internal coolant channels (visible as twin holes in the tip photo) deliver cutting fluid directly to the cutting edge, enabling high-pressure through-spindle coolant for chip evacuation and thermal management in deep-hole applications up to 8× diameter. Made in the USA (as labeled), this drill is compatible with Mitsubishi's MVS series toolholders and any precision 8 mm bore collet chuck or hydraulic chuck; it targets applications in CNC machining centers drilling steel (P-class), stainless (M-class), and cast iron (K-class) workpieces.
Product Specifications
| Brand | Mitsubishi Materials (DIAEDGE) |
| MPN | MVS0653X08S080 |
| Grade | DP1020 |
| Series | MVS (Multi-purpose V-flute Series) |
| Drill Diameter | 6.53 mm |
| Shank Diameter | 8.0 mm (straight cylindrical) |
| Flute Length (Depth of Cut) | 8×D (~52.2 mm) |
| Shank Type | Straight cylindrical (reduced shank) |
| Substrate | Ultra-fine grain solid carbide |
| Coating | PVD AlCrN-type (DP1020) |
| Coolant Through | Yes — internal twin coolant channels |
| Number of Flutes | 2 |
| Point Style | Self-centering, thinned web |
| Country of Origin | USA |
| Compatible Materials | Steel (P), Stainless (M), Cast Iron (K) |
| Condition | New |
