Mitsubishi MVS0700X25S080 7mm DP1020 TiAlN 25xD Carbide Drill

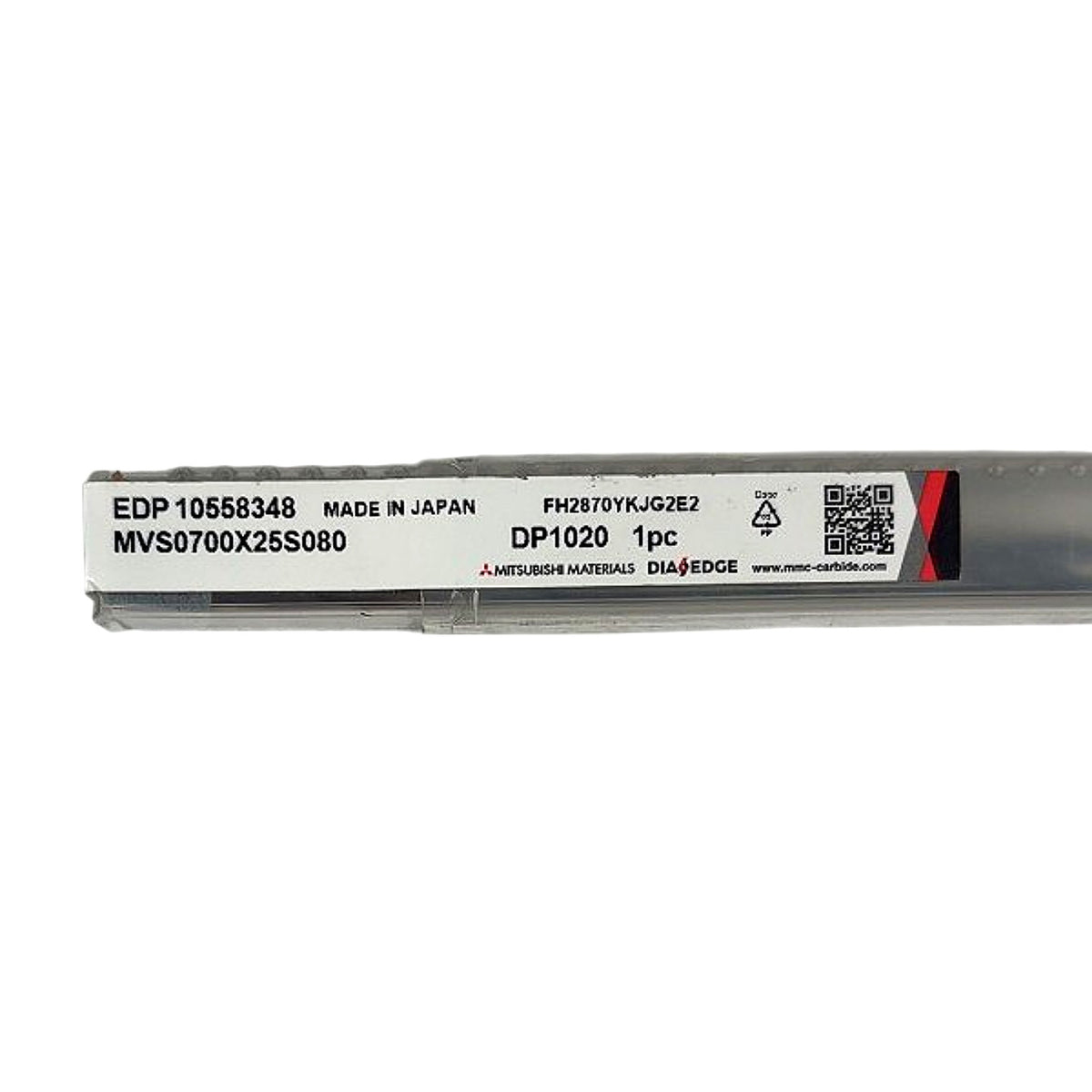

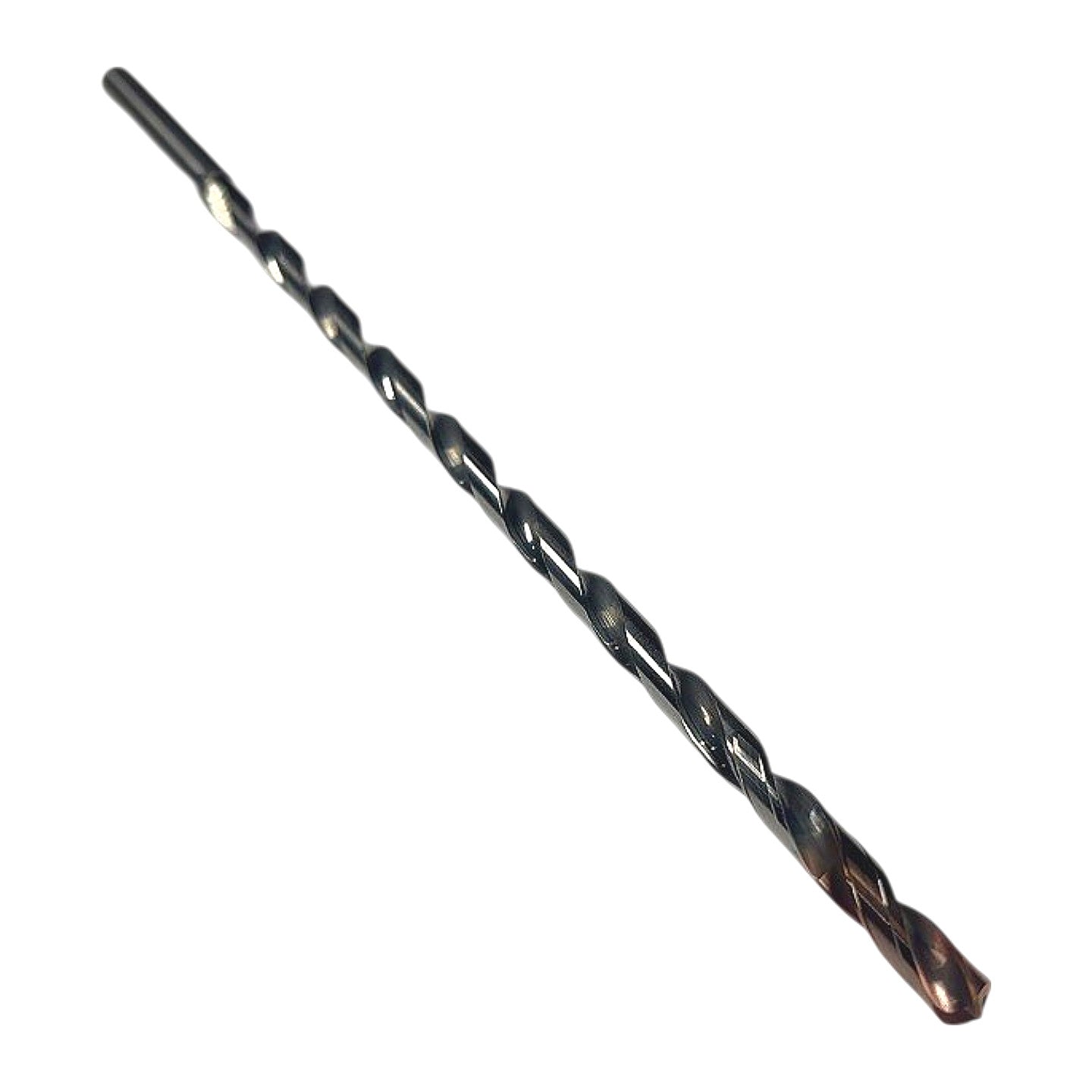

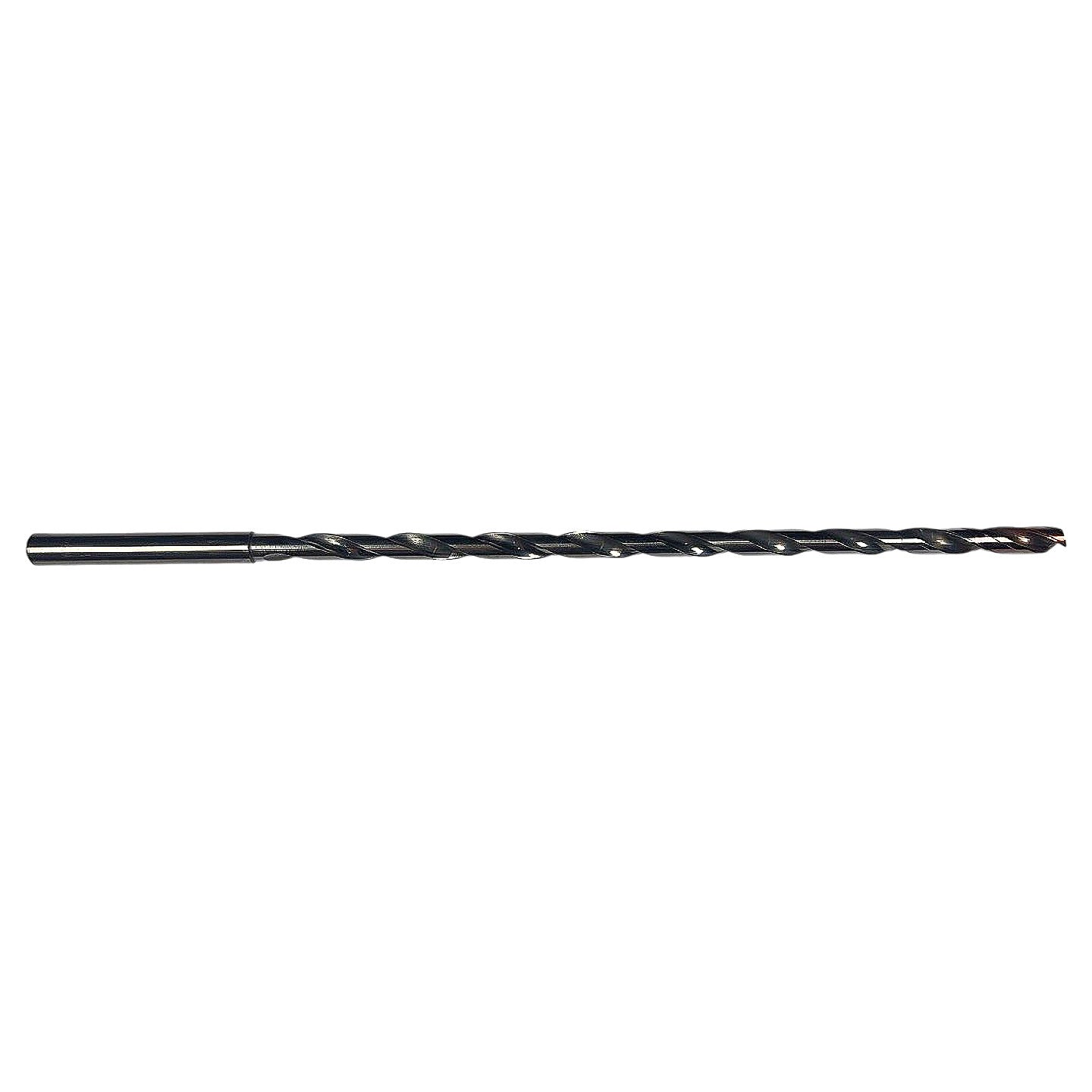

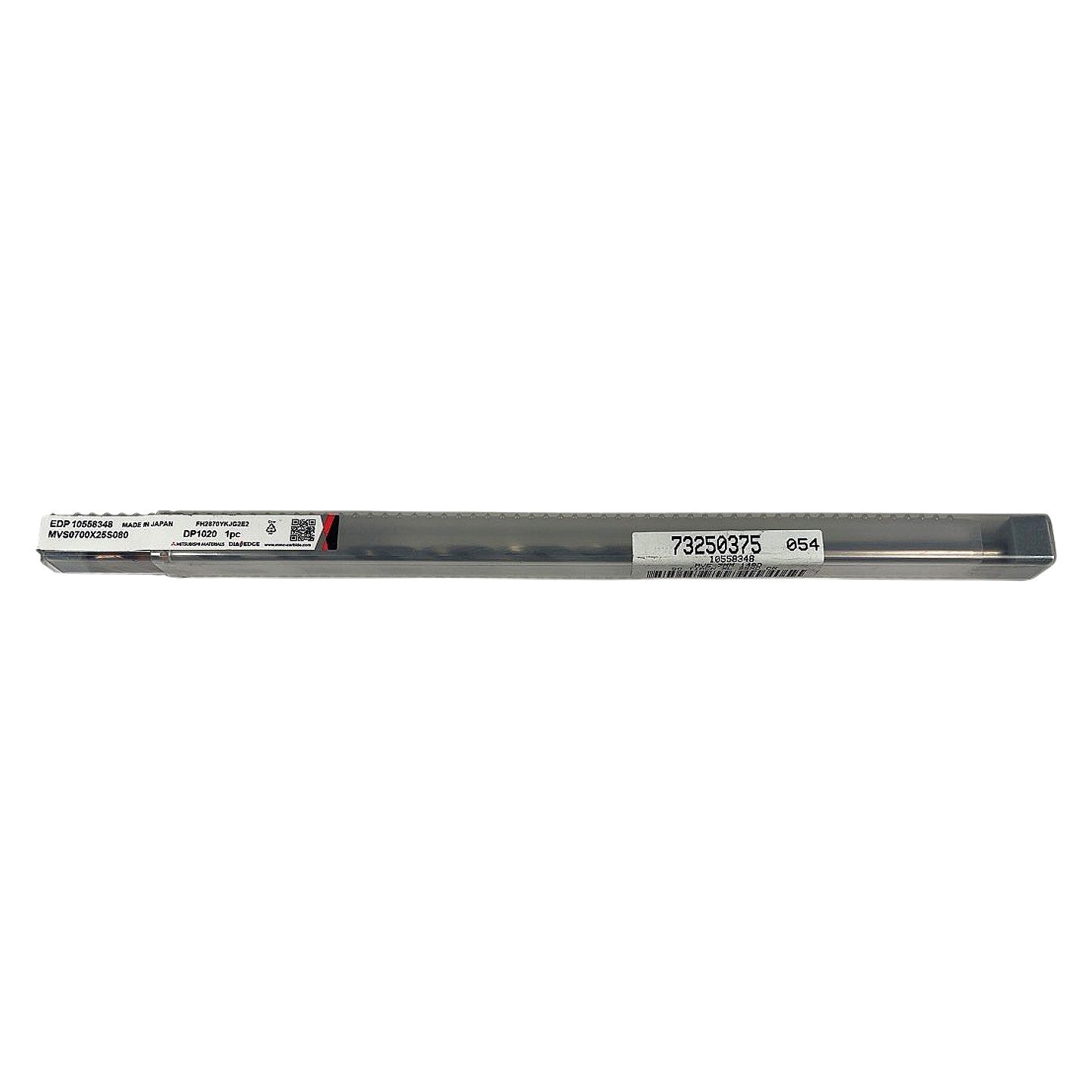

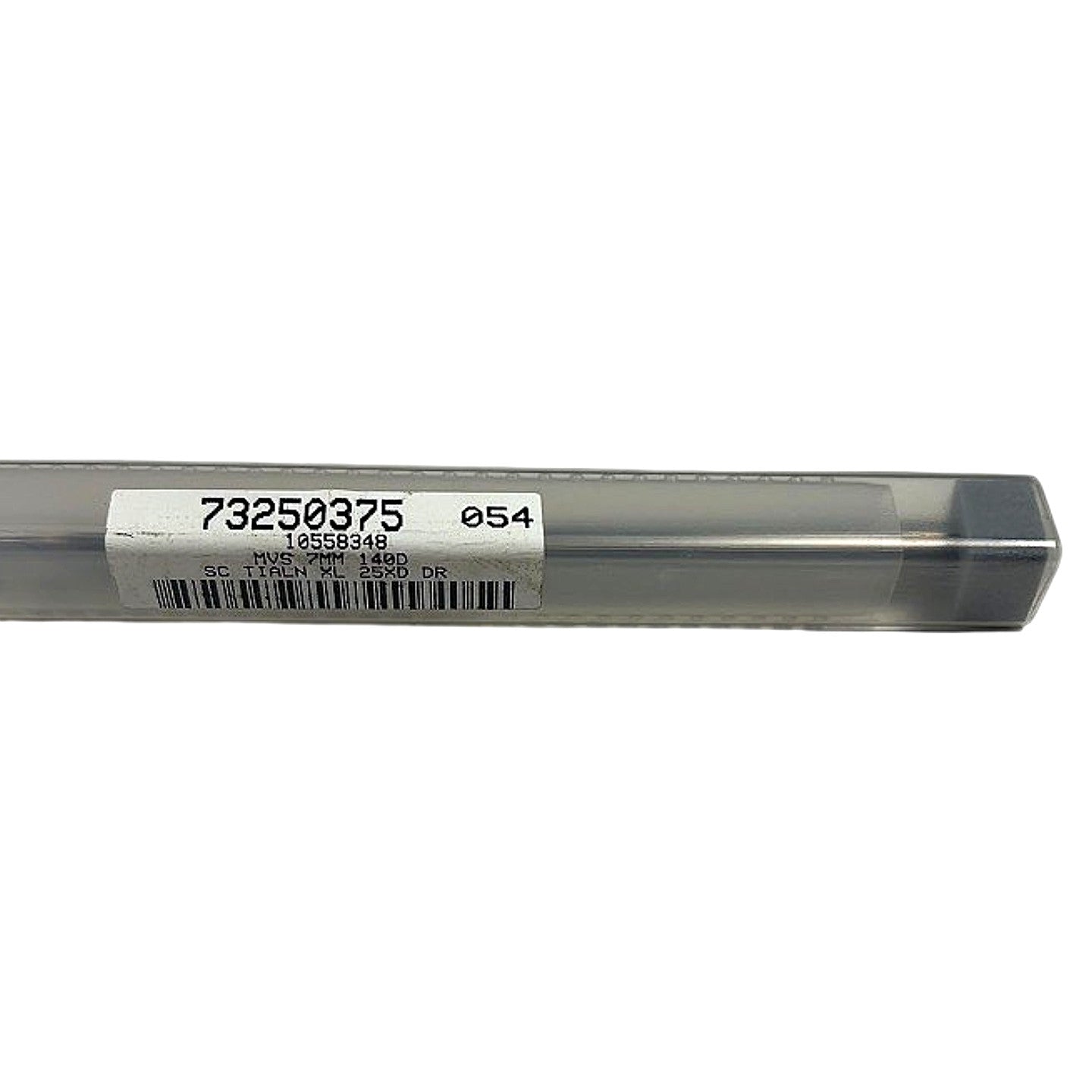

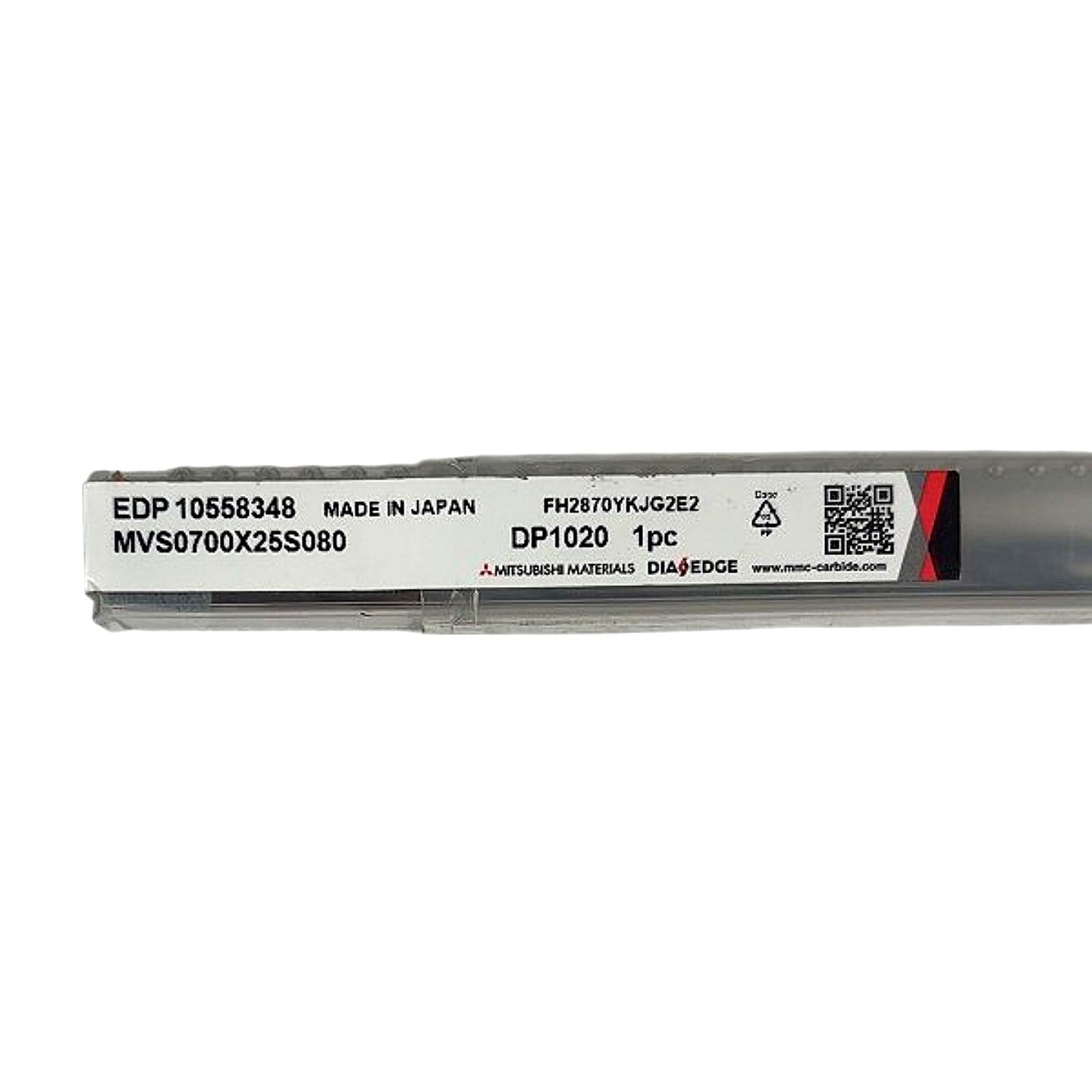

The Mitsubishi Materials MVS0700X25S080 is a new, solid carbide extra-long series (XL) twist drill from the DIAEDGE MVS series, featuring a 7.00 mm cutting diameter, 8.0 mm straight cylindrical shank, and a 25×D flute length designed for deep-hole drilling applications. The drill is ground with a 140° point angle and carries a TiAlN (Titanium Aluminum Nitride) PVD coating in grade DP1020, which provides excellent thermal resistance and wear resistance when machining steel, cast iron, stainless steel, and other ferrous workpiece materials at elevated cutting speeds. The 8.0 mm shank (S080 in the part number) is larger than the 7.0 mm cutting diameter, providing added rigidity and reduced deflection over the long unsupported flute length; the drill is compatible with standard ER or hydraulic chucks accepting 8 mm shanks. EDP number 10558348, manufactured in Japan by Mitsubishi Materials Corporation under the DIAEDGE brand.

Product Specifications
