Mitsubishi MVS0953X08S100 DP1020 9.53mm Coolant-Through Carbide Drill
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

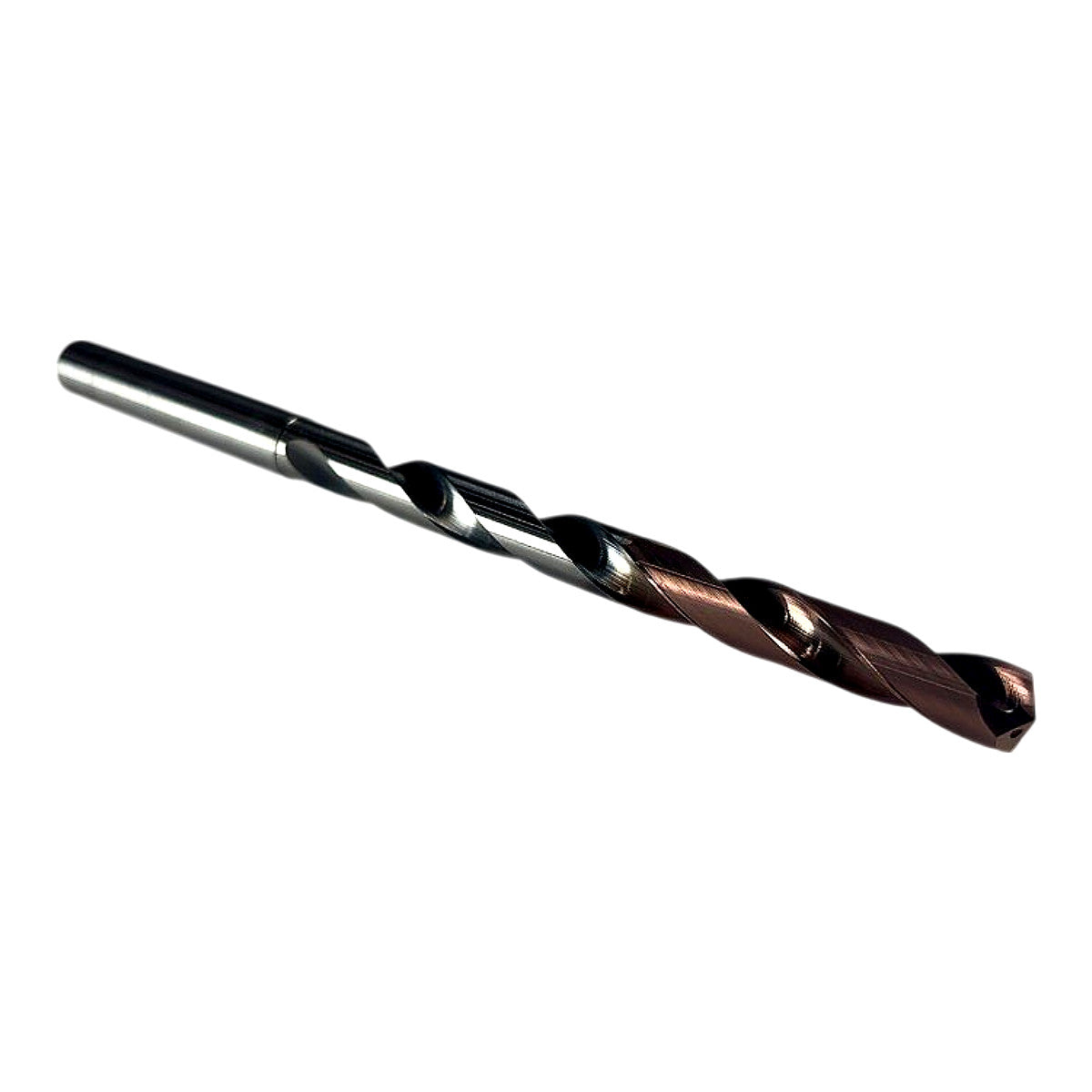

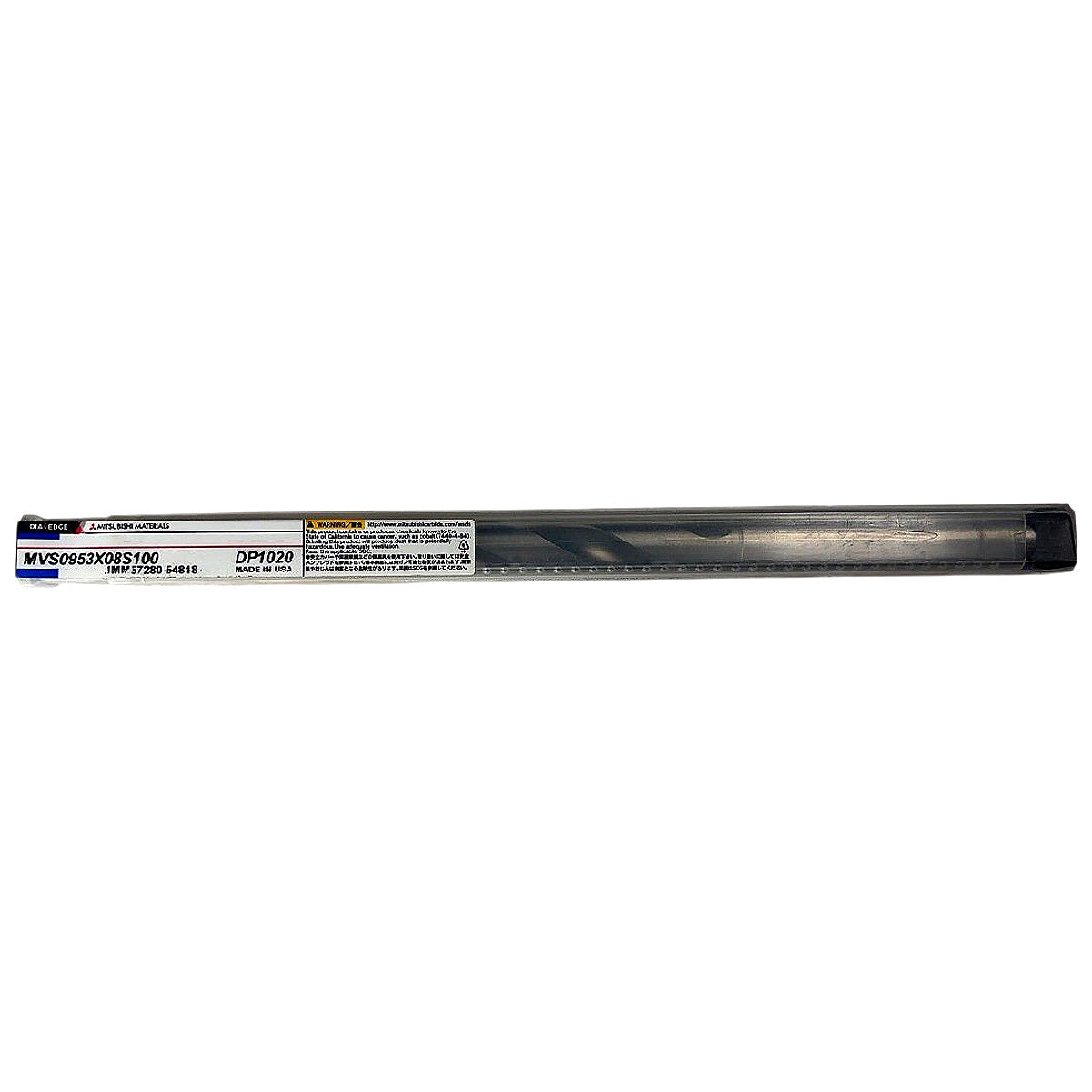

The Mitsubishi Materials MVS0953X08S100 is a new, solid carbide coolant-through twist drill from the DIAEDGE MVS series, ground in the USA to DP1020 grade specifications. The part number decodes as follows: MVS = MVS-series straight-shank drill, 0953 = 9.53 mm cutting diameter, X08 = 8× diameter flute length (approximately 76 mm), S100 = 10.0 mm straight shank diameter. The DP1020 grade is a PVD-coated (TiAlN-family) ultra-fine-grain carbide substrate designed for high-speed drilling of steel, cast iron, stainless steel, and other ferrous materials, delivering superior wear resistance and heat resistance compared to uncoated or TiN-coated drills. Internal through-coolant channels run the full length of the flute, enabling high-pressure coolant delivery directly to the cutting edge for extended tool life and effective chip evacuation in deep-hole applications. Compatible with straight-shank toolholders and hydraulic/shrink-fit chucks accepting a 10 mm shank; suitable for CNC machining centers requiring precision hole tolerancing in production environments.
Product Specifications
| Brand | Mitsubishi Materials DIAEDGE |
| MPN | MVS0953X08S100 |
| Grade | DP1020 |
| Cutting Diameter | 9.53 mm |
| Shank Diameter | 10.0 mm |
| Shank Type | Straight (cylindrical) |
| Flute Length (L/D Ratio) | 8× diameter (~76 mm) |
| Coolant Through | Yes — internal through-coolant channels |
| Substrate | Solid ultra-fine-grain carbide |
| Coating | PVD TiAlN-family (DP1020) |
| Number of Flutes | 2 |
| Country of Origin | USA |
| Condition | New |
