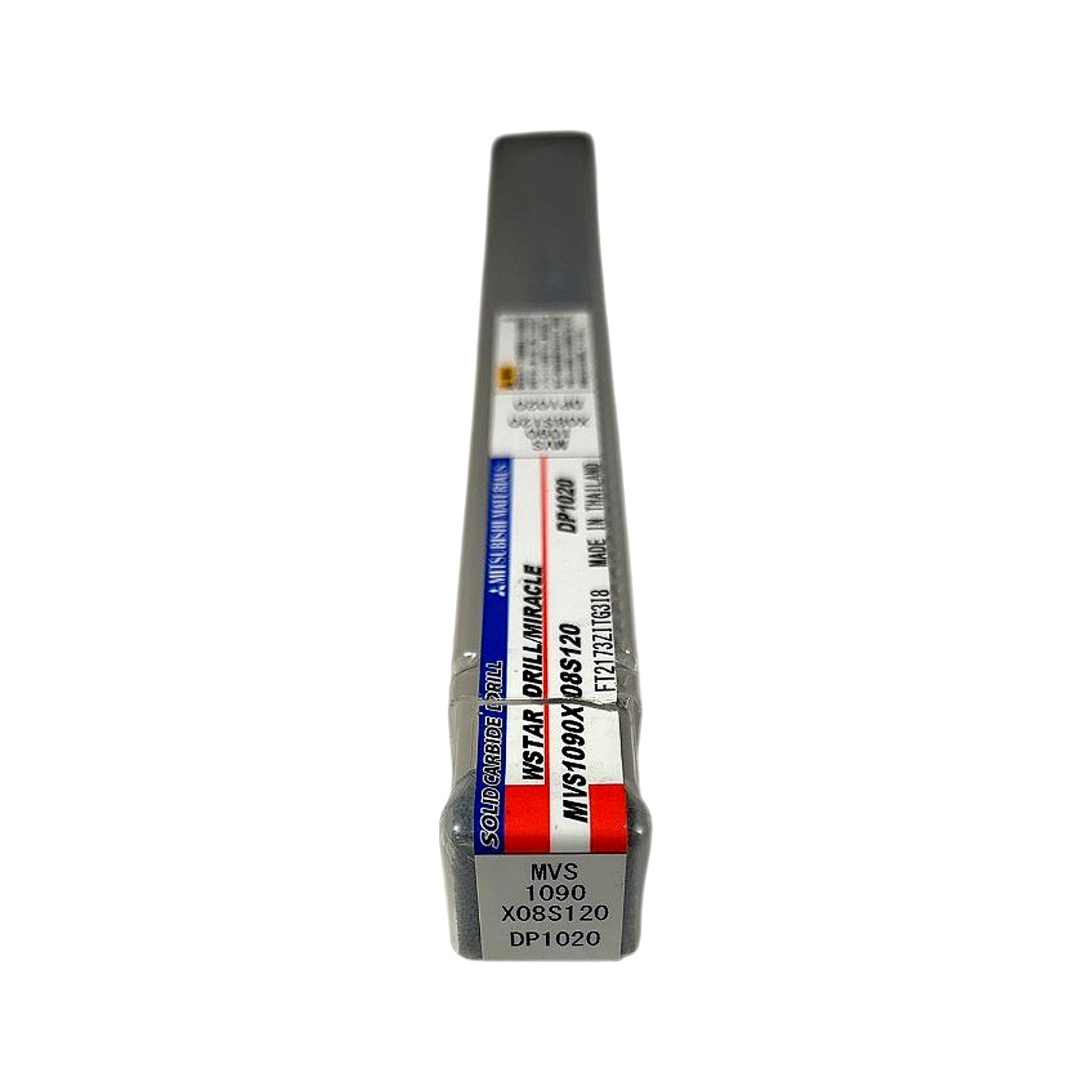

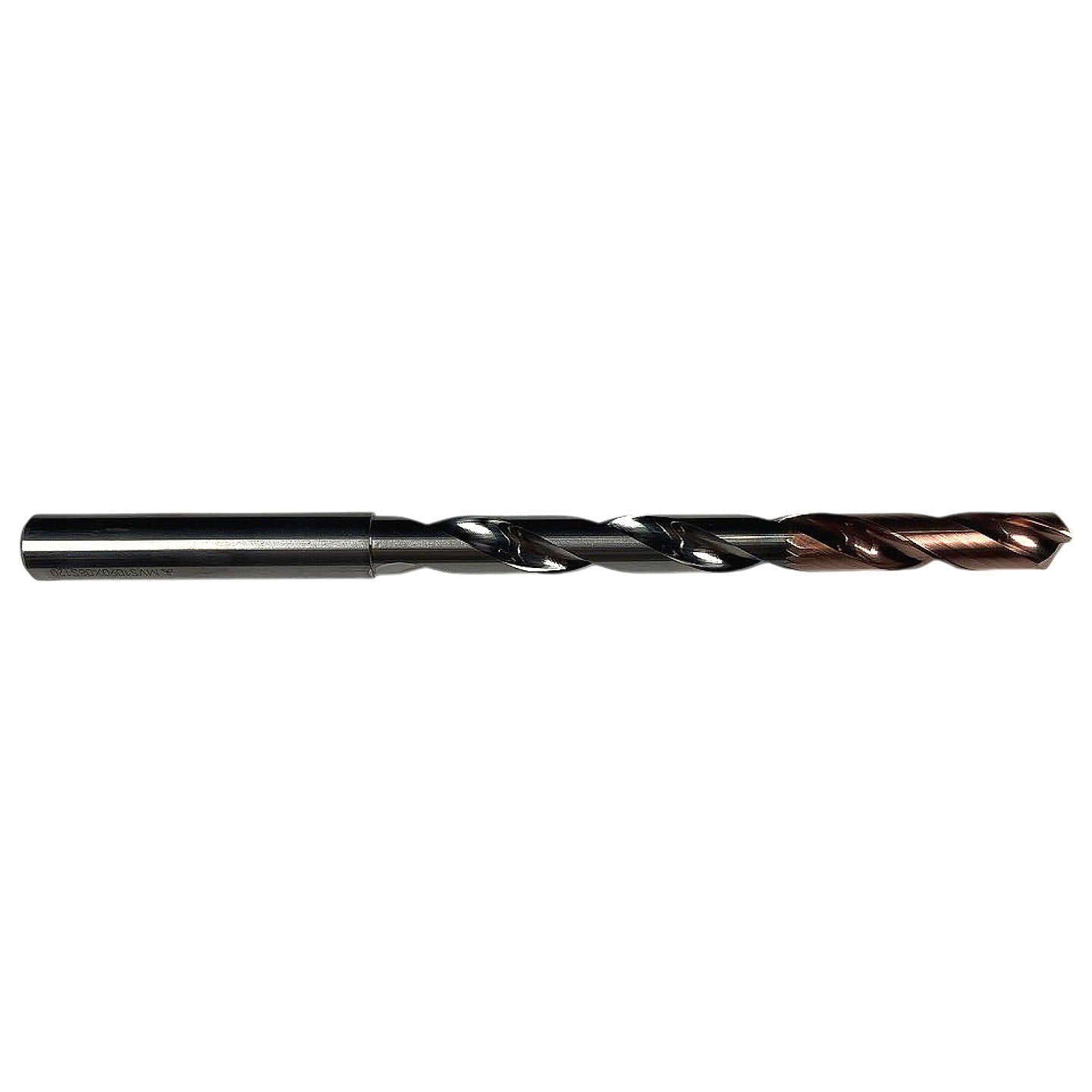

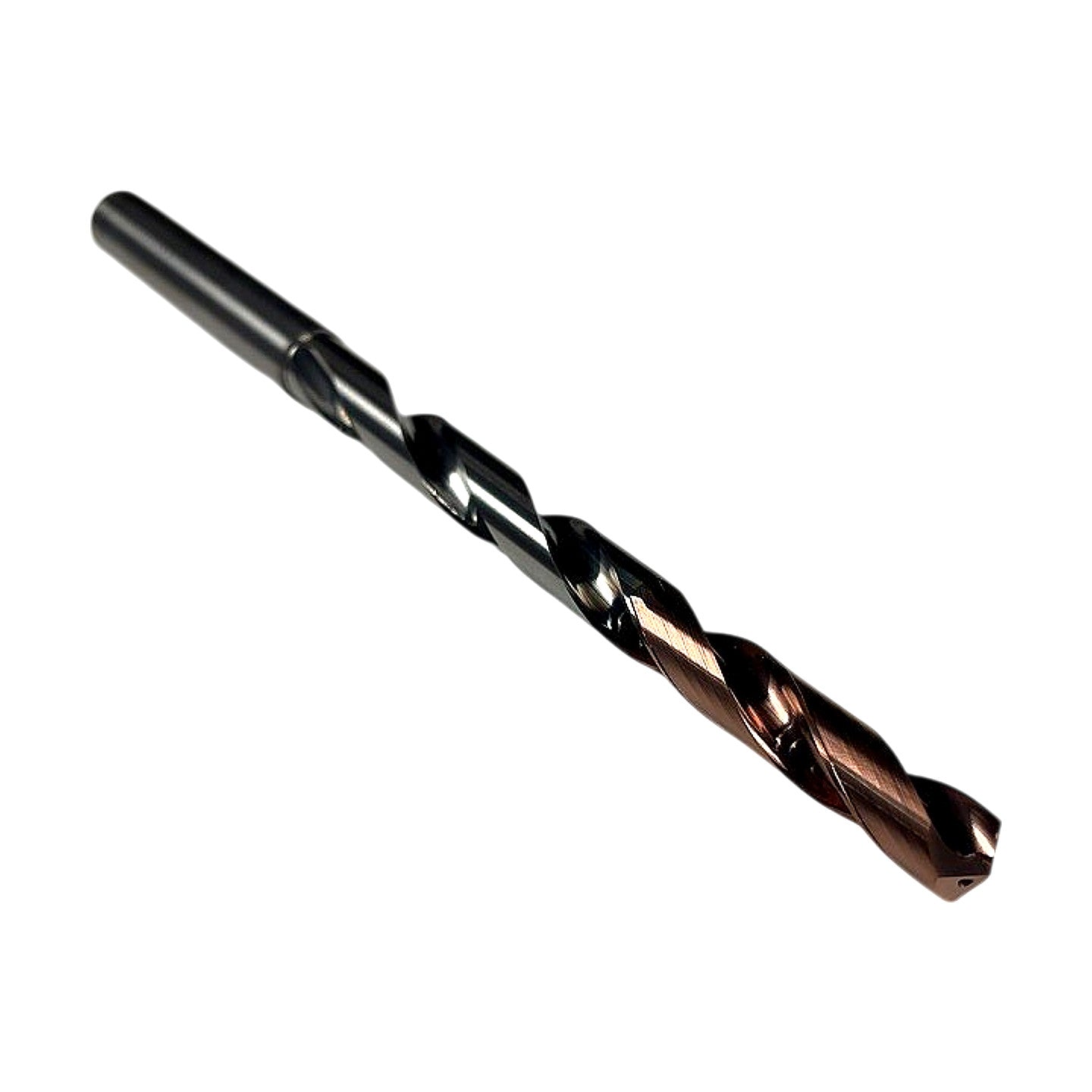

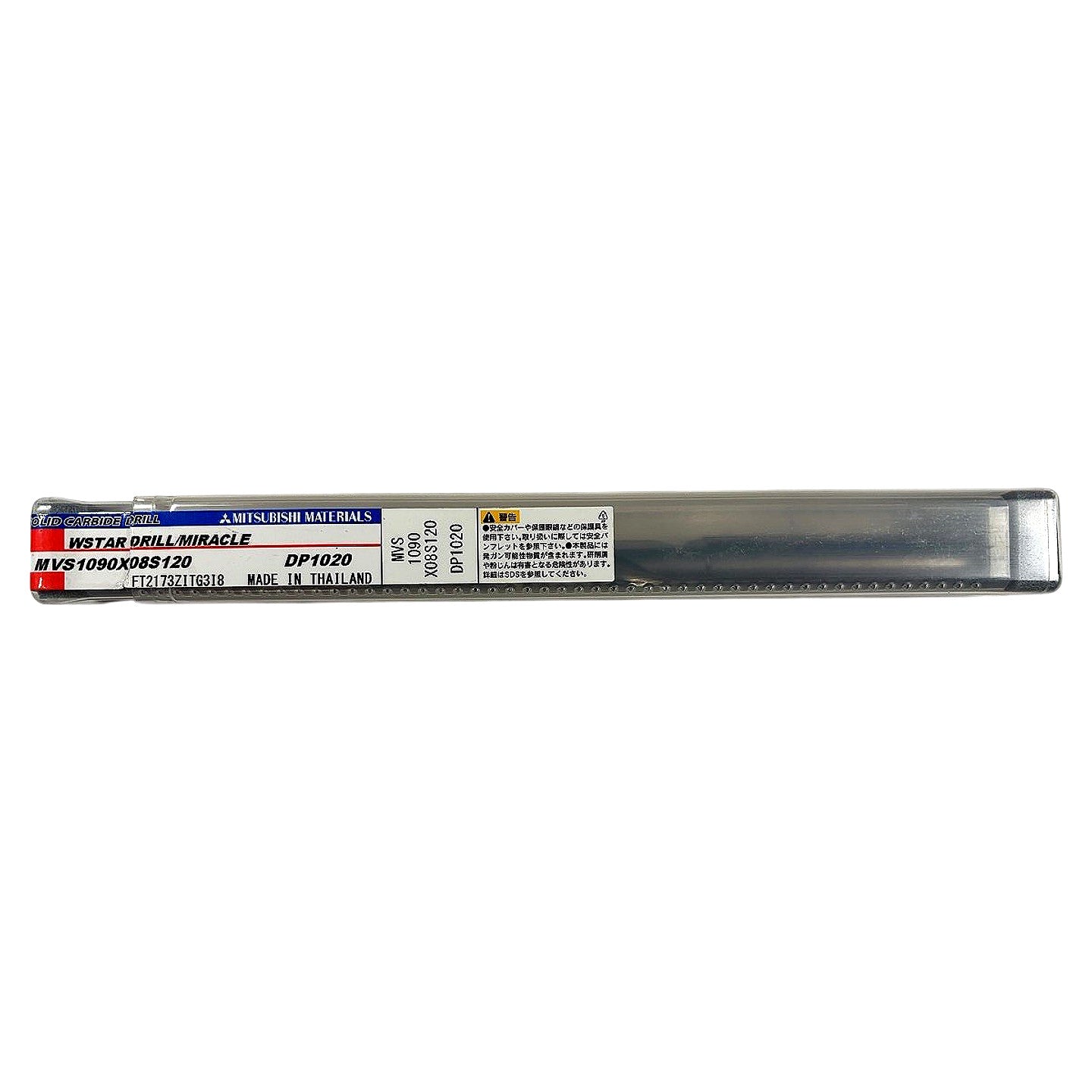

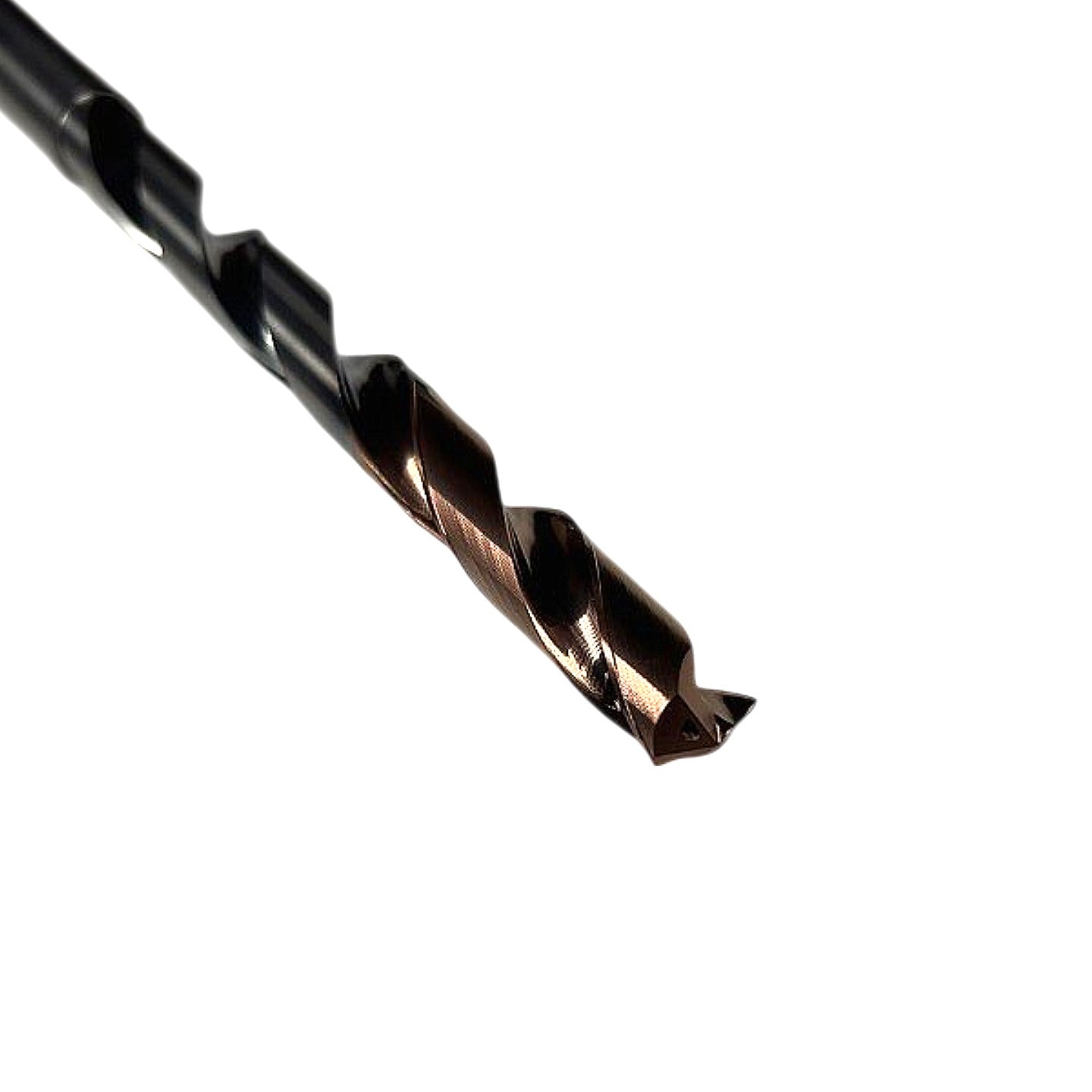

The Mitsubishi Materials MVS1090X08S120 is a new, solid carbide WSTAR Miracle series jobber-length twist drill in grade DP1020, designed for high-efficiency drilling of steel, stainless steel, cast iron, and other ferrous materials. Decoded from the part number: "MVS" = WSTAR solid carbide drill series; "1090" = 10.90 mm cutting diameter; "X08" = 8 mm straight shank diameter (reduced/undercut shank); "S120" = 120 mm shank length; "DP1020" = Mitsubishi's multi-layer MIRACLE coating — a nano-structured TiAlN-based PVD coating that delivers high heat and oxidation resistance for extended tool life at elevated cutting speeds. The 8 mm reduced shank allows the 10.9 mm diameter drill to be held in standard ER/collet or drill chuck systems rated for 8 mm shanks, and the drill features a split-point (Xtra·MR) geometry with coolant-through capability visible at the drill tip, promoting chip evacuation and enabling both wet and MQL cutting strategies. This drill is manufactured in Thailand to Mitsubishi Materials' ISO quality standards and is sold as a single new unit in its original factory packaging.
Product Specifications
| Brand | Mitsubishi Materials |
| MPN | MVS1090X08S120 |
| Series | WSTAR Miracle |
| Grade | DP1020 |
| Coating | MIRACLE (TiAlN-based PVD nano-multilayer) |
| Cutting Diameter | 10.90 mm |
| Shank Diameter | 8 mm (reduced/undercut shank) |
| Shank Length | 120 mm |
| Shank Type | Straight, cylindrical (reduced) |
| Point Geometry | Xtra·MR split point |
| Coolant Through | Yes (through-coolant capable) |
| Material | Solid Carbide |
| Country of Origin | Thailand |
| Condition | New |
