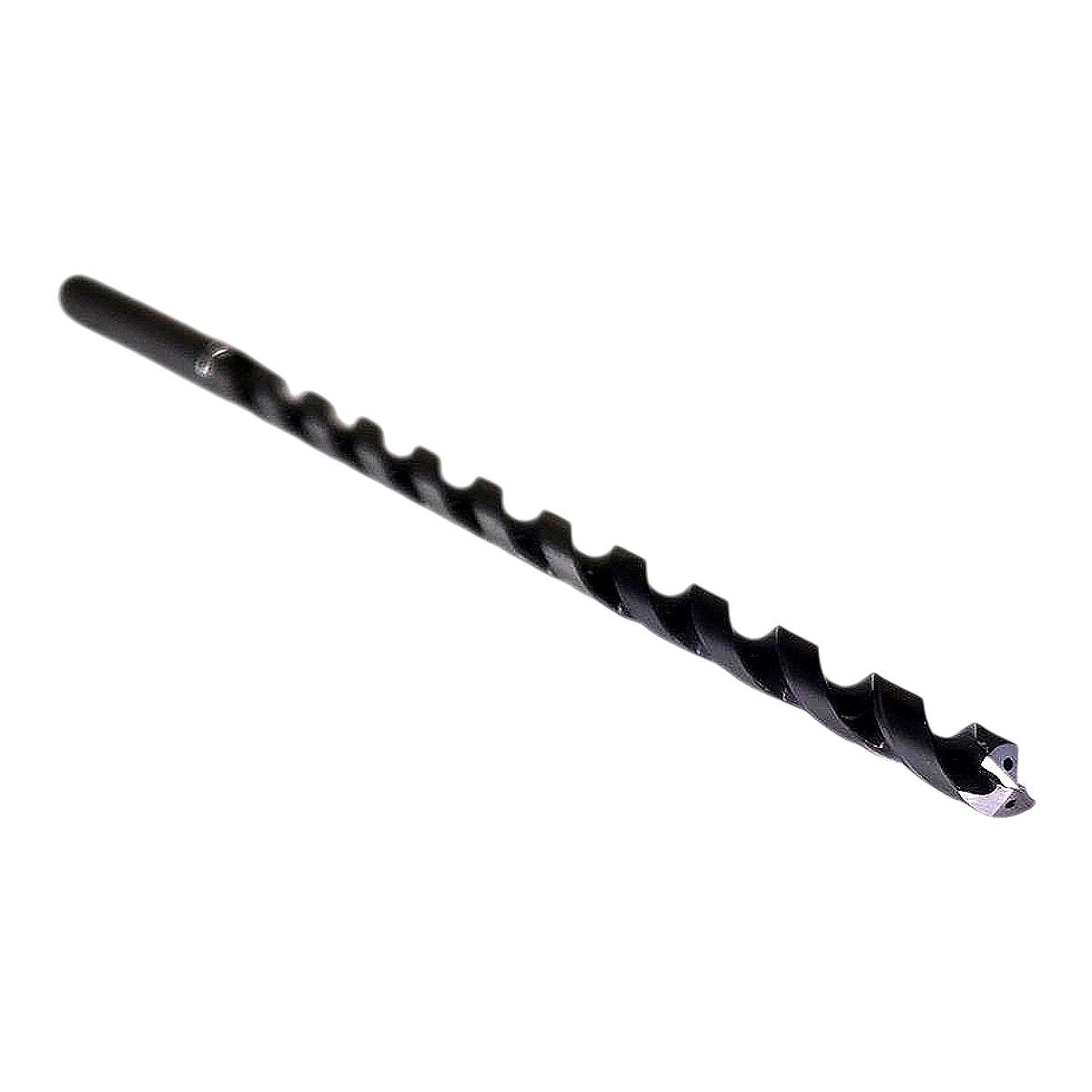

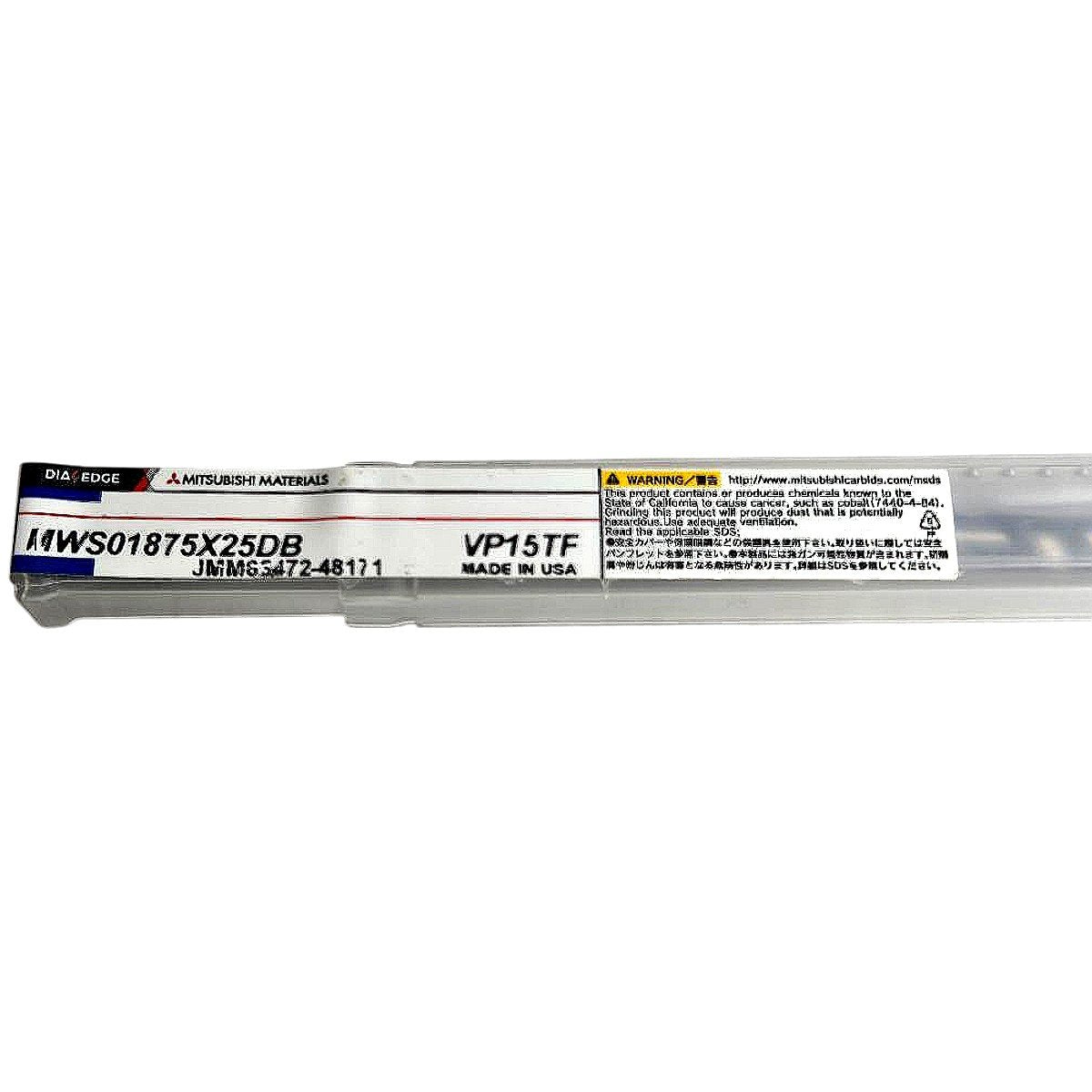

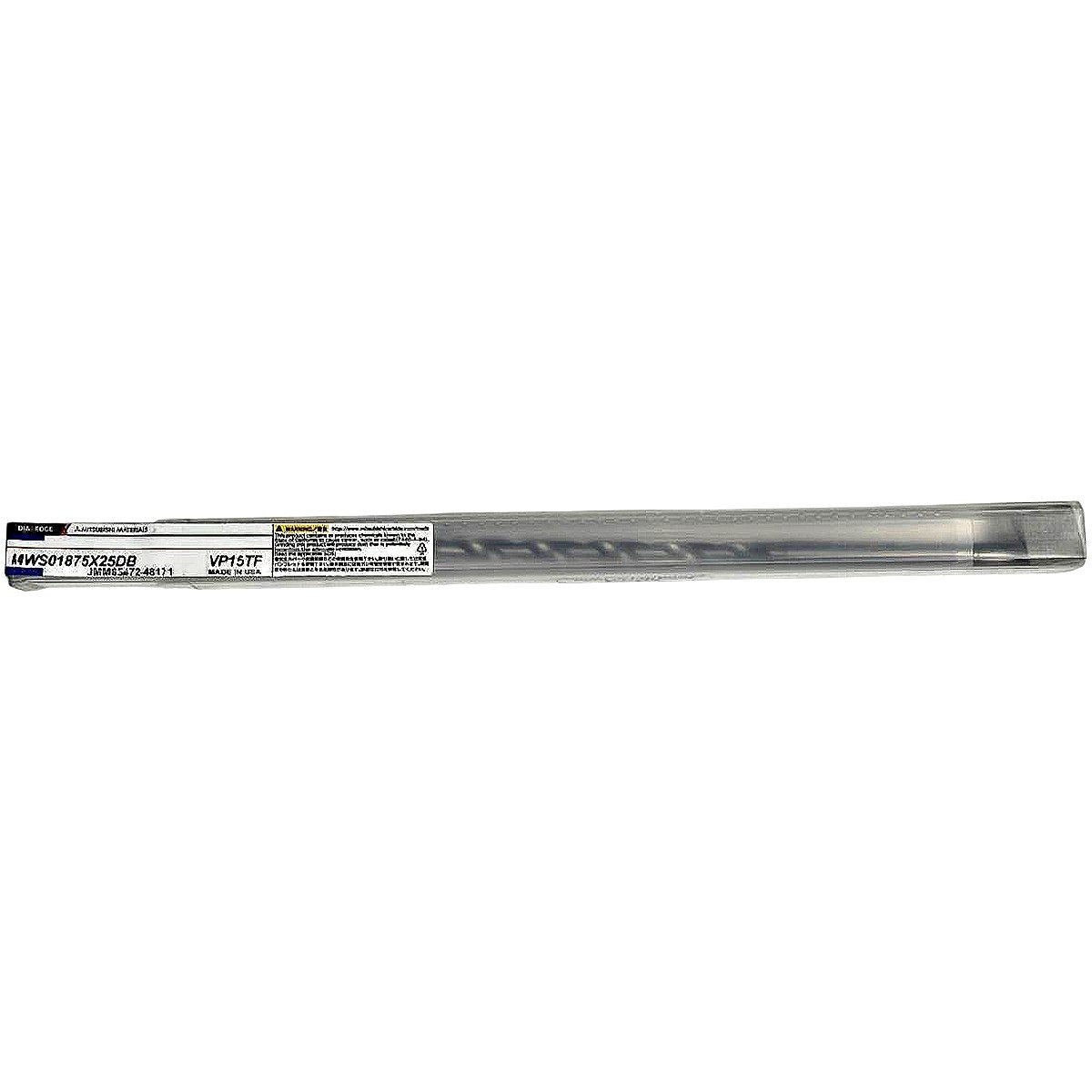

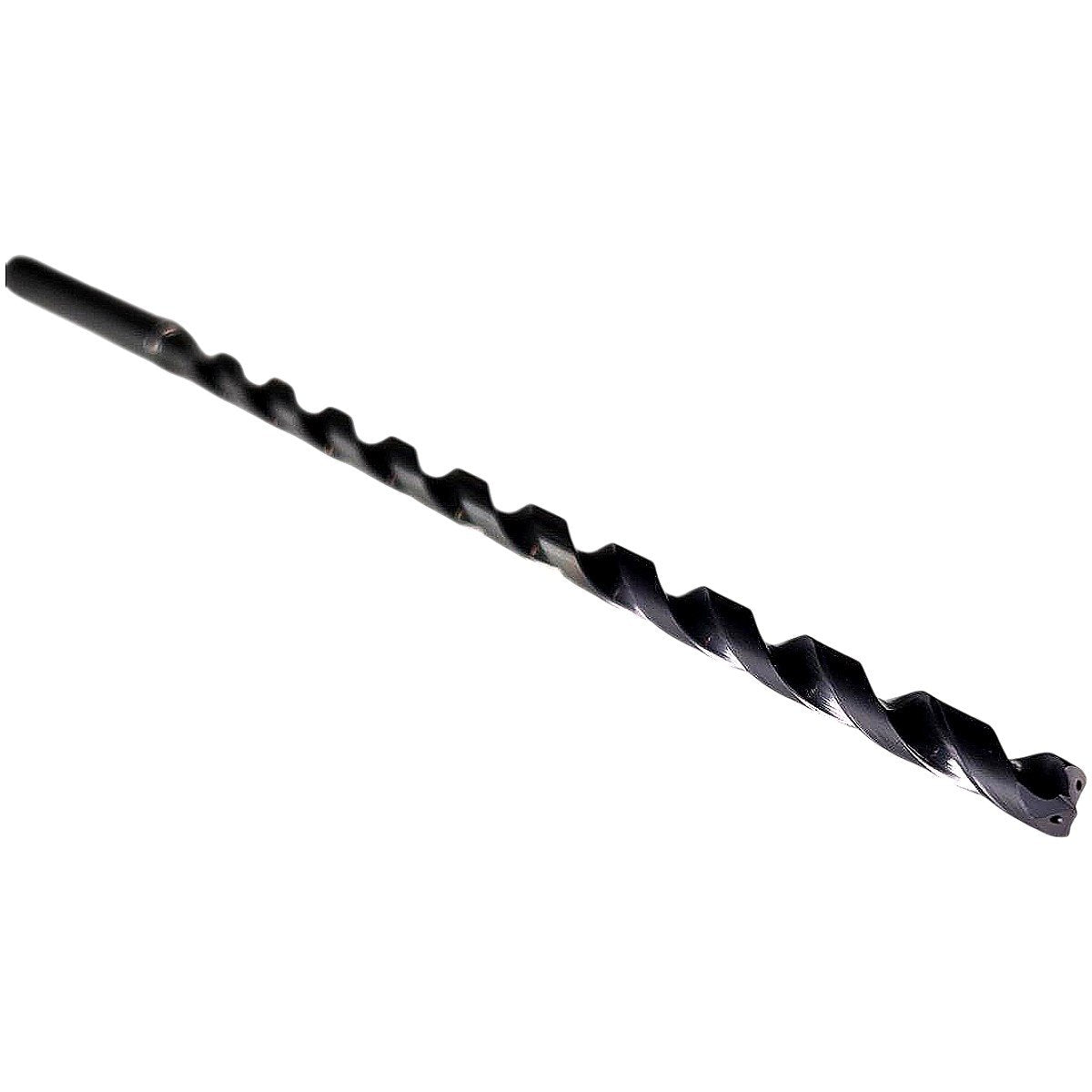

The Mitsubishi Materials MWS01875X25DB is a new, solid carbide through-coolant twist drill from the DIAEDGE MWS series, ground to a 3/16 in (0.1875 in) diameter with an extreme 25× diameter flute length, making it purpose-built for deep-hole drilling operations in a single pass. The grade VP15TF is a PVD-coated ultra-fine grain carbide — the TF multi-layer coating provides enhanced lubricity and heat resistance for superior tool life in steel, stainless steel, and cast iron applications. The "DB" suffix in the part number designates the through-coolant (double-channel internal coolant) construction, which delivers high-pressure coolant directly to the cutting edge to flush chips and reduce thermal load in deep-hole work. Manufactured in the USA under Mitsubishi Materials' DIAEDGE brand, this drill features a straight shank compatible with standard ER collet chucks or hydraulic toolholders sized for 3/16 in shank diameter, and carries Mitsubishi's catalog reference JMMS5472-48171.
Product Specifications
| Brand | Mitsubishi Materials / DIAEDGE |
| MPN | MWS01875X25DB |
| Grade / Coating | VP15TF (PVD multi-layer coated carbide) |
| Cutting Diameter | 3/16 in (0.1875 in) |
| Flute Length / Depth of Cut | 25× diameter (25xD) |
| Coolant | Through-coolant (internal dual channel) |
| Shank Type | Straight shank |
| Shank Diameter | 3/16 in (0.1875 in) |
| Material | Solid carbide (ultra-fine grain) |
| Series | MWS (DIAEDGE) |
| Country of Origin | USA |
| Condition | New |
| Catalog / Alt Reference | JMMS5472-48171 |
| Drill Type | Deep-hole twist drill |
| Compatible Toolholders | ER collet chuck or hydraulic chuck, 3/16 in bore |
