Mitsubishi MZE02031SA VP15TF 2-Flute Ball Nose Carbide End Mill

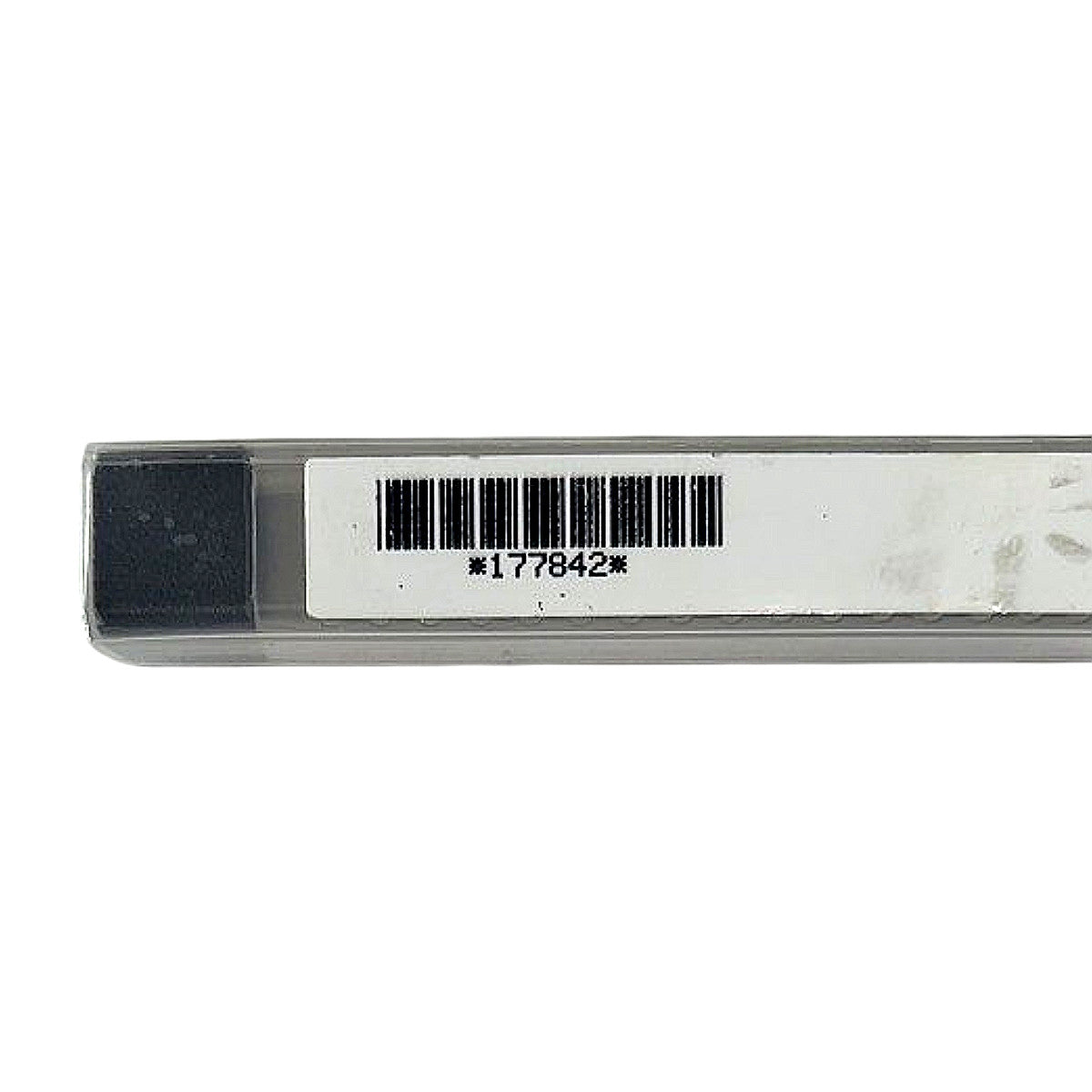

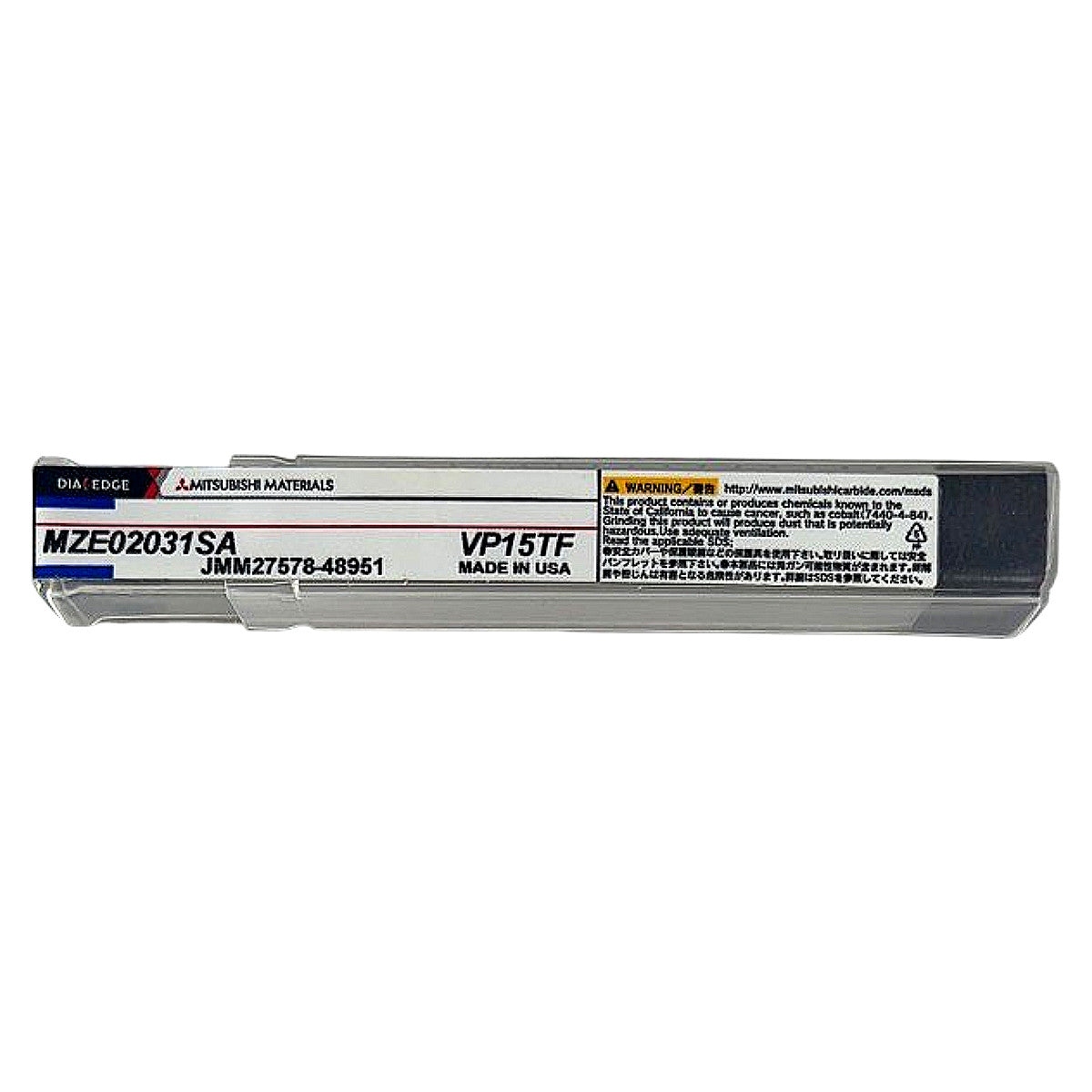

The Mitsubishi Materials MZE02031SA is a new, solid carbide 2-flute ball nose end mill from the DIAEDGE product line, coated in VP15TF — a PVD TiAlN-based multi-layer coating engineered for hardened steel, stainless steel, and heat-resistant alloys at high cutting speeds. Decoding the MPN: "MZE" denotes the DIAEDGE ball nose end mill series, "020" encodes a 2.0 mm cutting diameter, "31" encodes the overall length or flute length designation, and "SA" indicates a straight shank with through-coolant or standard configuration per Mitsubishi's DIAEDGE MZE series conventions — the 2 mm cutting diameter is the defining size specification. The VP15TF grade's hard, wear-resistant PVD coating provides excellent heat resistance and tool life in dry or MQL machining of hardened steels up to ~65 HRC, cast iron, and difficult-to-cut alloys. This end mill is suited for precision die/mold work, micro-profiling, and 3D contouring on CNC machining centers; the straight shank is compatible with standard collet chucks sized for 4 mm shank diameter (per MZE series shank convention). Made in USA as labeled; supplied new in the original Mitsubishi Materials DIAEDGE plastic case.

Product Specifications
