Mitsubishi SNMG120408-SA UE6110 CVD Carbide Turning Insert (10pc)
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

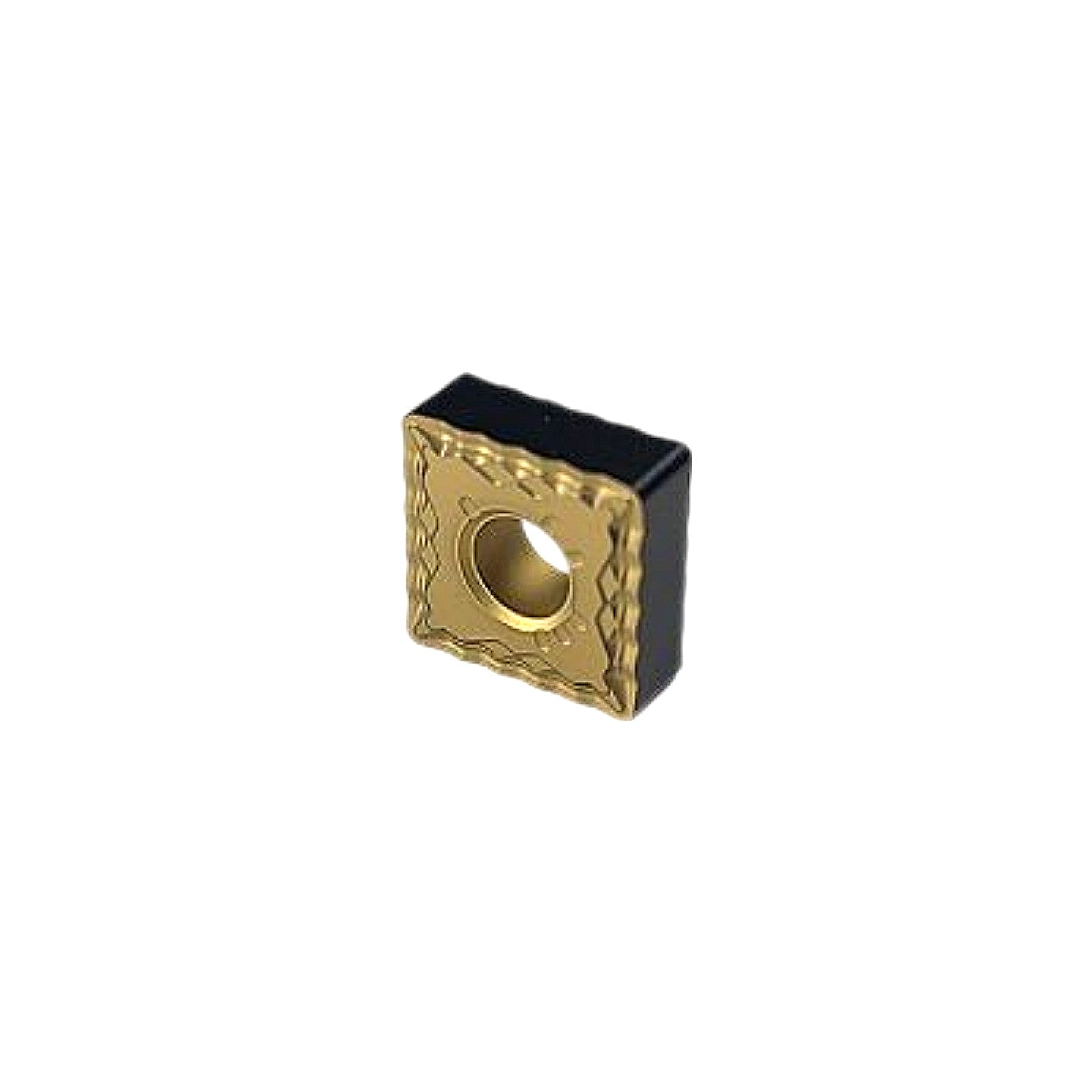

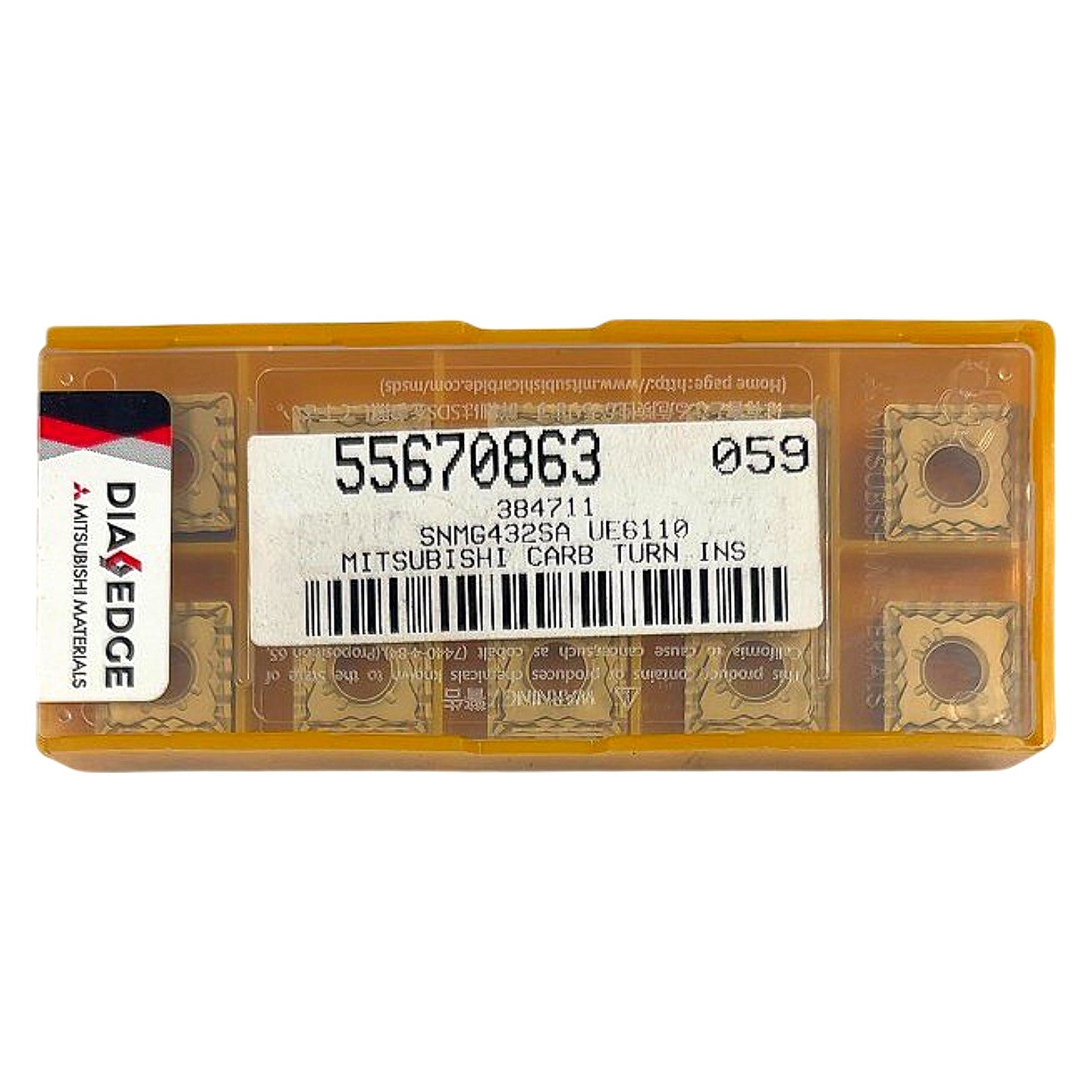

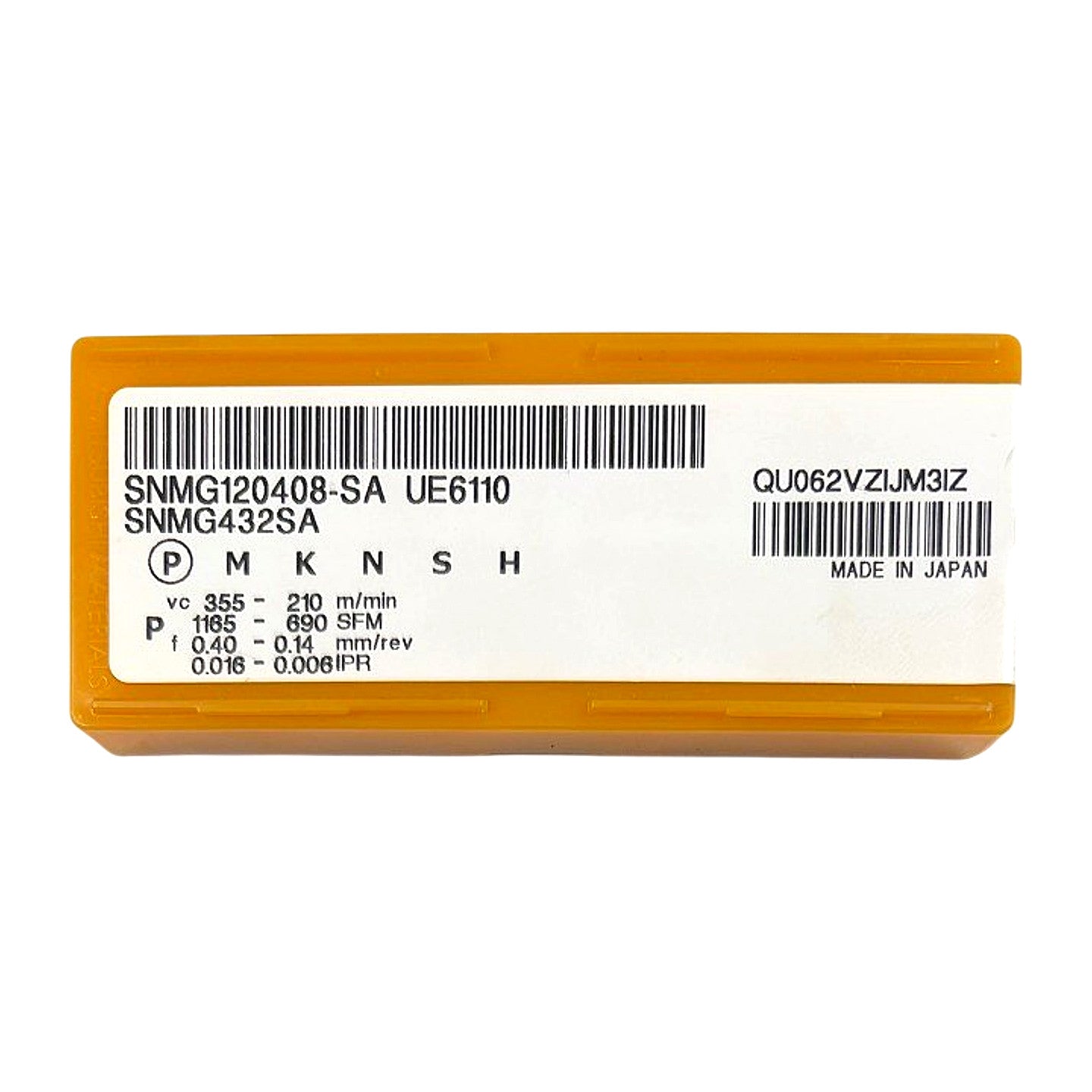

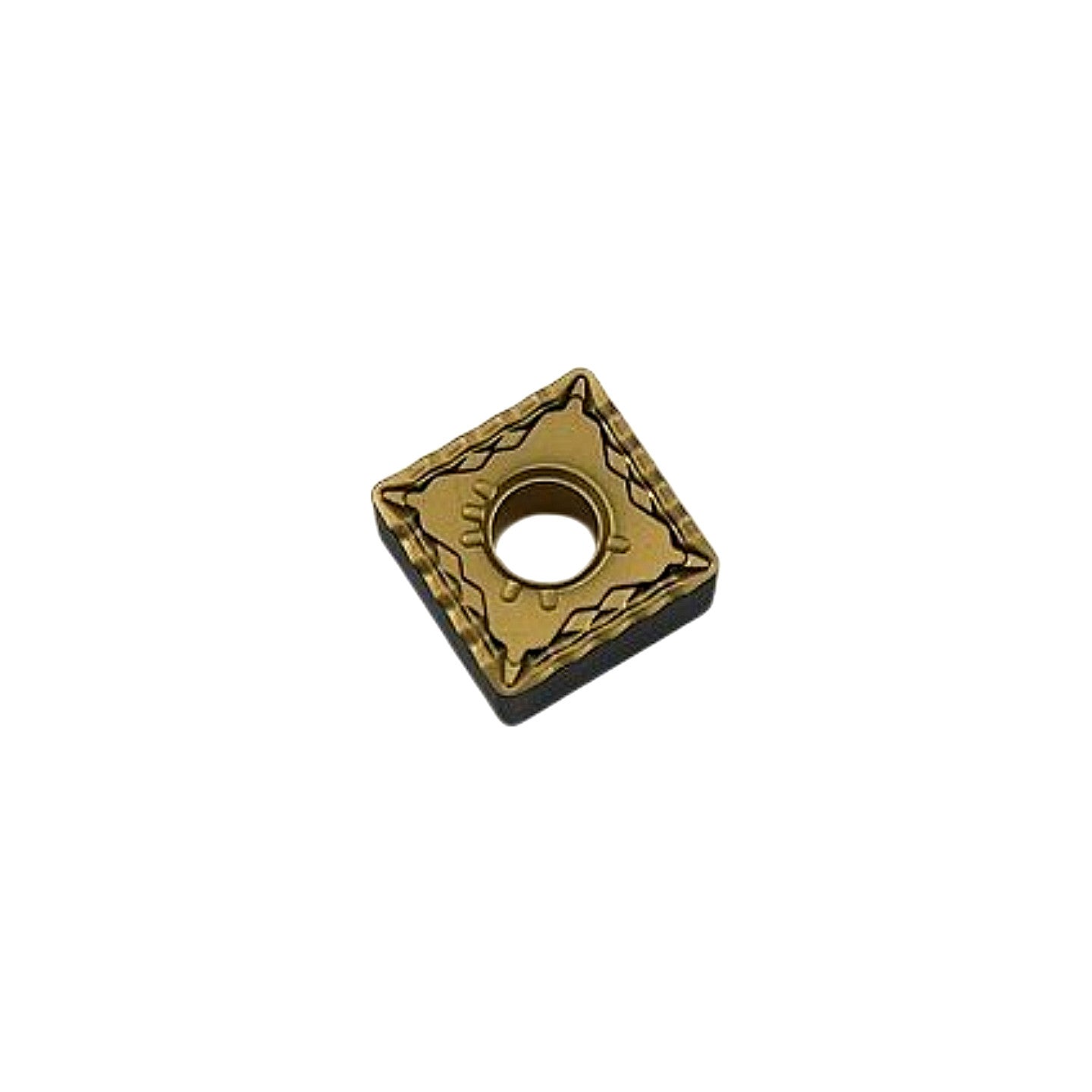

The Mitsubishi Materials SNMG120408-SA (SNMG432SA) UE6110 is a new, indexable carbide turning insert in the square (80° corner angle) SNMG geometry — 12.70 mm (1/2 in) inscribed circle, 4.76 mm thick, 0.8 mm nose radius — with a 0° clearance angle, M-tolerance class, and double-sided (negative rake) design with a central hole for clamping. Grade UE6110 is a CVD multi-layer TiCN/Al₂O₃ coated cemented carbide from Mitsubishi's DIAEDGE line, engineered primarily for steel (P) turning with coverage extending to M, K, N, S, and H workpiece materials as indicated on the package label. The SA chipbreaker geometry is designed for semi-finishing to light roughing applications, targeting cutting speeds of 210–355 m/min (690–1165 SFM) and feeds of 0.14–0.40 mm/rev (0.006–0.016 IPR) in steel, as printed directly on the package. These inserts seat in standard SNMG-compatible toolholders (e.g., MSKNR/L, PSKNR/L style) and are manufactured in Japan.
Product Specifications
| Brand | Mitsubishi Materials / DIAEDGE |
| MPN (Inch) | SNMG432SA |
| MPN (Metric) | SNMG120408-SA |
| Grade | UE6110 |
| Insert Shape | S — Square (80° included angle) |
| Clearance Angle | N — 0° (negative rake) |
| Tolerance Class | M |
| Insert Type / Hole | G — Double-sided, central hole, chipbreaker |
| Inscribed Circle (IC) | 12.70 mm (1/2 in) |
| Insert Thickness | 4.76 mm (3/16 in) |
| Nose Radius | 0.8 mm (1/32 in) |
| Chipbreaker | SA (semi-finishing/light roughing) |
| Coating | CVD TiCN/Al₂O₃ multi-layer |
| Substrate | Cemented carbide |
| Coating Color | Gold (TiN top layer) |
| ISO Material Groups | P (primary), M, K, N, S, H |
| Cutting Speed (P Steel) | 210–355 m/min (690–1165 SFM) |
| Feed Rate (P Steel) | 0.14–0.40 mm/rev (0.006–0.016 IPR) |
| Country of Origin | Japan |
| Condition | New |
| Qty per Package | 10 inserts |
