Mitsubishi SVJCR-163 1in RH External Indexable Turning Toolholder
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

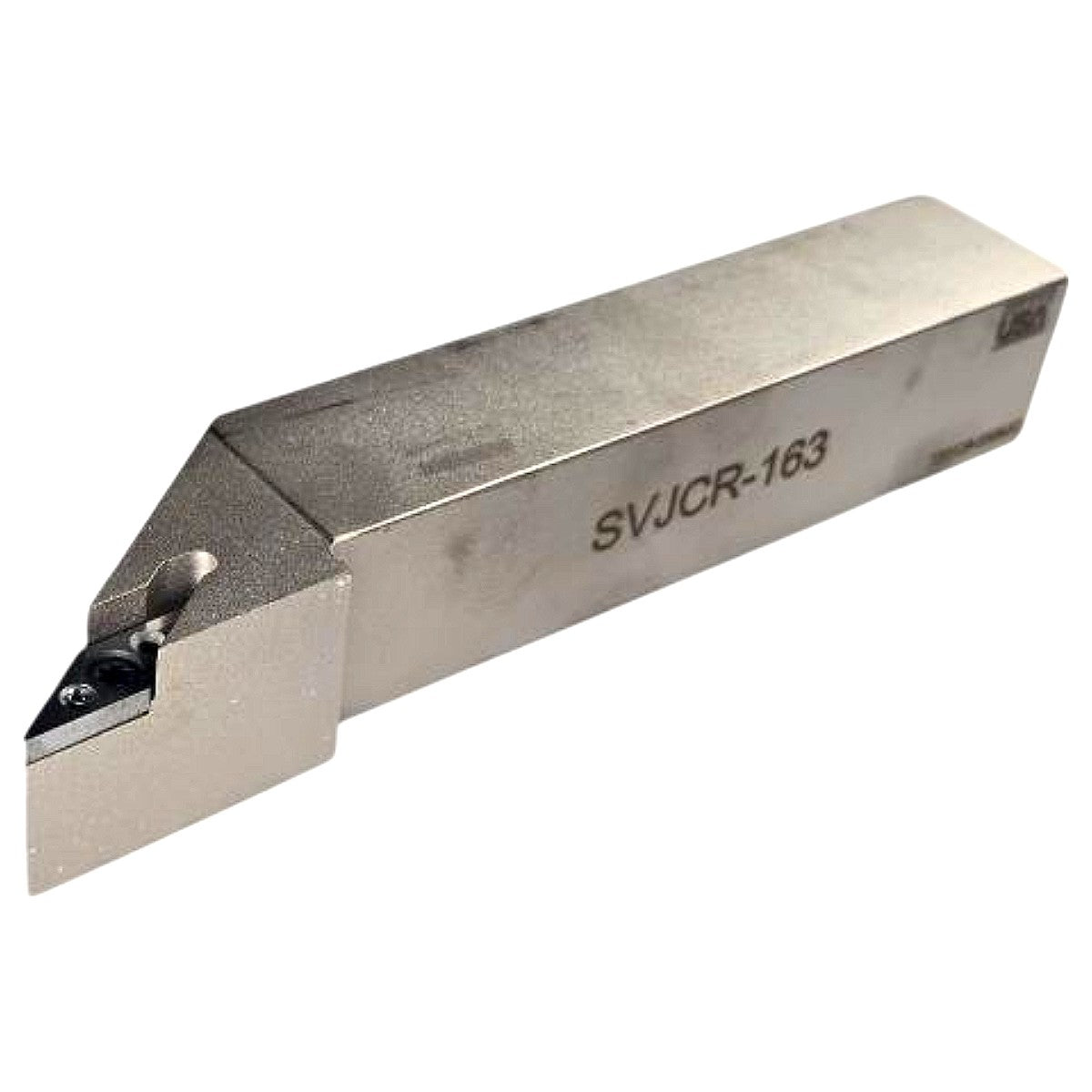

The Mitsubishi Materials SVJCR-163 is a new, right-hand external OD turning toolholder made in the USA, designed for 35° V-shaped (diamond) VCMT/VCGT inserts clamped via a top-clamp (C-style) screw-lock system. Decoding the designation: S = square shank, V = 35° V-shape insert, J = 93° lead angle (side cutting edge angle), C = top-clamp insert holding method, R = right-hand cutting direction, 16 = 1-inch (1 in × 1 in) shank cross-section, 3 = 6-inch overall length. The 93° lead angle geometry provides a 3° back clearance approach, minimizing radial cutting forces and making this holder suitable for longitudinal turning and light facing operations on lathes accepting 1 in square-shank tooling. The holder body is precision-ground steel with a hardened clamp seat and ships with an Allen wrench for insert indexing; it is compatible with VCMT 160404, 160408, and 160412 series inserts.
Product Specifications
| Brand | Mitsubishi Materials U.S.A. |
| MPN | SVJCR-163 |
| Country of Origin | USA |
| Shank Style | Square |
| Shank Size | 1 in × 1 in (1 in square) |
| Overall Length | 6 in |
| Cutting Direction | Right-Hand (R) |
| Lead Angle (Side Cutting Edge Angle) | 93° |
| Insert Shape | V — 35° Diamond (VCMT/VCGT) |
| Insert Clamping Method | Top Clamp / Screw Lock (C-style) |
| Compatible Insert Size | VC_T 16__ (VCMT/VCGT 160404/08/12) |
| Application | External OD turning, longitudinal turning |
| Condition | New |

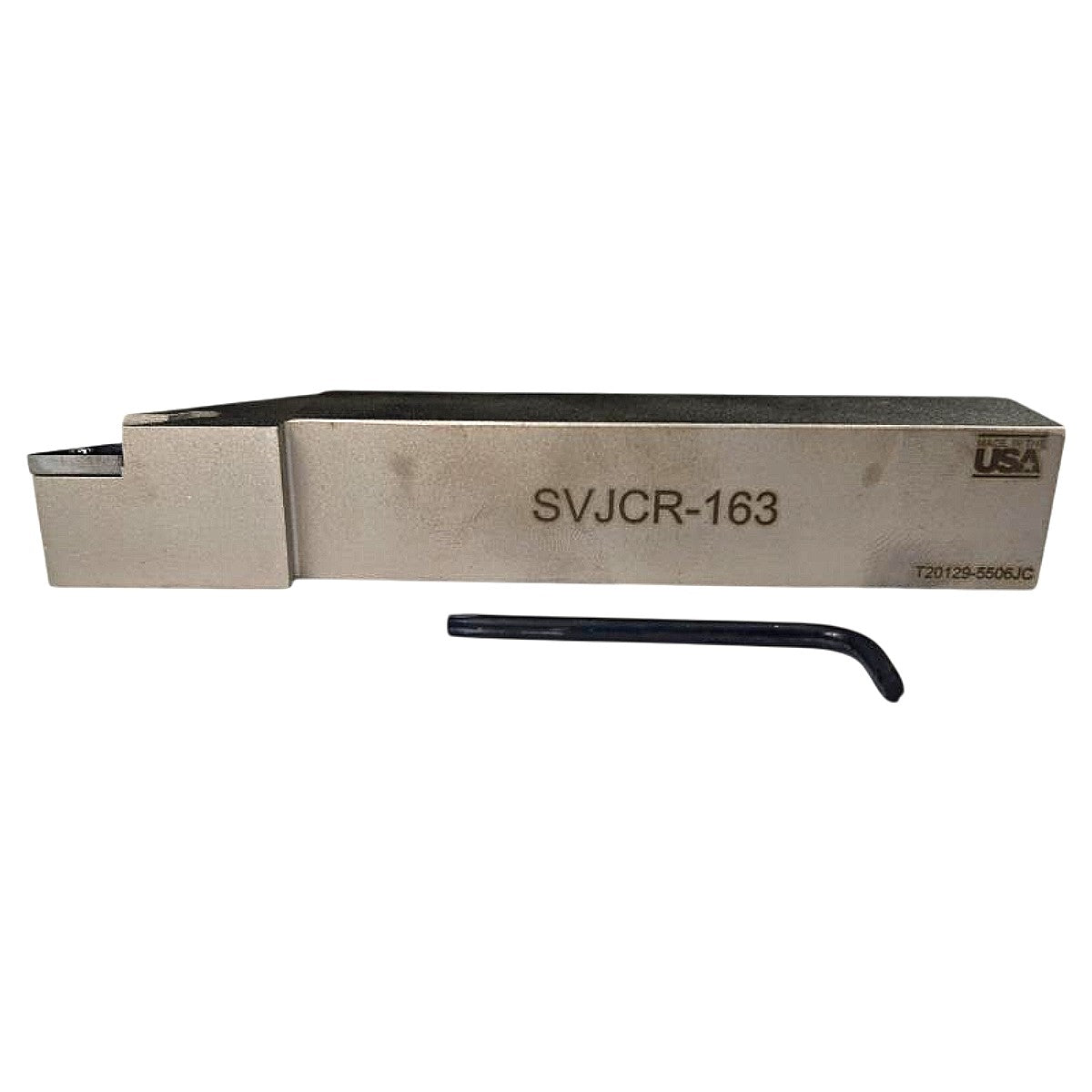

| Includes | Toolholder body, Allen (hex) wrench |
