Mitsubishi VCMT160408 UE6020 35° Diamond Carbide Milling Insert (10pc)
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

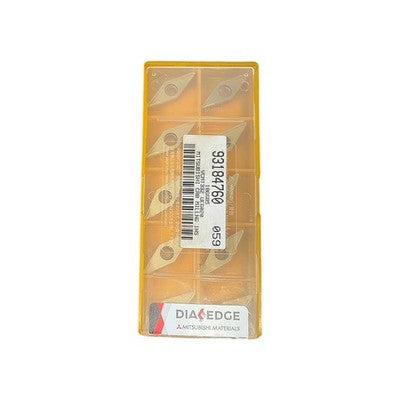

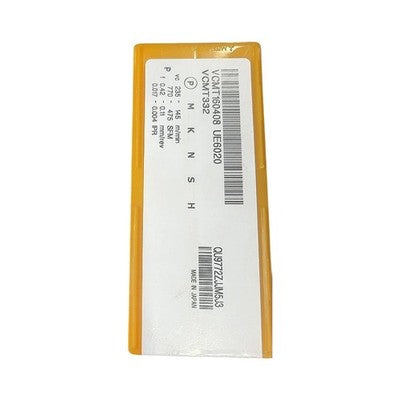

This is a factory-new 10-piece box of Mitsubishi Materials VCMT160408 carbide milling inserts in grade UE6020, part of the Dia-Edge product line, Made in Japan. The VCMT designation decodes as: V = 35° diamond shape, C = 7° clearance angle, M = medium tolerance, T = with hole and chipbreaker (single-sided), 160408 = 9.525mm IC / 4.76mm thickness / 0.8mm nose radius. UE6020 is Mitsubishi's PVD-coated cemented carbide grade utilizing a TiAlN-based nano-multilayer coating engineered for steel milling (ISO P classification primary), delivering high heat resistance and wear resistance at cutting speeds of 235–145 m/min (770–475 SFM) with feed rates of 0.042–0.11 mm/rev (0.0017–0.004 IPR) as printed on the package label. These inserts are designed for use in Mitsubishi VCHT332 carbide-tipped milling cutter bodies and are suited for finishing to semi-finishing operations on steel workpieces.
Product Specifications
| Brand | Mitsubishi Materials (Dia-Edge) |
| Part Number | VCMT160408 UE6020 |
| ISO Insert Designation | VCMT160408 |
| Insert Shape | V – 35° Diamond |
| Clearance Angle | C – 7° |
| Tolerance Class | M |
| Fixing/Chipbreaker | T – Hole + chipbreaker, single-sided |
| Inscribed Circle (IC) | 9.525 mm (3/8 in) |
| Insert Thickness | 4.76 mm |
| Nose Radius | 0.8 mm |
| Grade | UE6020 |
| Coating | PVD TiAlN nano-multilayer |
| ISO Work Material | P (Steel) primary |
| Cutting Speed (Metric) | 235–145 m/min |
| Cutting Speed (Imperial) | 770–475 SFM |
| Feed Rate (Metric) | 0.042–0.11 mm/rev |
| Feed Rate (Imperial) | 0.0017–0.004 IPR |
| Compatible Toolholder | VCHT332 |
| Application | CRB milling |
| Country of Origin | Japan |
| Quantity per Box | 10 |
| Condition | New |
