Mitutoyo 103-929 0-3in 0.001in Outside Micrometer Set 3pc
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

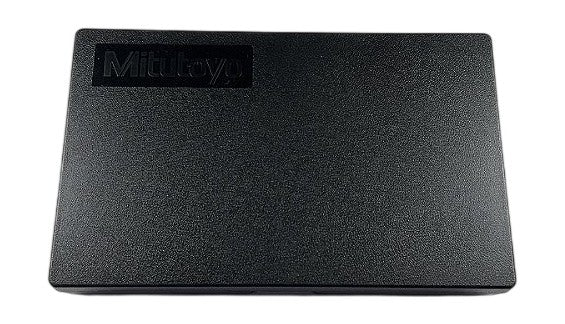

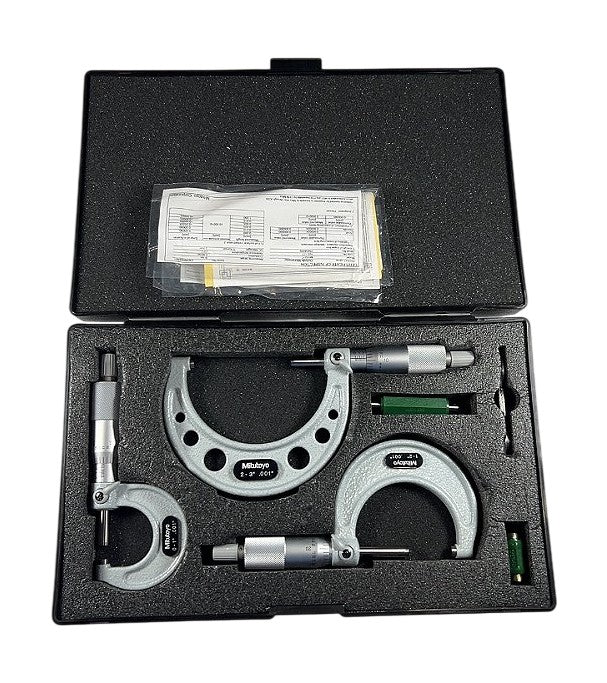

The Mitutoyo 103-929 (OMST-3) is a new, 3-piece outside micrometer set covering 0–1 in, 1–2 in, and 2–3 in ranges, each reading to 0.001 in graduation with a thimble-lock and ratchet-stop for consistent measuring force. All three micrometers feature a carbon steel frame with satin-chrome finished thimble and sleeve, hardened and ground anvil and spindle faces, and a baked-enamel frame coating for corrosion resistance. The set ships in a fitted hard plastic carrying case with individual setting standards (gauge blocks) for the 1–2 in and 2–3 in units, and includes a calibration/inspection certificate. Intended for precision dimensional inspection of external workpieces in tool rooms, quality labs, and production floors where imperial measurement to 0.001 in resolution is required.
Product Specifications
| Brand | Mitutoyo |
| Model Number | 103-929 |
| Series / Kit Code | OMST-3 |
| Number of Pieces | 3 |
| Measurement Type | Outside (External) Diameter / Thickness |
| Range — Micrometer 1 | 0–1 in |
| Range — Micrometer 2 | 1–2 in |
| Range — Micrometer 3 | 2–3 in |
| Graduation (Resolution) | 0.001 in |
| Display Type | Analog (Vernier thimble) |
| Unit System | Imperial (inch) |
| Setting Standards Included | Yes — for 1–2 in and 2–3 in units |
| Case Included | Yes — fitted hard plastic case |
| Calibration Certificate | Yes — included |
| Spindle / Anvil Material | Hardened and ground steel |
| Measuring Force Control | Ratchet-stop thimble |
| Lock Mechanism | Thimble lock |
| Condition | New |
