Mitutoyo 137-214 2" - 40" 11-Piece Tubular Inside Micrometer Set
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

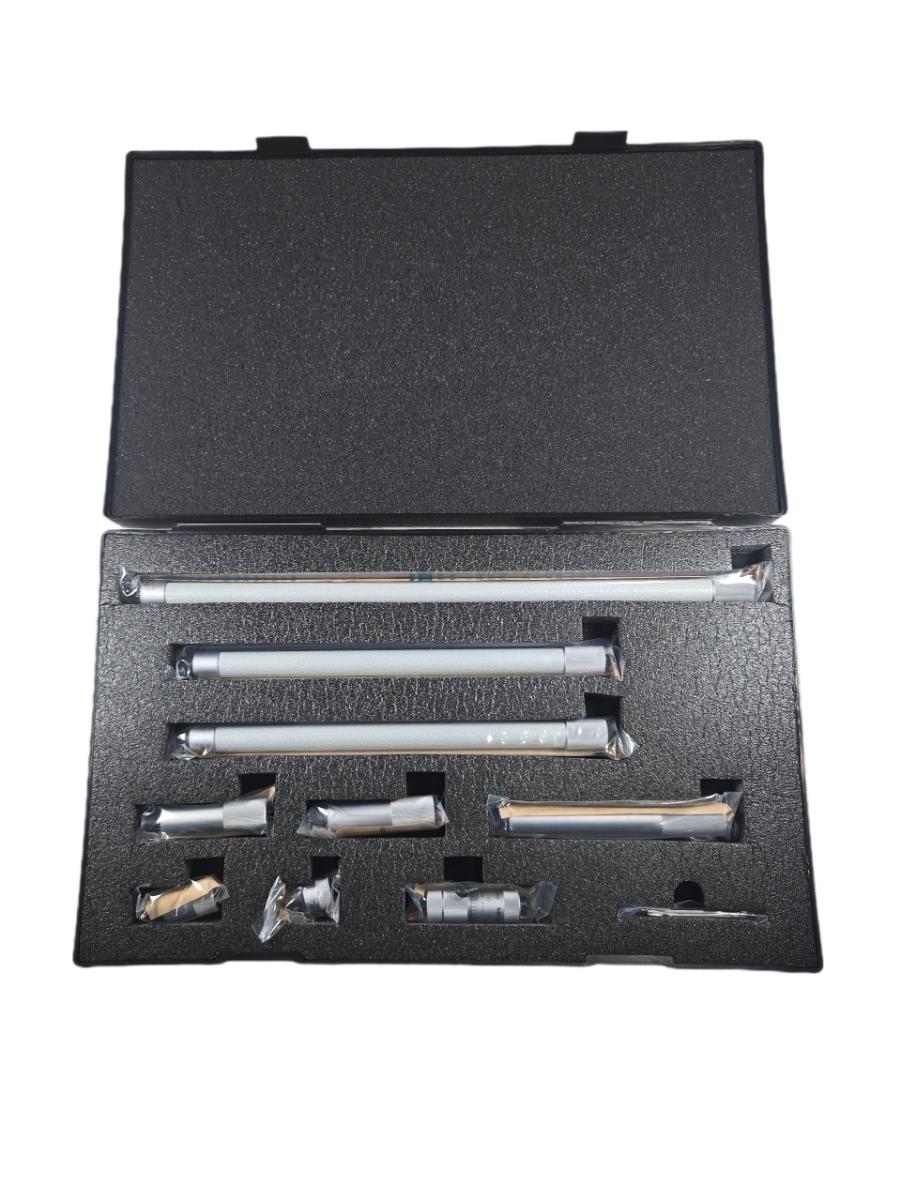

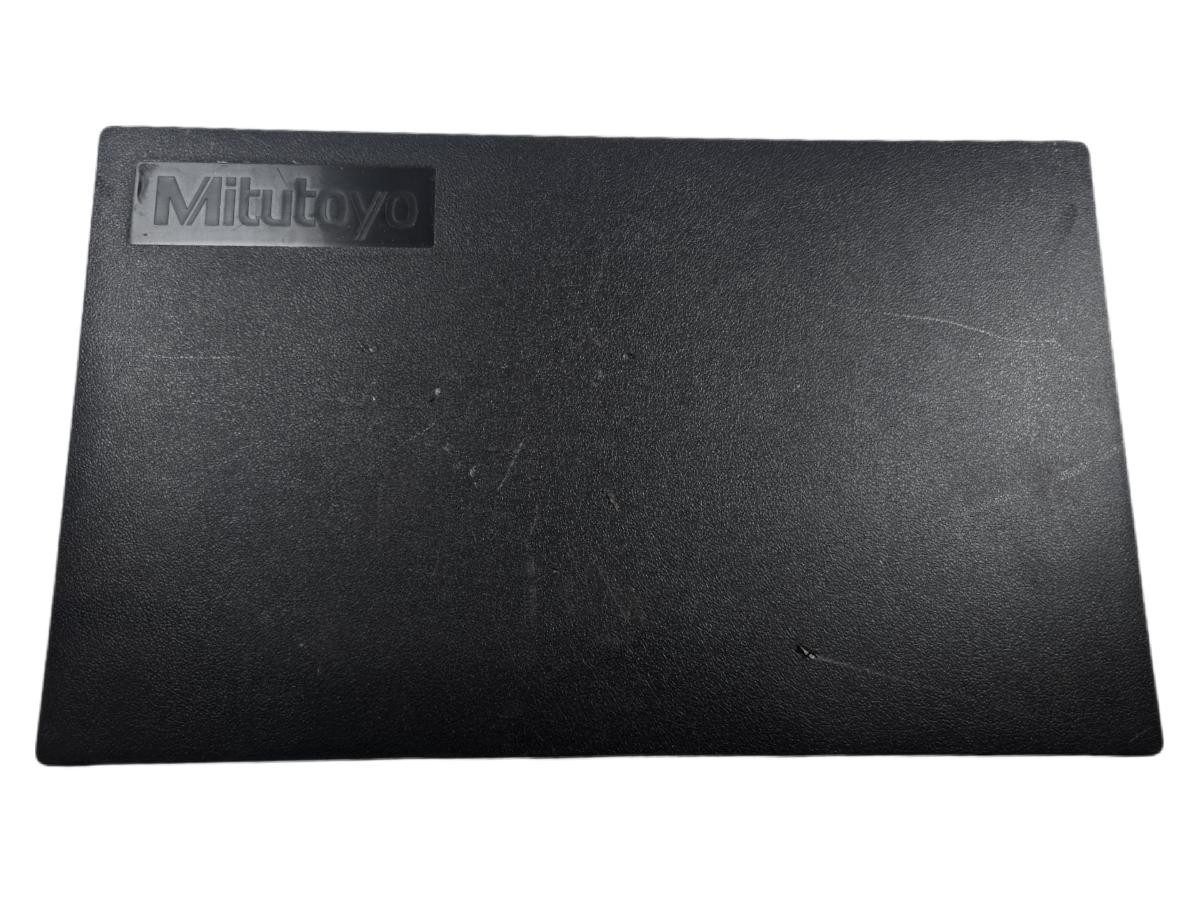

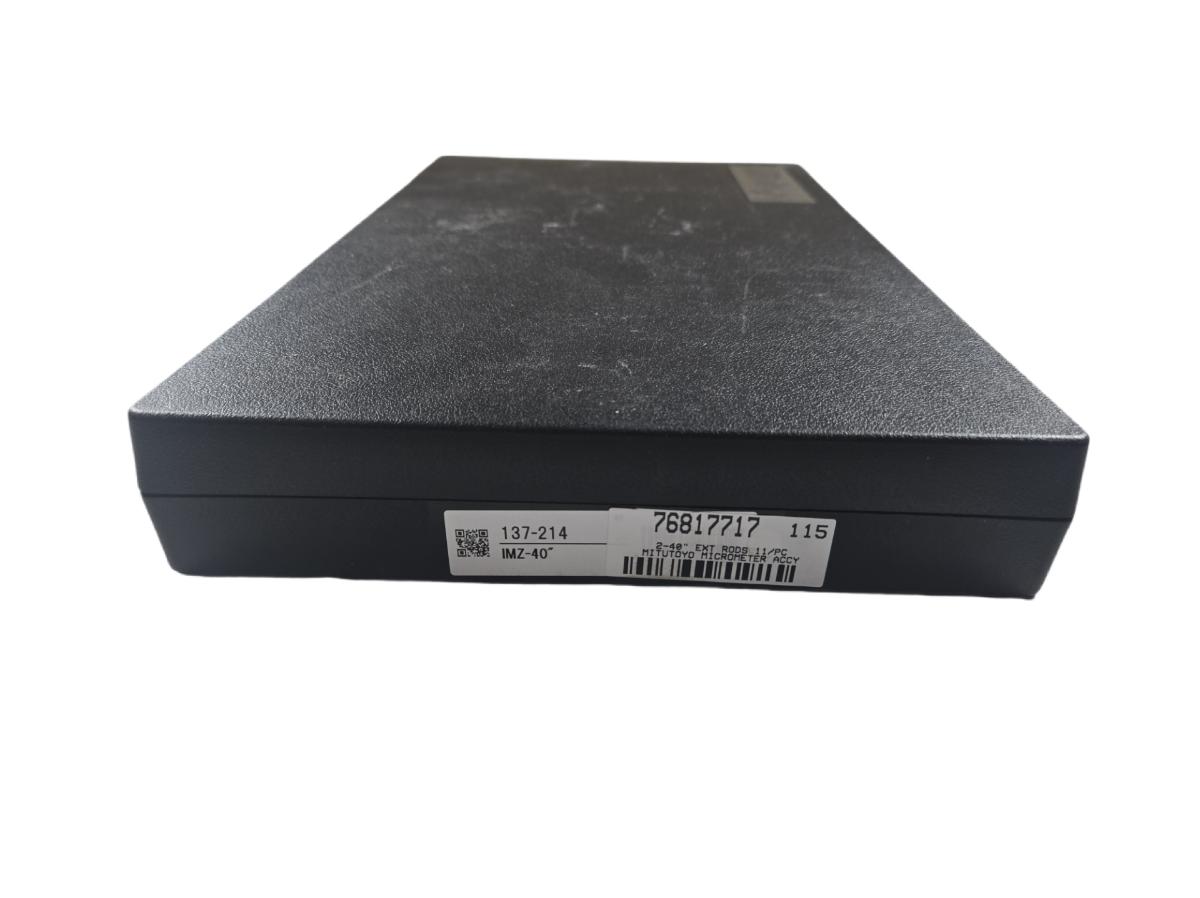

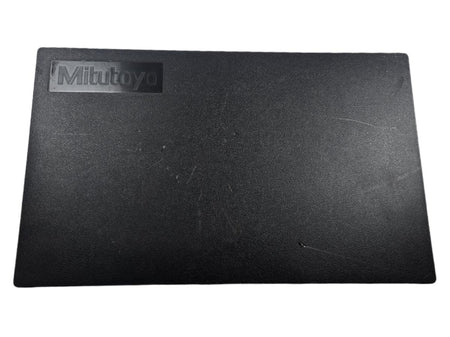

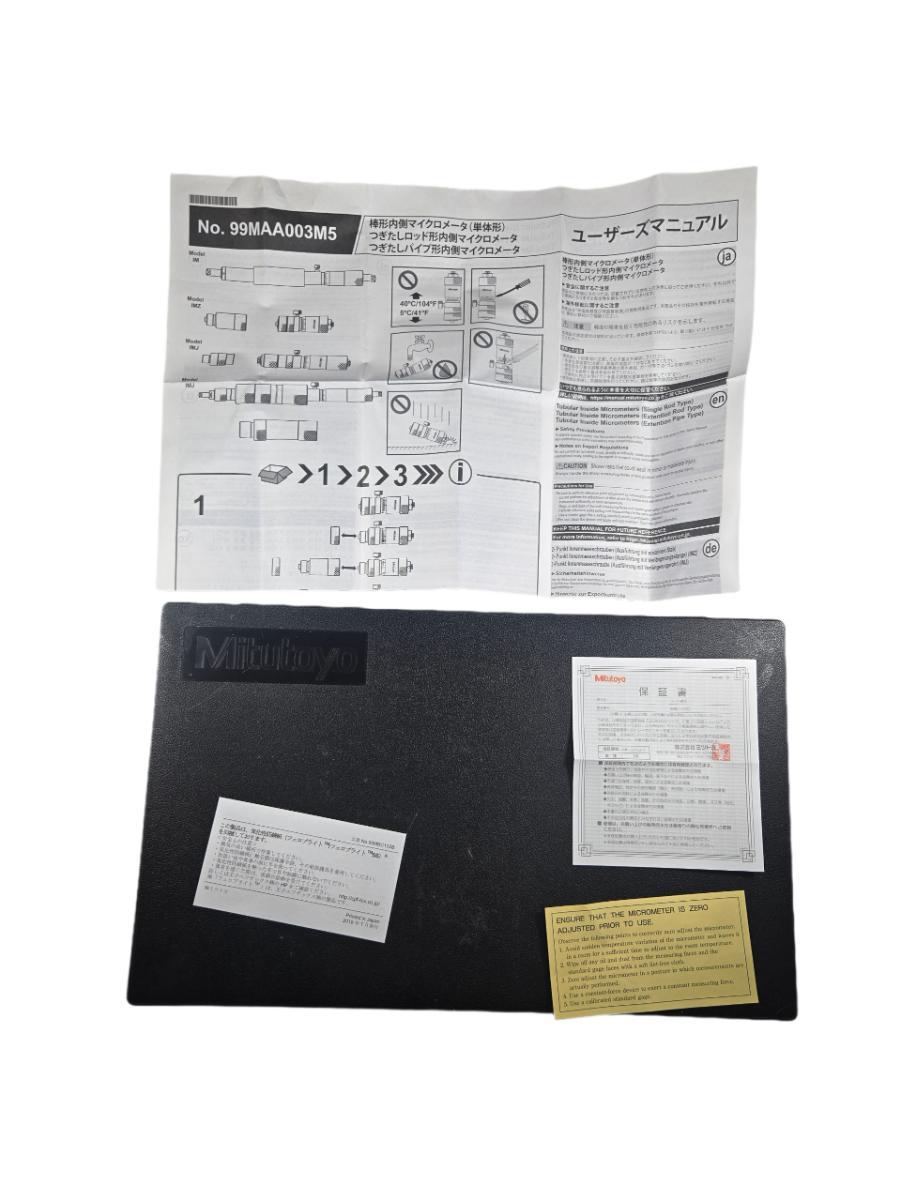

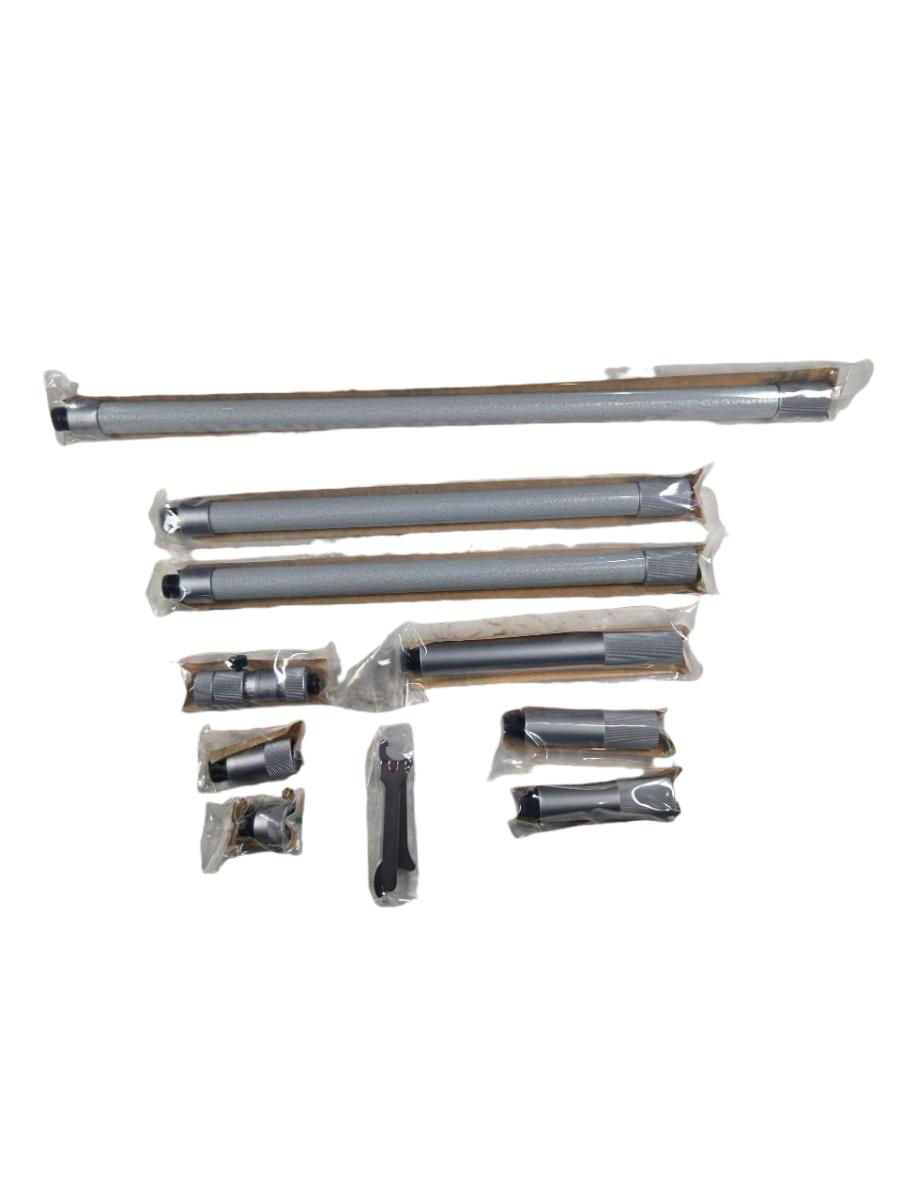

The Mitutoyo 137-214 is an 11-piece tubular inside micrometer set with a measuring range of 2" to 40", confirmed by the label on the case reading '2-40" EXT RODS 11/PC MITUTOYO MICROMETER ACCY' and the Mitutoyo part number 137-214. The set uses the IMZ-40 extension rod system, as noted on the case label, and consists of a micrometer head plus multiple extension rods and half-round contact points that thread together to achieve the full 40-inch range in successive 2-inch increments. The measuring faces are carbide-tipped for wear resistance, and the knurled thimble and barrel provide the standard 0.001" graduation resolution consistent with Mitutoyo's Series 137 tubular inside micrometers. This set is new, complete with the original Mitutoyo fitted case, foam insert tray, user manual (No. 99MAA003M5), and warranty card, making it ready for precision bore and inside diameter measurement of large bores in engine cylinders, pipes, and large machined components.
Product Specifications
| Brand | Mitutoyo |
| Model Number | 137-214 |
| Series | 137 |
| Extension Rod System | IMZ-40 |
| Measuring Range | 2" to 40" (50 mm to 1016 mm) |
| Number of Pieces | 11 |
| Graduation | 0.001" |
| Measuring Face Material | Carbide-tipped |
| Instrument Type | Tubular Inside Micrometer (Extension Rod Type) |
| Case | Fitted hard case with foam insert |
| Condition | New |
| Included Documentation | User Manual No. 99MAA003M5, Warranty Card |
