Mitutoyo 167-294 60 Degree Screw Thread Micrometer Anvil Set 0-1in
Regular price
$92.15
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

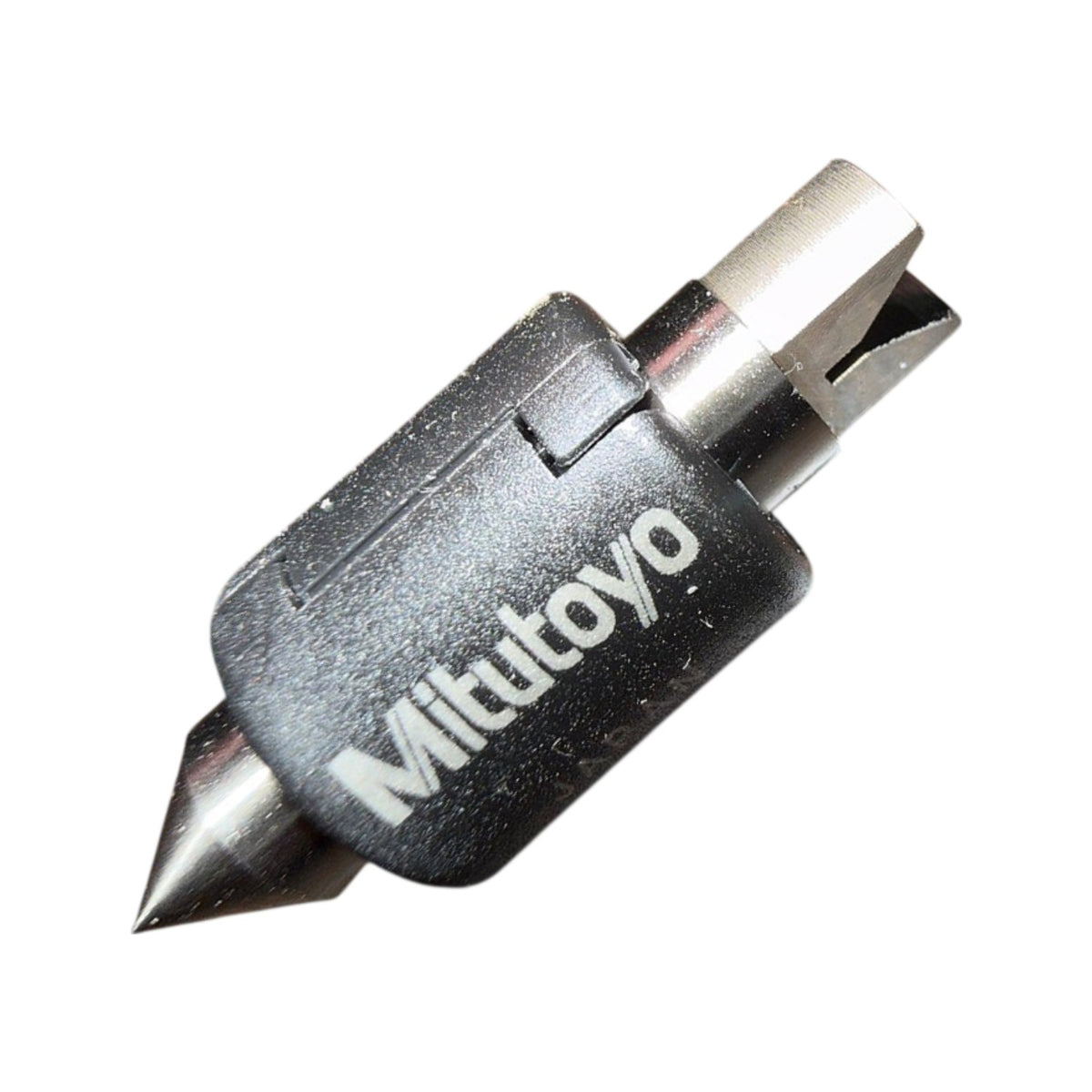

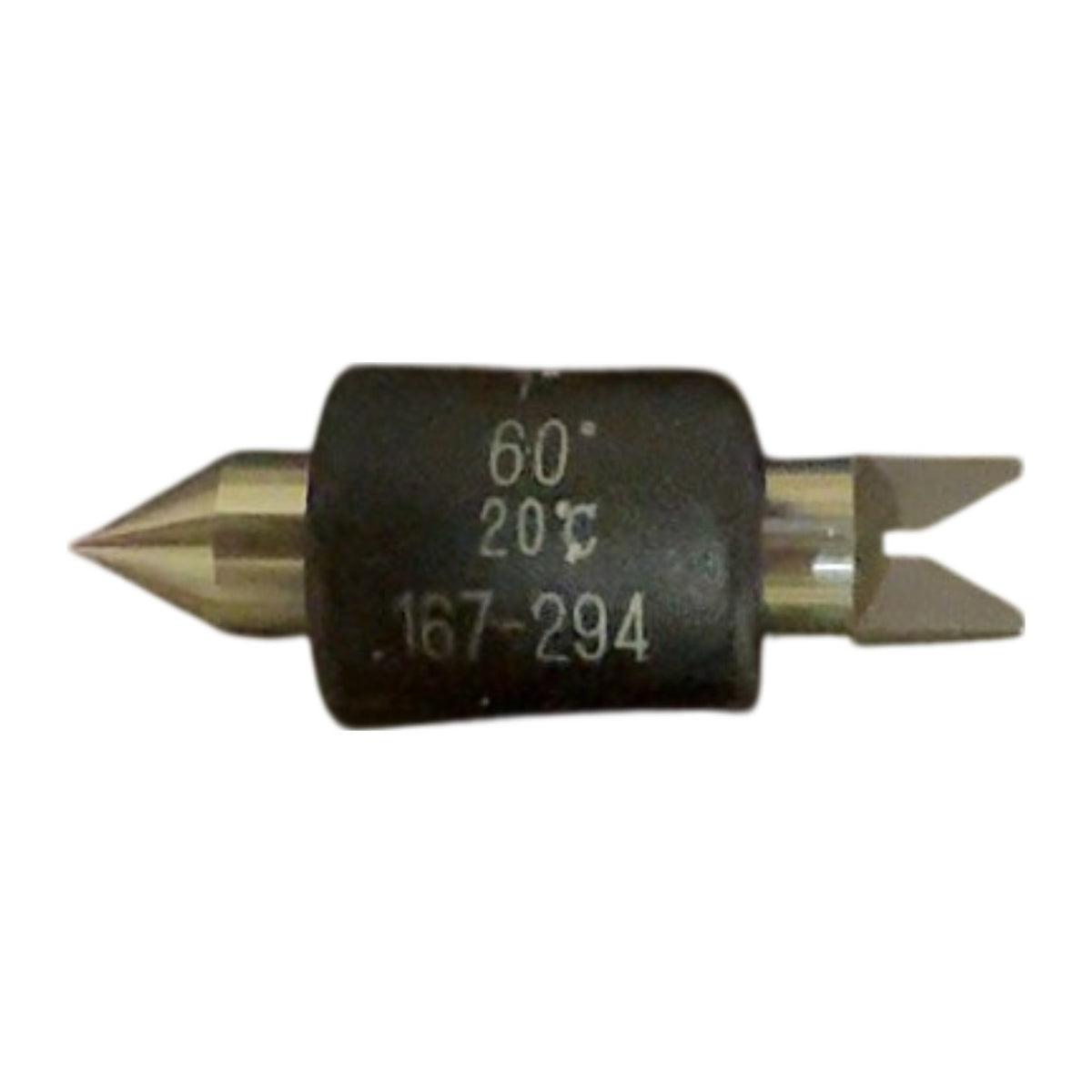

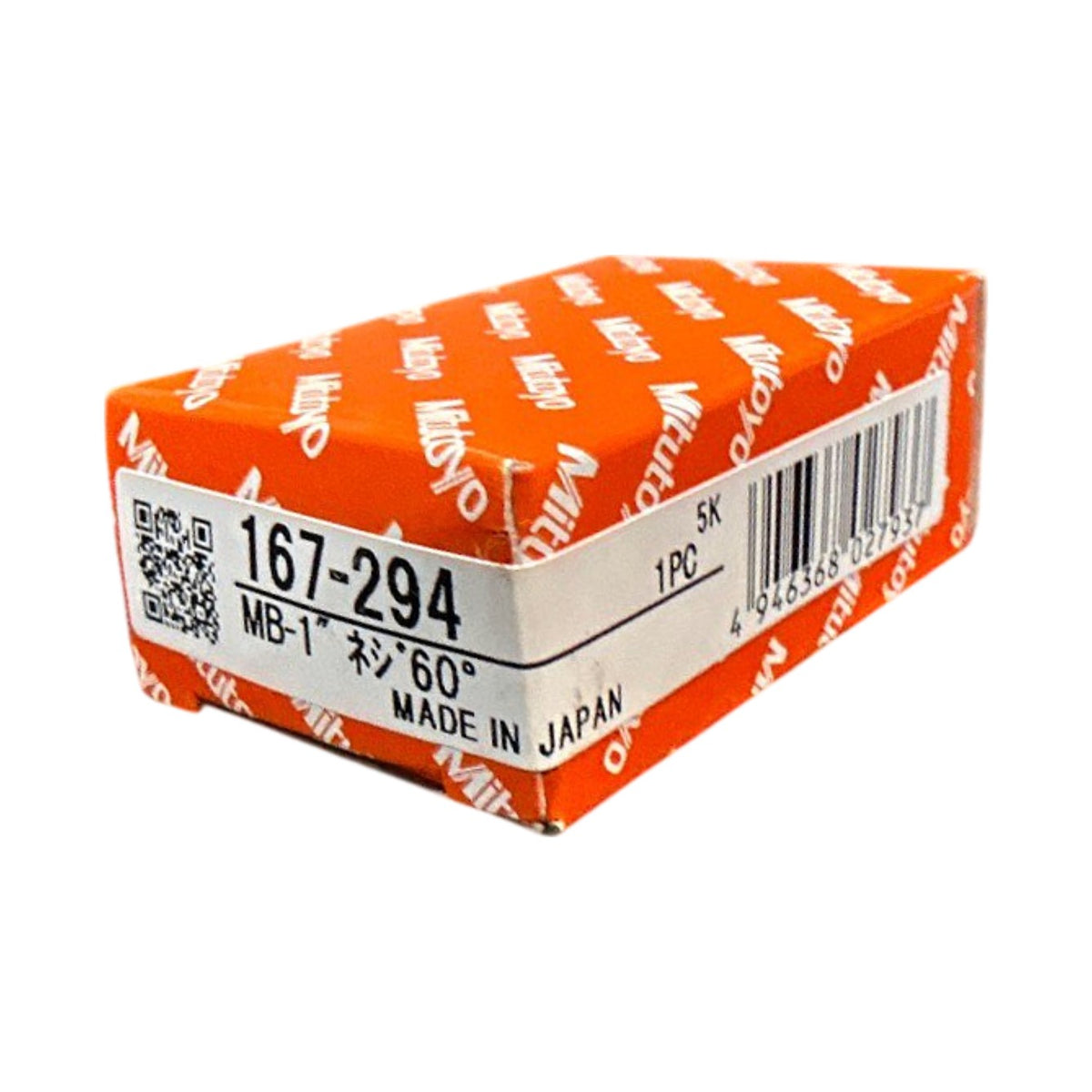

This Mitutoyo 167-294 is a 60 degree screw thread micrometer anvil set, with a cone (point) anvil and a V anvil, marked 60° and 20°C on the body. The box label reads MB-1" 60° (ネジ, screw thread), indicating it is made for a 0-1 in thread micrometer. It is used to measure the pitch diameter of 60 degree screw threads, and the 20°C marking is the reference temperature for measurement. It was made in Japan and is offered new in the original Mitutoyo box, with UPC barcode 4946368027937 on the label.
Product Specifications
| Brand | Mitutoyo |
| MPN | 167-294 |
| Model Code | MB-1" |
| Thread Angle | 60° |
| Anvil Type | Cone and V anvil set |
| Micrometer Range | 0-1 in |
| Reference Temperature | 20°C |
| Measurement System | Inch |
| Application | Screw thread pitch diameter measurement |
| UPC | 4946368027937 |
| Country of Origin | Japan |
