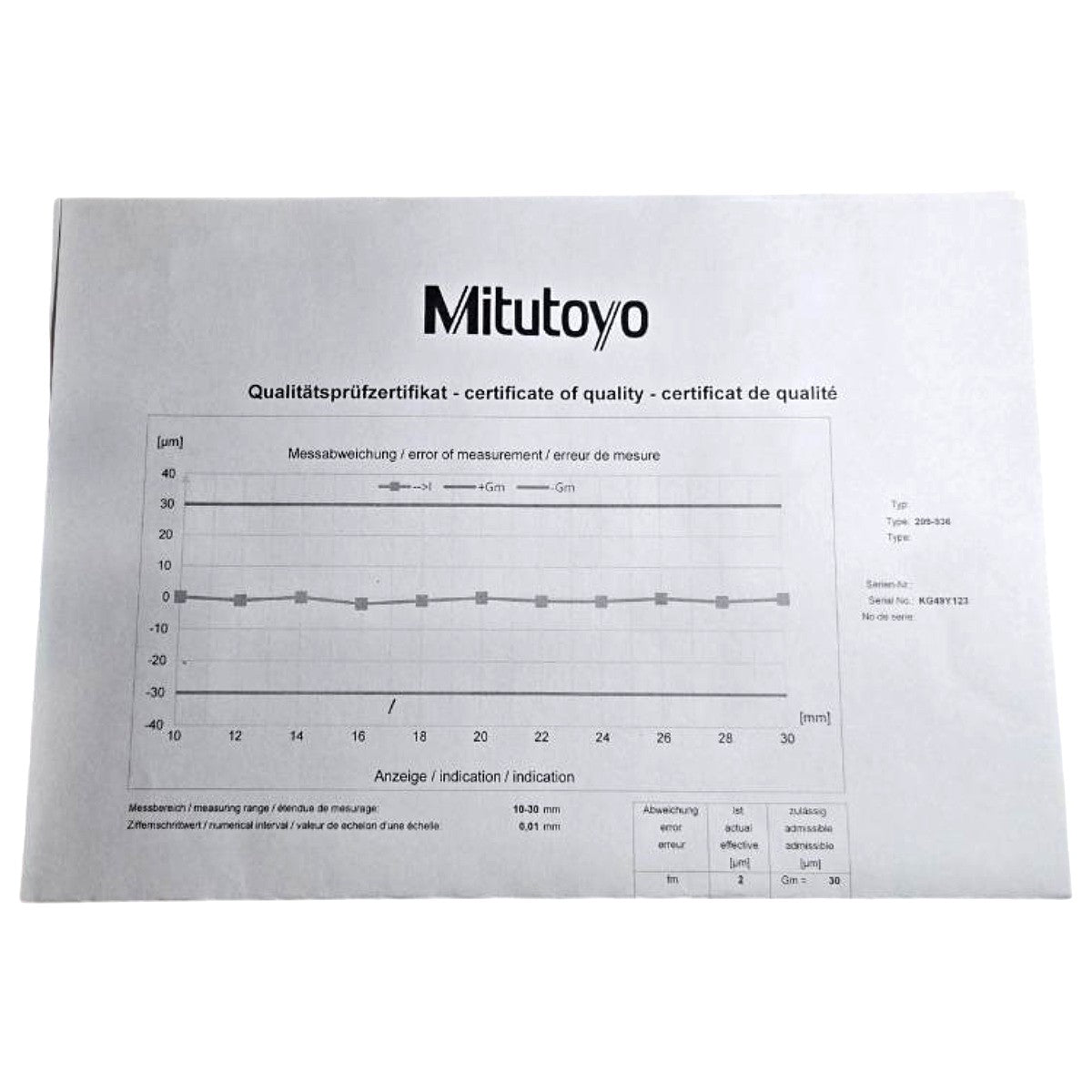

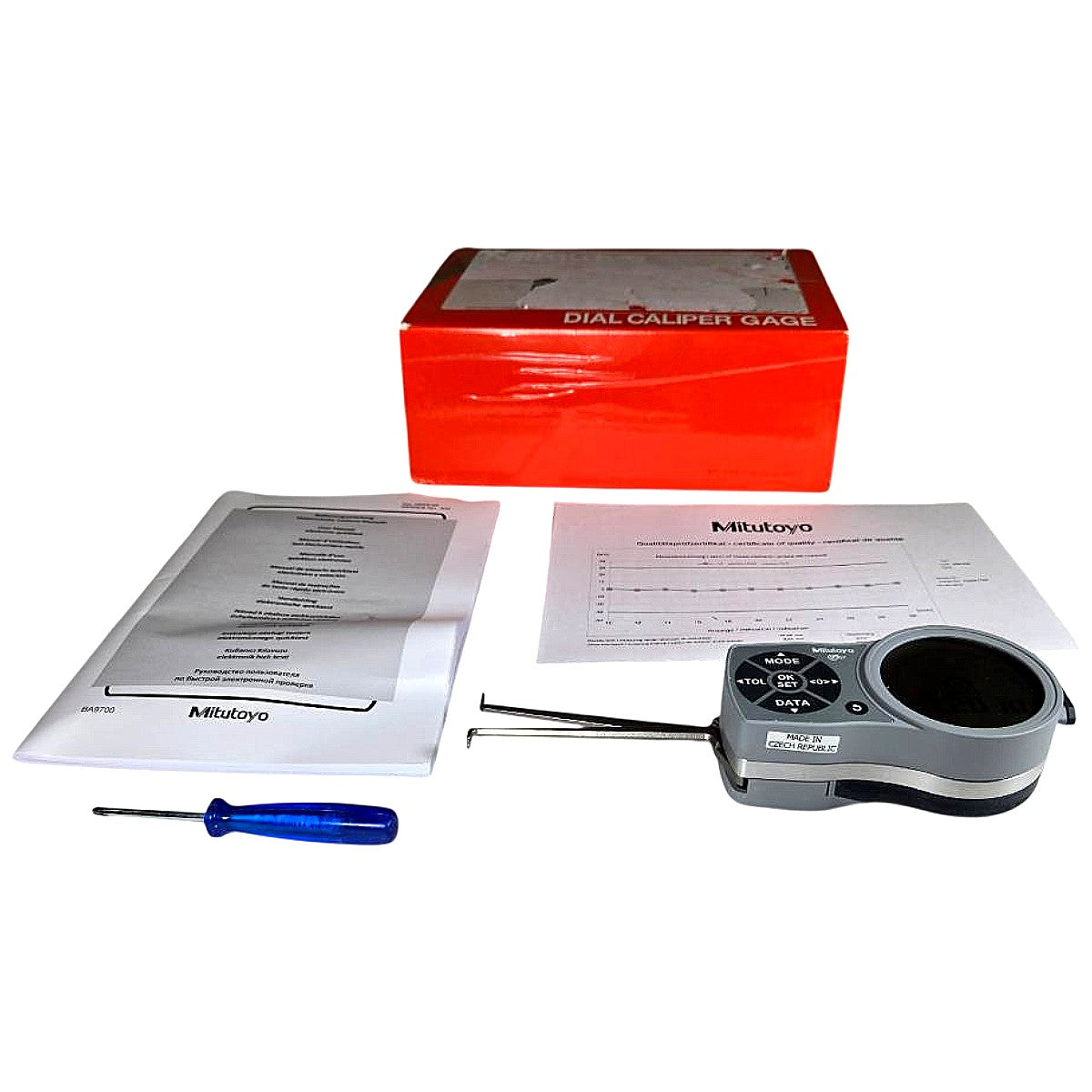

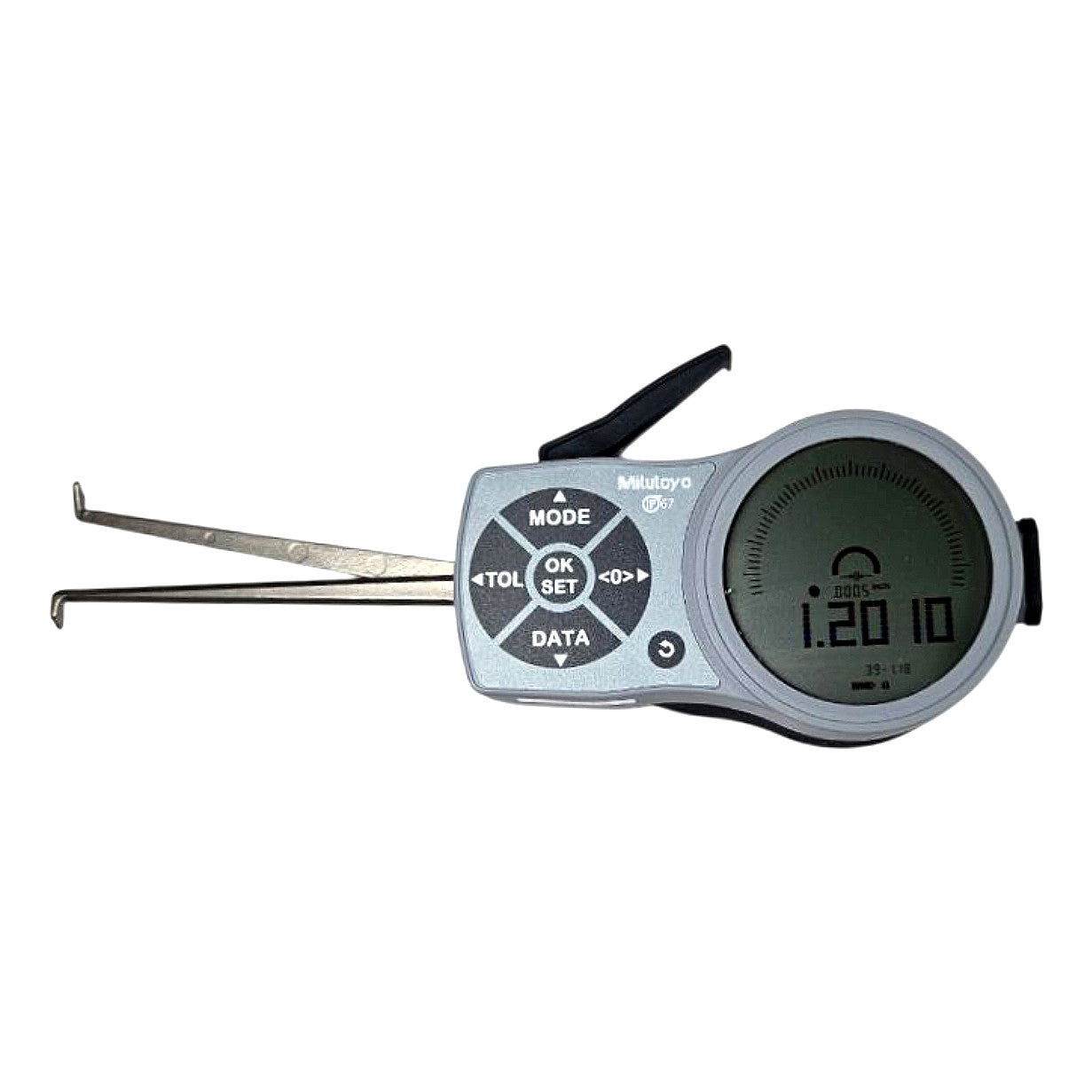

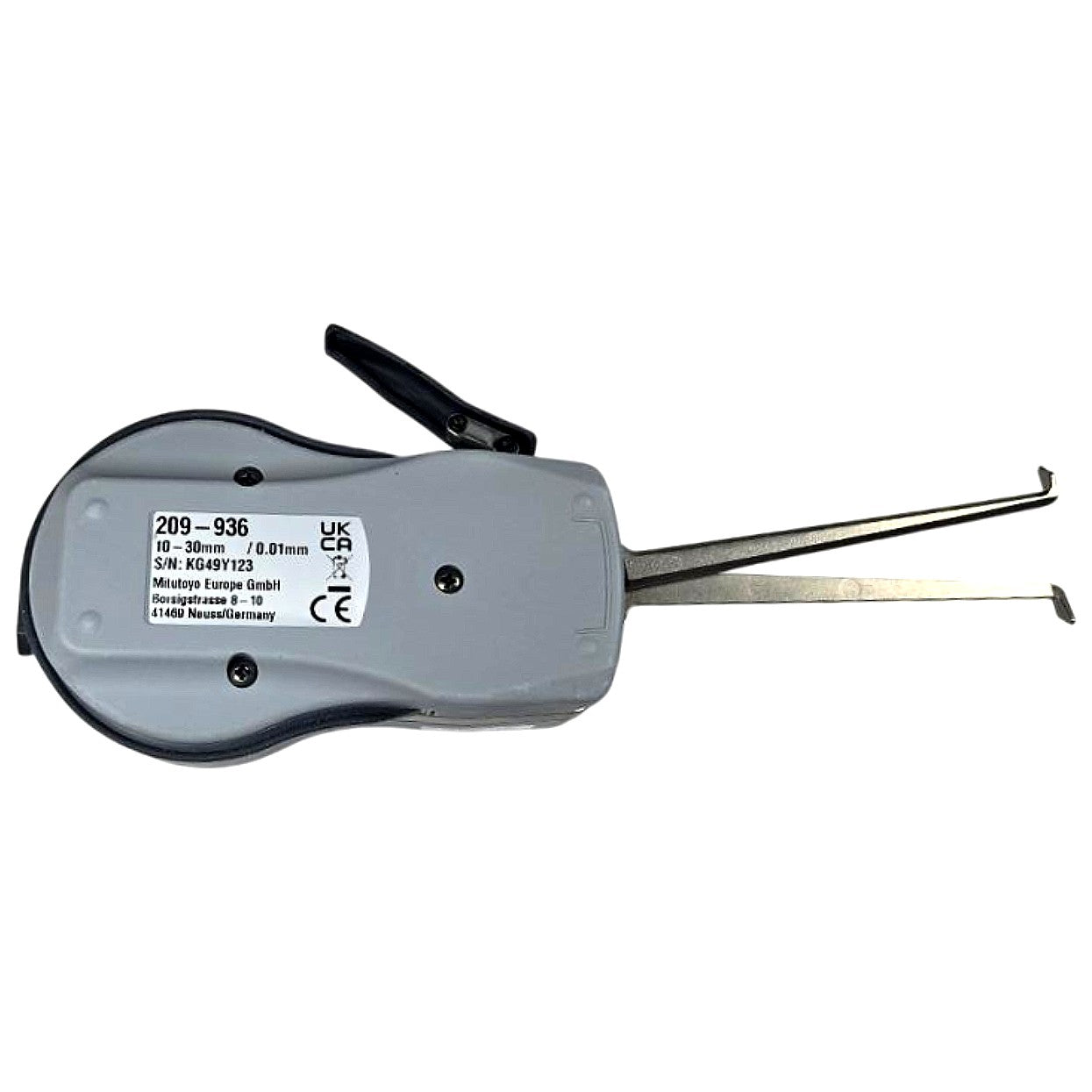

The Mitutoyo 209-936 is a new, IP67-rated electronic digital caliper gauge designed for internal groove and bore measurement, with a measuring range of 10–30 mm (0.39–1.18 in) and a resolution of 0.01 mm (0.0005 in). The instrument uses a ball/ball contact tip configuration with a 1.0 mm (0.0394 in) tip diameter and leg length of 85.1 mm (3.3465 in), and is capable of measuring groove widths starting at 1.2 mm (0.0472 in) at a maximum groove depth of 5.2 mm (0.2047 in). The digital display features an analog dial simulation with digital readout, MODE/TOL/DATA/OK-SET controls, and a DATA output port for SPC data collection via Mitutoyo's Digimatic interface, compatible with Mitutoyo data processors and SPC systems. Accuracy is ±0.03 mm (0.0015 in) per the included factory certificate of quality (traceable calibration chart confirmed in photos), and the unit is powered by a single AA battery. Manufactured in the Czech Republic by Mitutoyo Europe GmbH and CE/UKCA marked, this gauge ships with the calibration certificate, multilingual instruction manual, and battery screwdriver.
Product Specifications
| Brand | Mitutoyo |
| MPN | 209-936 |
| Measurement Type | Internal (Inside) |
| Contact Type | Ball/Ball |
| Measuring Range | 10–30 mm / 0.39–1.18 in |
| Resolution | 0.01 mm / 0.0005 in |
| Accuracy | ±0.03 mm / ±0.0015 in |
| Min. Groove Width | 1.2 mm / 0.0472 in |
| Max. Groove Depth | 5.2 mm / 0.2047 in |
| Tip Diameter | 1.0 mm / 0.0394 in |
| Leg Length | 85.1 mm / 3.3465 in |
| Display Type | Digital w/ analog dial simulation LCD |
| Data Output | Digimatic SPC output port |
| IP Rating | IP67 |
| Power Source | 1x AA battery |
| Country of Origin | Czech Republic |
| Certifications | CE, UKCA |
| Includes | Calibration cert, manual, screwdriver |
| Condition | New |
