Mitutoyo 293-181-40 QuantuMike 1-2in 0.00005in IP65 Digital Outside Micrometer
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

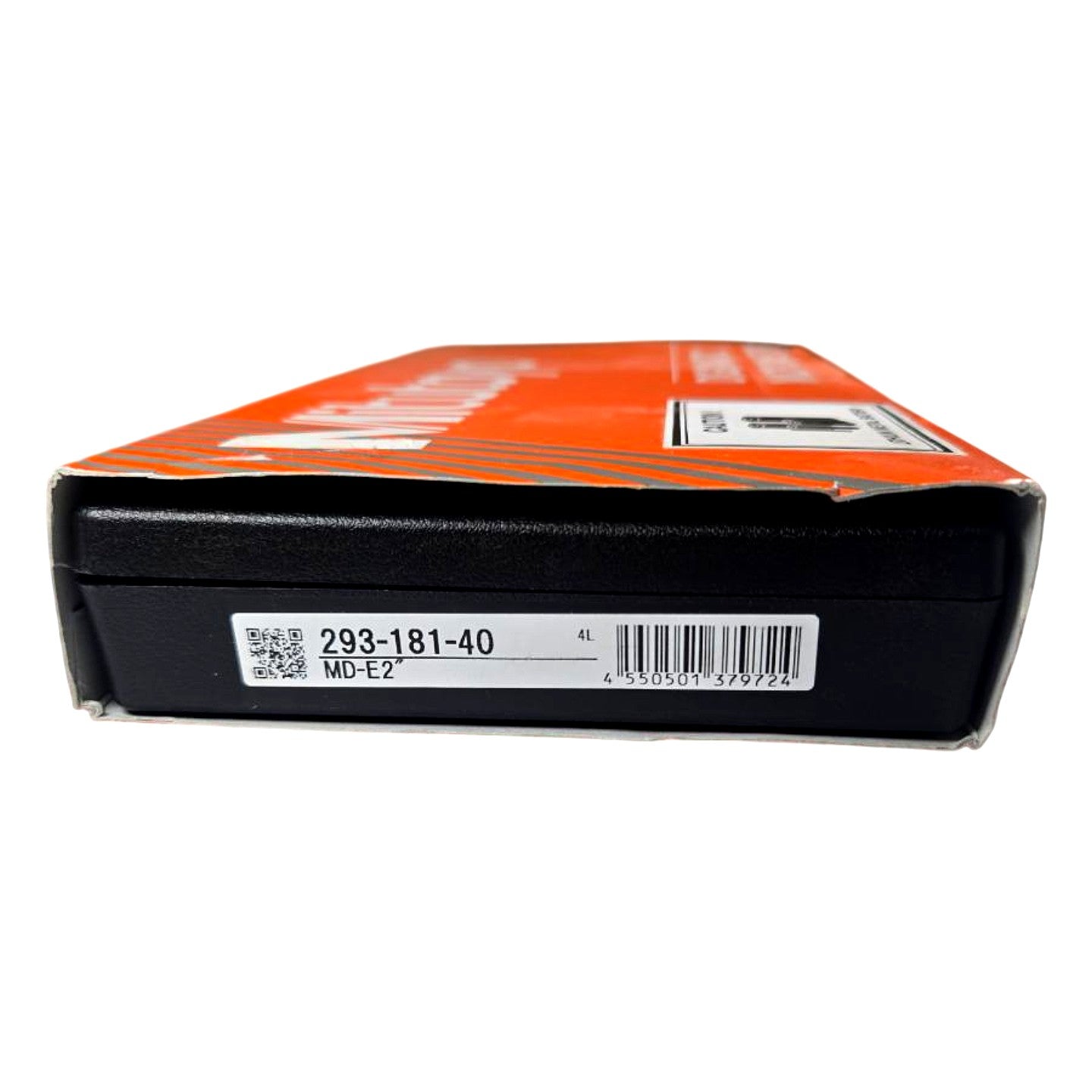

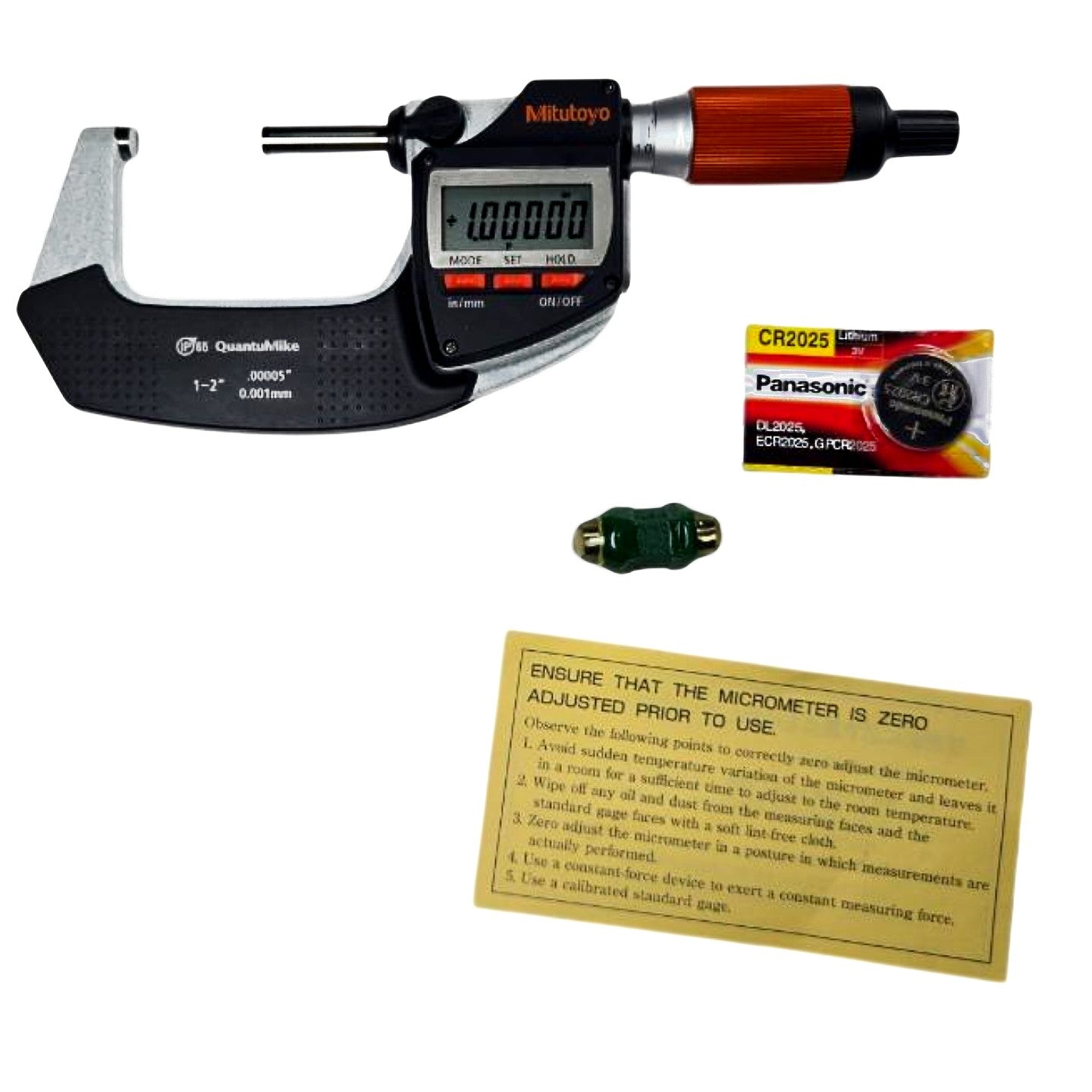

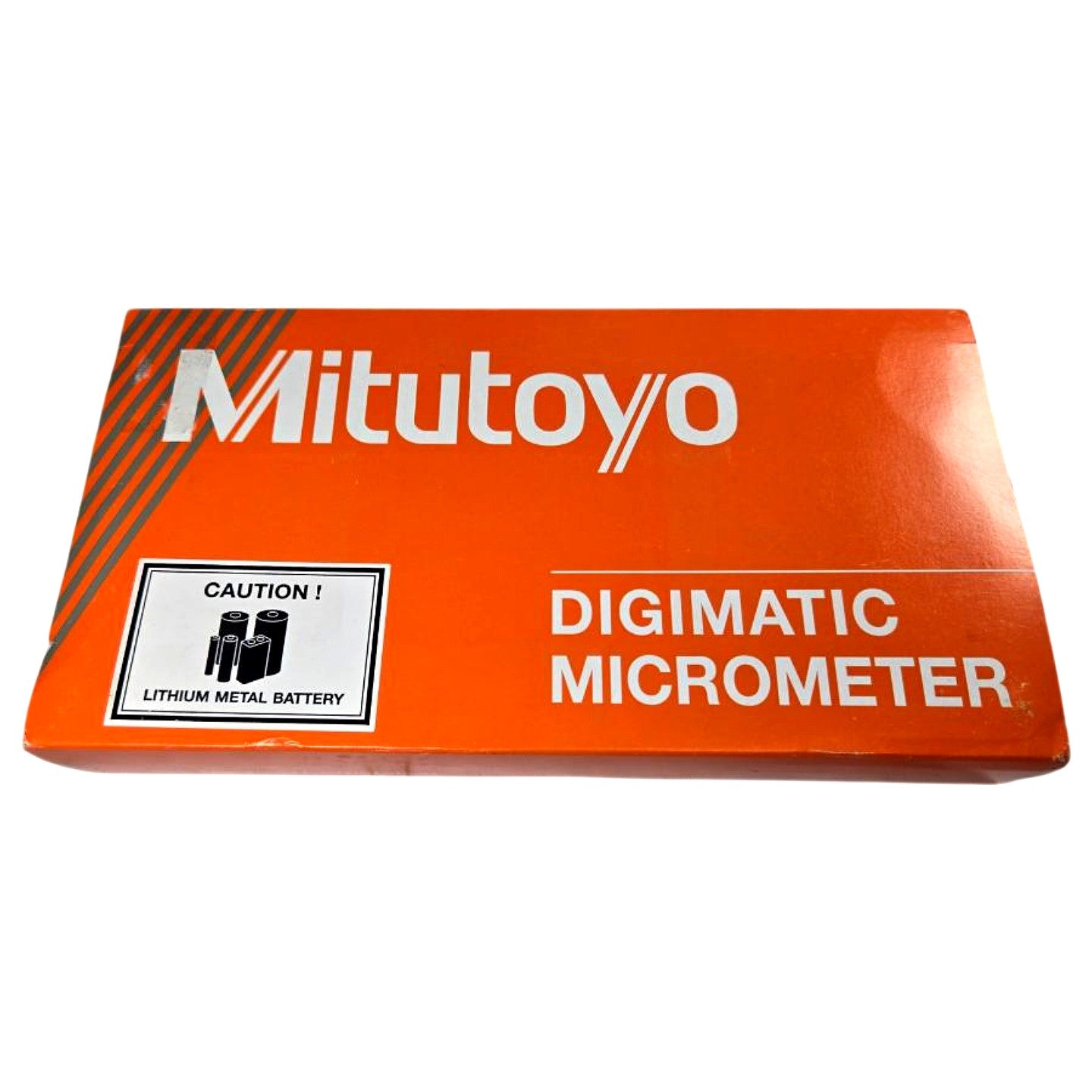

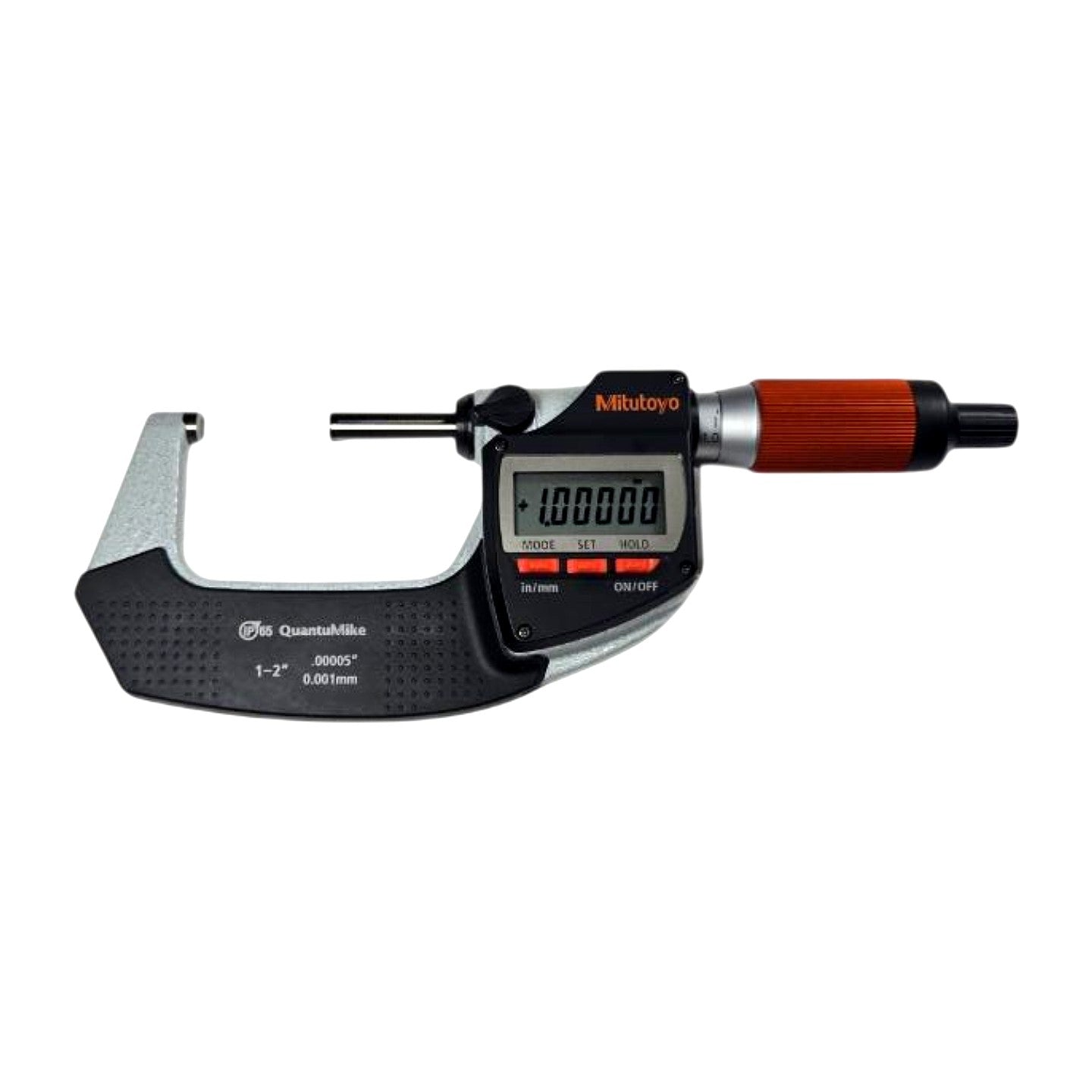

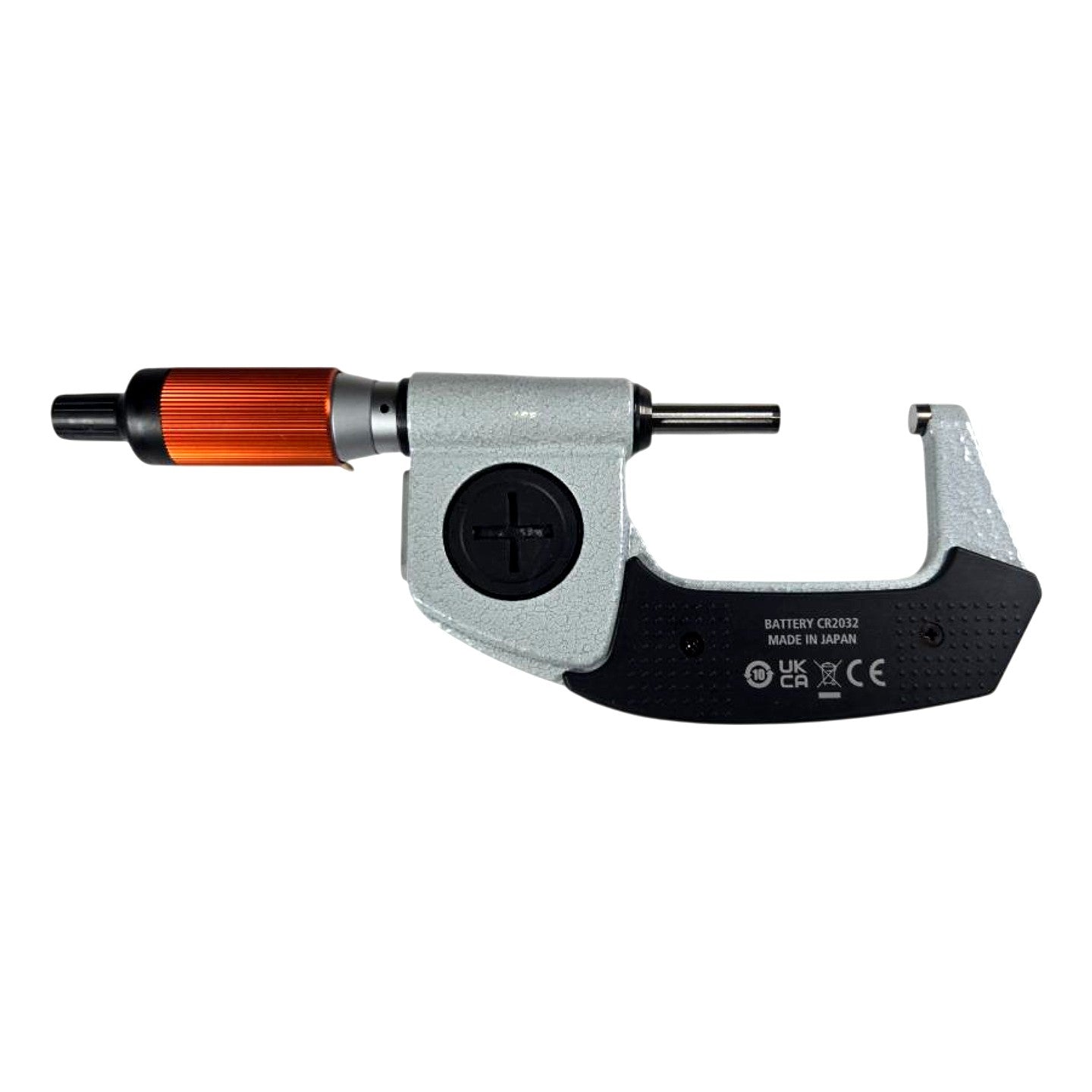

The Mitutoyo 293-181-40 QuantuMike is a high-speed Digimatic outside micrometer covering a 1–2 in (25.4–50.8 mm) measurement range, displaying resolution to 0.00005 in / 0.001 mm on a large LCD with in/mm switchover, MODE, SET, and HOLD functions. The frame carries an IP65 rating for dust and splash resistance, confirmed on the frame label visible in photos, and features solid carbide-tipped anvil and spindle faces for long-term wear resistance and dimensional stability. The rapid-advance QuantuMike spindle mechanism allows fast workpiece approach without sacrificing measuring accuracy; the ratchet-stop thimble delivers consistent, repeatable measuring force. This example is used — excellent condition, includes the original Mitutoyo orange box, a Panasonic CR2025 replacement battery, a green carbide-face protection cap, and Mitutoyo's zero-adjustment instruction card; battery compartment on the frame back panel is marked CR2032 per the second photo, consistent with the 293-18x series. Made in Japan.
Product Specifications
| Brand | Mitutoyo |
| MPN | 293-181-40 |
| Series | QuantuMike Digimatic |
| Measurement Range | 1-2 in (25.4-50.8 mm) |
| Resolution (inch) | 0.00005 in |
| Resolution (metric) | 0.001 mm |
| Accuracy | +/-0.000075 in (+/-0.002 mm) |
| Display Type | LCD digital readout |
| Measurement System | inch/mm switchable |
| IP Rating | IP65 |
| Spindle/Anvil Face Material | Solid carbide |
| Battery | CR2032 (CR2025 spare included) |
| Origin | Japan |
| Functions | Zero, Hold, in/mm conversion, data output |
| Spindle Mechanism | Rapid-advance QuantuMike |
| Condition | Used — excellent |
| Includes | Tool, box, CR2025 battery, face cap, zero-adj card |
