Mitutoyo 293-230-30 MDC-25MX 0-25mm 0.001mm IP65 Digital Outside Micrometer
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

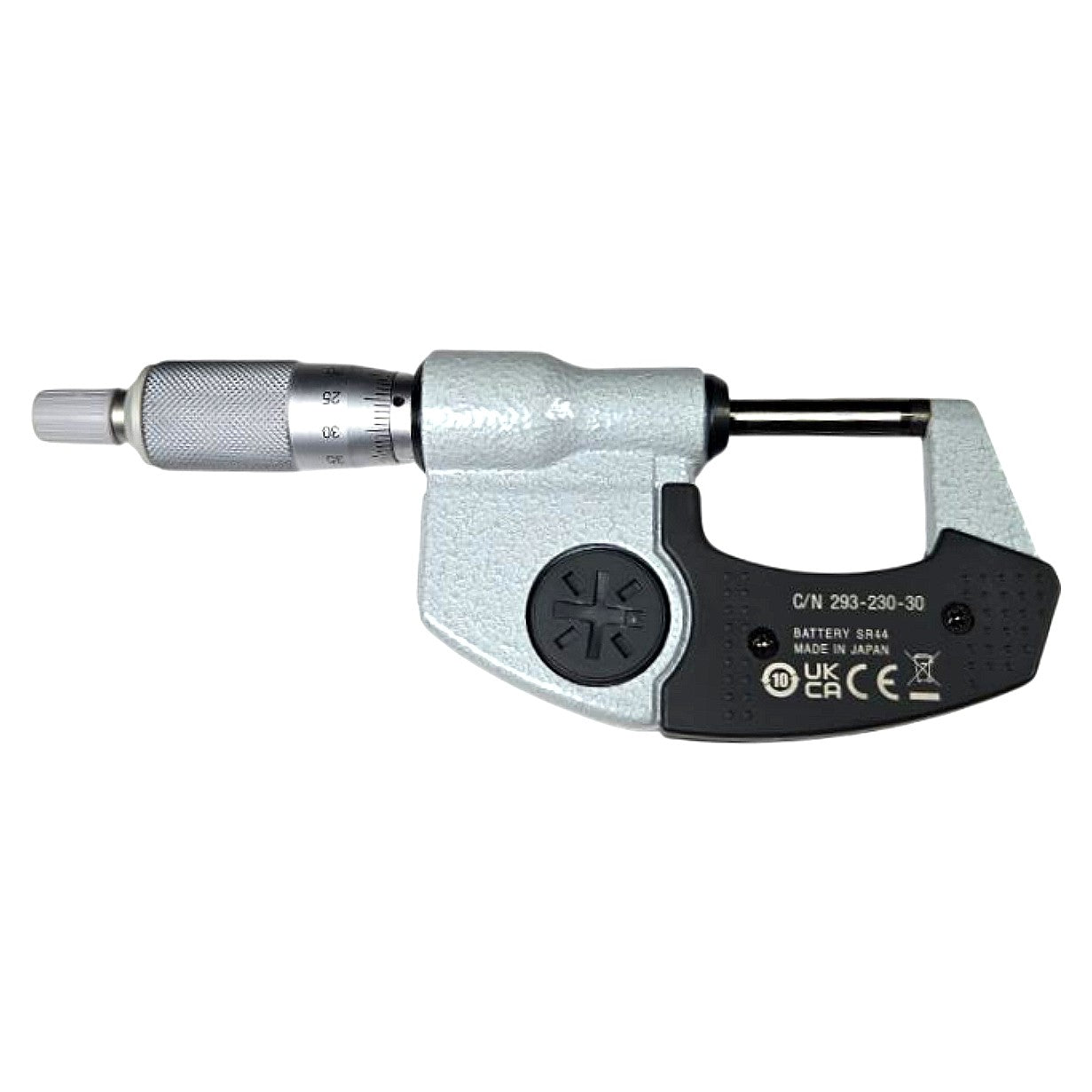

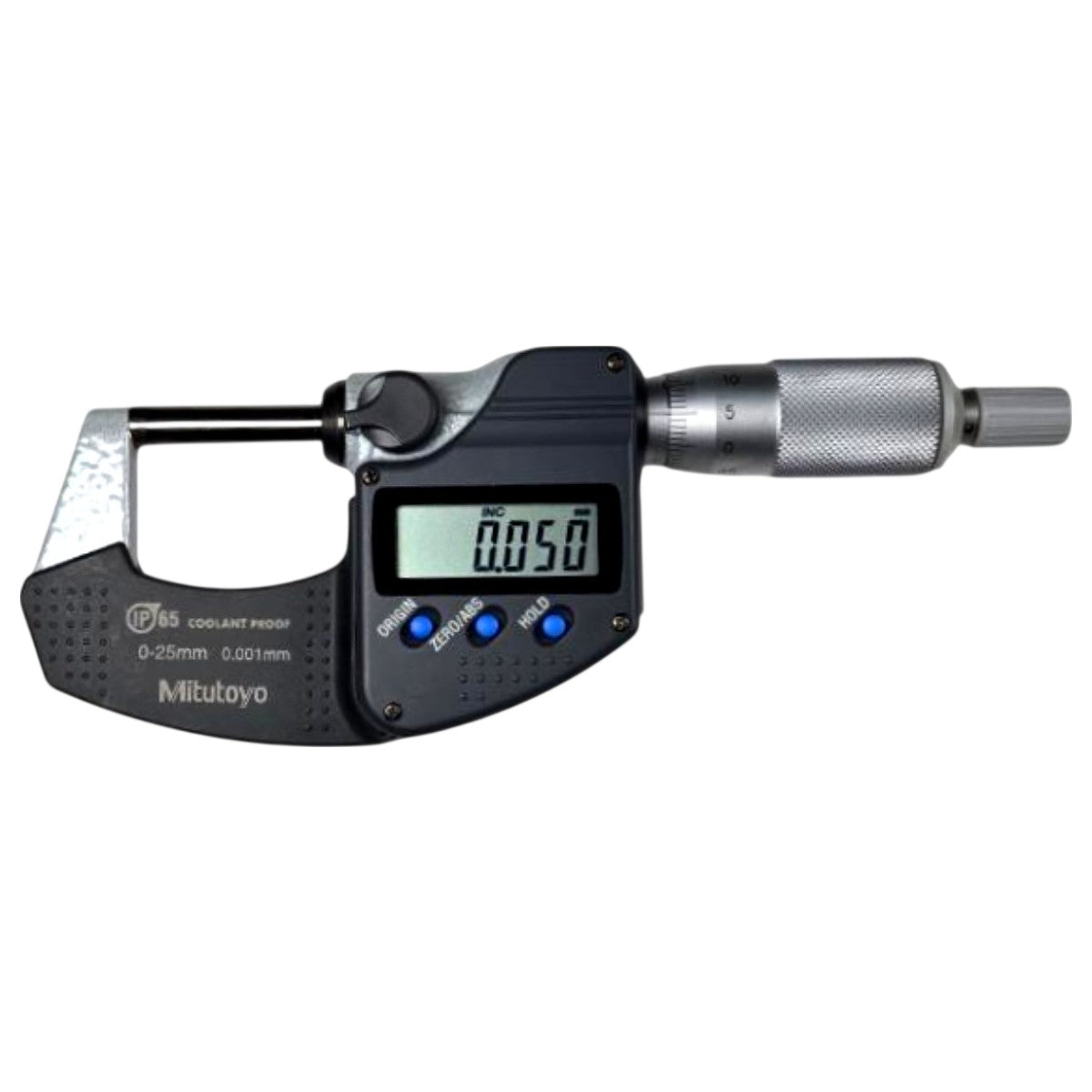

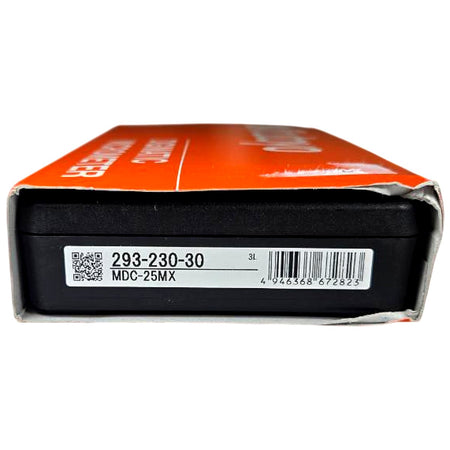

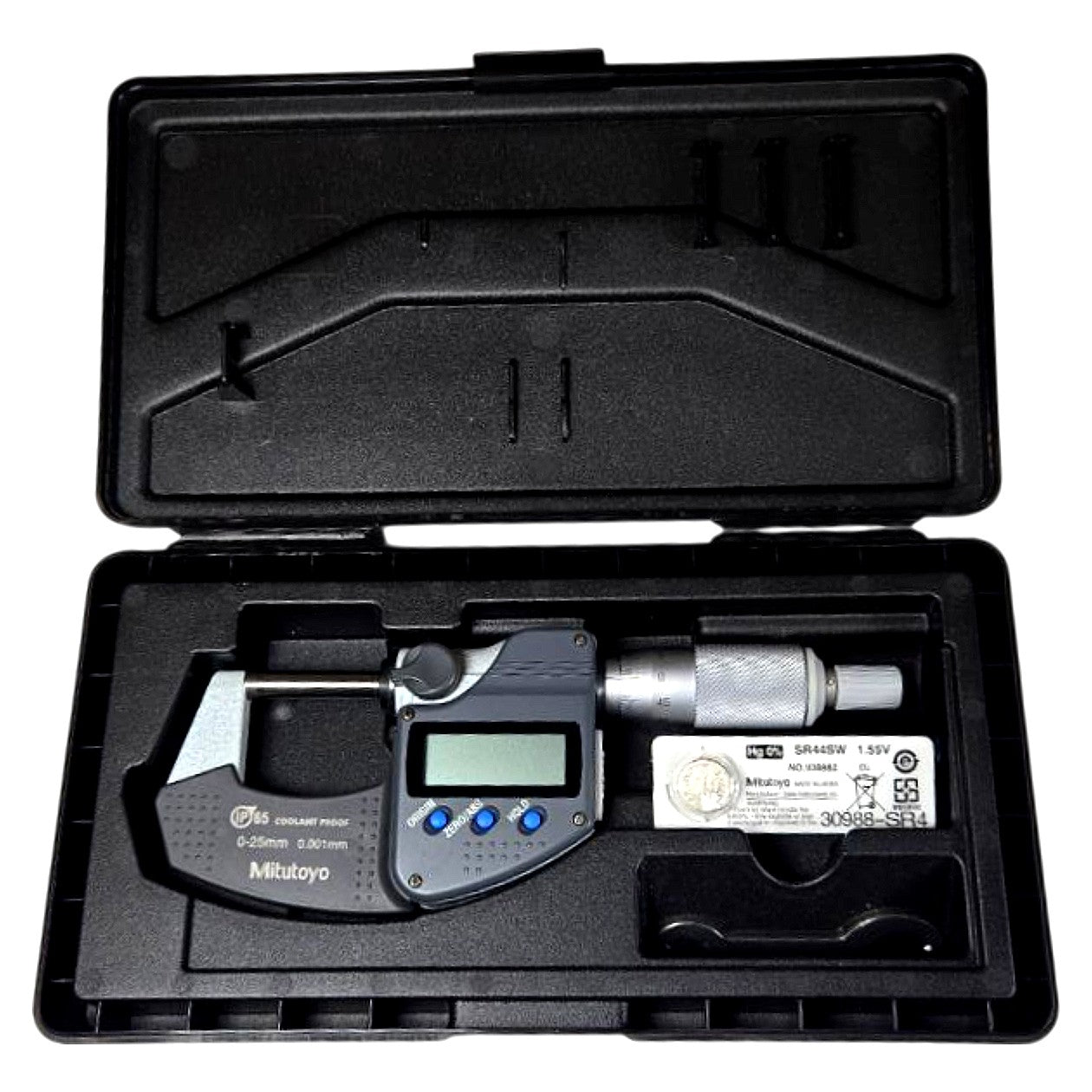

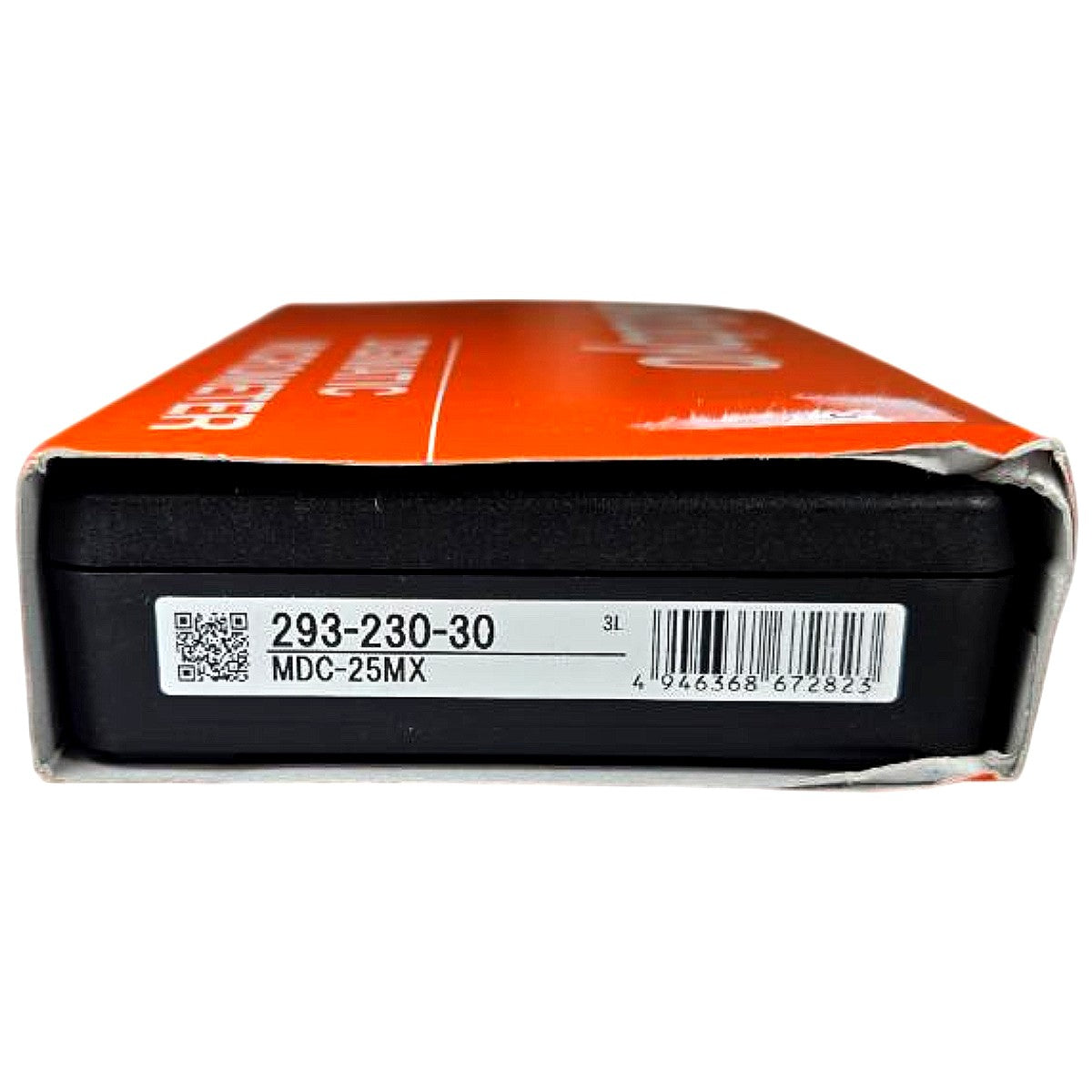

The Mitutoyo 293-230-30 (MDC-25MX) is a Digimatic electronic outside micrometer with a 0–25 mm measuring range and 0.001 mm resolution, part of Mitutoyo's coolant-proof series rated IP65 for protection against dust and low-pressure water jets — confirmed from the frame markings and box label visible in the photos. The measuring faces are solid carbide for extended wear life, and accuracy is ±1.0 µm (±0.001 mm / ±0.00004 in); the thimble uses a ratchet stop mechanism for consistent measuring force, and the frame incorporates heat-insulating side plates to minimize thermal error from hand contact. Three-button operation (ORIGIN, ZERO/ABS, HOLD) provides ABS (absolute) and INC (incremental) measurement modes with data output via the standard Mitutoyo SPC port for connection to data processors or statistical analysis systems. Supplied new — other condition in the original molded plastic case with SR44 battery (1.55 V), a standard gauge block is not included; made in Japan as labeled on the rear frame.
Product Specifications
| Brand | Mitutoyo |
| Model Number (MPN) | 293-230-30 |
| Series / Model Name | MDC-25MX |
| Micrometer Type | Digital Outside Micrometer |
| Measuring Range | 0–25 mm (0–1 in) |
| Resolution | 0.001 mm (0.00005 in) |
| Accuracy | ±1.0 µm (±0.001 mm / ±0.00004 in) |
| Display Type | LCD Digital (Digimatic) |
| Measurement Modes | ABS (Absolute), INC (Incremental) |
| IP Rating | IP65 Coolant Proof |
| Measuring Face Material | Solid Carbide |
| Thimble Type | Ratchet Stop |
| Data Output | Mitutoyo SPC (Digimatic) port |
| Battery | SR44 (1.55 V), qty 1 |
| Origin | Made in Japan |
| Included | Micrometer, case, SR44 battery |
| Condition | New — other |
