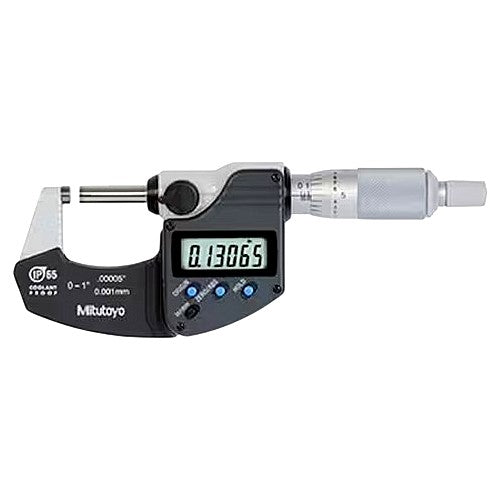

Mitutoyo 293-340-30 MDC-1"PX 0-1 in 0.00005 in Digimatic Micrometer
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

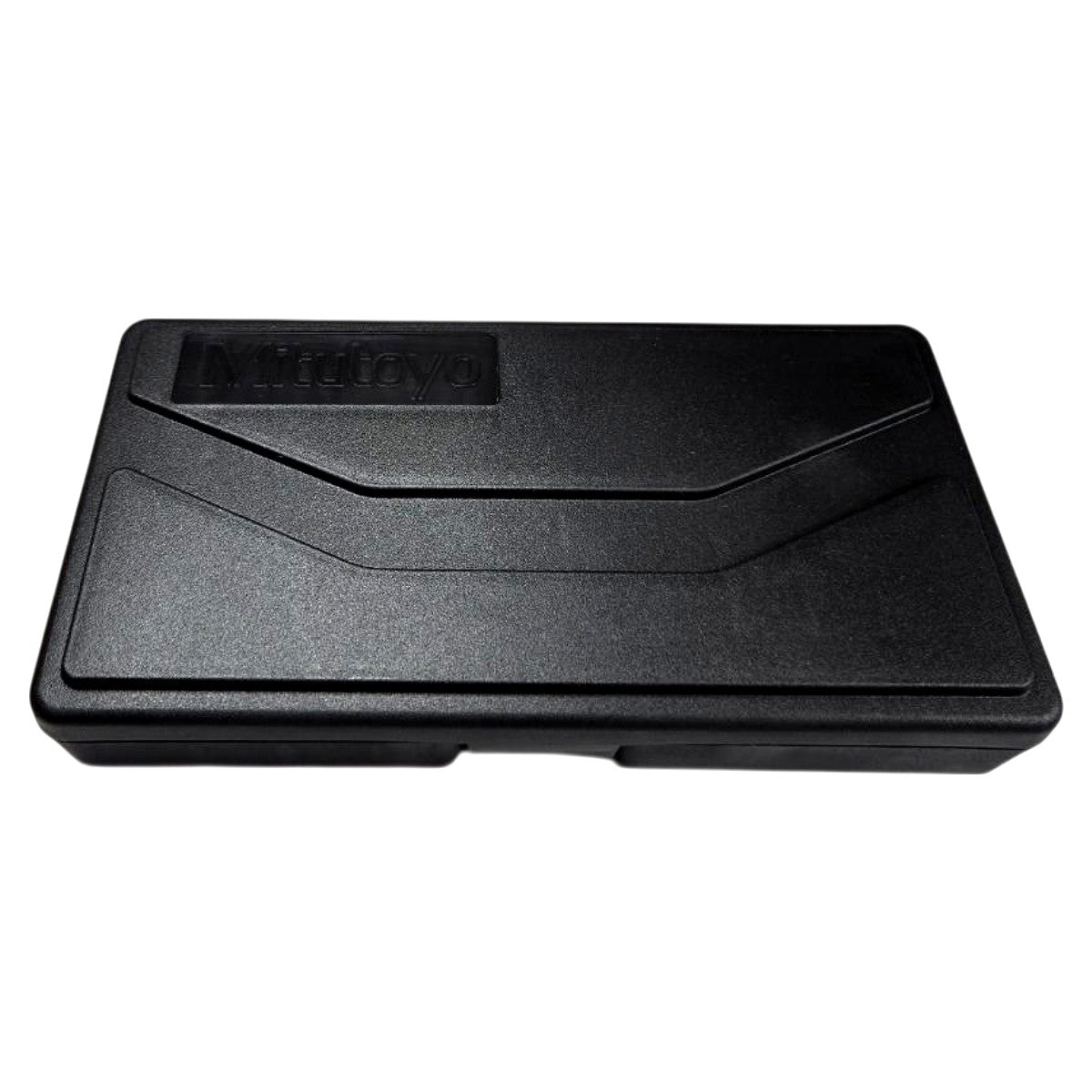

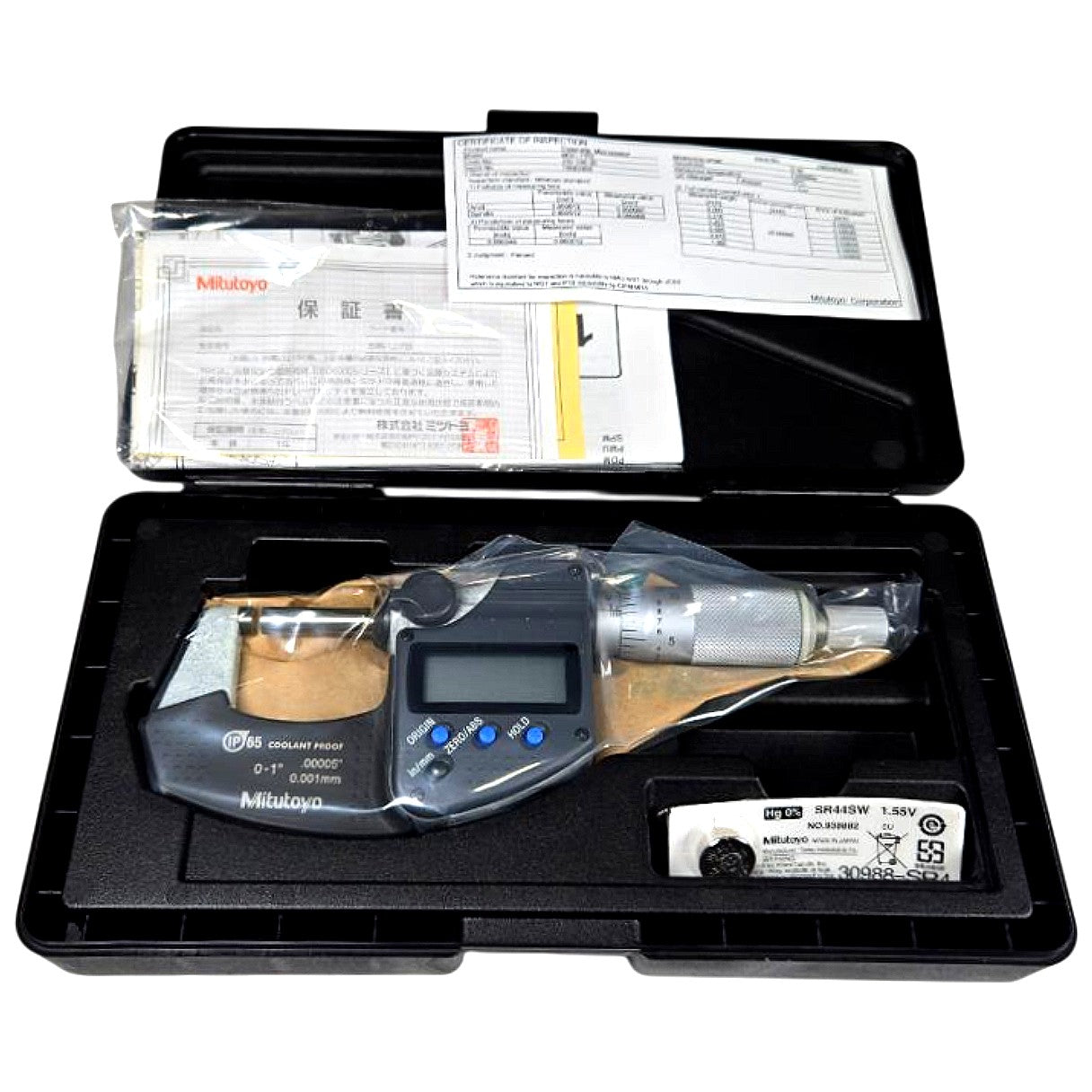

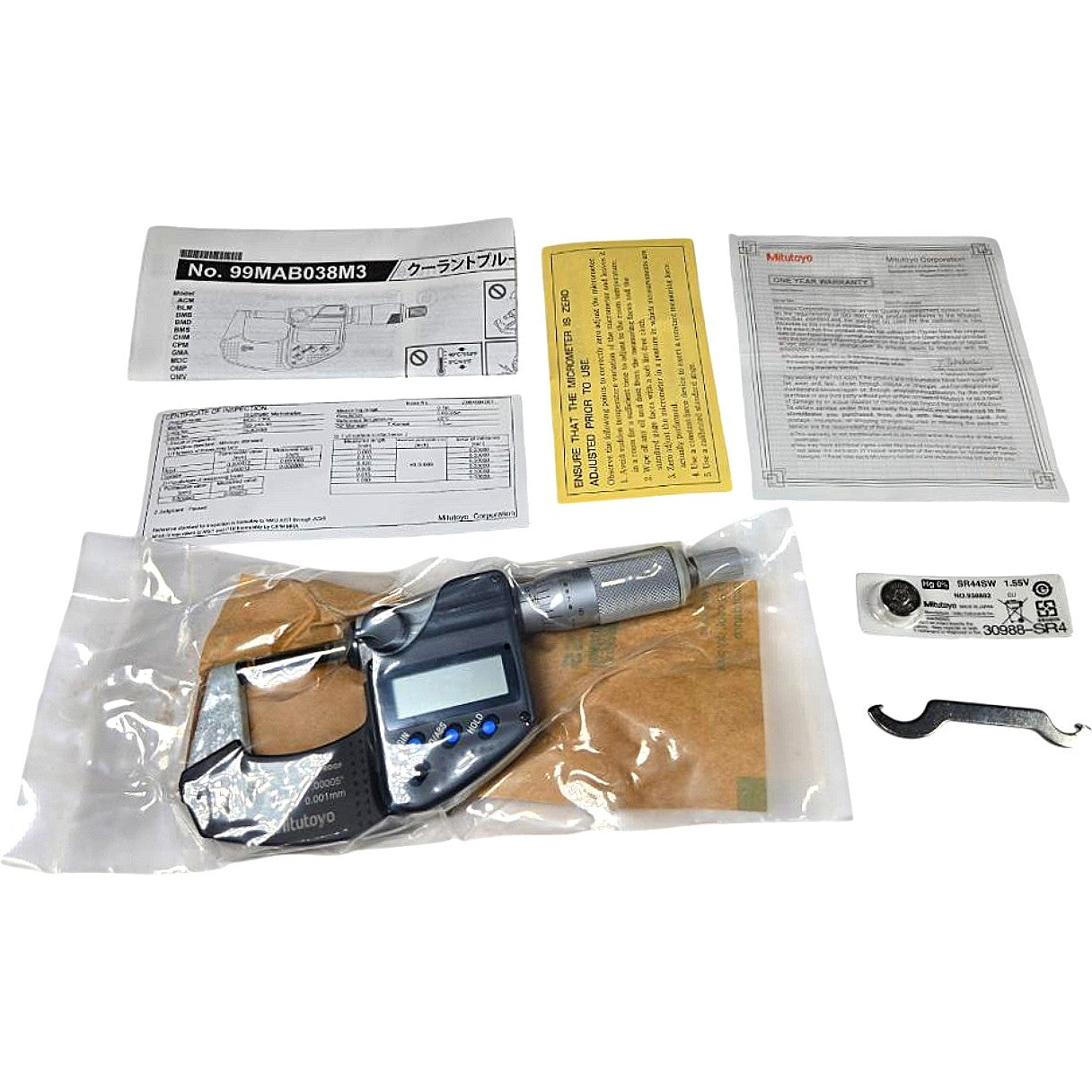

The Mitutoyo 293-340-30 (MDC-1"PX) is a new Series 293 Coolant Proof Digimatic outside micrometer with a 0–1 in (0–25.4 mm) measuring range, offering a resolution of 0.00005 in / 0.001 mm and an accuracy of ±0.00010 in (±0.001 mm) traceable to NIST standards via the included certificate of inspection. Rated IP65 for coolant proof protection, it withstands cutting fluid and coolant splash in demanding shop environments, making it suitable for direct use at the machine tool. The LCD display reads in both inch and metric modes with ORIGIN, ZERO/ABS, and HOLD functions; an SPC data output port is standard for connection to Mitutoyo's Digimatic network. The micrometer ships complete with a Mitutoyo hard plastic carrying case, spanner wrench, SR44SW 1.55 V battery (No. 938882), and a NIST-traceable certificate of inspection.
Product Specifications
| Brand | Mitutoyo |
| Model Number (MPN) | 293-340-30 |
| Series Model Code | MDC-1"PX |
| Series | Series 293 Coolant Proof Digimatic |
| Measuring Range | 0-1 in (0-25.4 mm) |
| Resolution (Inch) | 0.00005 in |
| Resolution (Metric) | 0.001 mm |
| Accuracy | ±0.000100 in (±0.001 mm) |
| Display Type | LCD Digital |
| Measurement Modes | Inch, Metric |
| IP Rating | IP65 Coolant Proof |
| SPC Data Output | Yes (Digimatic) |
| Battery | SR44SW 1.55V (No. 938882) |
| Anvil / Spindle Material | Carbide-tipped |
| Functions | ORIGIN, ZERO/ABS, HOLD |
| Calibration | NIST-traceable certificate of inspection included |
| Includes | Case, spanner wrench, battery, certificate of inspection |
| Condition | New |
