Mitutoyo 293-340-32 MDC-1" PX 0-1in 0.00005in IP65 Digital Outside Micrometer
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

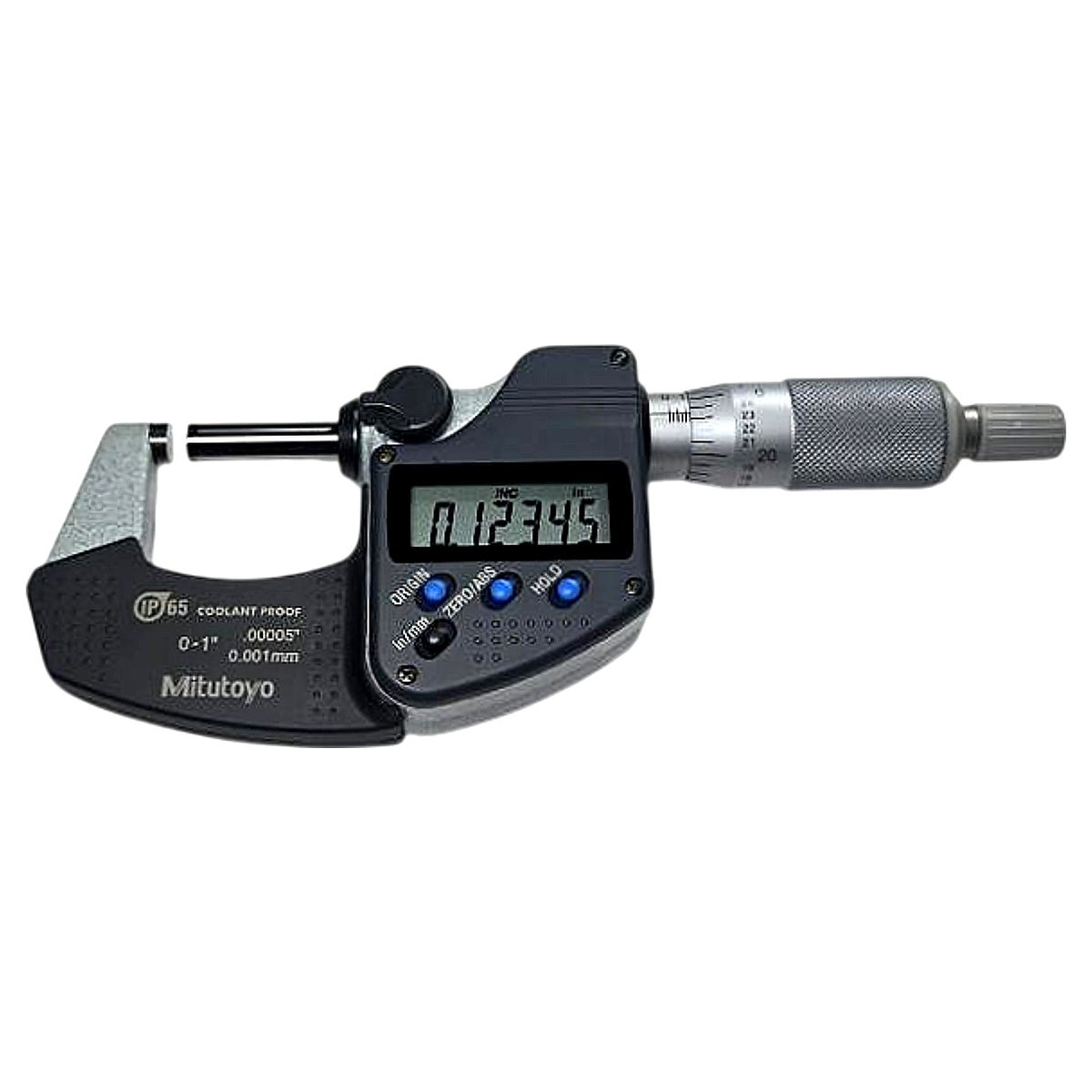

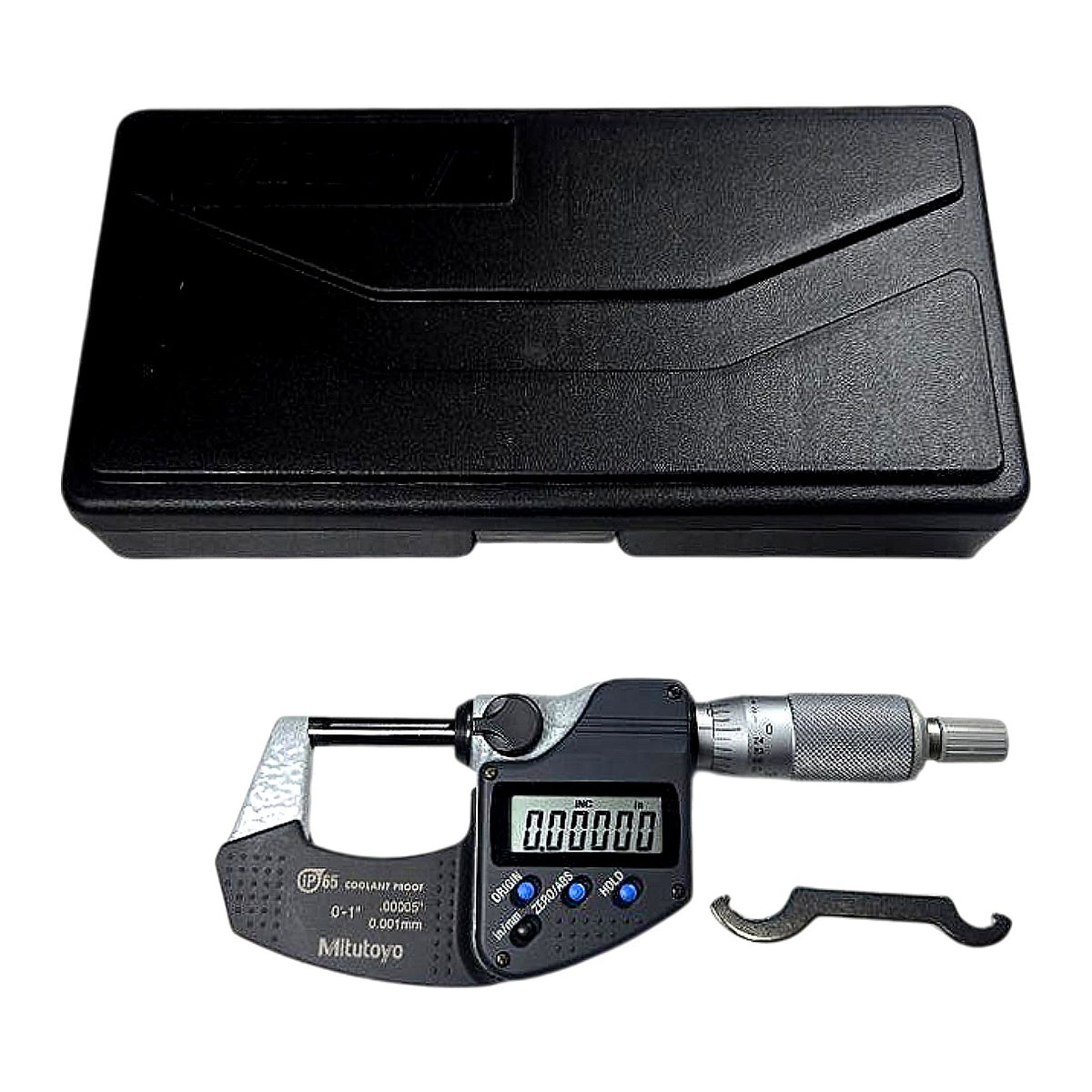

The Mitutoyo 293-340-32 is a Digimatic MDC-1" PX outside micrometer with a 0–1 in (0–25.4 mm) measuring range, displaying in both inch (0.00005 in resolution) and metric (0.001 mm resolution) modes via a large LCD. The frame carries an IP65 coolant-proof rating, confirmed by the "IP65 Coolant Proof" marking visible on the frame in the photos, making it suitable for wet machining environments where coolant, chips, and cutting oils are present. The back plate, visible in the third photo, shows catalog number 293-340-32, "Battery SR44," and "Made in Japan," confirming authentic Mitutoyo manufacture; the unit uses a standard SR44 silver-oxide button cell. Function buttons include ORIGIN, ZERO/ABS, HOLD, and IN/MM unit toggle; a friction thimble (ratchet-stop) and locking lever ensure repeatable seating force. This used-excellent example shows no visible wear to the anvil, spindle, or measuring faces, includes the plastic carry case and spanner wrench as seen in the photos, and is ready for immediate shop use.
Product Specifications
| Brand | Mitutoyo |
| Model / Catalog No. | 293-340-32 |
| Series | MDC-1" PX Digimatic |
| Measuring Range (inch) | 0–1 in |
| Measuring Range (metric) | 0–25.4 mm |
| Resolution (inch) | 0.00005 in |
| Resolution (metric) | 0.001 mm |
| Accuracy | ±0.0001 in (±0.002 mm) |
| Display | LCD digital |
| Unit Modes | inch, mm (switchable) |
| IP Rating | IP65 Coolant Proof |
| Battery | SR44 silver-oxide (1x) |
| Country of Origin | Japan |
| Spindle Type | Carbide-tipped, hardened |
| Thimble Type | Friction ratchet-stop |
| Functions | ORIGIN, ZERO/ABS, HOLD, IN/MM, lock |
| Includes | Carry case, spanner wrench |
| Condition | Used – excellent |
