Mitutoyo 293-340-32 MDC-1PX 0-1in .00005in Digital Outside Micrometer
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

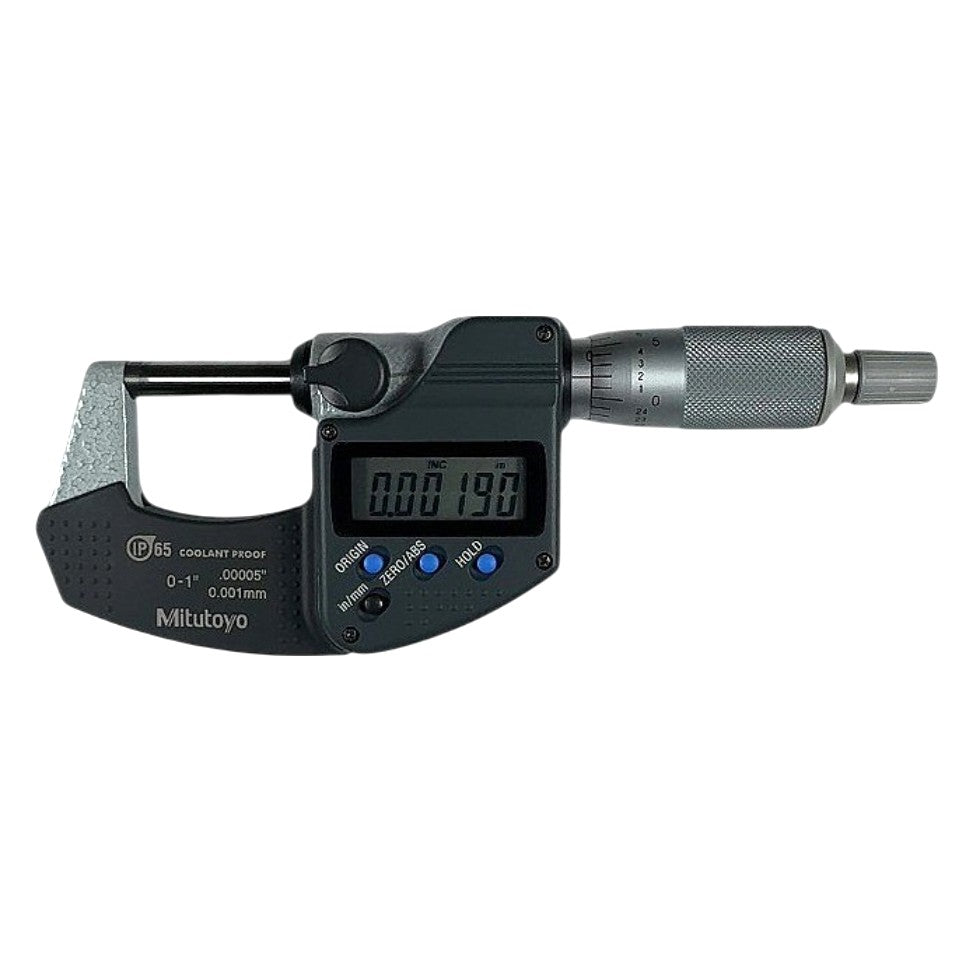

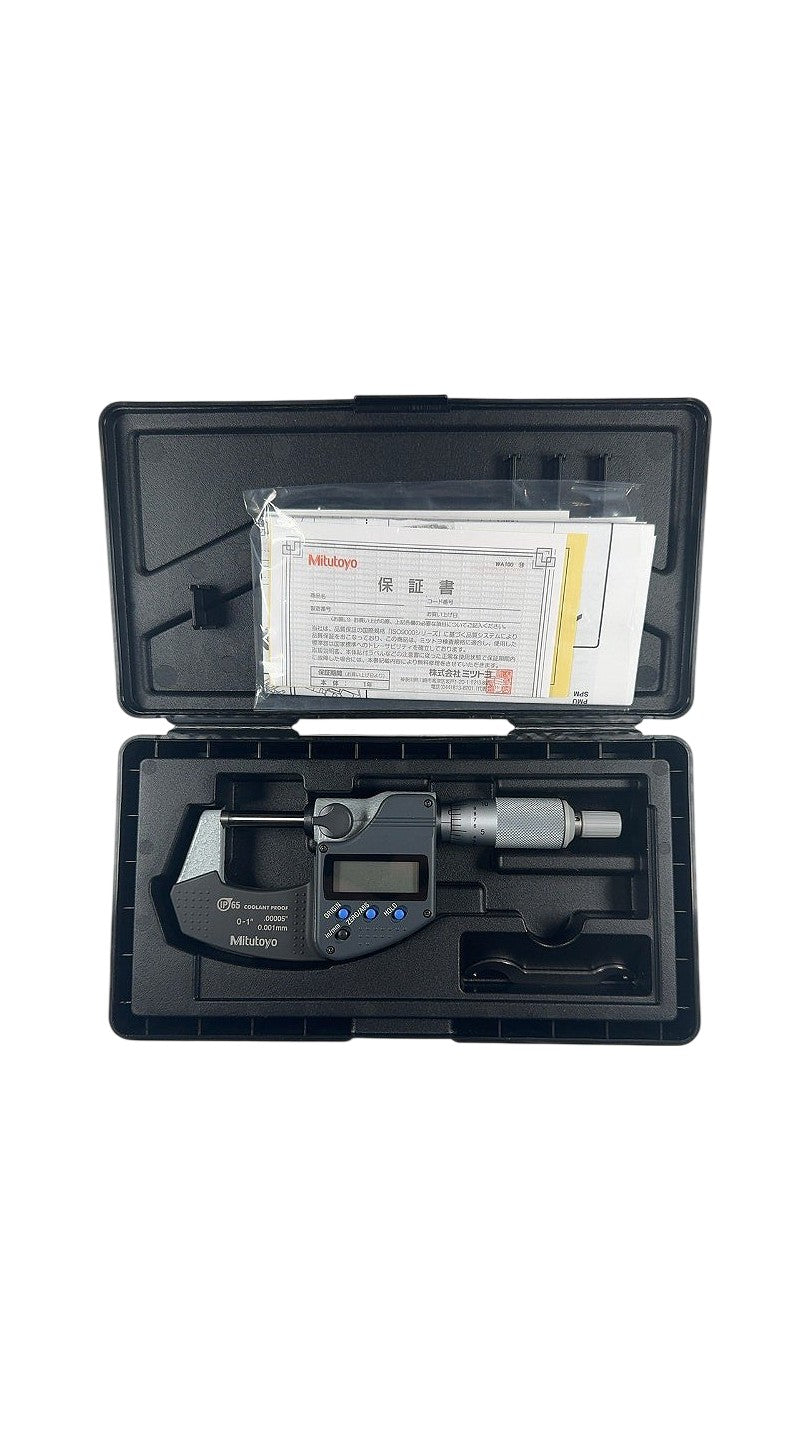

The Mitutoyo 293-340-32 MDC-1PX is a new, Made-in-Japan digital outside micrometer with a 0–1 inch (0–25 mm) measurement range, offering dual-resolution readout of 0.00005 in / 0.001 mm on a large LCD display. The frame carries an IP65 coolant-proof rating, protecting the encoder and electronics against cutting fluid splash and fine chip intrusion in production environments. Resolution is selectable between 0.00005 in and 0.001 mm via the in/mm button, and the instrument features ORIGIN, ZERO/ABS, and HOLD functions along with an analog thimble scale for redundant mechanical reference. The unit is powered by a single SR44 (1.55 V) silver-oxide button cell and ships in a fitted hard-plastic case with a Mitutoyo factory warranty card. Carbide-tipped spindle and anvil faces are standard on this series, making it suitable for repeated measurement of ferrous and non-ferrous workpieces in precision machining, inspection, and quality-control applications.
Product Specifications
| Brand | Mitutoyo |
| Model / MPN | 293-340-32 |
| Series Name | MDC-1PX |
| Instrument Type | Digital Outside Micrometer |
| Measurement Range (in) | 0-1 in |
| Measurement Range (mm) | 0-25 mm |
| Resolution (inch) | 0.00005 in |
| Resolution (metric) | 0.001 mm |
| Display Type | LCD digital w/ analog thimble scale |
| IP Rating | IP65 Coolant Proof |
| Battery Type | SR44, 1.55 V |
| Country of Origin | Japan |
| Unit Switching | inch / mm selectable |
| Functions | ORIGIN, ZERO/ABS, HOLD |
| Certifications | CE, UKCA |
| Included Accessories | Hard-plastic case, warranty card |
| Condition | New |
