Mitutoyo 293-341-32 1-2 in IP65 0.00005 in Digital Outside Micrometer
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

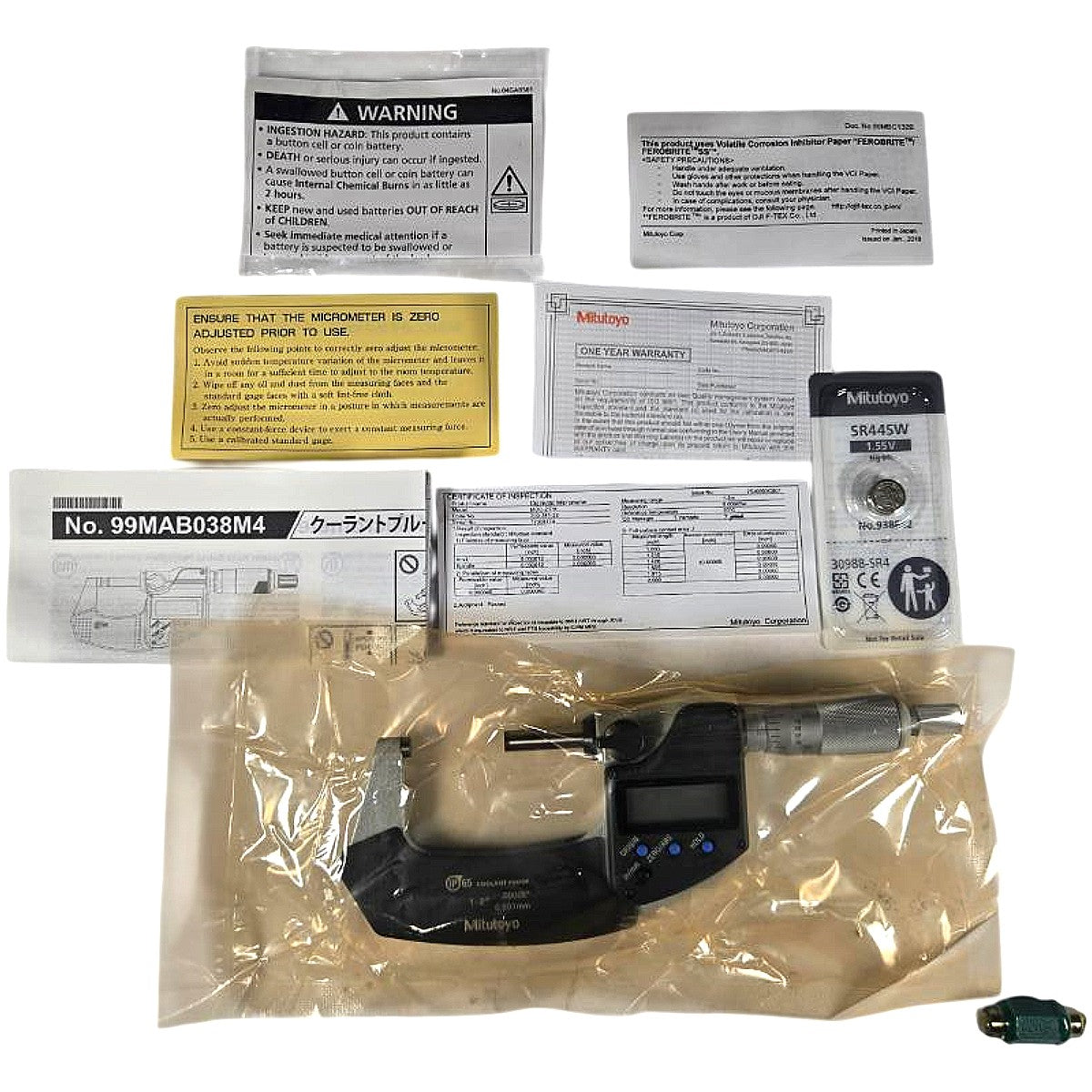

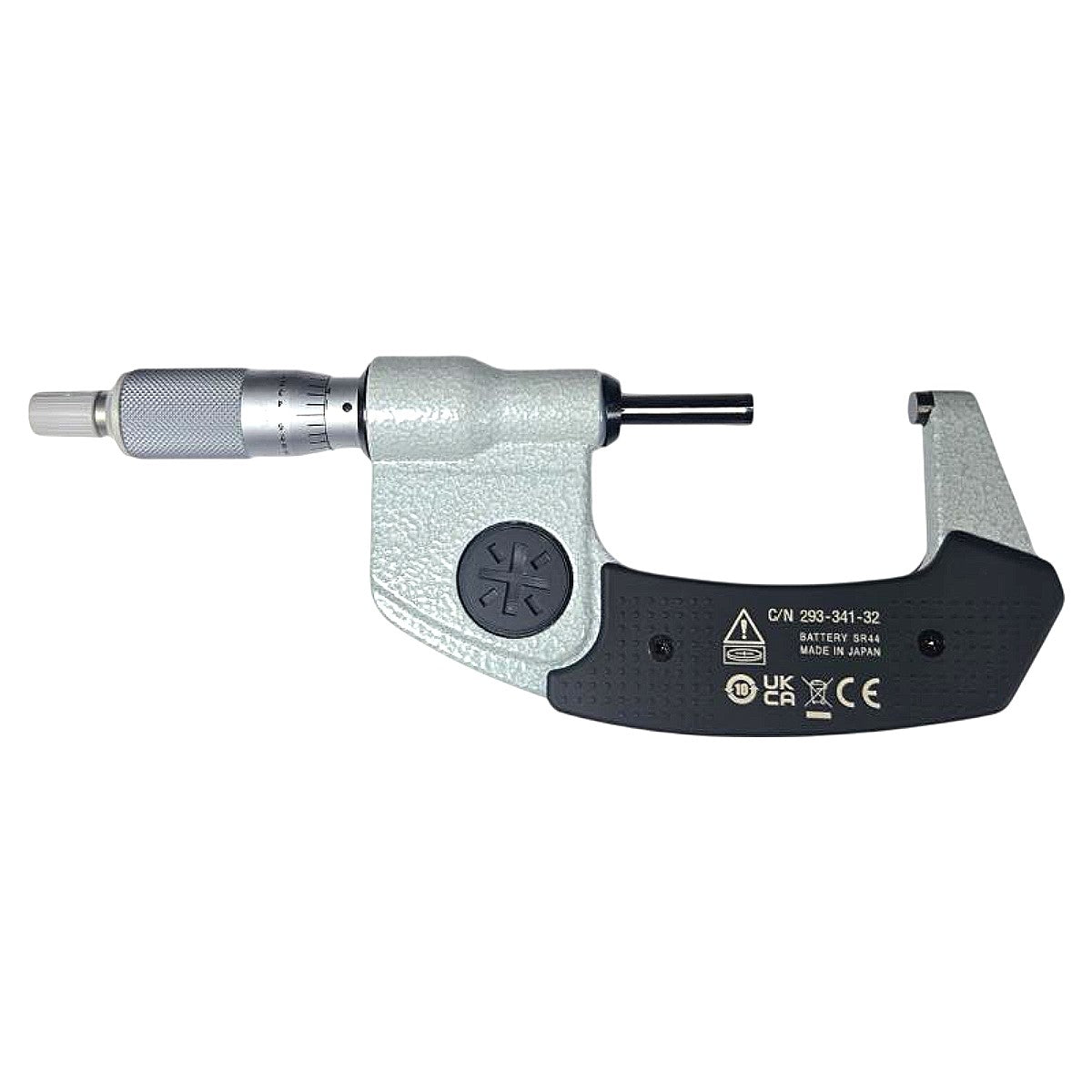

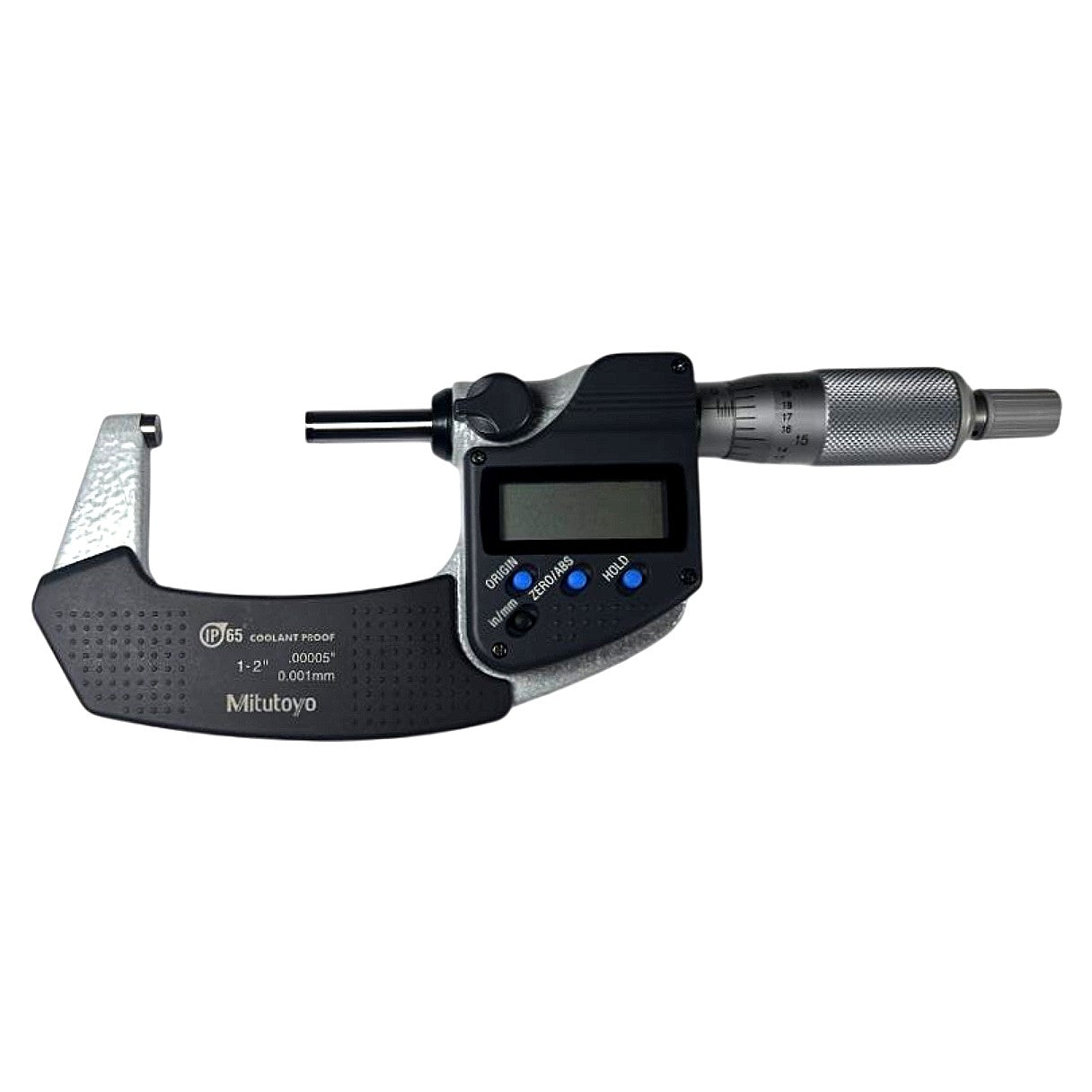

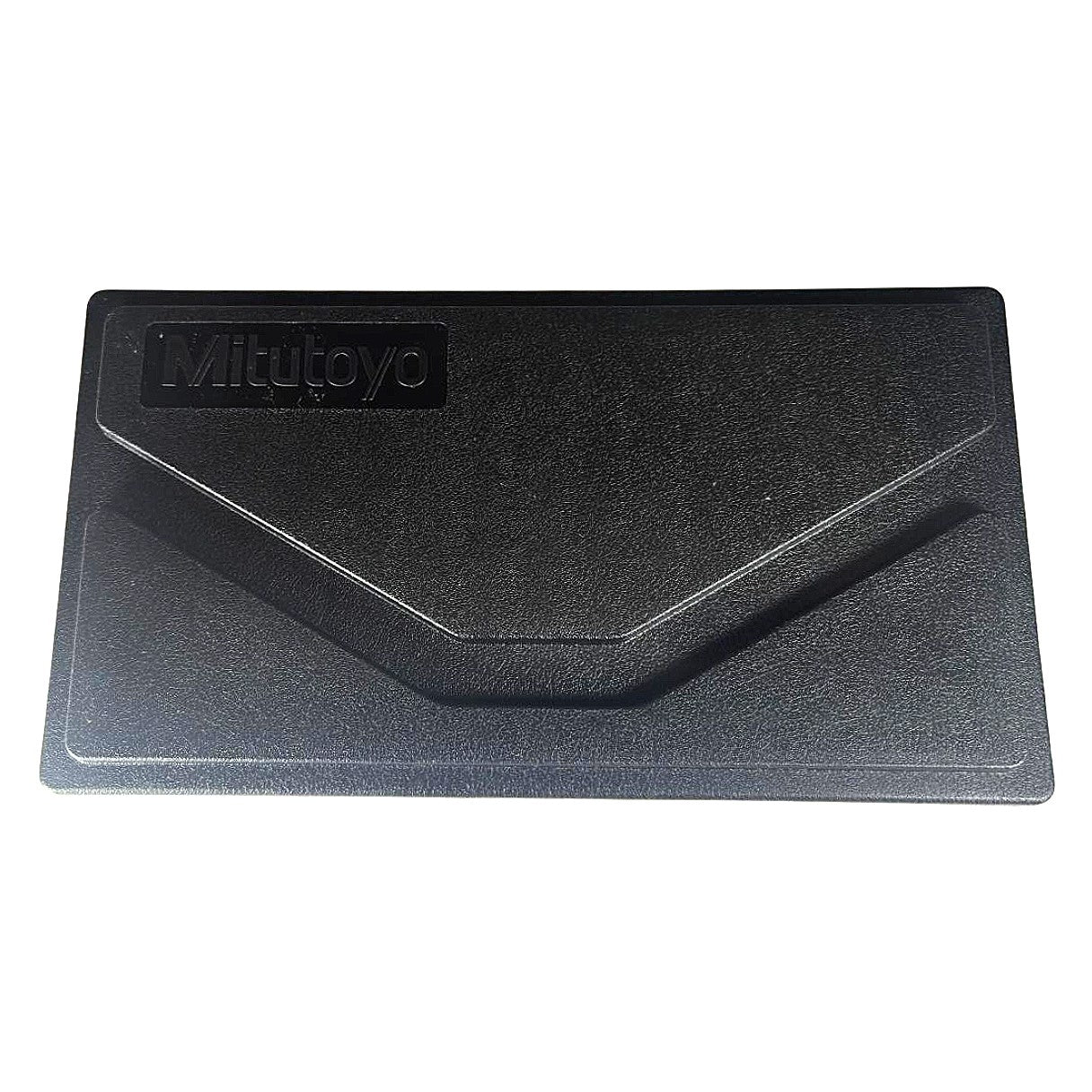

The Mitutoyo 293-341-32 is a new QuantuMike-series electronic outside micrometer with a 1–2 in (25.4–50.8 mm) measuring range, solid carbide measuring faces, and an IP65 coolant-proof sealed body, confirmed by the frame markings and accessories visible in the photos. Resolution is 0.00005 in / 0.001 mm and accuracy is ±0.00005 in (±0.001 mm), making it suitable for high-precision shop-floor measurement in wet or contaminated environments. The LCD display supports inch/mm switchover and features ORIGIN, ZERO/ABS, and HOLD functions; a ratchet-stop thimble ensures repeatable measuring force, and SPC data output is available via the included output connector (No. 99MAB038M4 cable kit visible in accessories). The unit ships with a SR44 (1.55 V) battery, plastic storage case, Mitutoyo certificate of inspection, and one-year factory warranty, all confirmed in the accessory photos.
Product Specifications
| Brand | Mitutoyo |
| MPN | 293-341-32 |
| Model Name | MDC-2"PX |
| Micrometer Type | Digital Outside Micrometer |
| Measuring Range | 1-2 in (25.4-50.8 mm) |
| Resolution (Inch) | 0.00005 in |
| Resolution (Metric) | 0.001 mm |
| Accuracy | ±0.00005 in / ±0.001 mm |
| IP Rating | IP65 Coolant Proof |
| Measuring Face Material | Solid Carbide |
| Thimble Type | Ratchet Stop |
| Display Type | LCD Digital |
| Unit Switchover | in / mm |
| Functions | ORIGIN, ZERO/ABS, HOLD |
| SPC Data Output | Yes (output connector included) |
| Battery Type | SR44 / SR445W, 1.55 V |
| Made In | Japan |
| Certifications | CE, UKCA |
| Includes | Case, battery, SPC cable, cert. of inspection, warranty |
| Warranty | 1 Year (Mitutoyo) |
| Condition | New |
