Mitutoyo 293-344-30 MDC-1"PXT 0-1 in 0.00005 in IP65 Digital Outside Micrometer
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

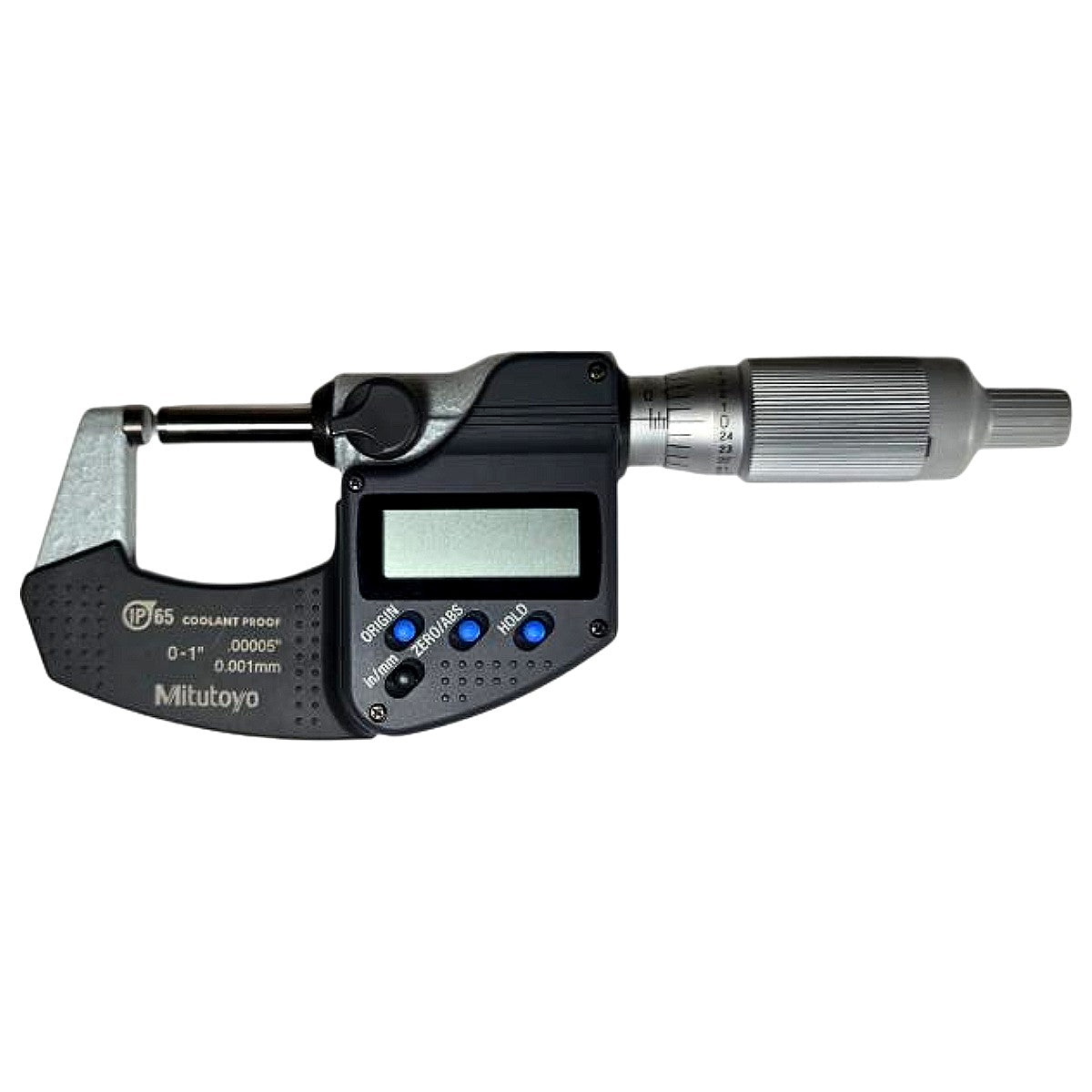

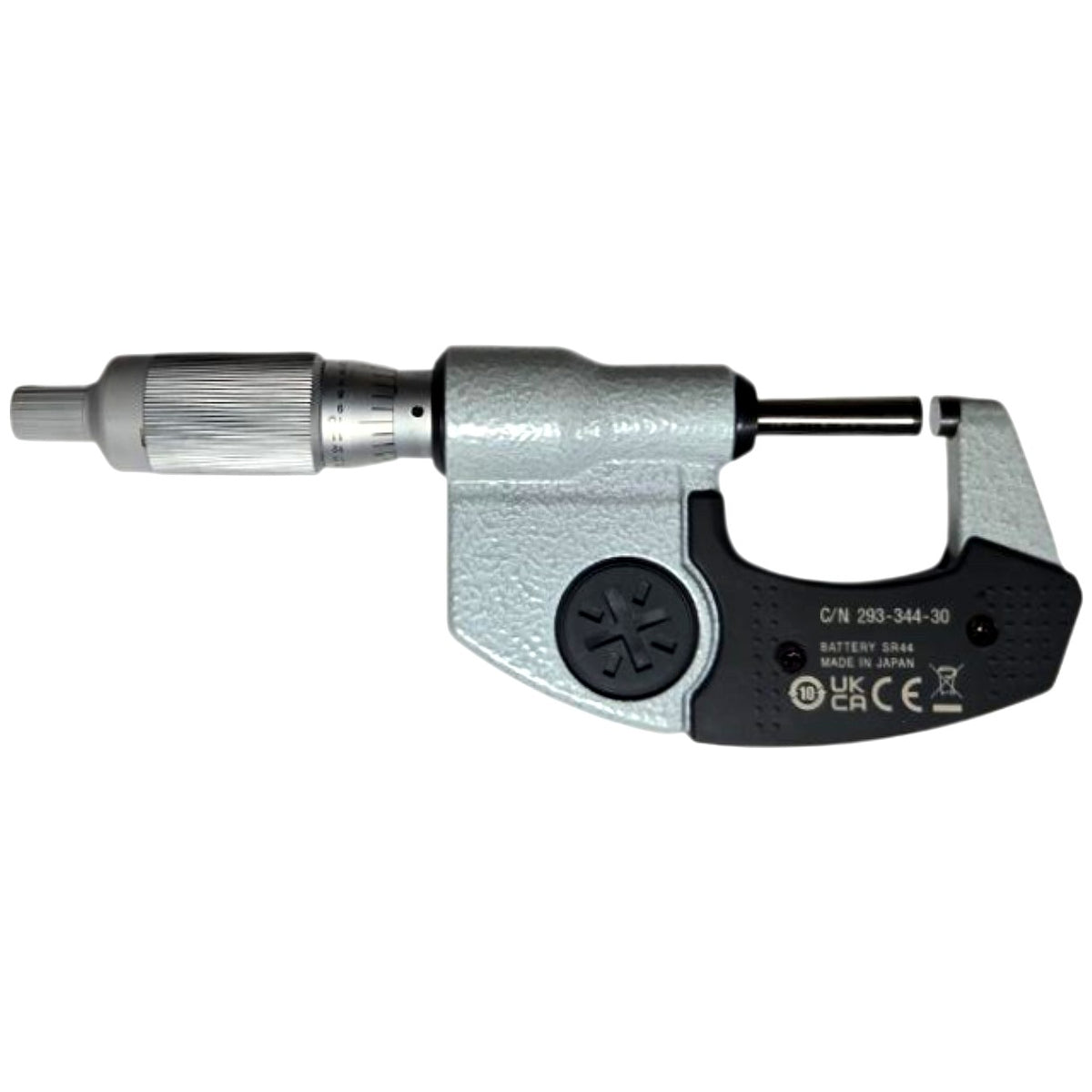

The Mitutoyo 293-344-30 is a new Digimatic outside micrometer from the MDC-PXT series featuring a 0–1 in (0–25.4 mm) measuring range, an LCD digital readout with 0.00005 in / 0.001 mm resolution, and IP65 coolant-proof sealing for reliable operation in wet or oily machining environments. The frame is hardened and ground steel with carbide-tipped measuring faces; the instrument provides inch/mm switchable readout with ORIGIN, ZERO/ABS, and HOLD functions accessible via three front-panel push buttons, and a friction thimble (ratchet-stop) ensures consistent gaging force. Accuracy is ±0.0001 in (±0.001 mm) over the full range per Mitutoyo's published specification, and each unit ships with an individual Certificate of Inspection traceable to Mitutoyo standards (equivalent to NIST/PTB). The 293-344-30 (model code MDC-1"PXT) operates on a single SR44SW (1.55 V) silver-oxide battery and includes a spanner wrench, battery, certificate of inspection, and fitted plastic carrying case; it is manufactured in Japan.
Product Specifications
| Brand | Mitutoyo |
| MPN | 293-344-30 |
| Model Name | MDC-1"PXT |
| Series | Digimatic MDC-PXT |
| Measuring Range | 0–1 in (0–25.4 mm) |
| Resolution (in) | 0.00005 in |
| Resolution (mm) | 0.001 mm |
| Accuracy | ±0.0001 in (±0.001 mm) |
| Display Type | LCD digital readout |
| Units | in / mm switchable |
| IP Rating | IP65 Coolant Proof |
| Measuring Face Material | Carbide-tipped |
| Thimble Type | Ratchet-stop friction thimble |
| Battery | SR44SW, 1.55 V (silver-oxide) |
| Functions | ORIGIN, ZERO/ABS, HOLD |
| Country of Origin | Japan |

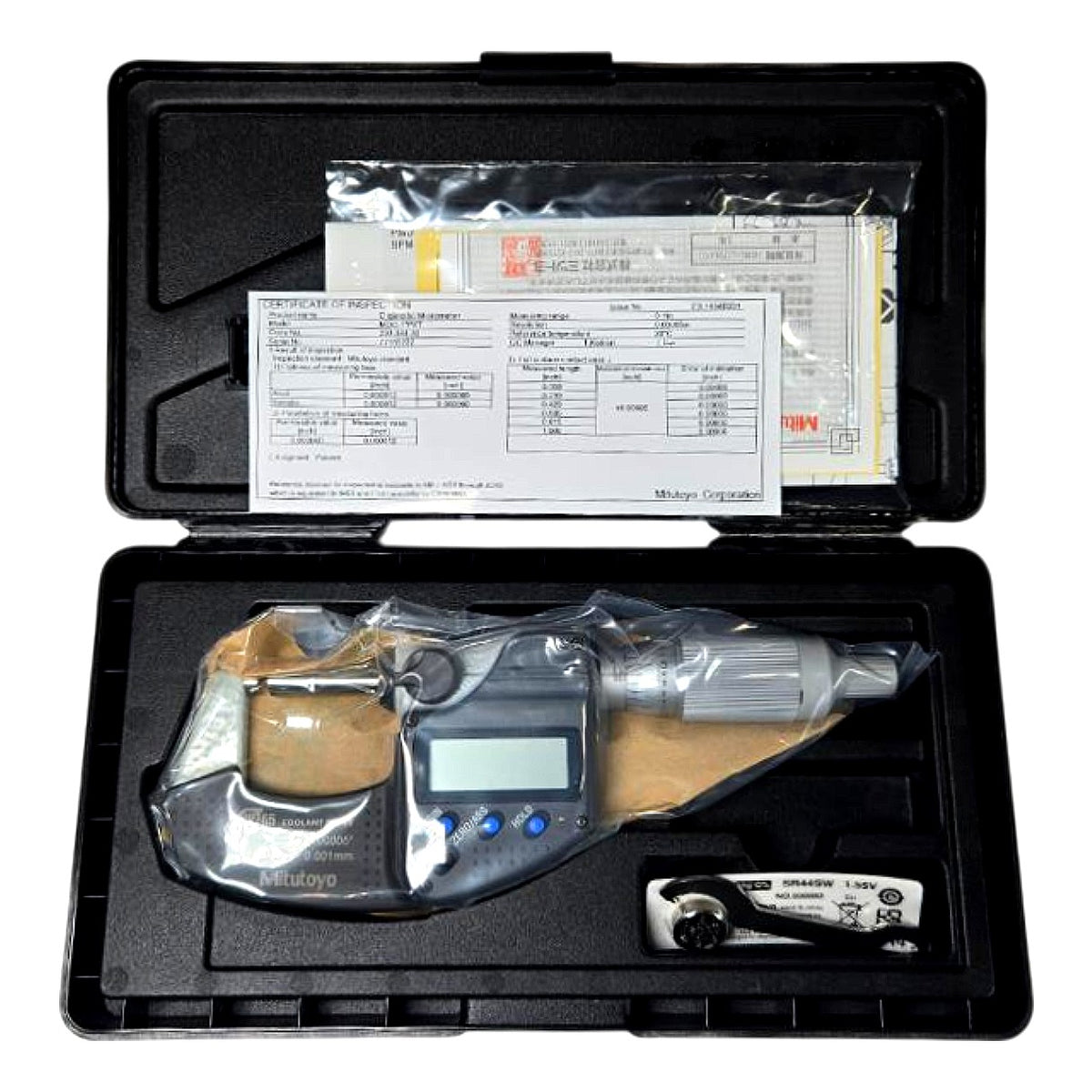

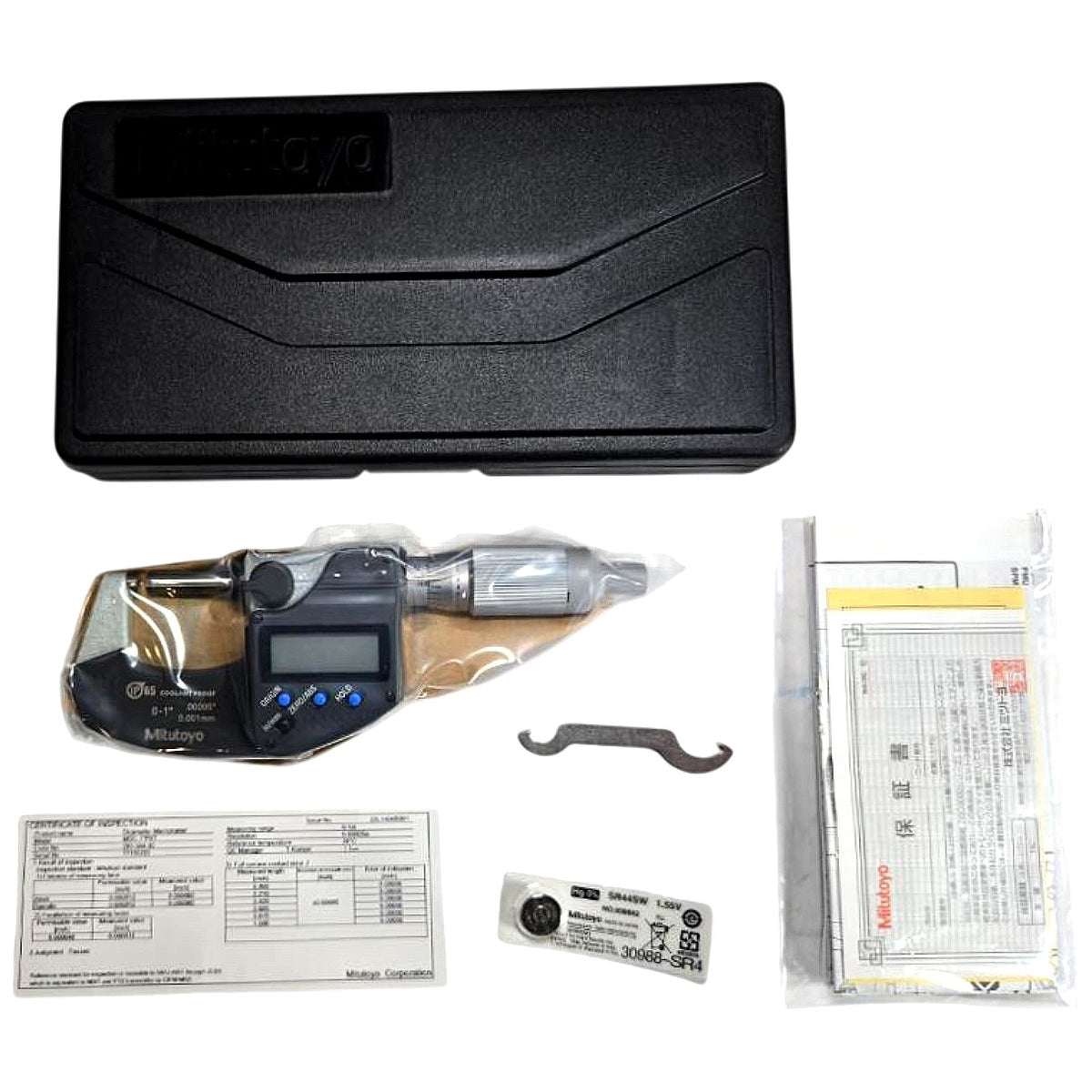

| Includes | Case, spanner wrench, battery, cert. of inspection |
| Condition | New |
