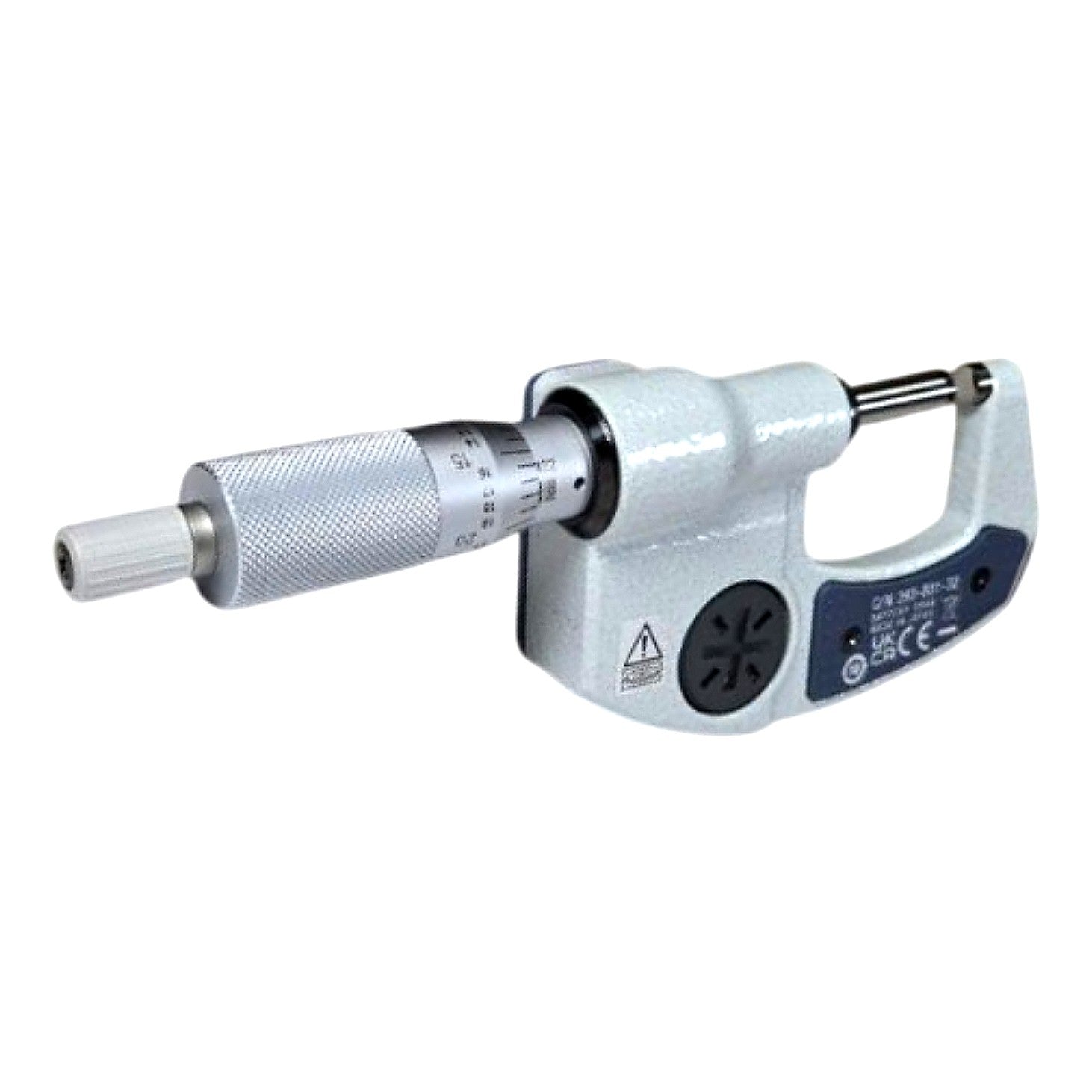

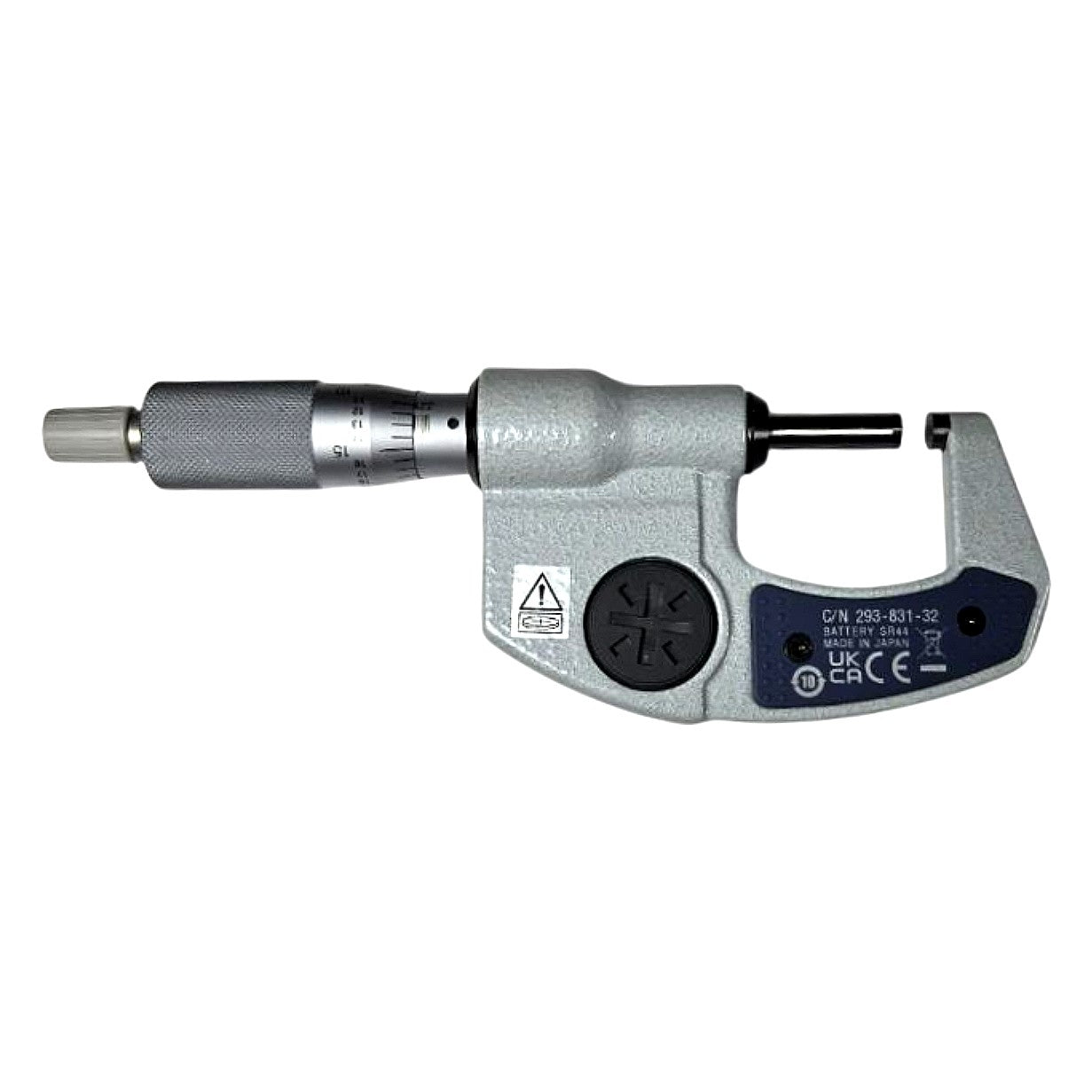

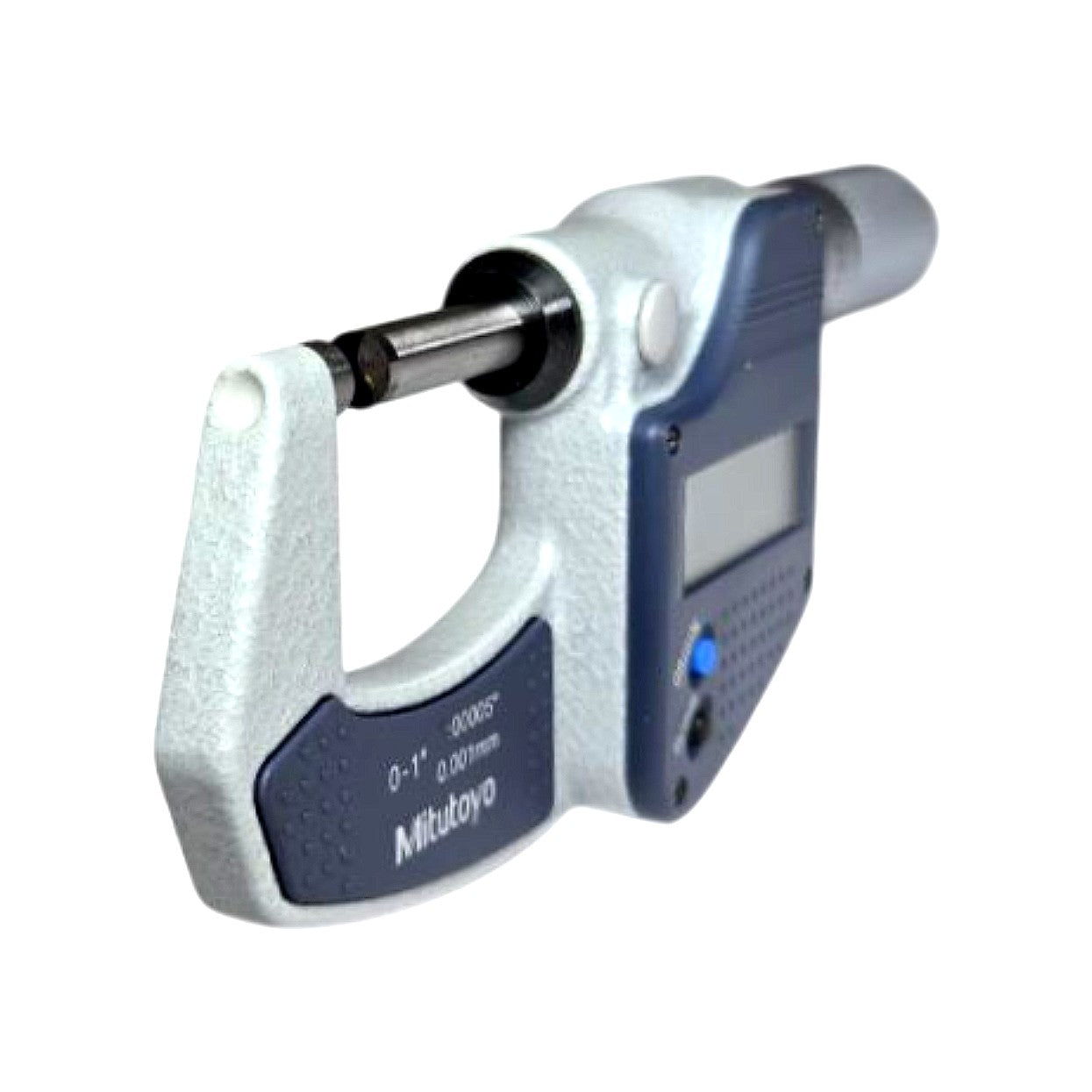

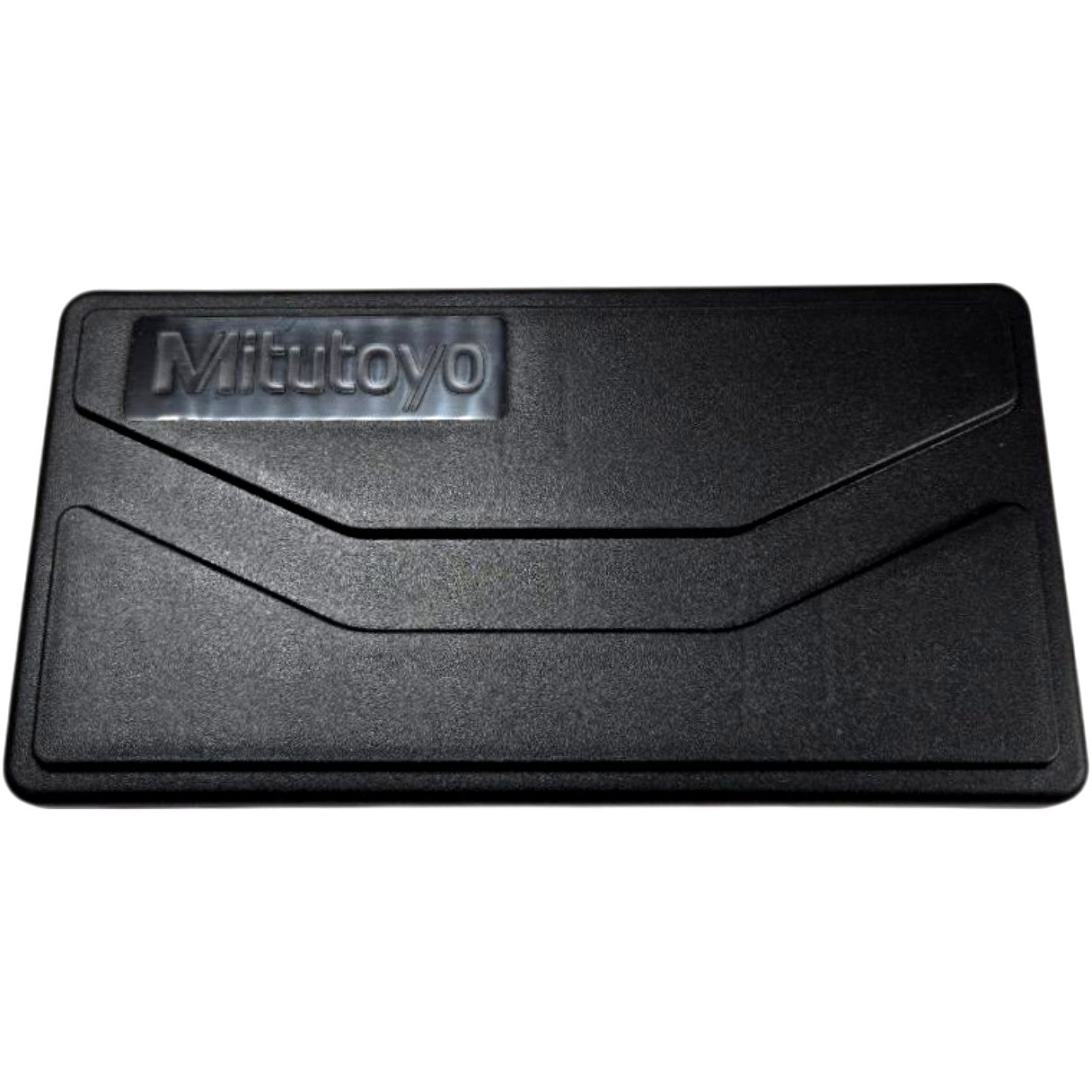

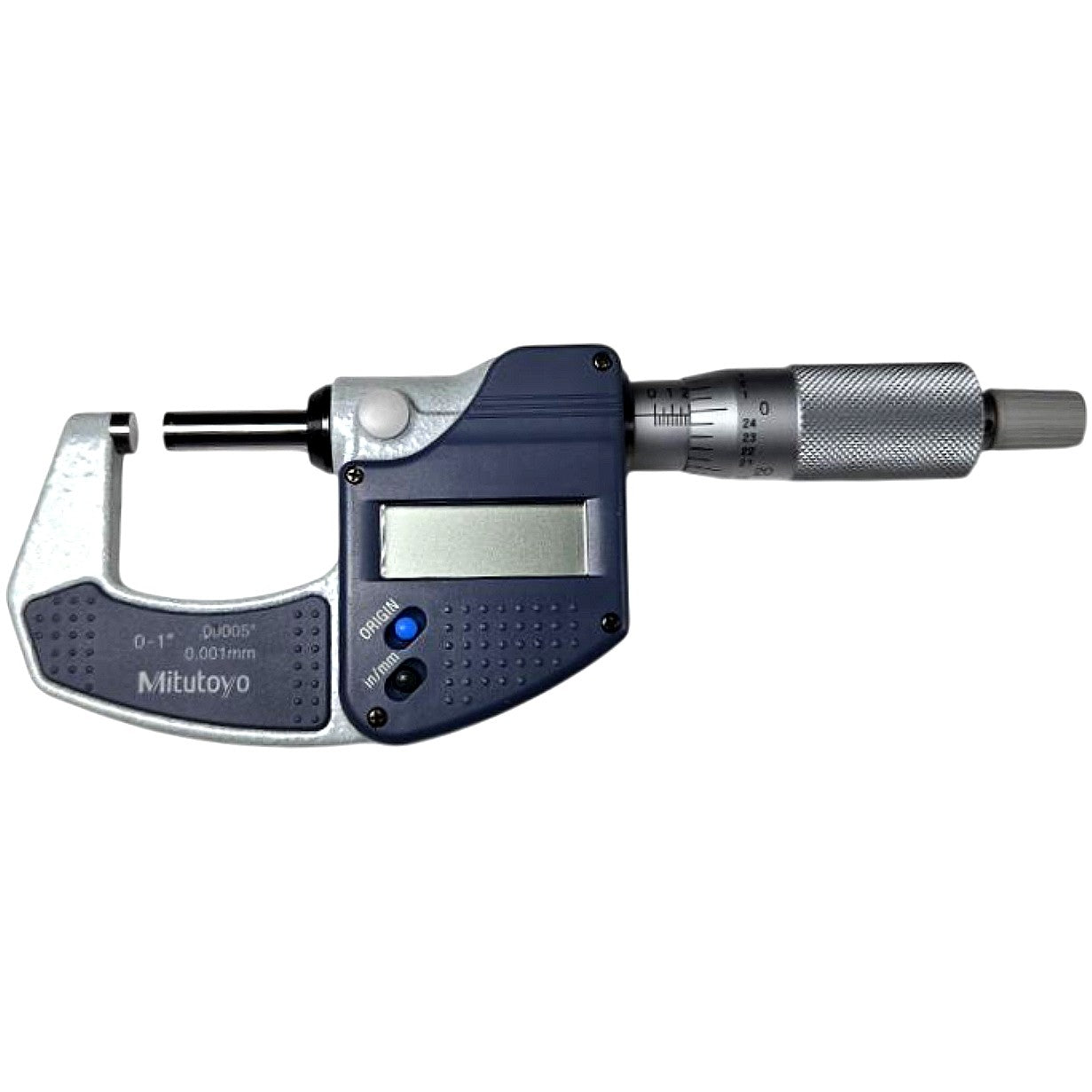

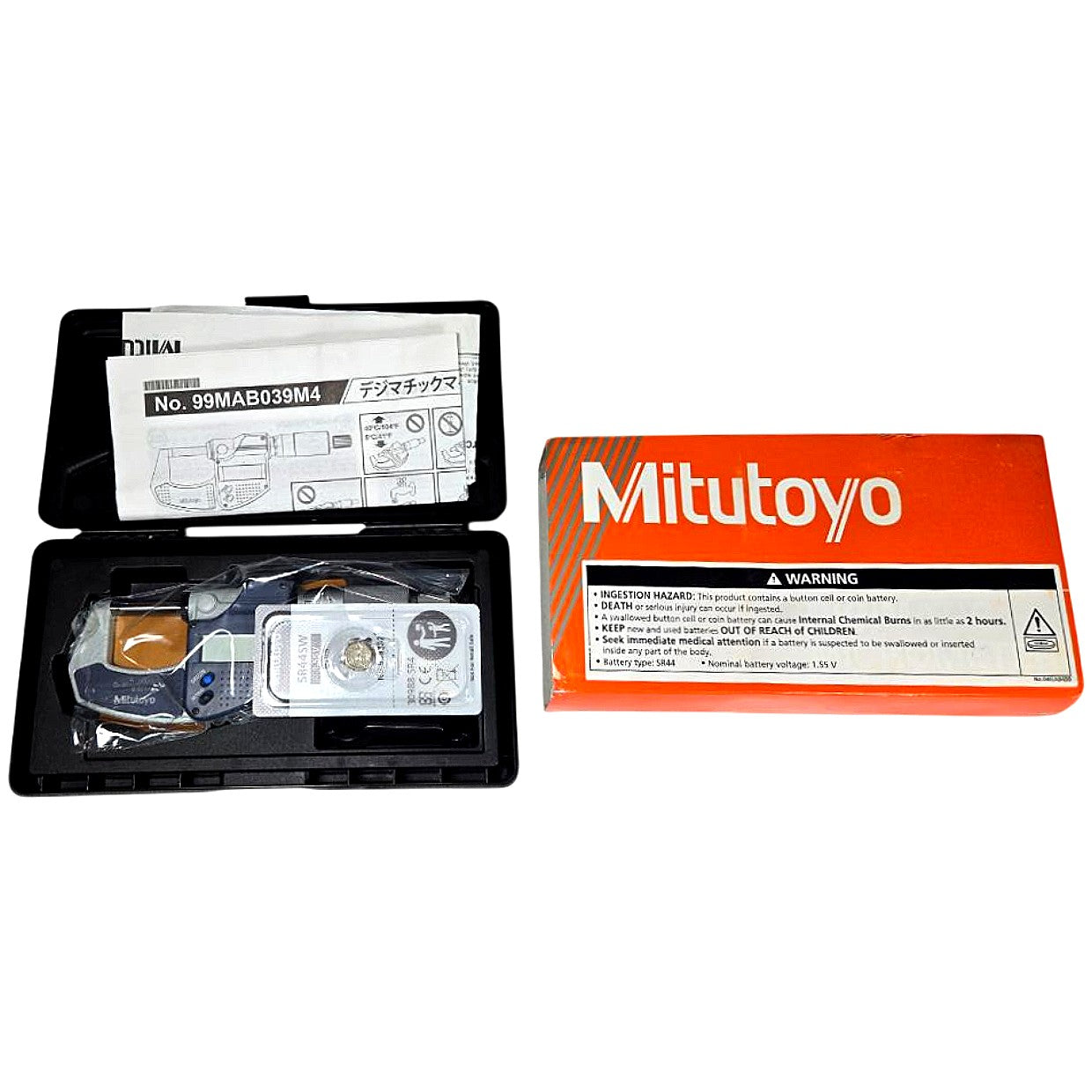

The Mitutoyo 293-831-32 is a new MDC-1" SX series digital outside micrometer with a measuring range of 0–1 inch (0–25.4 mm), featuring an LCD digital readout with selectable inch/mm display, 0.00005 in (0.001 mm) resolution, and a certified accuracy of ±0.0001 in (±0.002 mm). The spindle and anvil faces are tipped with solid carbide for extended wear life, and the thimble incorporates a ratchet stop to ensure consistent, repeatable measuring force across all users. The frame is constructed with a thermally insulating coating on the grip area to minimize heat transfer from the operator's hand, preserving measurement stability in production environments. It includes an ORIGIN (zero) button and IN/MM conversion button on the front face, ships with an SR44SW 1.55 V battery, a molded plastic storage case, and a calibration certificate (as indicated by the -CAL suffix on the box label 293-831-32-CAL). Made in Japan, the 293-831-32 belongs to Mitutoyo's Digimatic MDC-SX series, which is recognized for combining analog thimble verification with digital readout redundancy.
Product Specifications
| Brand | Mitutoyo |
| MPN | 293-831-32 |
| Model Name | MDC-1" SX |
| Type | Digital Outside Micrometer |
| Series | Digimatic MDC-SX (Series 293) |
| Measuring Range (in) | 0-1 in |
| Measuring Range (mm) | 0-25.4 mm |
| Resolution (in) | 0.00005 in |
| Resolution (mm) | 0.001 mm |
| Accuracy (in) | ±0.0001 in |
| Accuracy (mm) | ±0.002 mm |
| Anvil/Spindle Face Material | Solid Carbide |
| Thimble Type | Ratchet Stop |
| Display Type | LCD Digital Readout |
| Unit Switching | inch / mm selectable |
| Battery Type | SR44 (1.55V) |
| Calibration Certificate | Yes (included, -CAL variant) |
| Country of Origin | Japan |

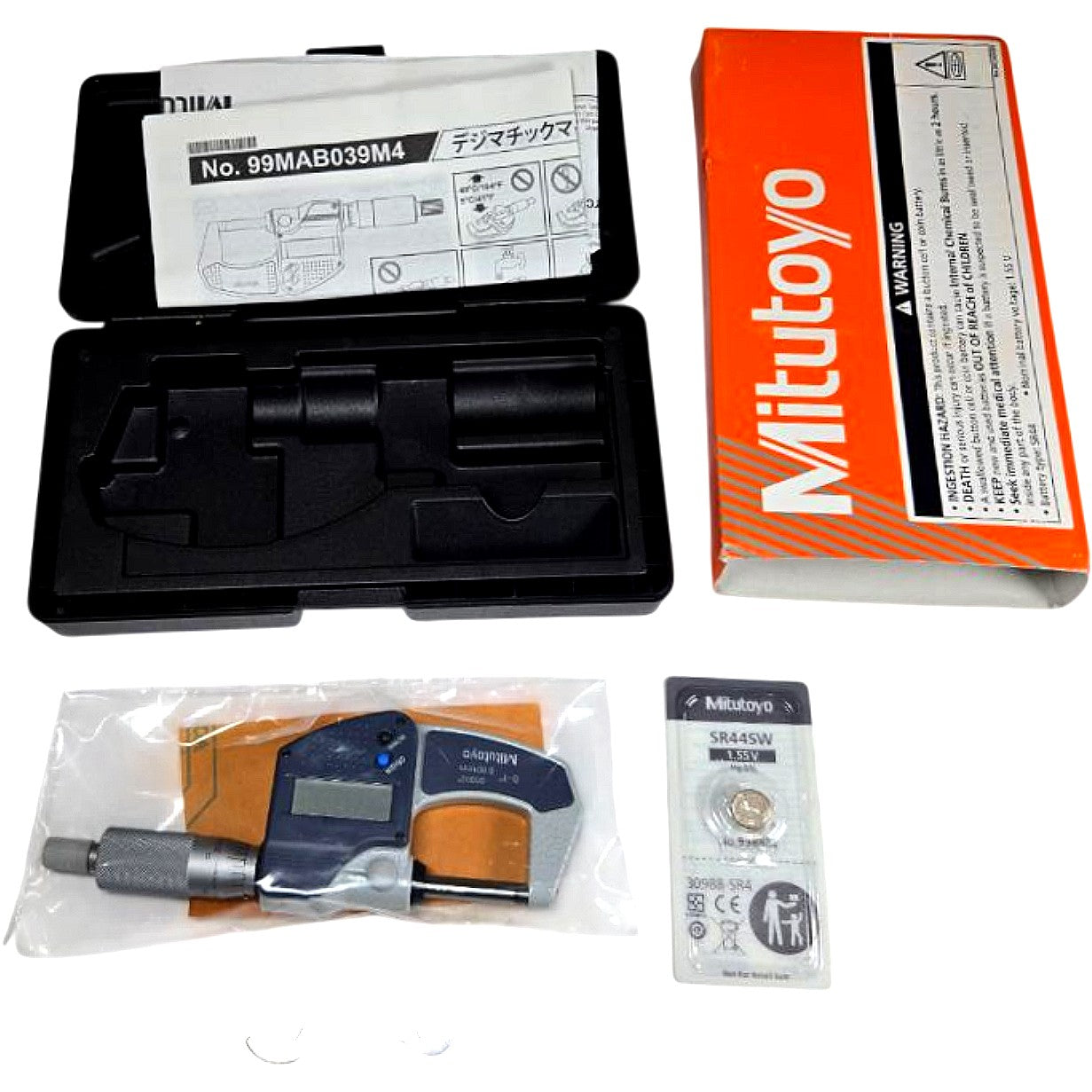

| Includes | Micrometer, case, SR44SW battery, calibration cert |
| Condition | New |
