Mitutoyo 293-832-32 MDC-1"SXF 0-1" 0.00005" Digital Outside Micrometer
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

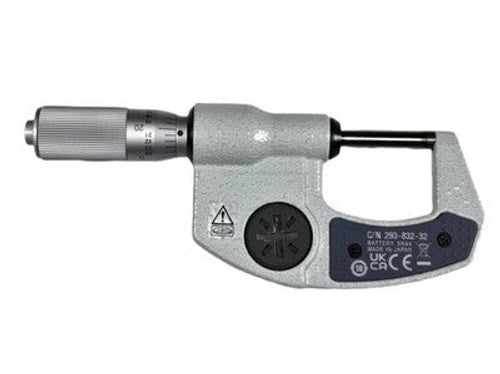

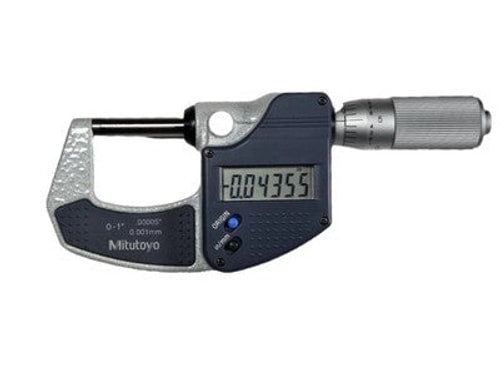

The Mitutoyo 293-832-32 is a new MDC-1"SXF Digimatic outside micrometer with a 0–1 inch (0–25.4 mm) measuring range, manufactured in Japan. It features a 0.00005 inch / 0.001 mm resolution LCD digital readout with ORIGIN and in/mm toggle buttons, and employs Mitutoyo's ABS (absolute) electromagnetic induction encoder, which eliminates the need to re-zero after power loss. The frame is constructed from die-cast zinc alloy with a baked-enamel finish for rigidity and thermal stability, and includes a friction thimble (ratchet-stop) for consistent measuring force. The unit ships complete in a fitted plastic case with a certificate of inspection, SR44 battery, and reference standard; it carries CE and UKCA marks confirming conformance to applicable metrology standards.
Product Specifications
| Brand | Mitutoyo |
| Model Number | MDC-1"SXF |
| Catalog / Part Number | 293-832-32 |
| Measuring Range (inch) | 0–1 in |
| Measuring Range (metric) | 0–25.4 mm |
| Resolution (inch) | 0.00005 in |
| Resolution (metric) | 0.001 mm |
| Display Type | LCD digital readout |
| Encoder Type | ABS (absolute) electromagnetic induction |
| Unit Switching | inch / mm selectable via in/mm button |
| Origin / Zero Setting | ORIGIN button (absolute zero reset) |
| Battery Type | SR44 (1.55 V silver oxide) |
| Country of Origin | Japan |
| Certifications | CE, UKCA |
| Thimble Type | Friction / ratchet-stop thimble |
| Operating Temperature Range | 5–40 °C (41–104 °F) |

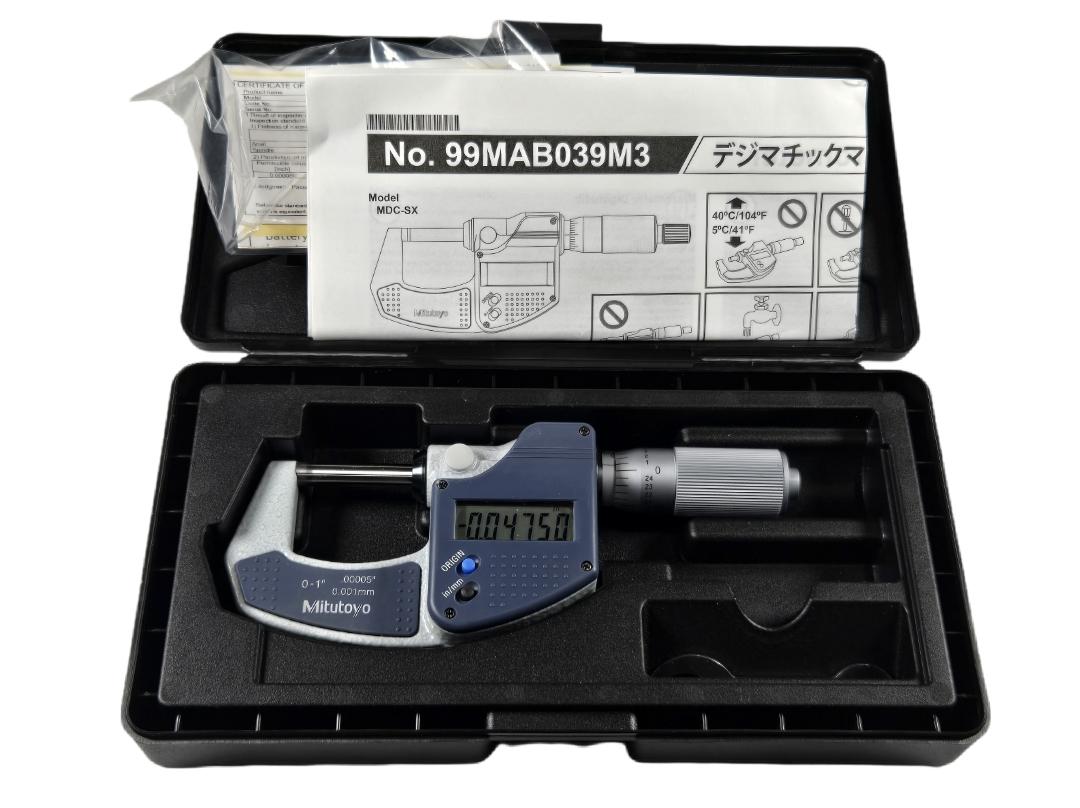

| Includes | Fitted plastic case, certificate of inspection, SR44 battery, reference standard |
| Condition | New |
