Mitutoyo 343-350-32 0-1in 0.00005in Digital Caliper-Jaw Outside Micrometer
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

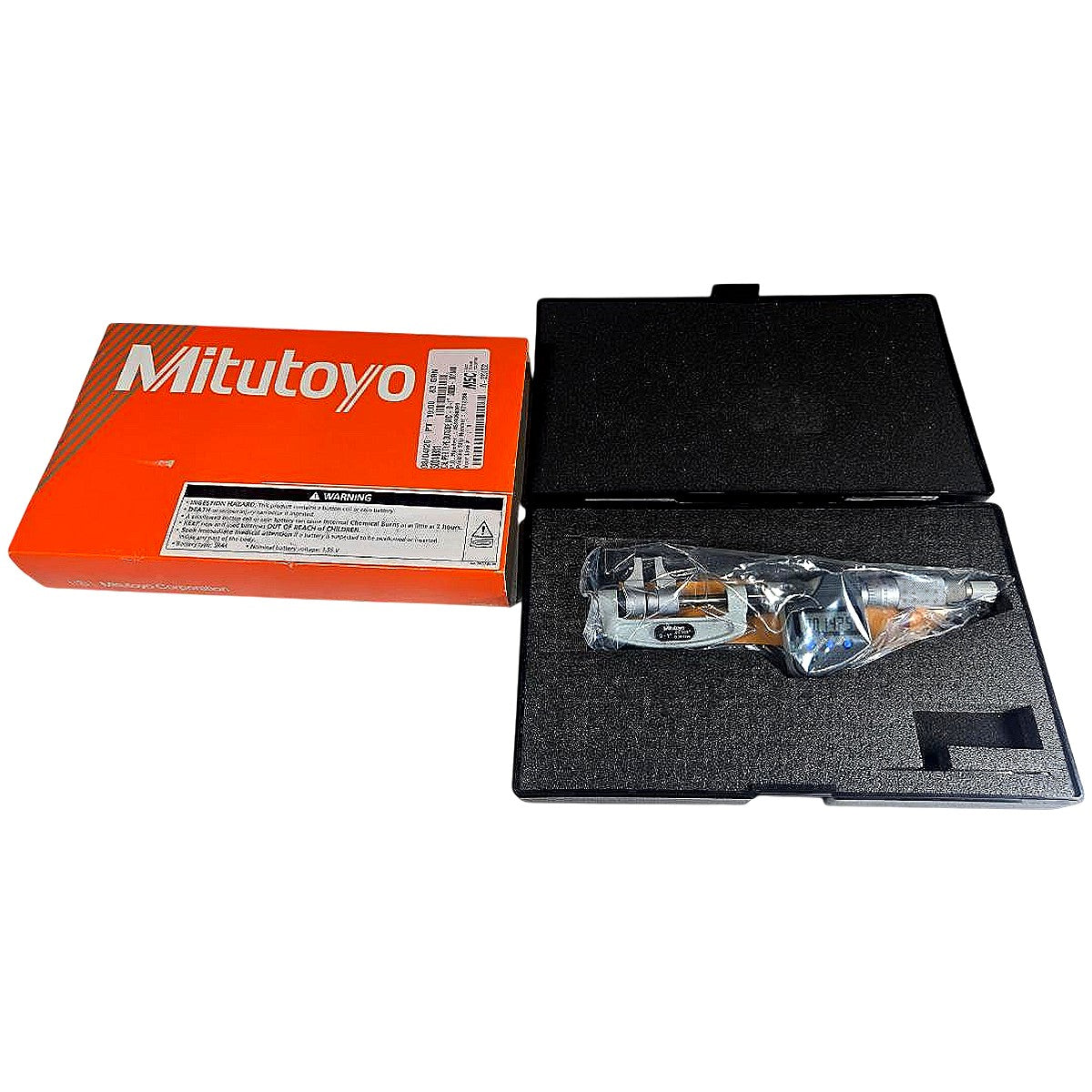

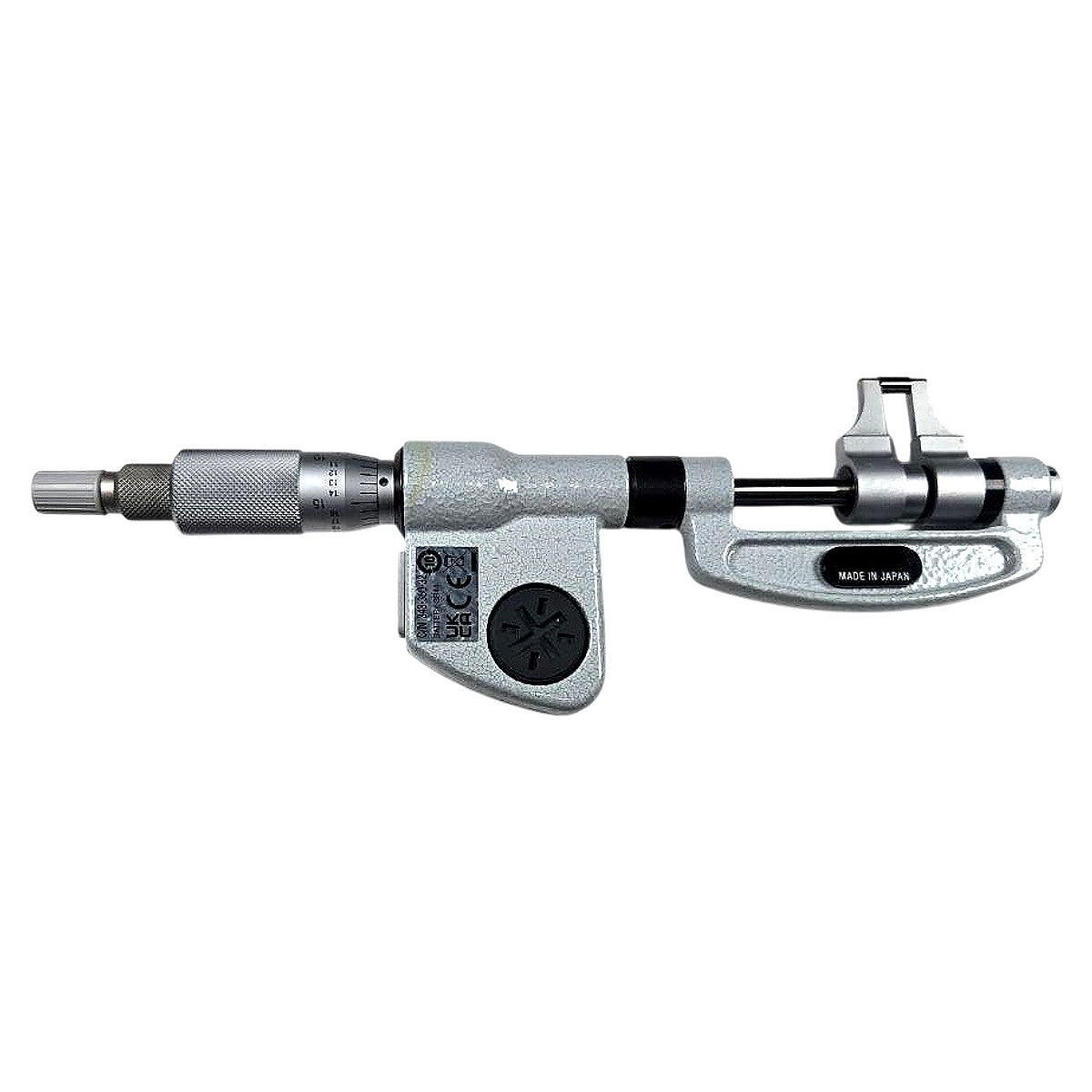

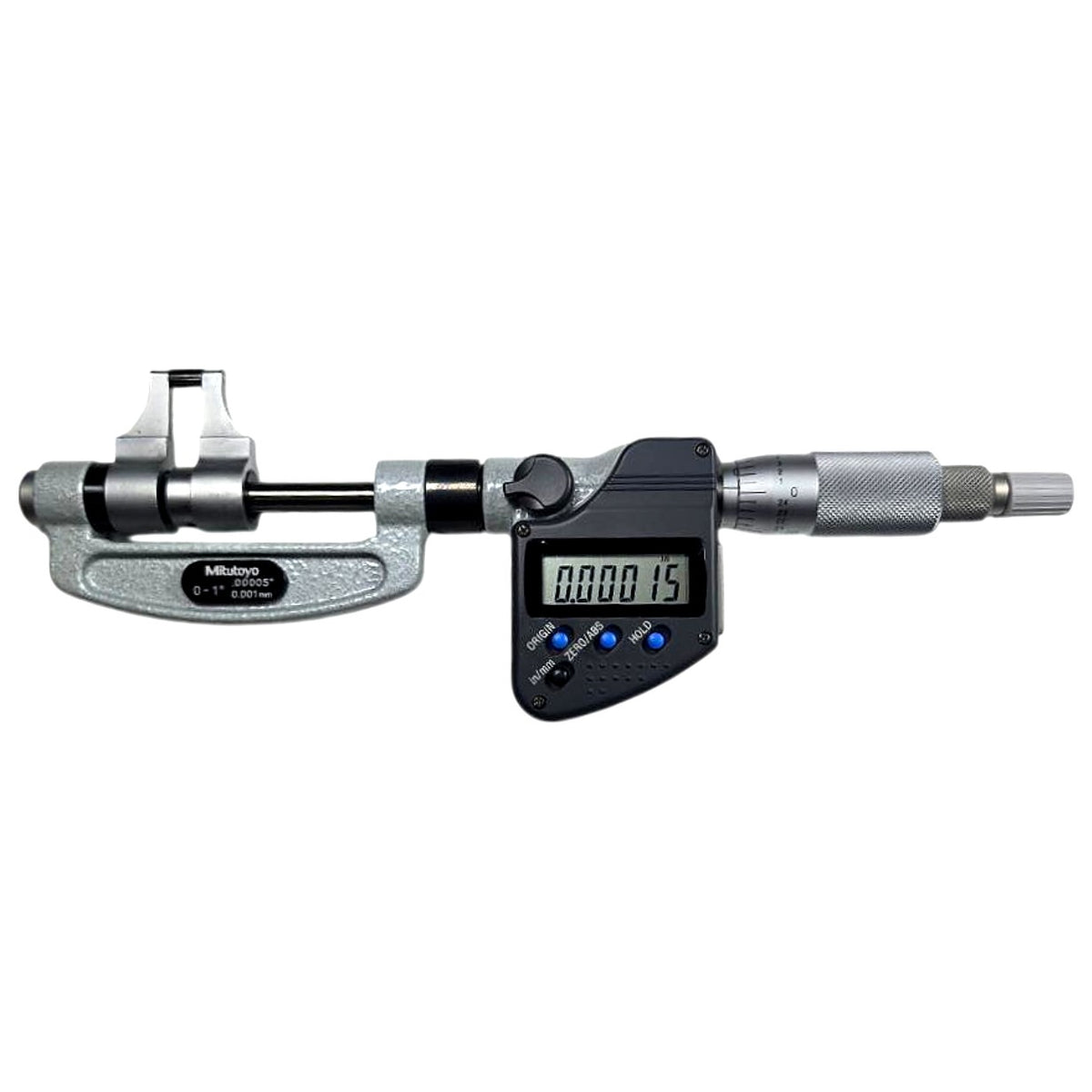

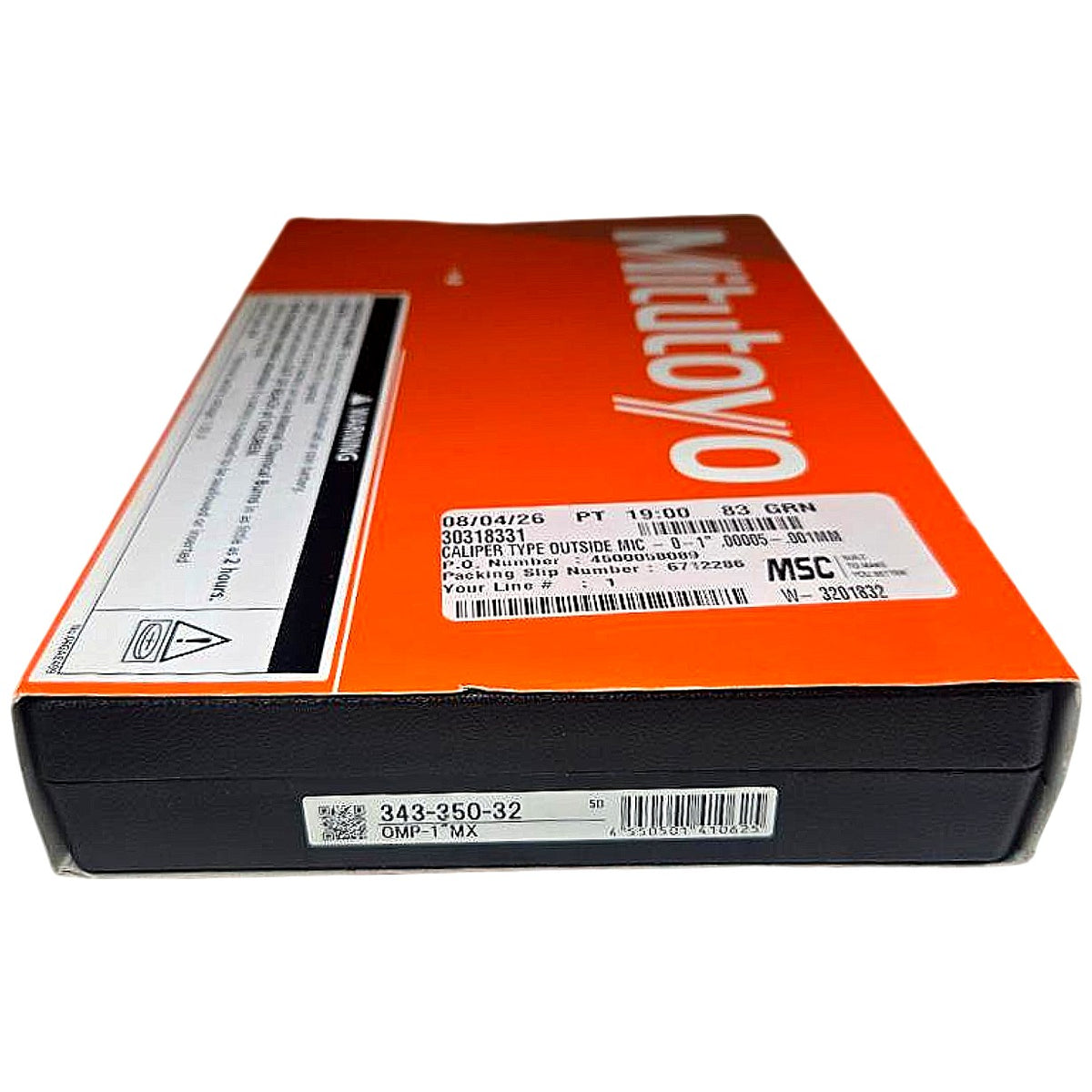

The Mitutoyo 343-350-32 (series OMP-1 MX) is a 0–1 in range digital caliper-jaw outside micrometer featuring caliper-style flat anvil and spindle jaws that allow measurement of external features not accessible to standard flat-faced micrometers, such as lands, shoulders, and spline roots. The LCD display resolves to 0.00005 in / 0.001 mm with inch/mm conversion, ORIGIN, ZERO/ABS, and HOLD functions; the thimble incorporates a ratchet stop for consistent measuring force. The frame is cast iron made in Japan with a carbide-tipped measuring face pair, and the unit ships with its original Mitutoyo plastic storage case and orange retail box. This unit is in used–excellent condition, showing minimal wear with clean jaws and a fully functional display reading 0.00015 in at rest, consistent with a well-maintained instrument.
Product Specifications
| Brand | Mitutoyo |
| Model / MPN | 343-350-32 |
| Series | OMP-1 MX |
| Type | Digital Caliper-Jaw Outside Micrometer |
| Measuring Range | 0-1 in (0-25.4 mm) |
| Resolution | 0.00005 in / 0.001 mm |
| Accuracy | ±0.00010 in (±0.0025 mm) |
| Display | LCD digital |
| Units | Inch / mm switchable |
| Thimble Type | Ratchet stop |
| Jaw / Anvil Style | Caliper-jaw (flat parallel jaws) |
| Measuring Face Material | Carbide-tipped |
| Functions | ORIGIN, ZERO/ABS, HOLD, in/mm |
| Battery Type | SR44 (1.55 V) |
| Country of Origin | Japan |
| Condition | Used – excellent |
| Includes | Micrometer, plastic case, original retail box |
