Mitutoyo 343-350-32 OMP-1"MX 0-1in 0.00005in Digital Caliper-Type Micrometer
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

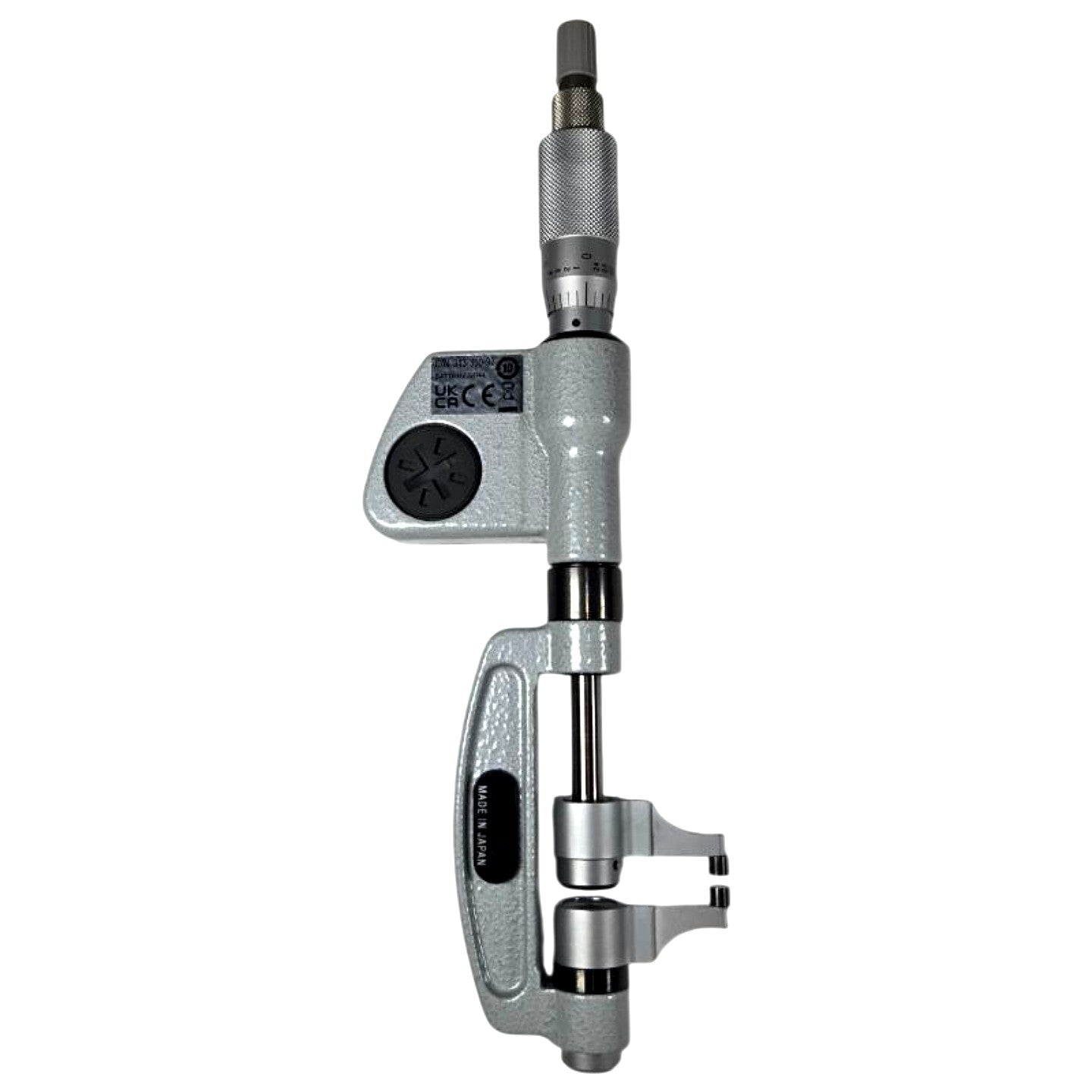

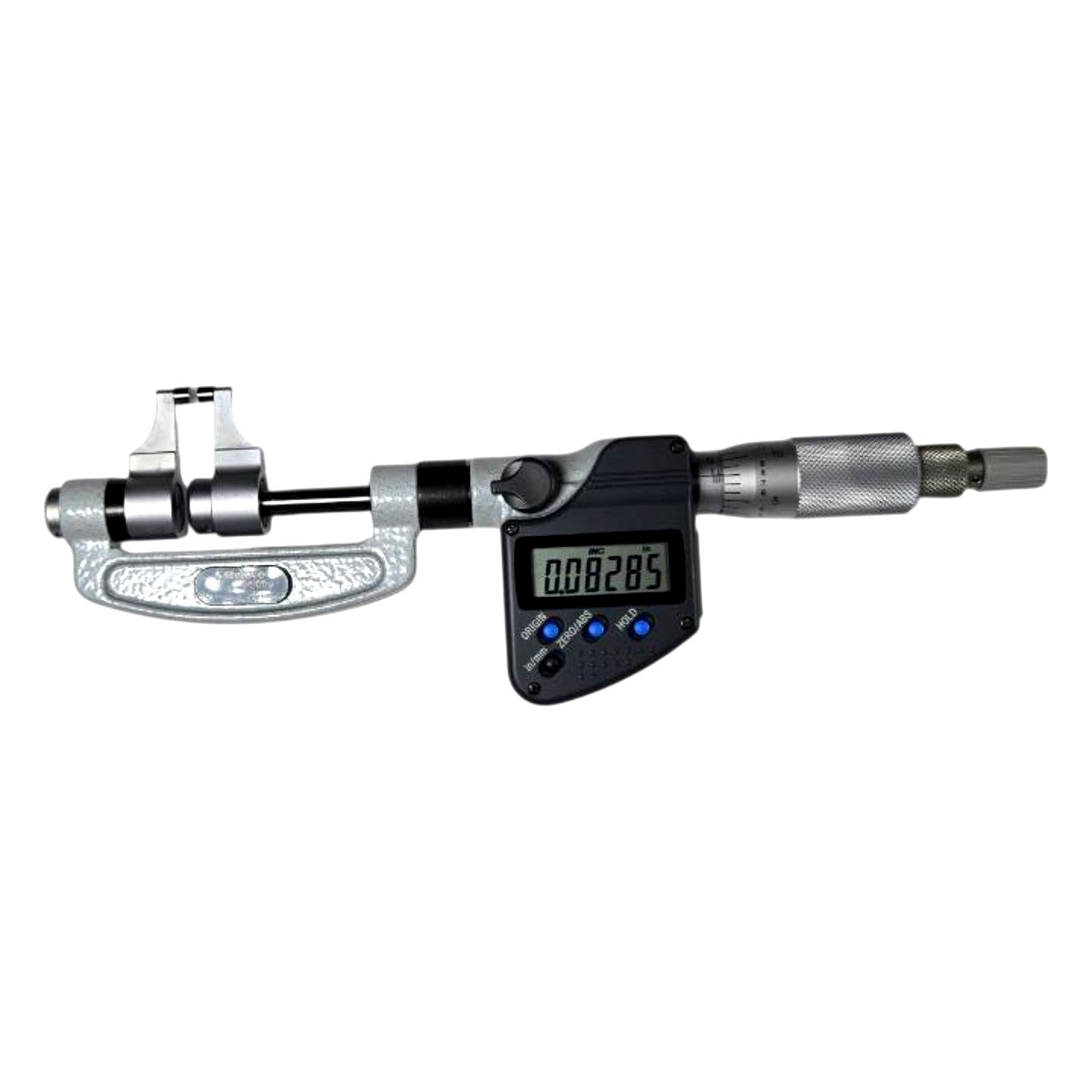

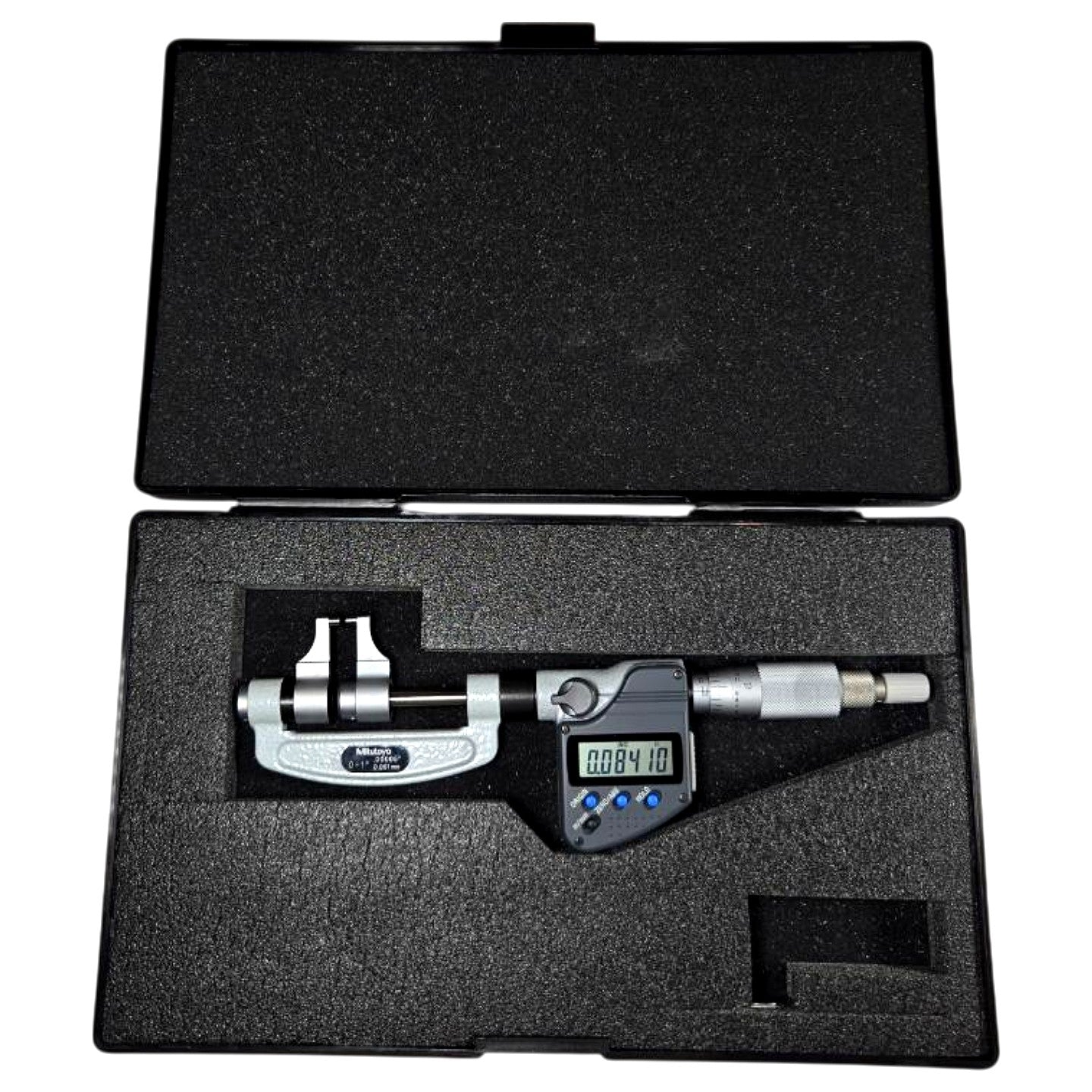

The Mitutoyo 343-350-32 is a new, Made-in-Japan digital caliper-type (jaw) outside micrometer with a 0–1 inch (0–25 mm) measuring range and a resolution of 0.00005 in / 0.001 mm, combining the jaw-style measuring faces of a caliper with the precision spindle mechanism of a micrometer for measuring grooves, shoulders, and recessed features inaccessible to standard anvil-type micrometers. The instrument features Mitutoyo's MX (SPC-output capable) digital readout with Origin, Zero/ABS, and Hold functions, inch/mm switchable display, and a friction thimble for consistent measuring force. The hardened steel jaw faces allow measurement of both internal-facing and external-facing features depending on jaw orientation, and the unit ships in a fitted case with a standard 1-inch setting standard. Accuracy is ±0.001 mm (±0.00004 in) per Mitutoyo published specifications for this series.
Product Specifications
| Brand | Mitutoyo |
| Model Number | 343-350-32 |
| Series | OMP-1"MX |
| Instrument Type | Digital Caliper-Type (Jaw) Outside Micrometer |
| Measuring Range (in) | 0–1 in |
| Measuring Range (mm) | 0–25 mm |
| Resolution (in) | 0.00005 in |
| Resolution (mm) | 0.001 mm |
| Accuracy | ±0.001 mm (±0.00004 in) |
| Display Type | LCD Digital |
| Unit Switchable | inch / mm |
| SPC Output | Yes (MX series) |
| Functions | Origin, Zero/ABS, Hold, inch/mm |
| Country of Origin | Japan |
| Includes | Fitted case, 1 in setting standard |
| Condition | New |
