Mitutoyo 395-363-32 0-1 in 0.00005 in Digital Outside Micrometer
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

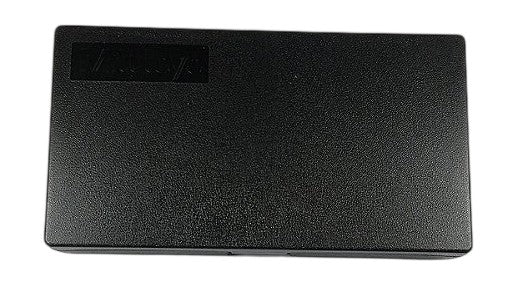

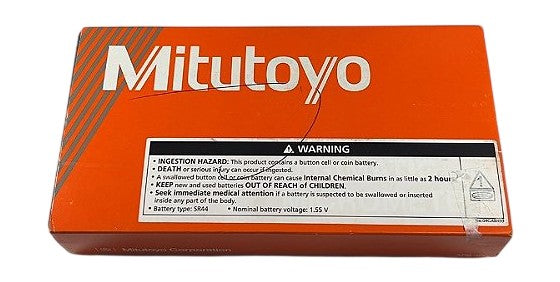

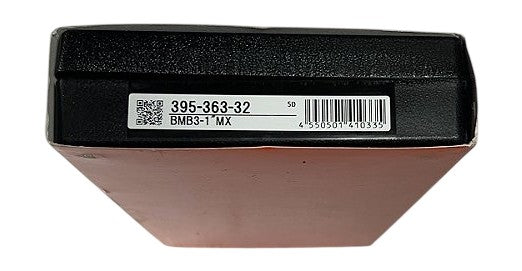

The Mitutoyo 395-363-32 is a new digital outside micrometer from Mitutoyo's QuantuMike series (Series 395), featuring a fast-feed spindle mechanism that advances 2mm per thimble revolution for significantly faster measurement setup compared to standard micrometers. The range is 0–1 inch (0–25.4 mm) with a resolution of 0.00005 in / 0.001 mm and an accuracy of ±0.00010 in, making it suitable for precision dimensional inspection of shafts, pins, and machined components. The instrument uses an SR44 silver oxide battery (1.55 V nominal, as noted on the box) and ships with the standard Mitutoyo plastic case and instruction sheets, as confirmed in the photos. The BMB3-1 MX designation visible on the box label indicates the Bluetooth data output variant, enabling direct transmission of measurement data to SPC software or compatible Mitutoyo data collection systems via the USB Input Tool or wireless interface.
Product Specifications
| Brand | Mitutoyo |
| MPN | 395-363-32 |
| Series | QuantuMike Series 395 |
| Measurement Type | Outside / External |
| Display Type | Digital LCD |
| Measuring Range | 0-1 in (0-25.4 mm) |
| Resolution | 0.00005 in / 0.001 mm |
| Accuracy | ±0.00010 in (±0.002 mm) |
| Spindle Advance per Revolution | 2 mm |
| Data Output | Bluetooth (BMB3-1 MX) |
| Battery Type | SR44 |
| Battery Voltage | 1.55 V |
| Graduation | 0.00005 in / 0.001 mm |
| Condition | New |
| Includes | Plastic case, instruction sheets, battery |
