Mitutoyo 500-164-30 8in/200mm 0.0005in/0.01mm Digimatic Caliper
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

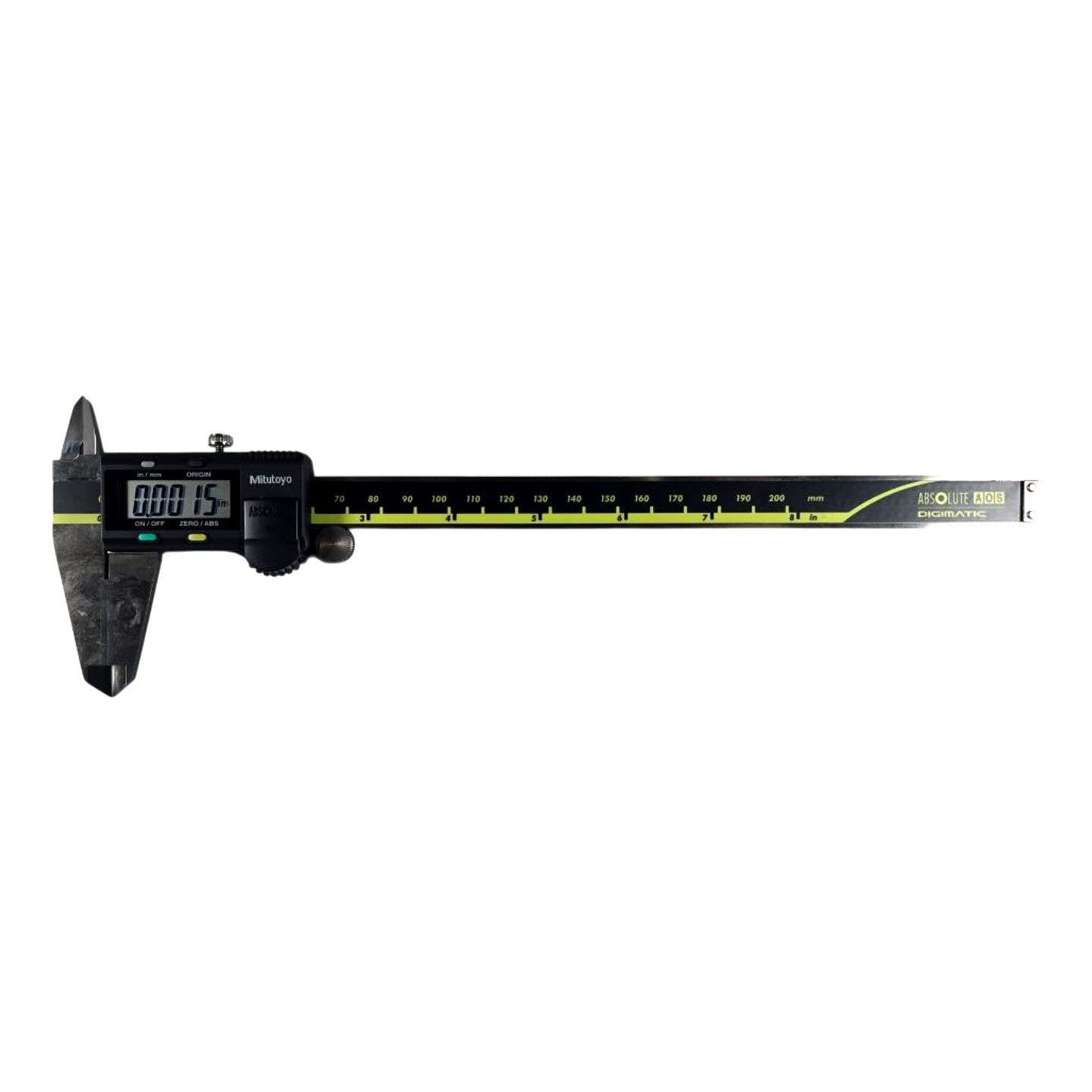

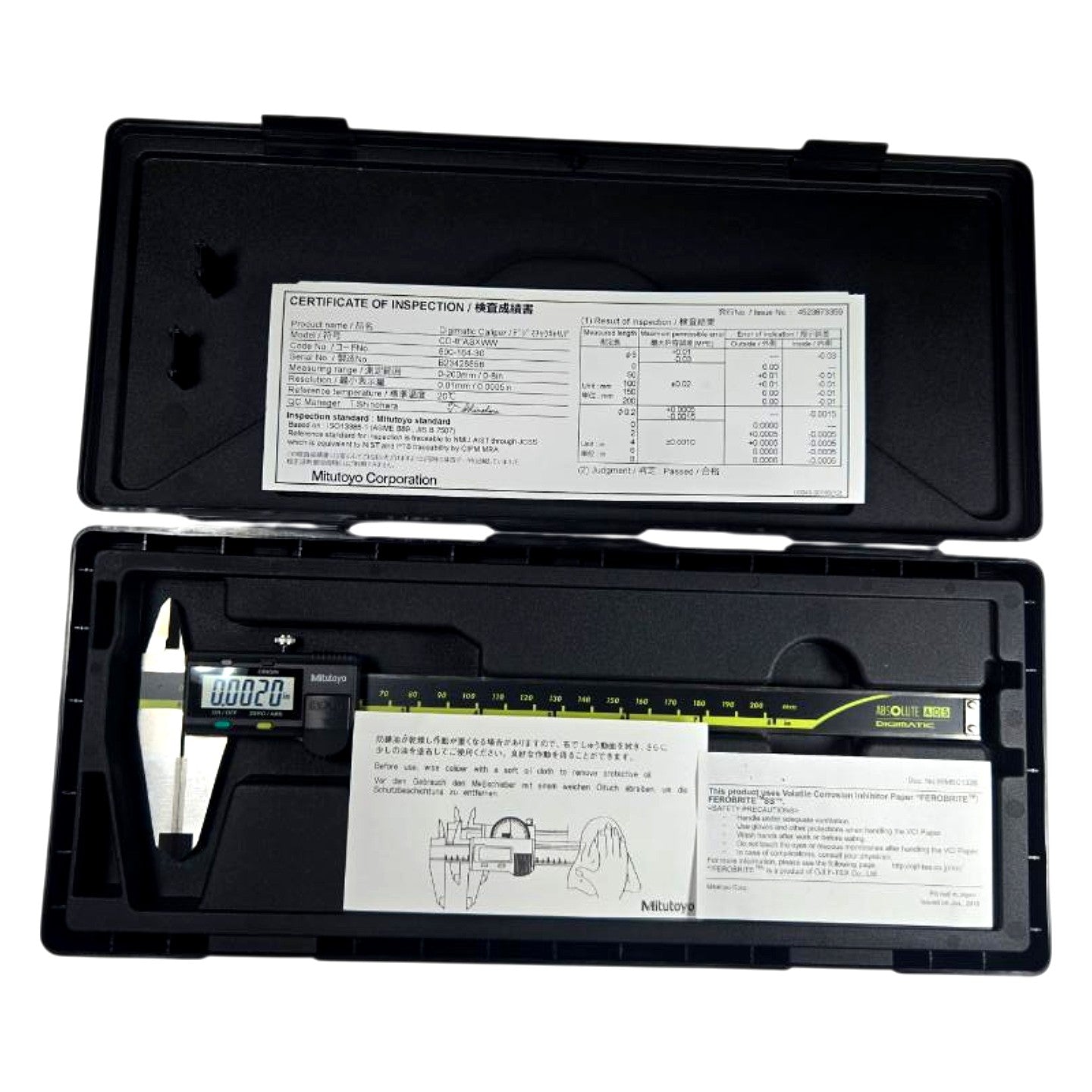

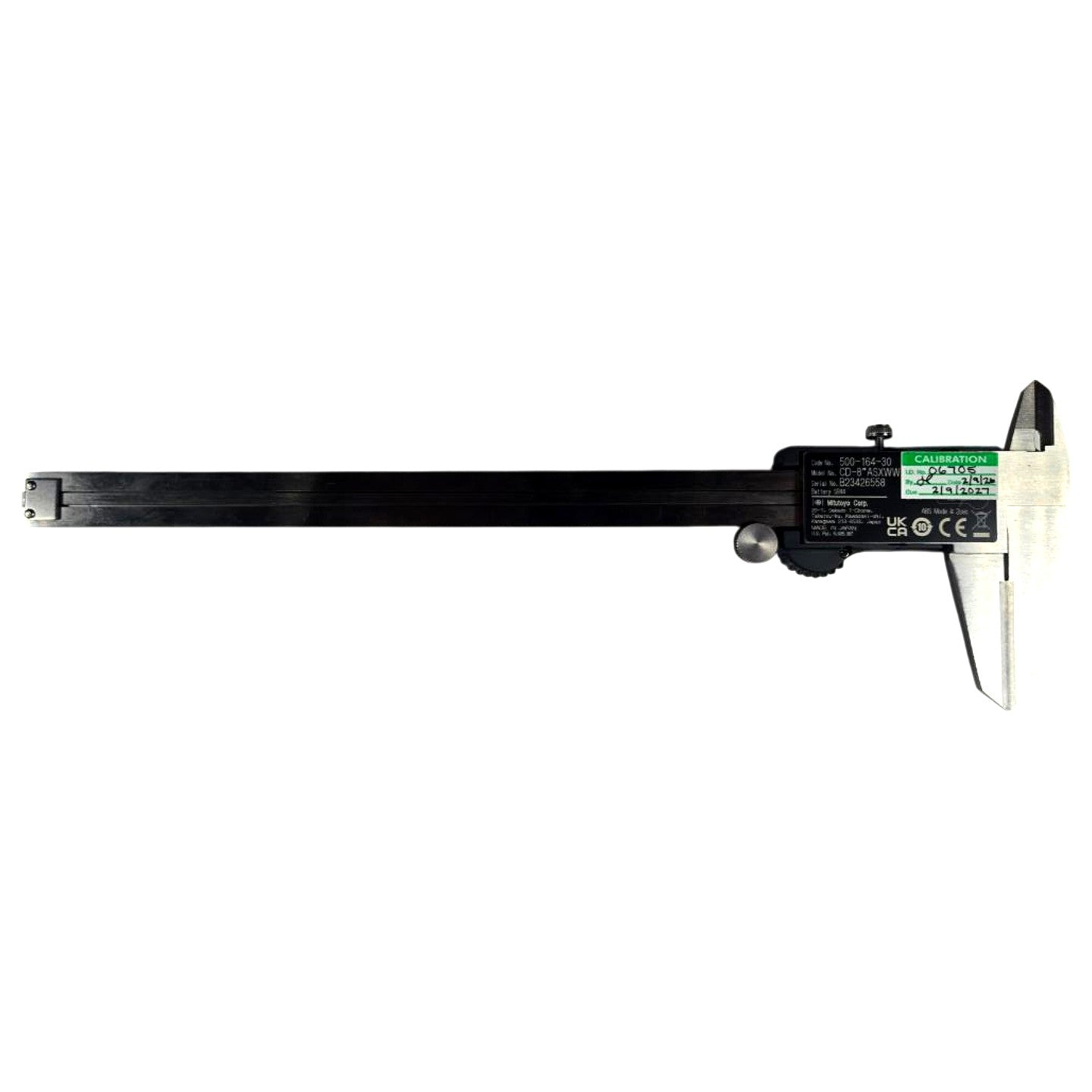

The Mitutoyo 500-164-30 is a new, Japan-made Absolute AOS (Advanced Onsite Sensor) Digimatic digital caliper with a measuring range of 0–8 in / 0–200 mm and a resolution of 0.0005 in / 0.01 mm, verified on the included Mitutoyo Certificate of Inspection traceable to NIST/AIST via JCSS. The AOS electromagnetic induction linear encoder retains absolute position on power-up — no need to return to zero after battery change or power loss — and the large LCD displays readings in inch or millimeter with instant in/mm conversion via front-panel button. Construction is carbon fiber composite slider on a hardened stainless steel beam, with a thumb roller for smooth controlled jaw movement and a locking screw for measurement hold; the caliper provides outside, inside, depth, and step measurement capability. Accuracy is ±0.02 mm / ±0.001 in per the factory inspection certificate visible in the photos, battery is SR44 (3V), and the unit ships in the standard Mitutoyo molded plastic case with instruction sheet and FEROBRITE VCI corrosion inhibitor paper.
Product Specifications
| Brand | Mitutoyo |
| Model No. (MPN) | 500-164-30 |
| Series/Model Name | CD-8" ASXWW |
| Caliper Type | Digital (Digimatic AOS) |
| Measuring Range (in) | 0–8 in |
| Measuring Range (mm) | 0–200 mm |
| Resolution (in) | 0.0005 in |
| Resolution (mm) | 0.01 mm |
| Accuracy | ±0.02 mm / ±0.001 in |
| Encoder Technology | AOS Electromagnetic Induction (Absolute) |
| Display | LCD, inch/mm switchable |
| Beam Material | Hardened stainless steel |
| Slider Material | Carbon fiber composite |
| Measurement Functions | Outside, inside, depth, step |
| Battery | SR44 (3V) |
| Reference Temperature | 20°C |
| Calibration | Mitutoyo cert included, NIST/AIST traceable |
| Country of Origin | Japan |
| Condition | New |
| Includes | Molded case, inspection cert, instruction sheet |
