Mitutoyo 500-171-32 CD-6"AXU 0-150mm/6in 0.01mm Digimatic Caliper
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

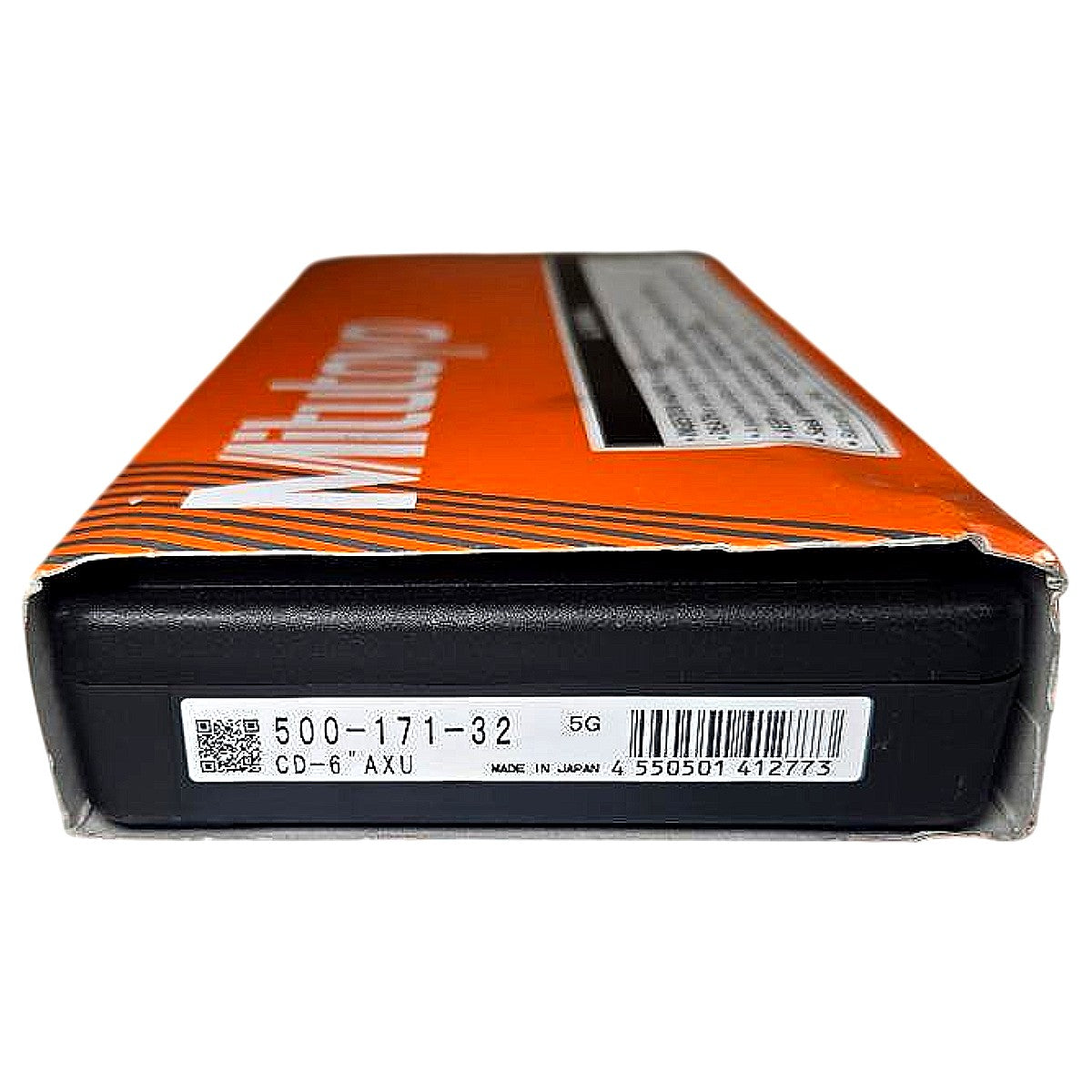

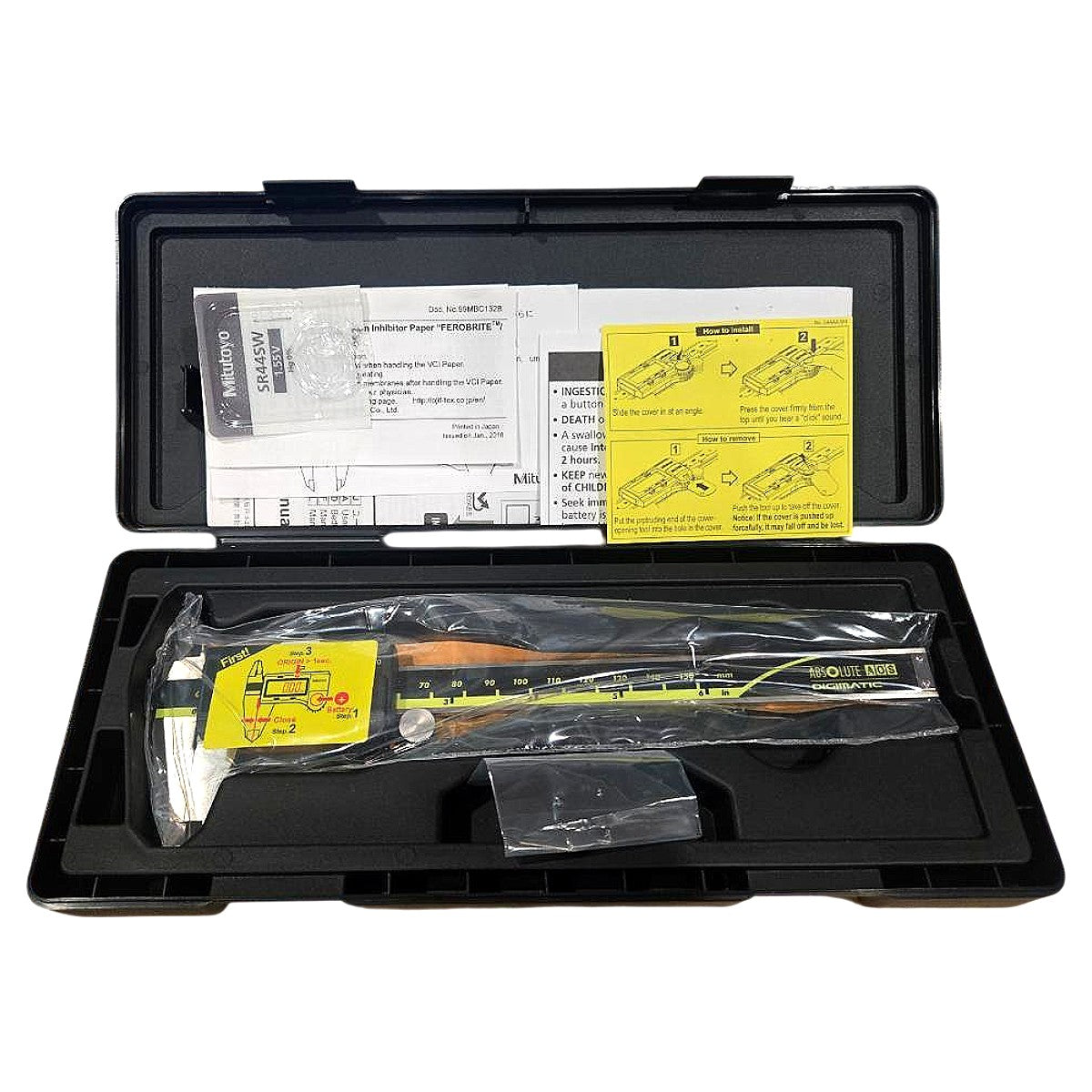

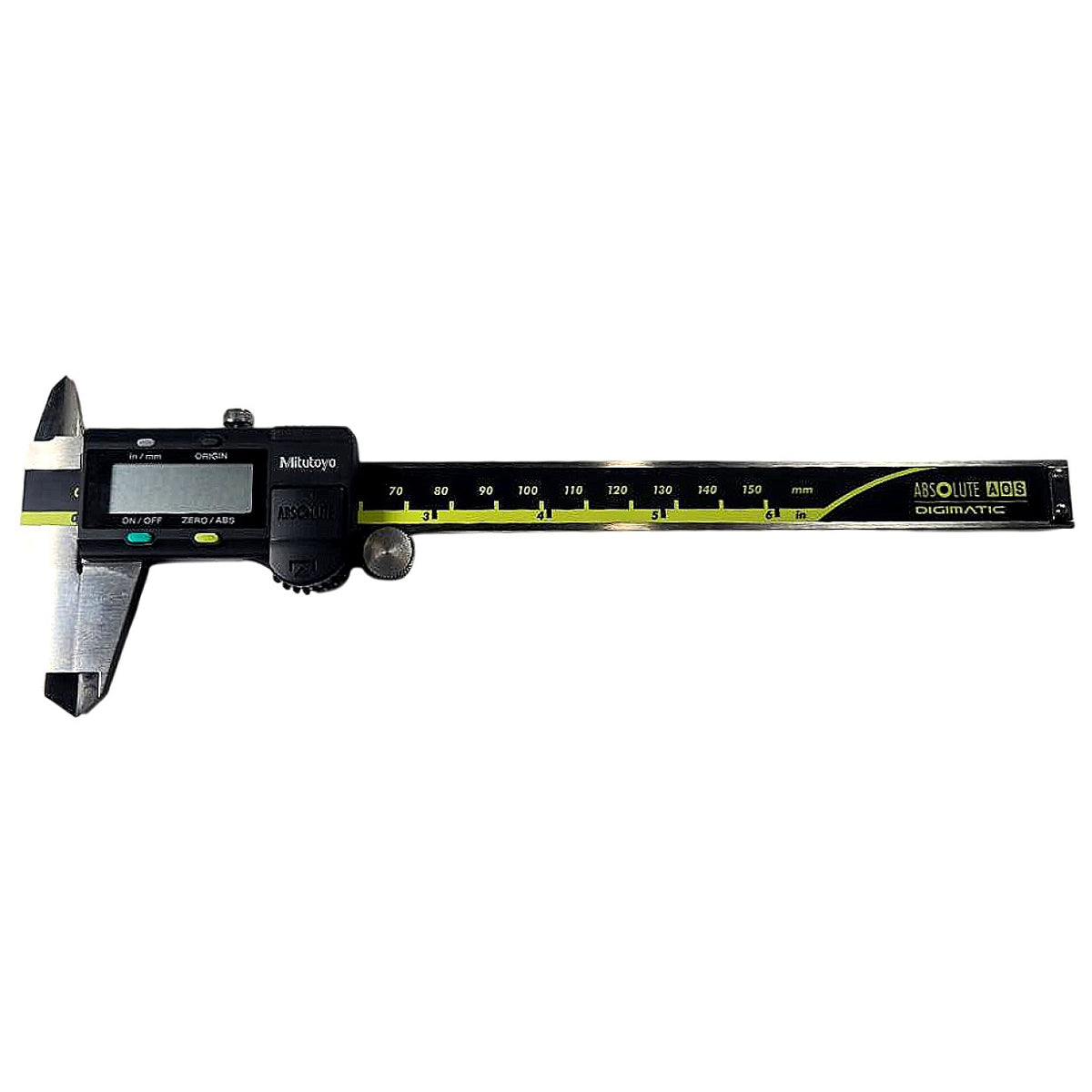

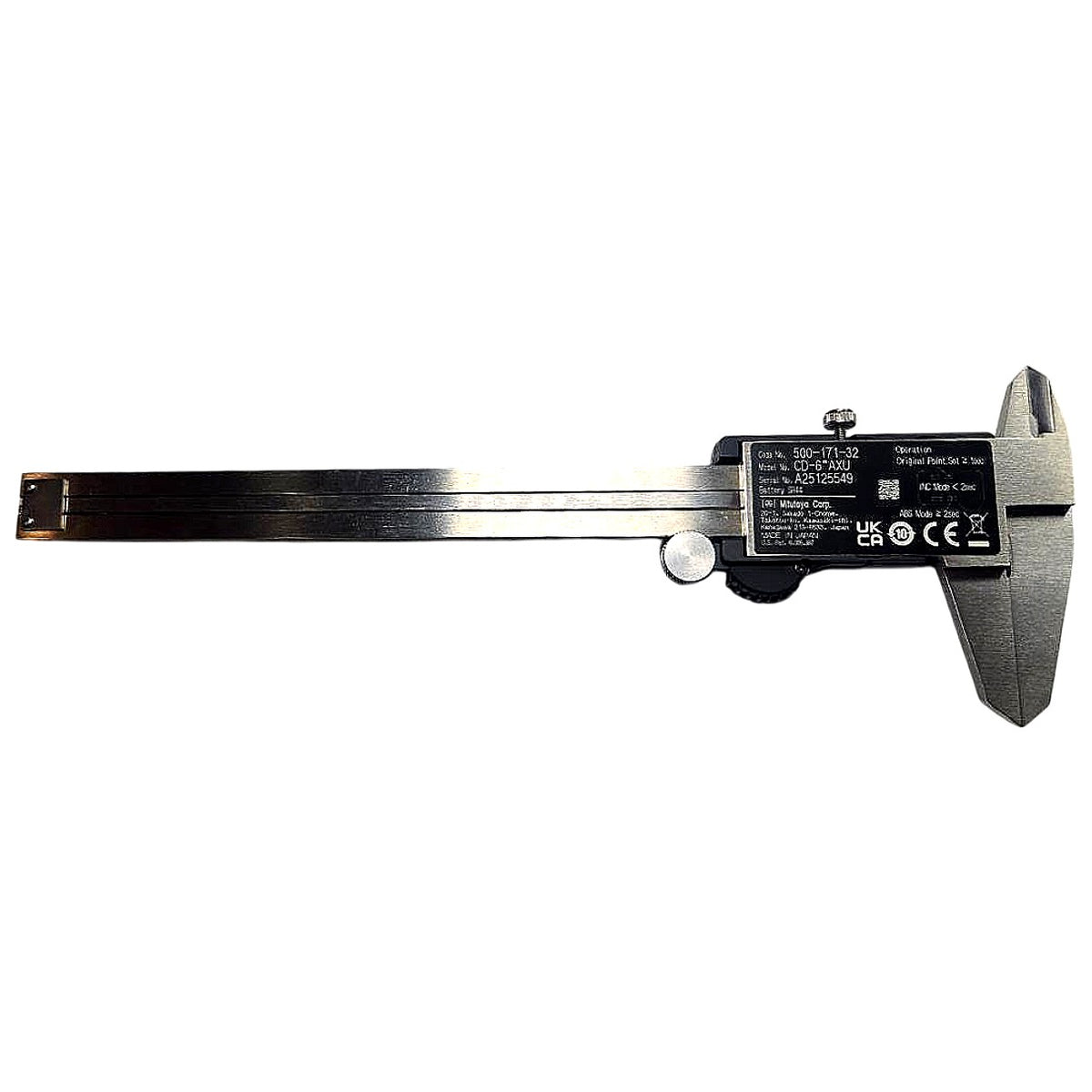

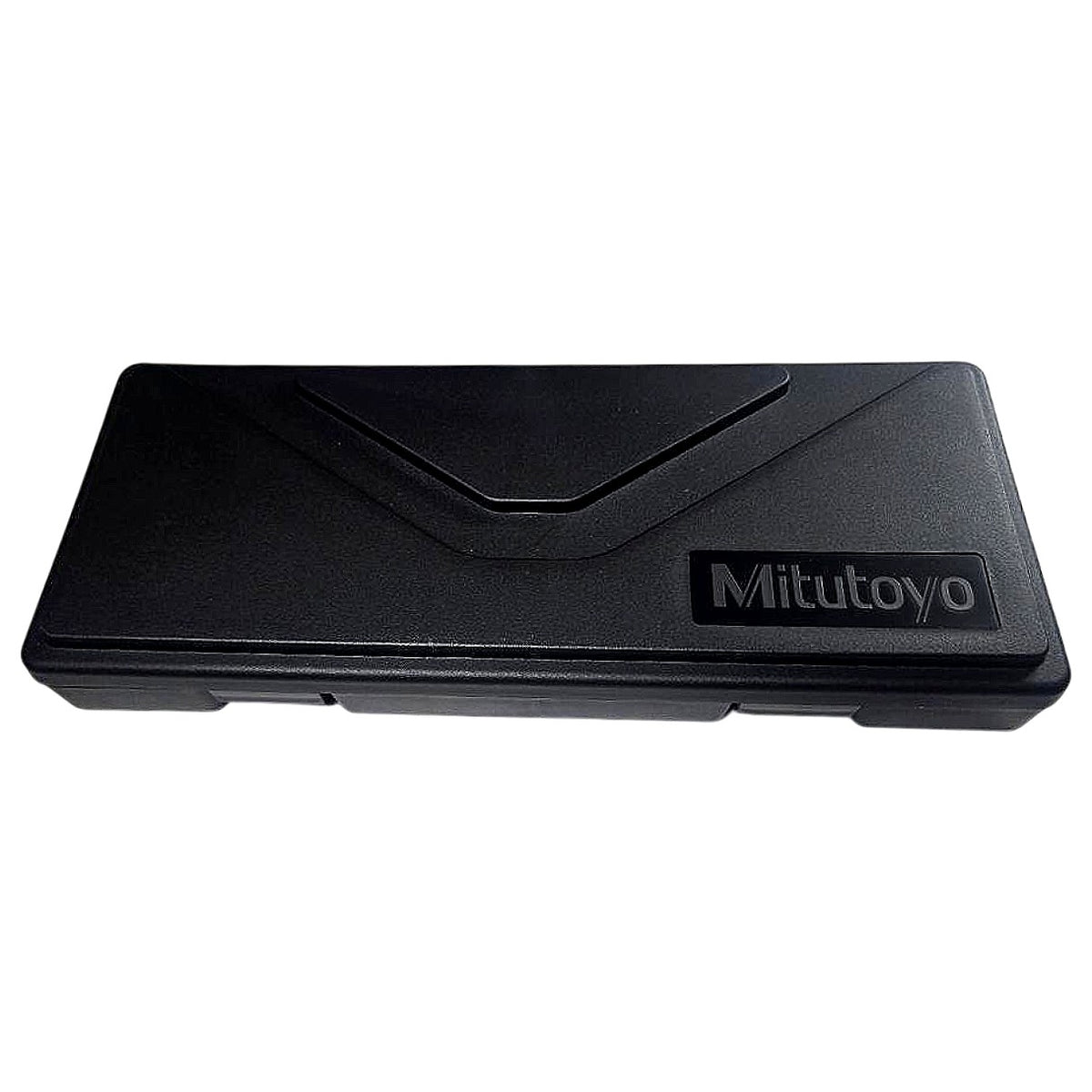

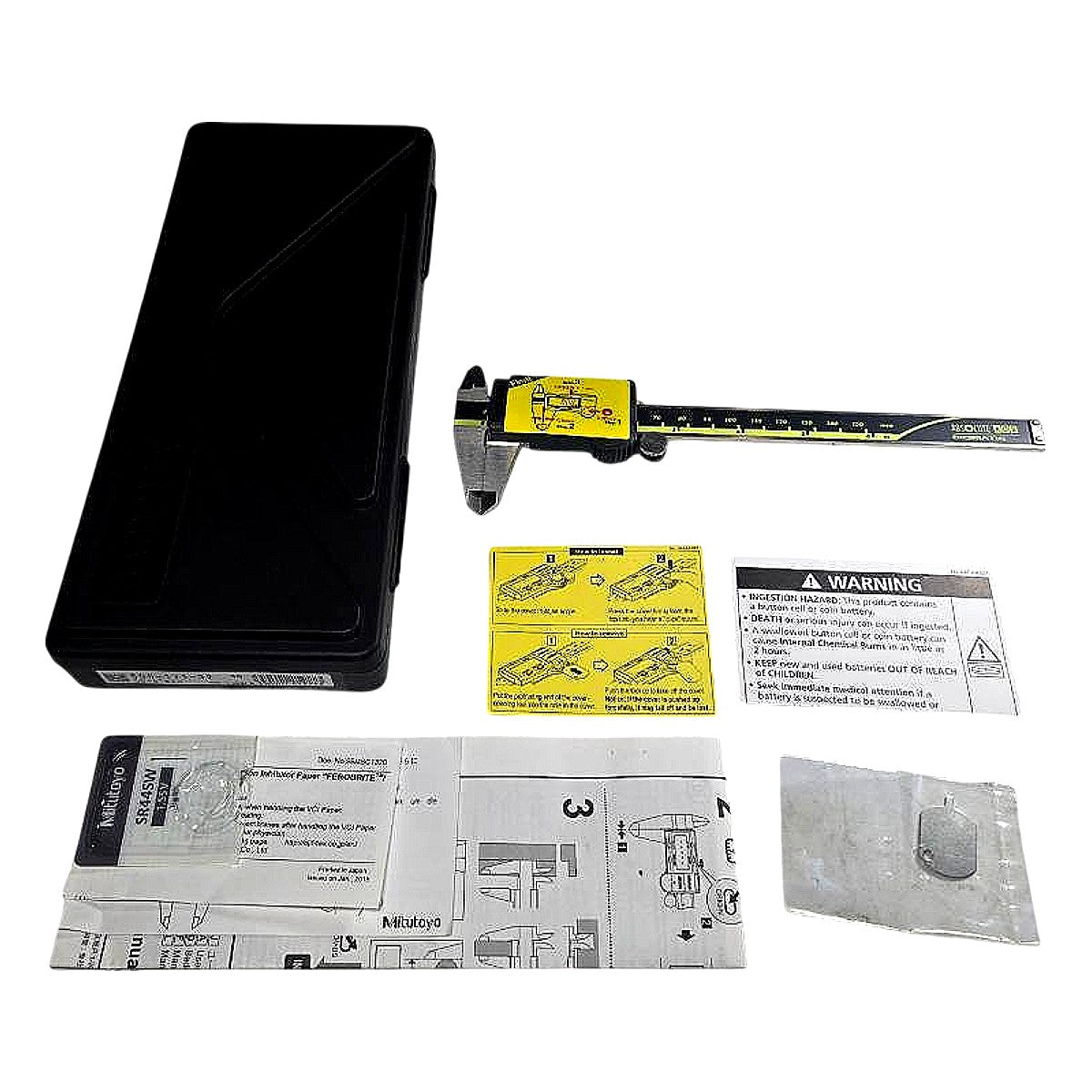

The Mitutoyo 500-171-32 is a new, 6-inch (150 mm) Absolute AOS (Advanced Onsite Sensor) Digimatic digital caliper from Mitutoyo's CD-AXU series, made in Japan from stainless steel. It features Mitutoyo's ABSOLUTE linear encoder system, which retains the origin point at power-off so the tool always displays the correct position on power-up with no zeroing required after battery change. The caliper measures outside diameter, inside diameter, depth, and step dimensions with a resolution of 0.01 mm / 0.0005 in and an accuracy of ±0.02 mm / ±0.001 in; the display switches between inch and millimeter modes via a front-panel button. Data output (Digimatic SPC output port) allows direct interface to Mitutoyo's Digimatic data processors, SPC units, and compatible data collection systems; the unit is powered by a single SR44SW (1.55 V) silver oxide battery included in the kit, which ships with a fitted plastic storage case, VCI anti-corrosion paper, and battery installation instruction sheet.
Product Specifications
| Brand | Mitutoyo |
| Part Number (Case No.) | 500-171-32 |
| Model No. | CD-6" AXU |
| Series | Absolute AOS Digimatic |
| Measurement Range | 0-150 mm / 0-6 in |
| Resolution | 0.01 mm / 0.0005 in |
| Accuracy | ±0.02 mm / ±0.001 in |
| Measurement Types | OD, ID, Depth, Step |
| Display | LCD digital readout, in/mm switchable |
| Encoder Type | ABSOLUTE AOS (capacitive linear encoder) |
| Data Output | Digimatic SPC output port |
| Jaw & Beam Material | Stainless steel |
| Battery | SR44SW (1.55 V) silver oxide, qty 1 |
| Country of Origin | Japan |
| Includes | Caliper, plastic case, SR44SW battery, manual |
| Condition | New |
