Mitutoyo 500-196-32 6in/150mm 0.0005in Res Absolute Digimatic Caliper

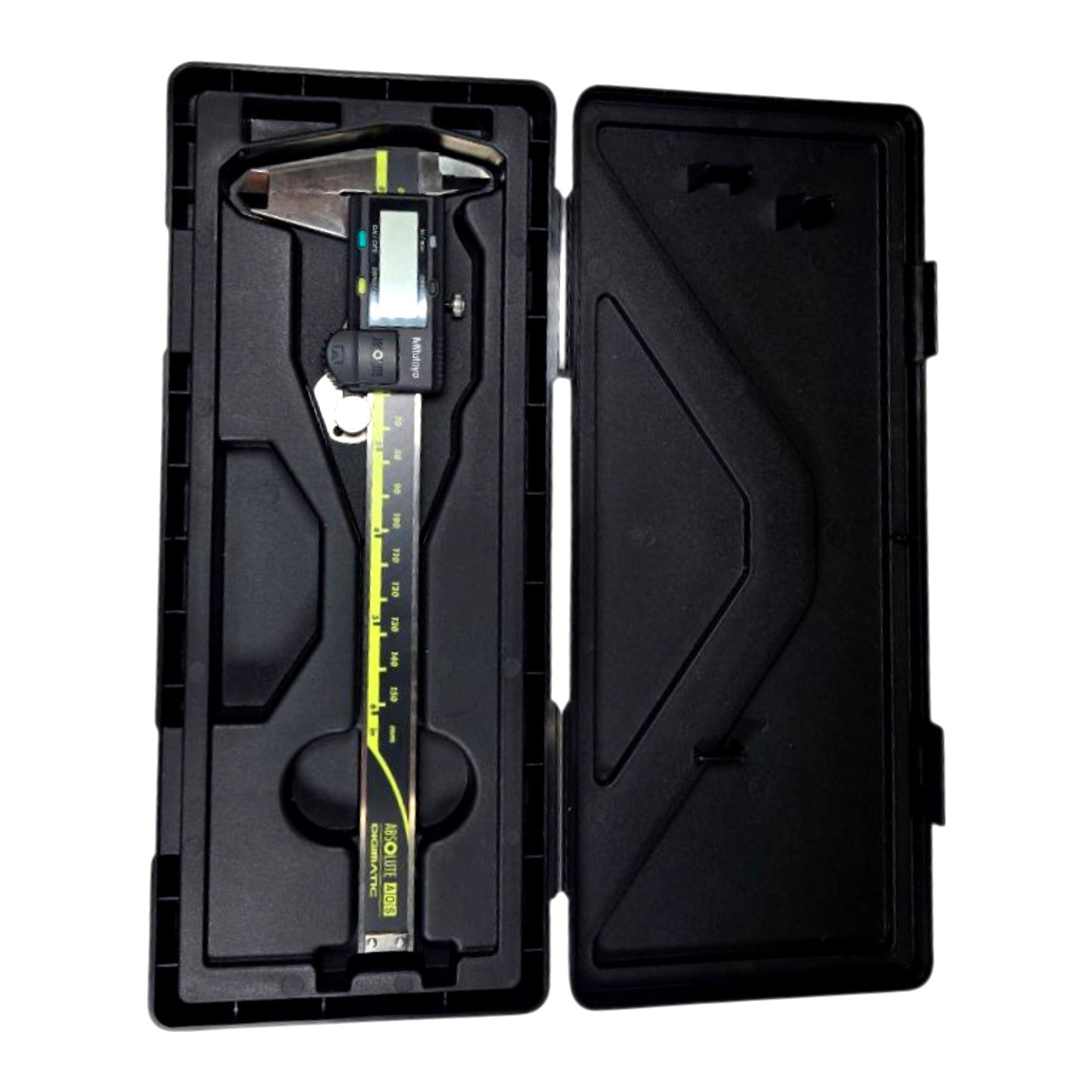

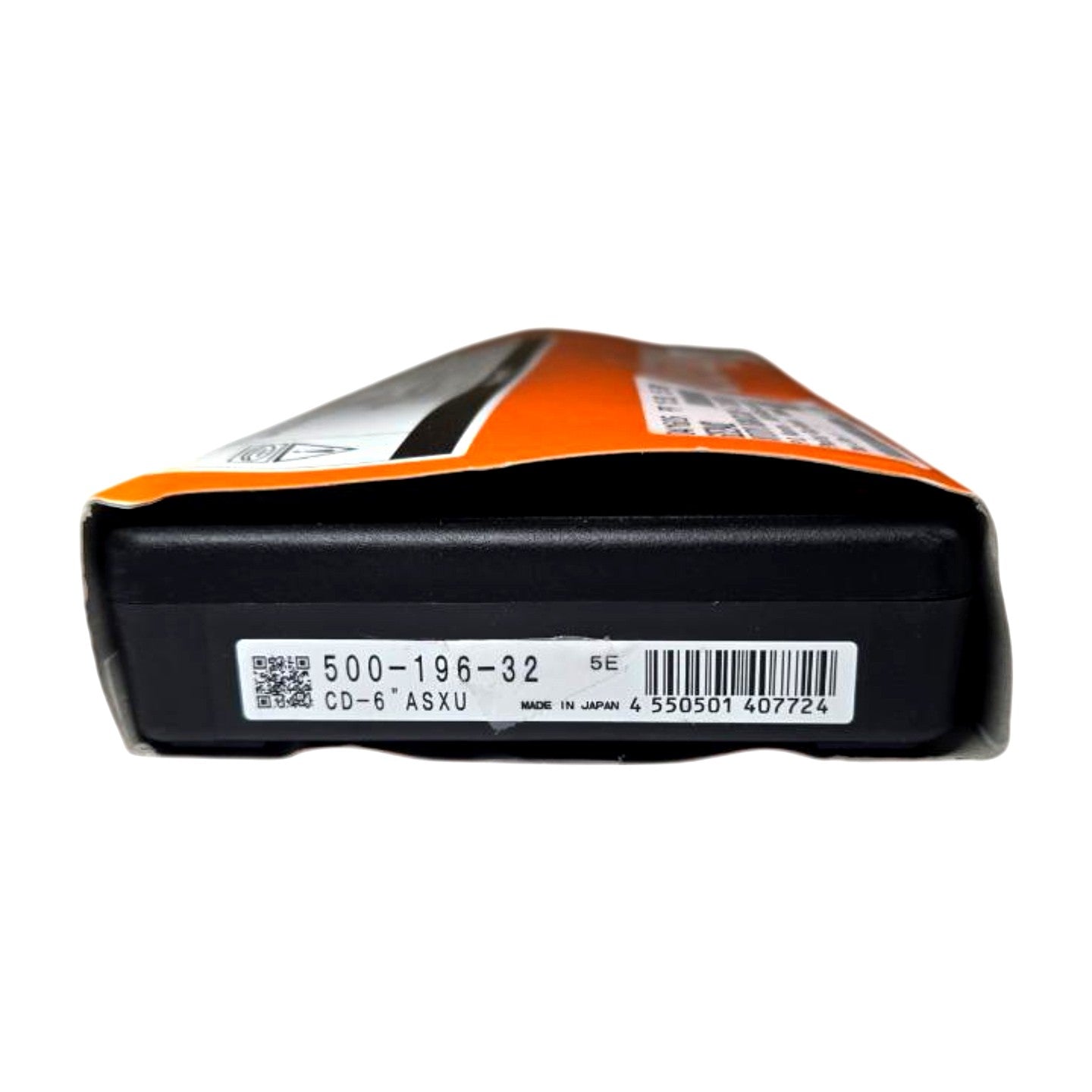

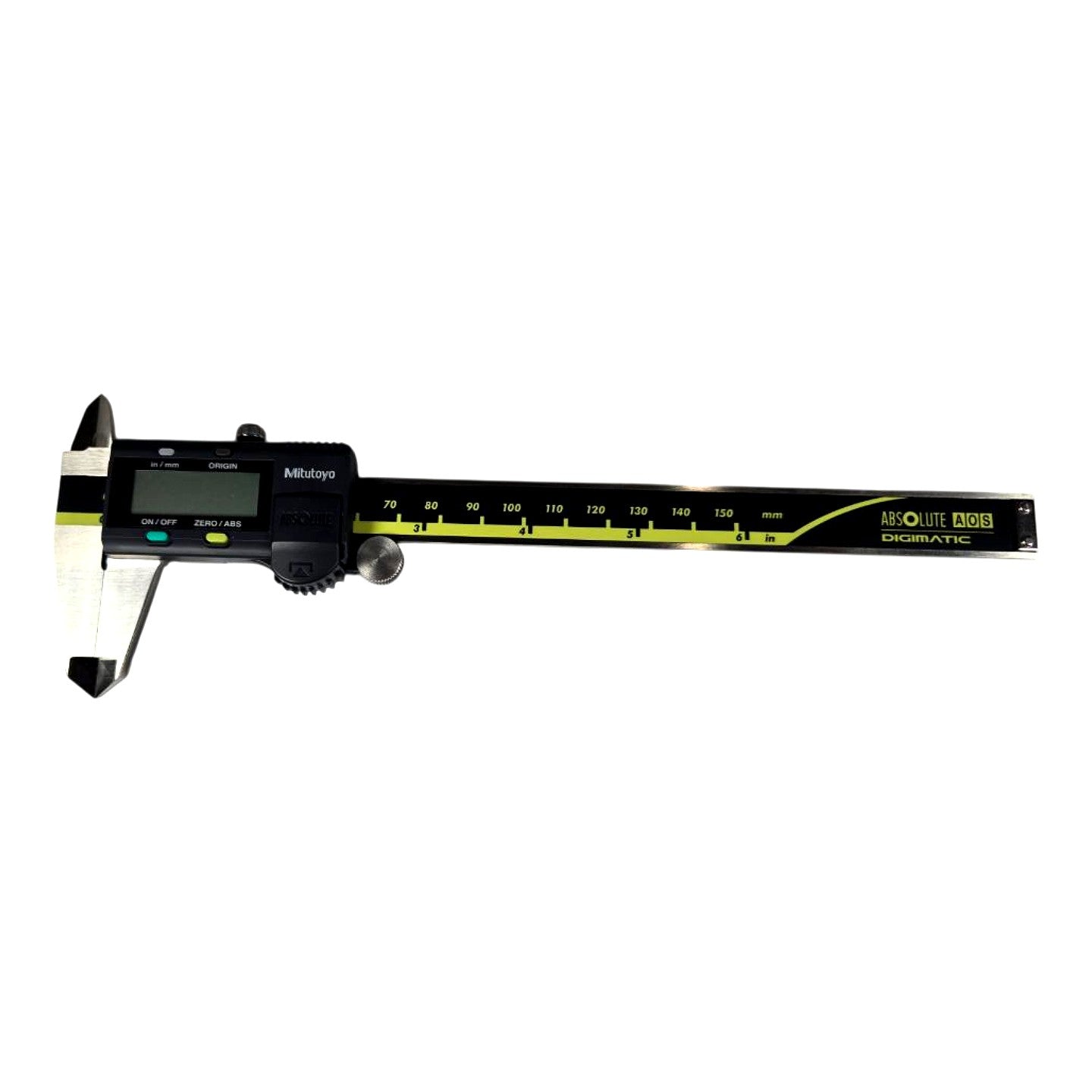

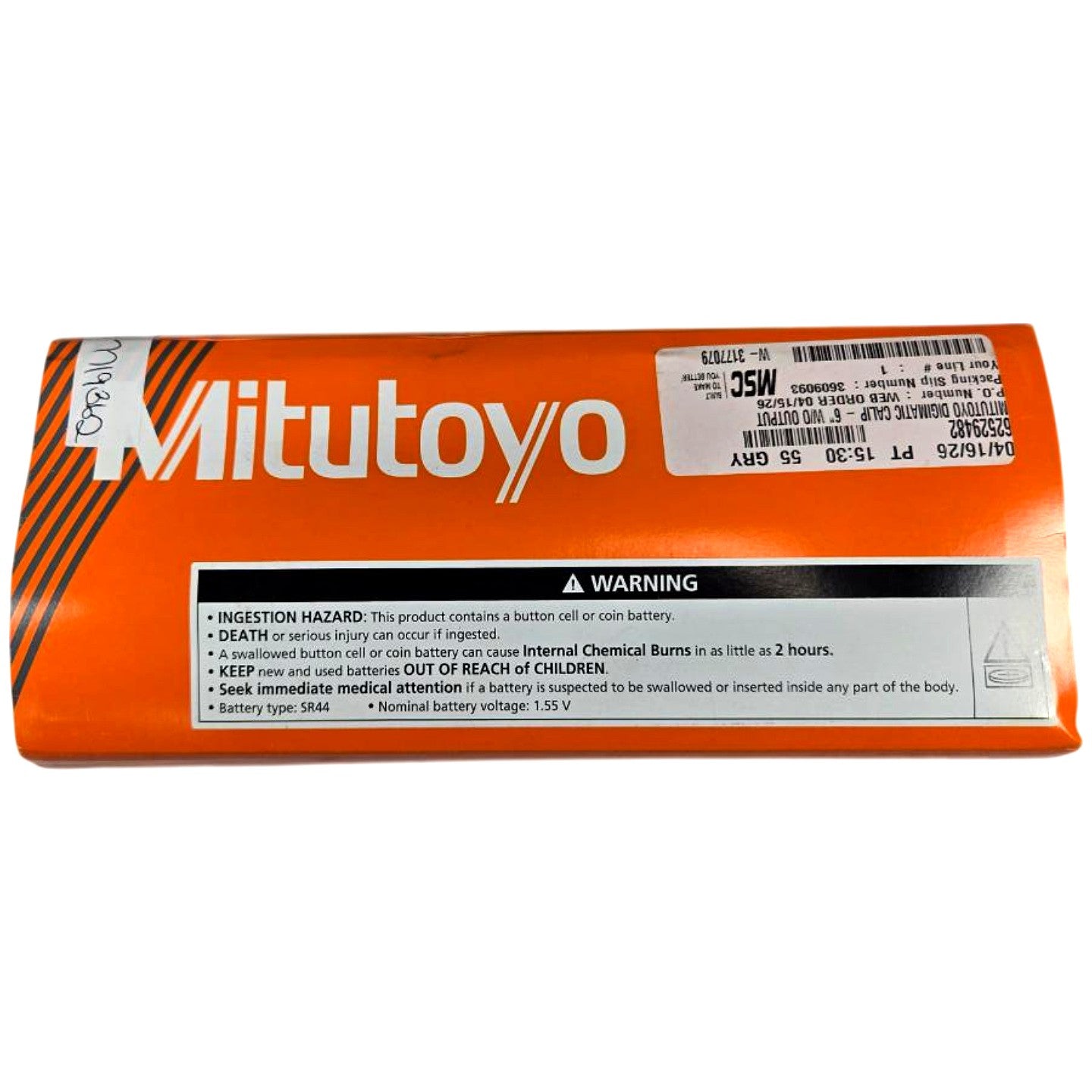

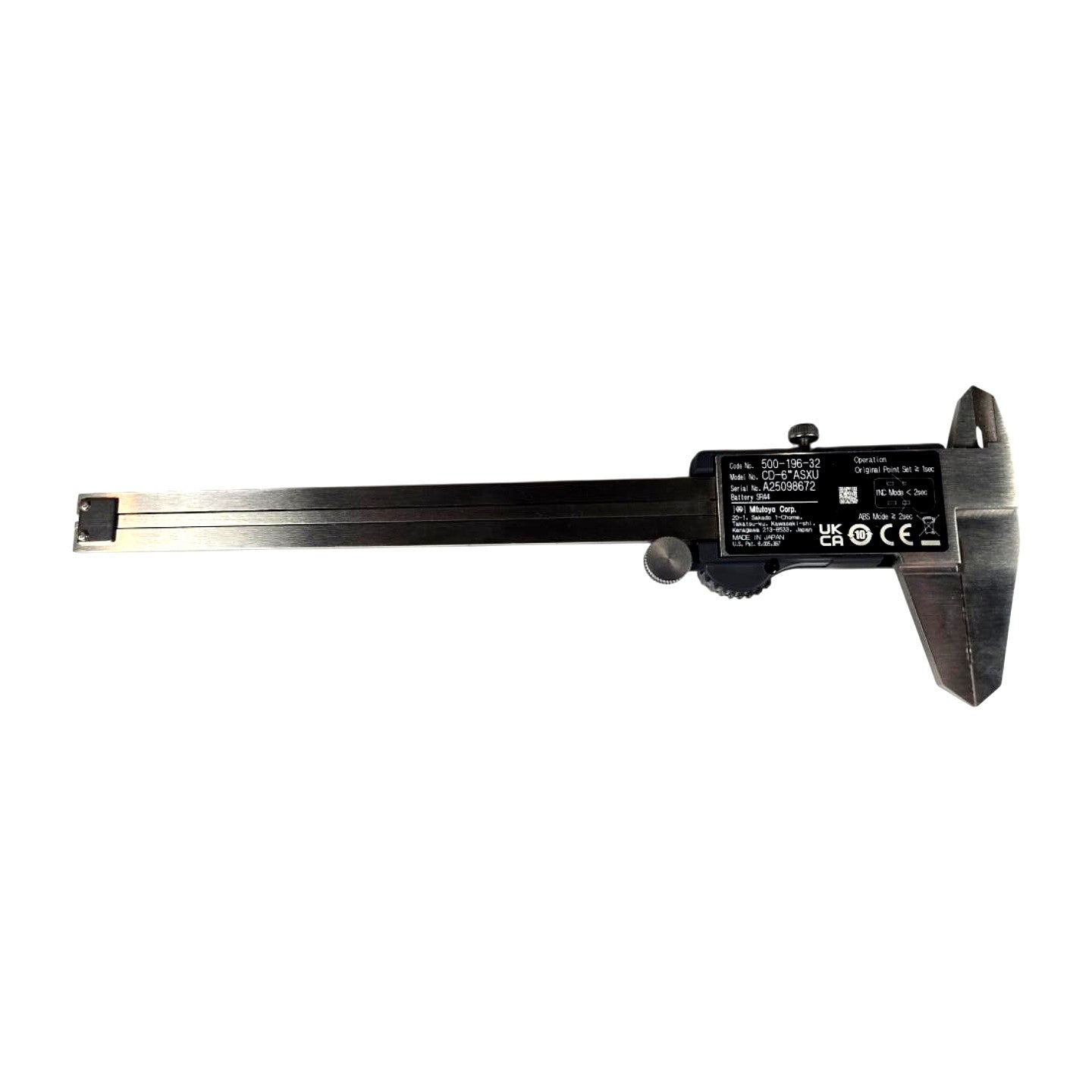

The Mitutoyo 500-196-32 is a new 6-inch/150mm Absolute AOS (Advanced Onsite Sensor) Digimatic electronic caliper, model CD-6"ASXU, manufactured in Japan to Mitutoyo's published specifications. The caliper delivers a resolution of 0.01mm/0.0005in and a stated accuracy of ±0.02mm/±0.001in across its full range, with four measurement modes: outside diameter, inside diameter, depth, and step. The Absolute encoder system eliminates the need to re-zero after power-off or battery replacement — the origin is permanently retained via capacitive linear encoder technology, and the unit powers on ready to measure at any position. The stainless steel construction with black anodized slider and beam features an LCD display with in/mm conversion, ZERO/ABS button, ON/OFF button, and ORIGIN reset button; a thumb roller provides smooth, controlled jaw travel. Powered by a single SR44 (1.55V) silver oxide button cell battery, the unit ships in a fitted hard plastic case and is suited for machine shop, quality control, and inspection applications requiring reliable, repeatable measurements. Product Specifications Brand Mitutoyo MPN 500-196-32 Part Number (Code No.) 500-196-32 Model No. CD-6"ASXU Series Absolute AOS Digimatic Measurement Range 0-150mm / 0-6 in Resolution (Metric) 0.01 mm Resolution (Imperial) 0.0005 in Accuracy (Metric) ±0.02 mm Accuracy (Imperial) ±0.001 in Measurement Types Outside Dia, Inside Dia, Depth, Step Encoder Type Absolute capacitive linear encoder Display Type LCD Unit Switchable Yes, in/mm Beam/Body Material Stainless steel Battery Type SR44 silver oxide, 1.55V Origin Retention Absolute — retained after power-off Data Output None (w/o output) Country of Origin Japan Case Included Yes, fitted hard plastic case
