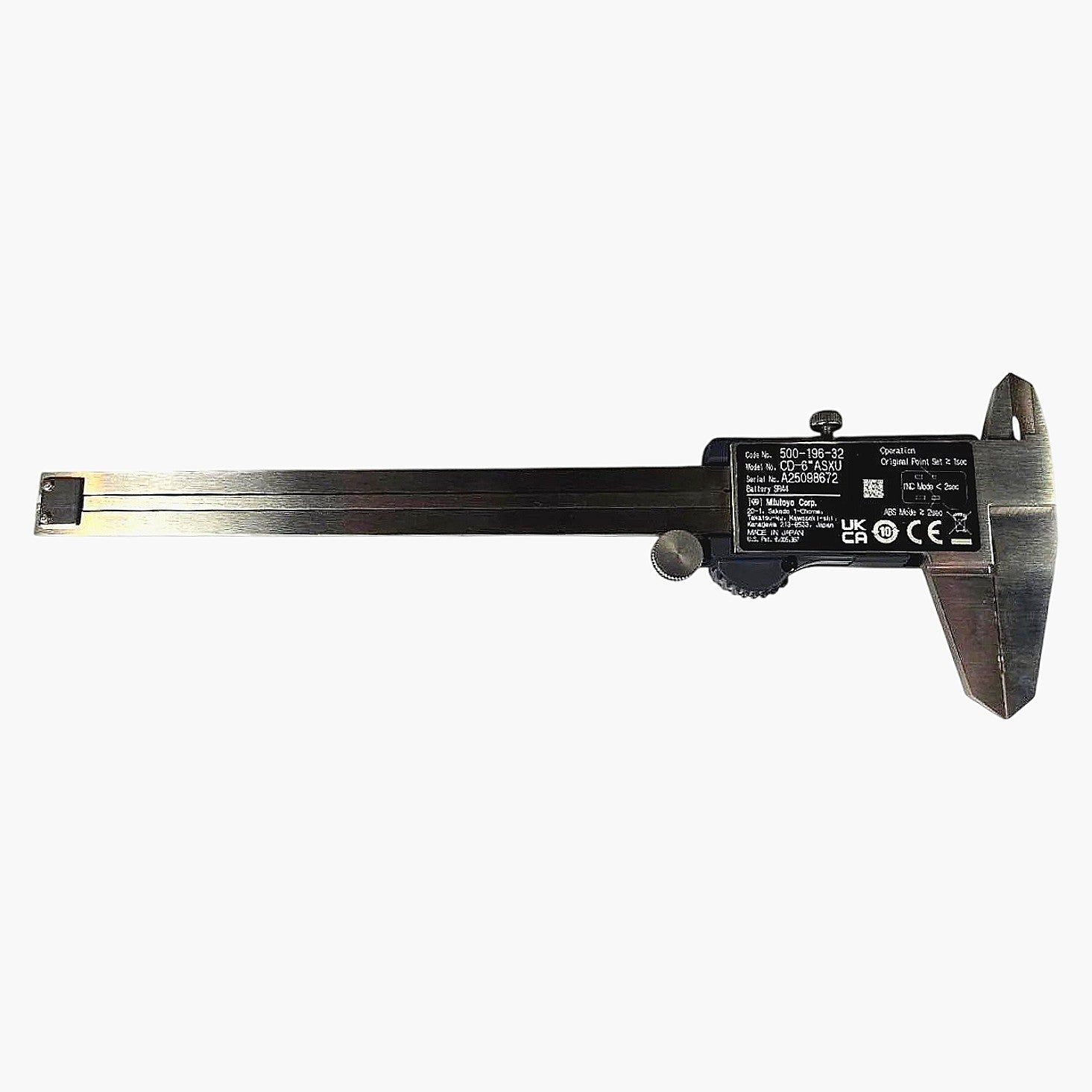

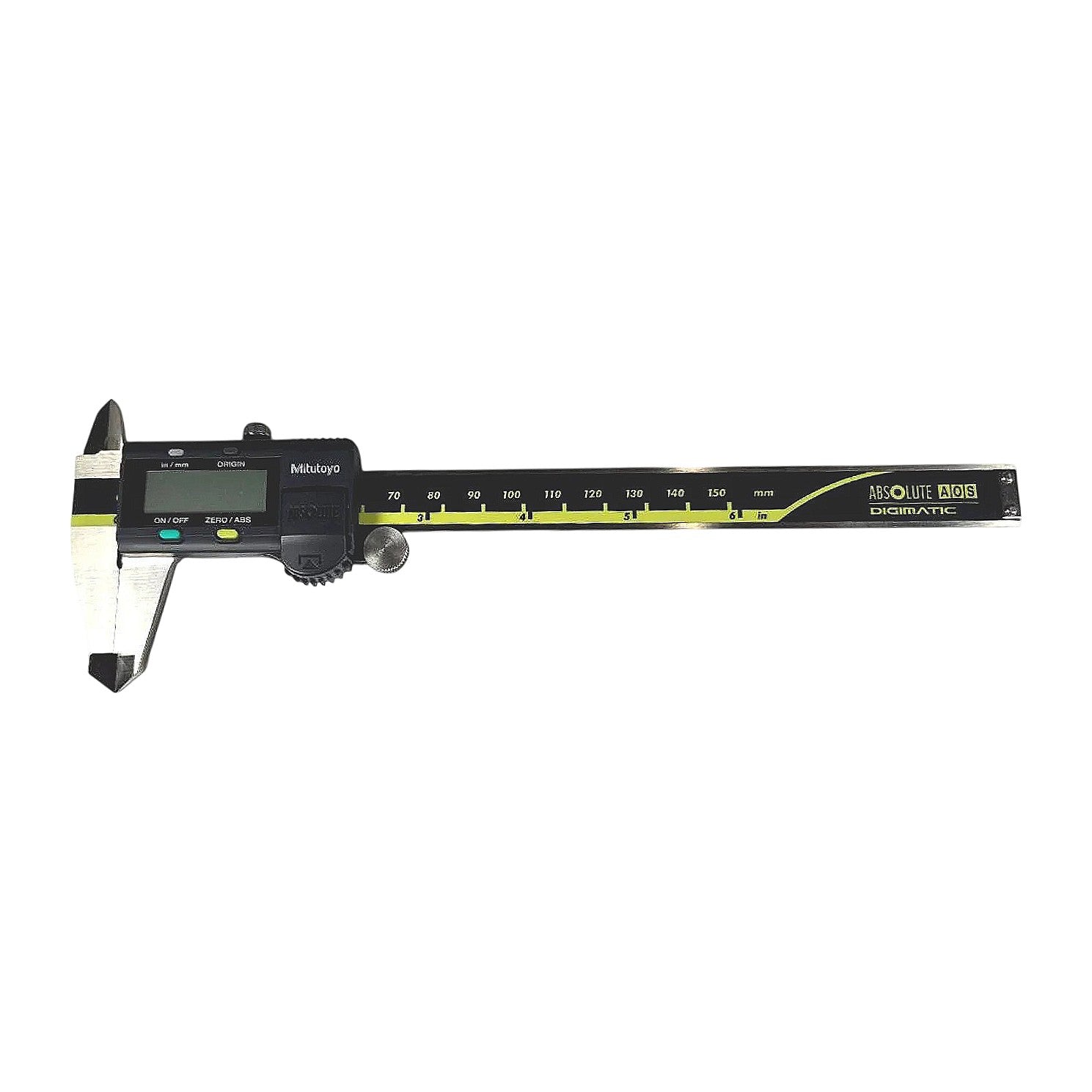

Mitutoyo 500-196-32 CD-6"ASXU 0-6in/0-150mm Absolute Digimatic Caliper
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

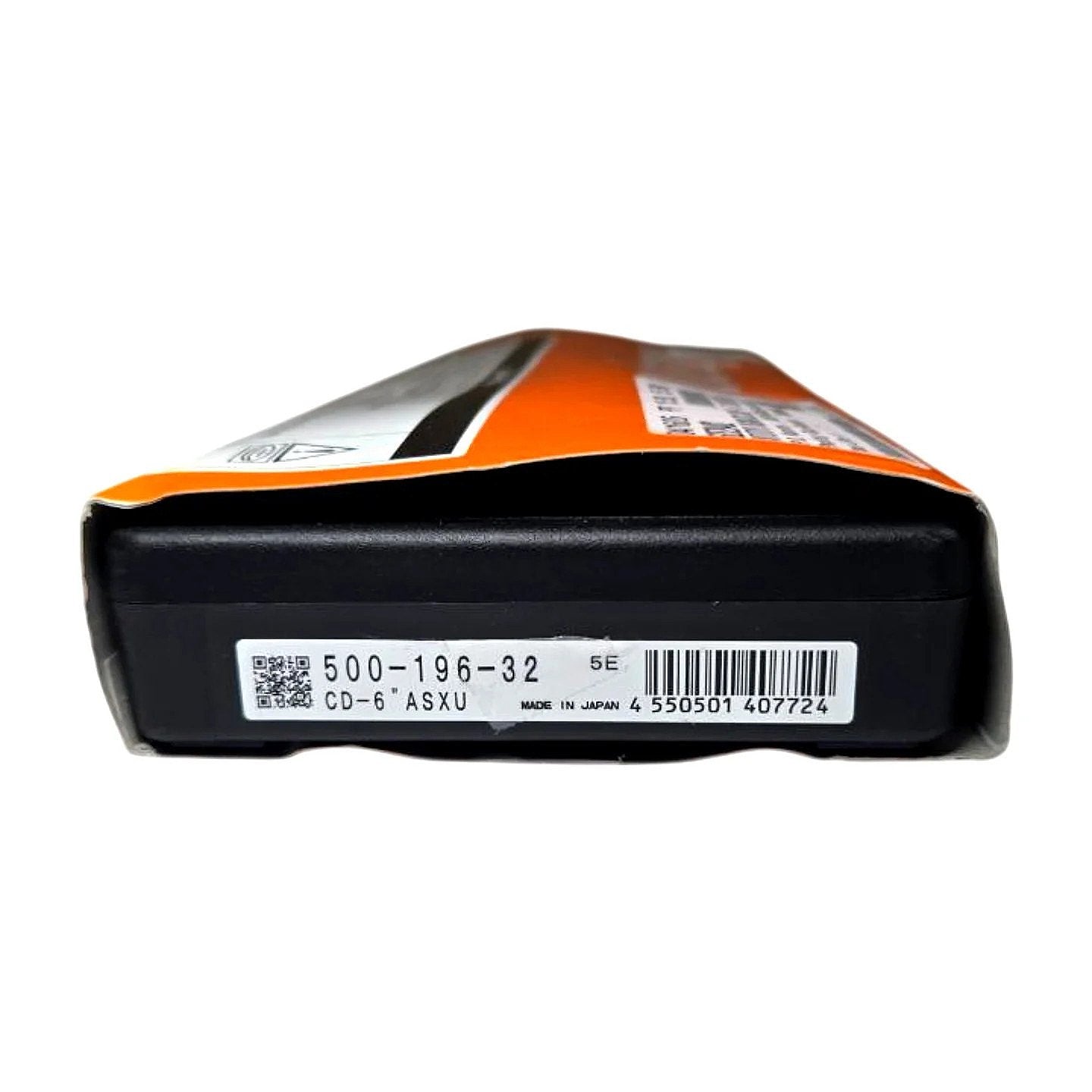

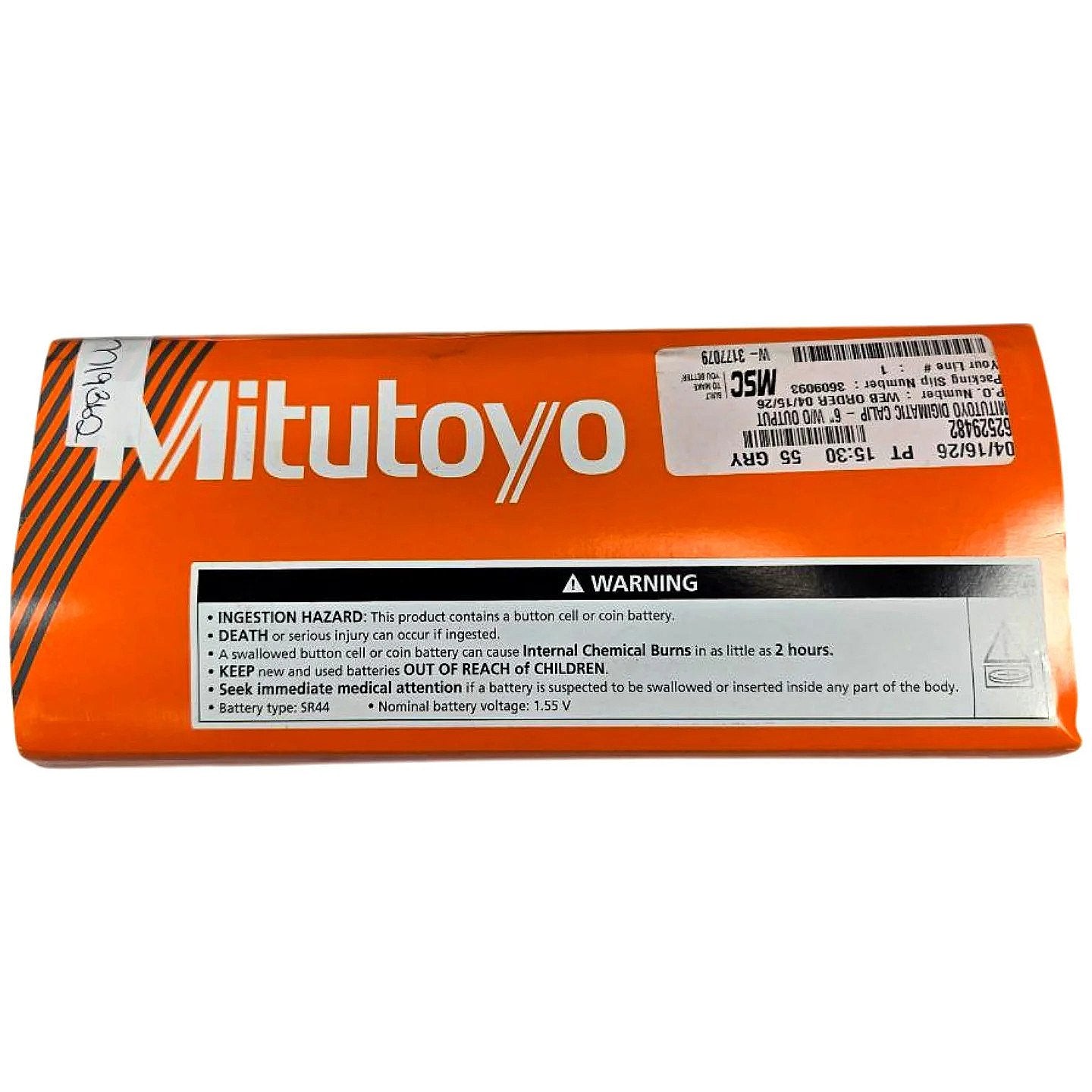

The Mitutoyo 500-196-32 is a new, factory-sealed Absolute AOS (Advanced Electromagnetic Induction) Digimatic digital caliper with model designation CD-6"ASXU, offering a 0–6 in / 0–150 mm measurement range with 0.0005 in / 0.01 mm resolution and ±0.001 in accuracy. The AOS electromagnetic induction linear encoder system eliminates the need to reset zero at power-on — the absolute origin is retained even after power-off, preventing costly measurement errors from a missed zero-set. The stainless steel beam and hardened jaws support outside, inside, depth, and step measurements; the thumb-roller provides smooth, controlled slider travel; and a locking screw secures the jaw position. Compatible with Mitutoyo's SPC Digimatic data output standard (no SPC output on this "W/O OUTPUT" variant as confirmed by the MSC packing slip description). Powered by a single SR44 silver oxide button cell (1.55 V, included), Made in Japan, and supplied in a fitted plastic storage case.
Product Specifications
| Brand | Mitutoyo |
| Model No. (MPN) | 500-196-32 |
| Model Designation | CD-6"ASXU |
| Measurement Range (in) | 0–6 in |
| Measurement Range (mm) | 0–150 mm |
| Resolution (in) | 0.0005 in |
| Resolution (mm) | 0.01 mm |
| Accuracy (in) | ±0.001 in |
| Accuracy (mm) | ±0.02 mm |
| Display Type | LCD digital |
| Measurement System | in & mm (switchable) |
| Encoder Type | Absolute AOS electromagnetic induction |
| SPC Data Output | None (W/O Output) |
| Functions | Outside, inside, depth, step |
| Jaw Material | Hardened stainless steel |
| Battery Type | SR44 silver oxide, 1.55 V |
| Origin Setting | Absolute (no zero-set at power-on required) |
| Country of Origin | Japan |

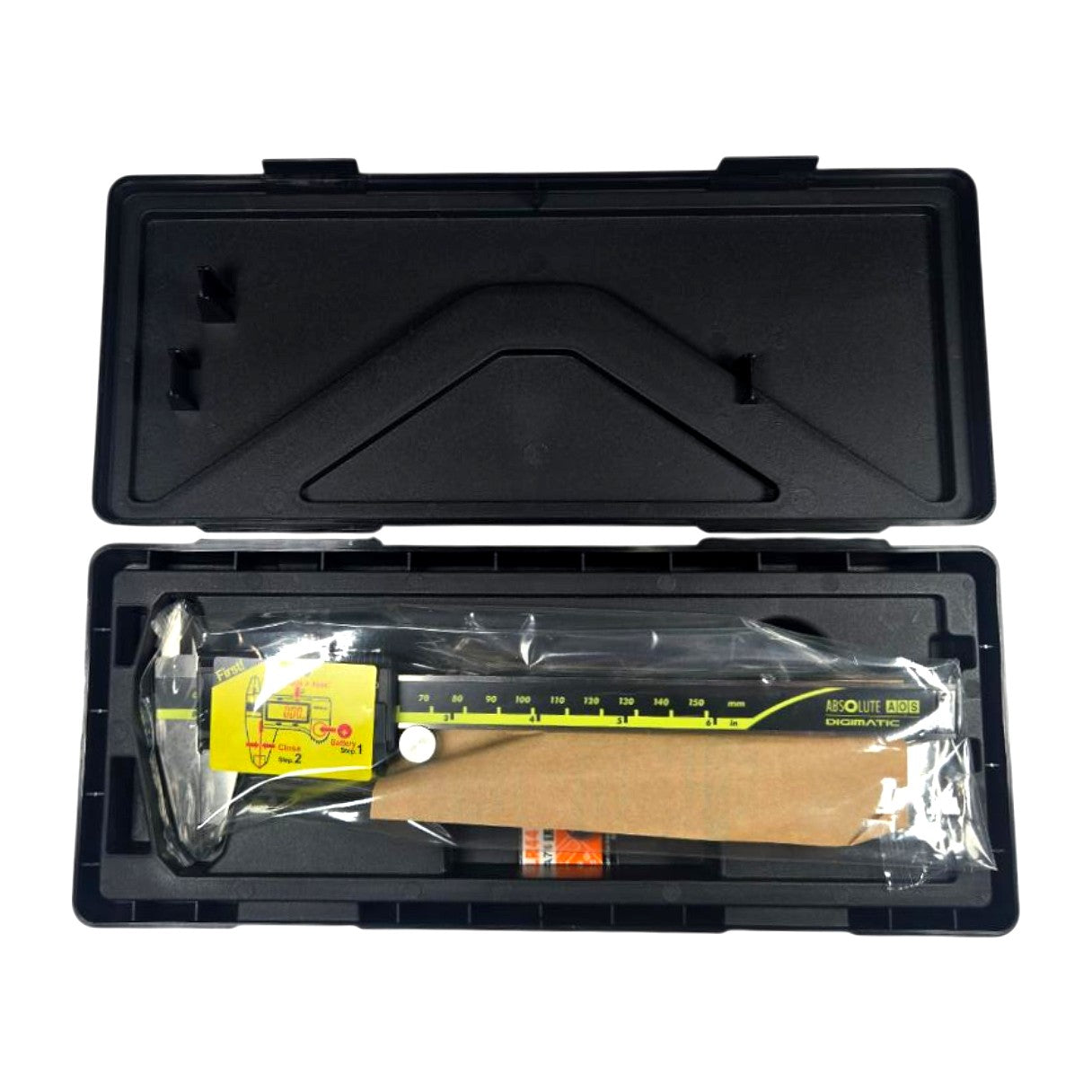

| Includes | Plastic storage case, SR44 battery |

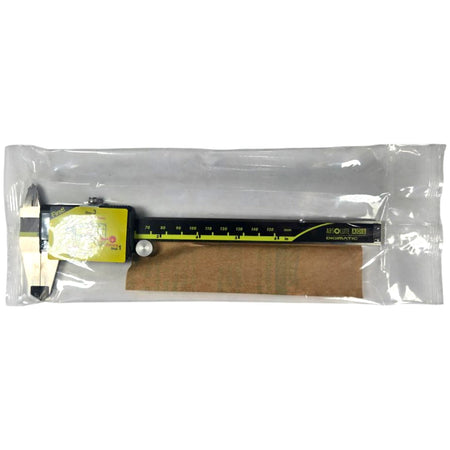

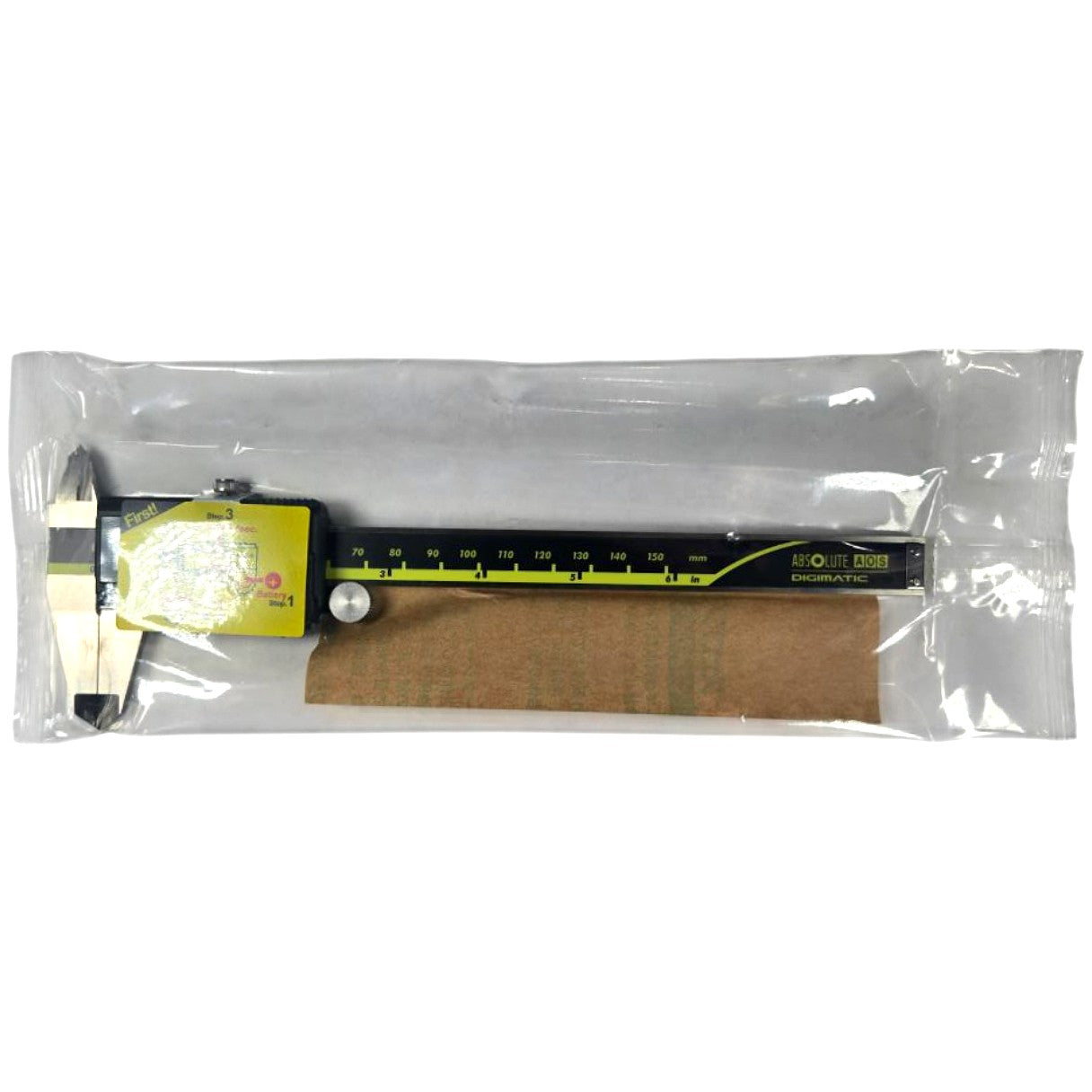

| Condition | New, factory sealed |
