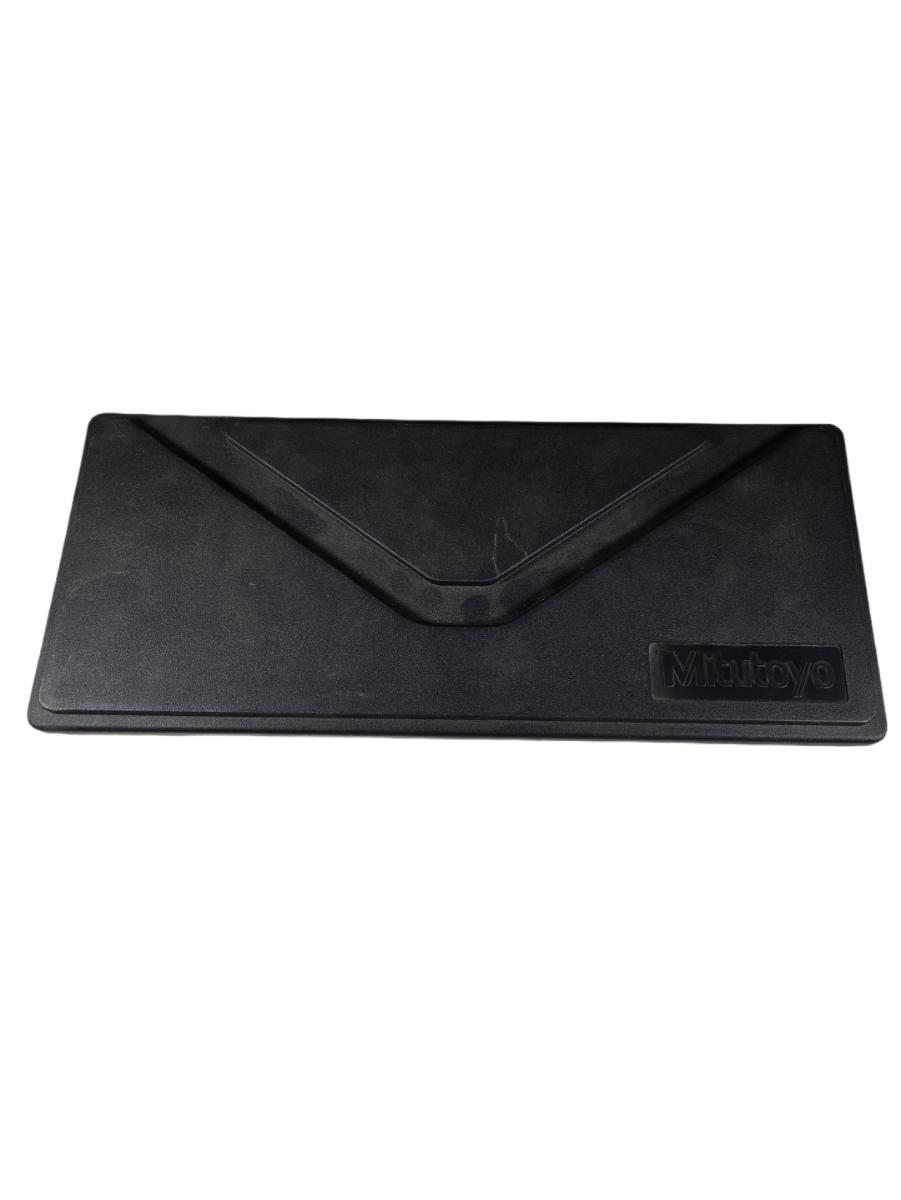

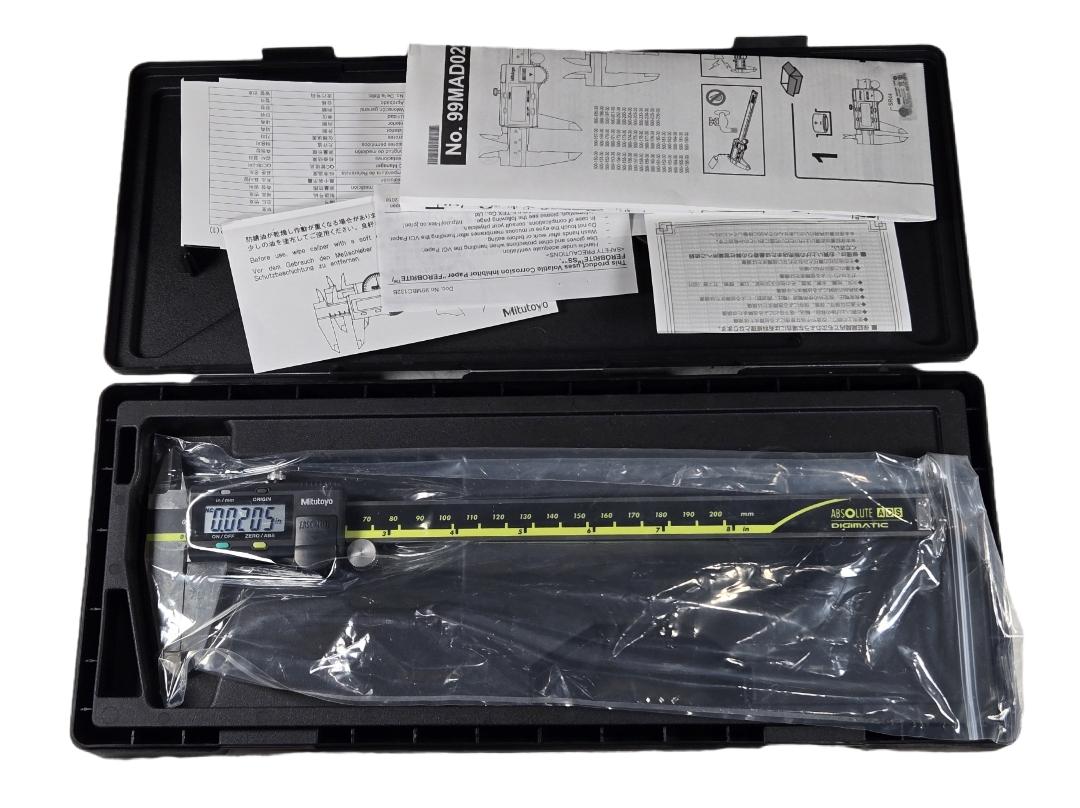

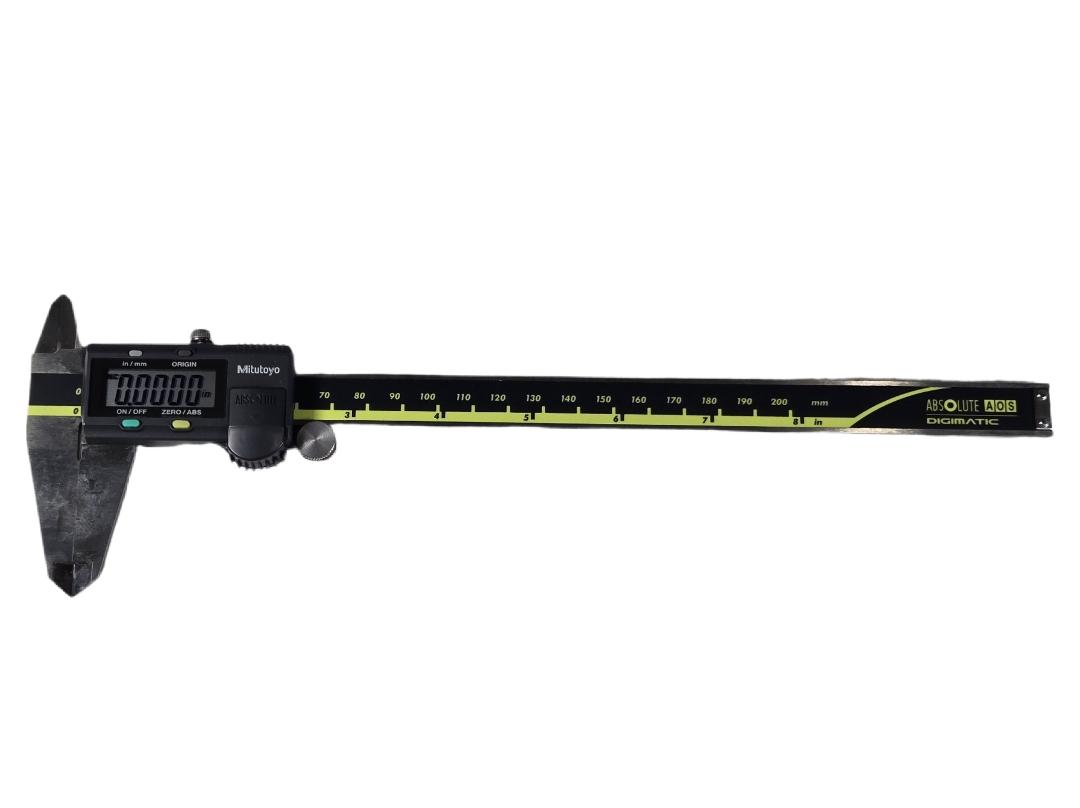

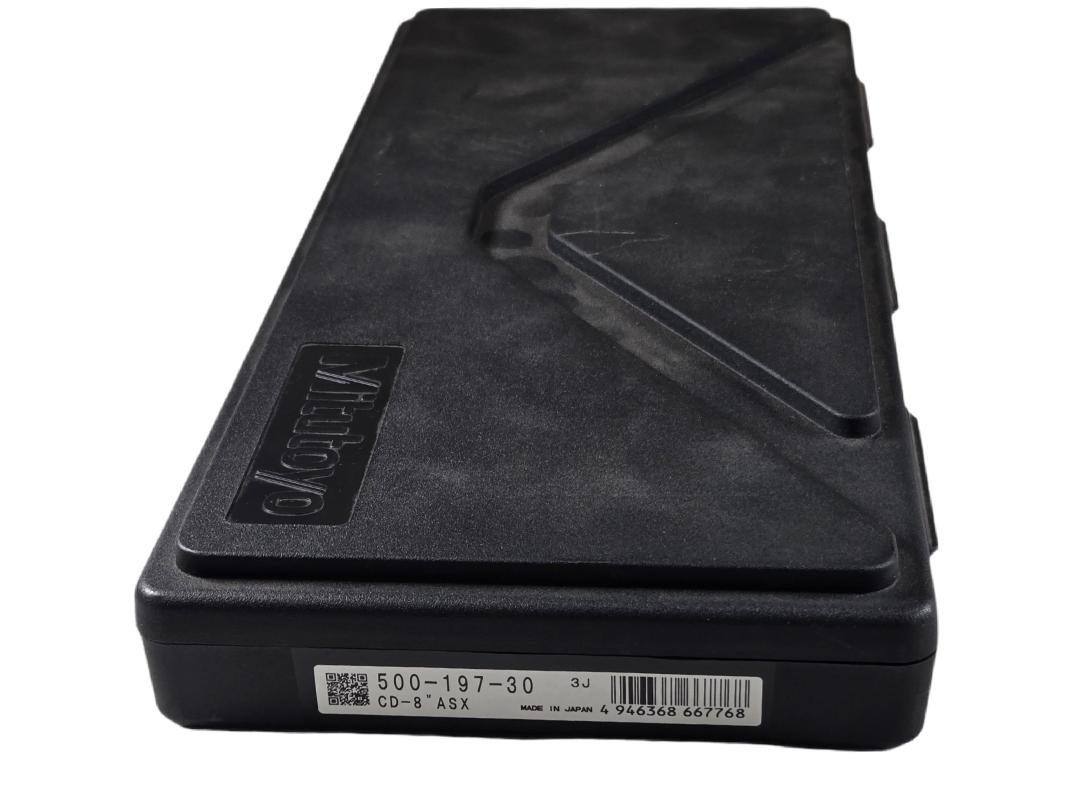

The Mitutoyo 500-197-30 is a new, genuine Mitutoyo Absolute AOS (Advanced Onsite Sensor) Digimatic digital caliper with a measurement range of 0–8 inches / 0–200 mm, manufactured in Japan as confirmed by the case label. The caliper features Mitutoyo's Absolute electromagnetic induction linear encoder, which eliminates the need to reset zero at power-on and retains the reference position even when the tool is powered off — the display will always show the correct position relative to the jaw-closed datum. Resolution is 0.0005 in / 0.01 mm with accuracy of ±0.001 in / ±0.02 mm; the tool reads in both inch and metric and includes ON/OFF, ZERO/ABS, and ORIGIN buttons on the face, a thumb-roller for smooth jaw travel, and a data output port (SPC) for connection to Mitutoyo's Digimatic data collection systems. The stainless steel beam and jaw construction provides corrosion resistance for typical shop environments; the unit is supplied complete with the Mitutoyo black plastic carrying case, corrosion-inhibitor VCI paper, battery, and multilingual instruction sheet (document No. 99MAD025) as visible in the packaging photos.
Product Specifications
| Manufacturer | Mitutoyo |
| Model Number | 500-197-30 |
| Series Designation | CD-8" ASX |
| Country of Origin | Japan |
| Measurement Range (Inch) | 0–8 in |
| Measurement Range (Metric) | 0–200 mm |
| Resolution (Inch) | 0.0005 in |
| Resolution (Metric) | 0.01 mm |
| Accuracy (Inch) | ±0.001 in |
| Accuracy (Metric) | ±0.02 mm |
| Display Type | LCD digital readout |
| Measurement System | Inch and metric (switchable) |
| Encoder Technology | Absolute AOS electromagnetic induction linear encoder |
| Absolute Measurement | Yes — retains position reference at power-off |
| Data Output | SPC (Digimatic) output port |
| Beam / Jaw Material | Stainless steel |
| Battery Type | SR44 (1.55 V silver oxide) |
| Condition | New |
| Included Accessories | Plastic carrying case, VCI corrosion-inhibitor paper, battery, instruction sheet |
