Mitutoyo 500-197-32 0-8in 0.0005in/0.01mm Absolute Digital Caliper
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

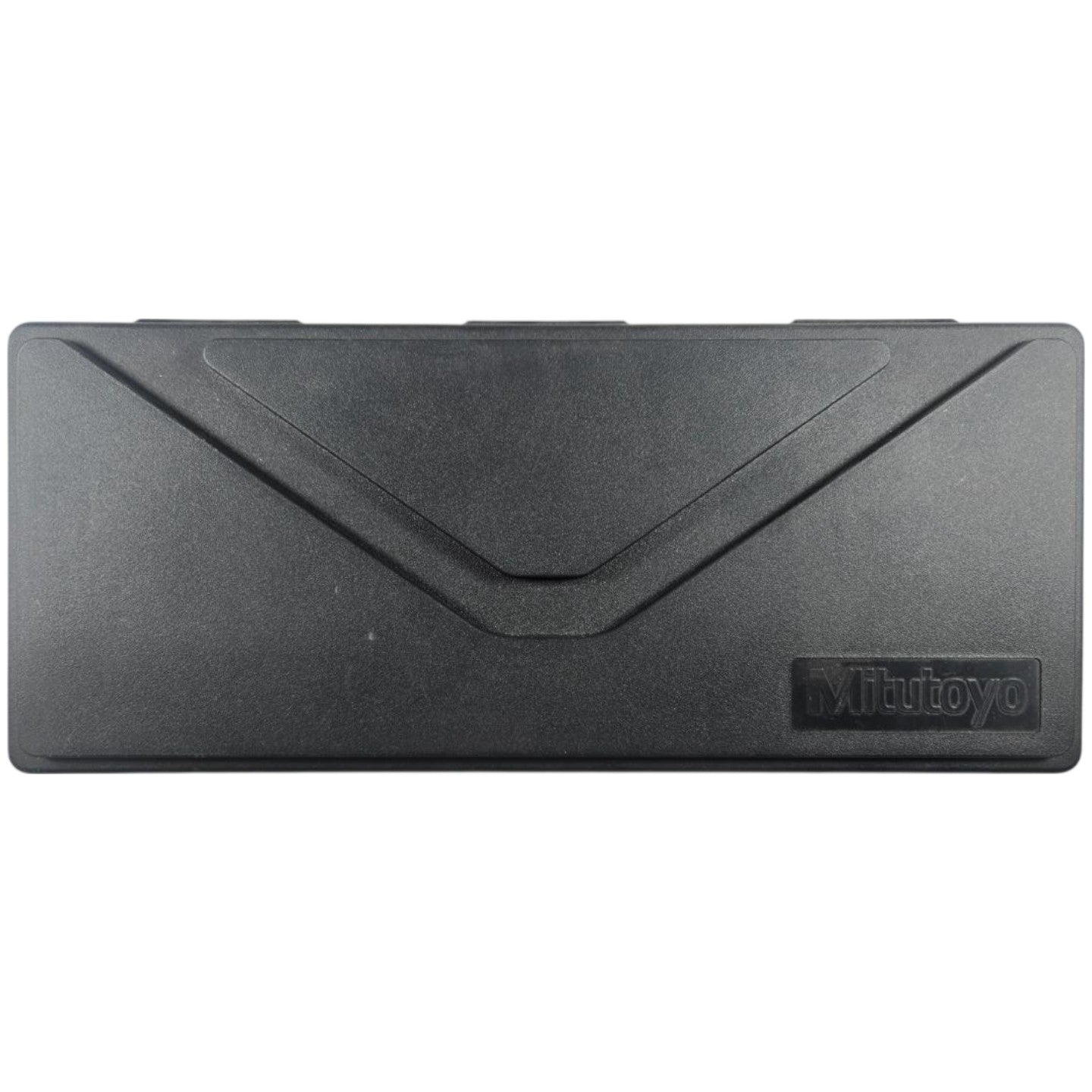

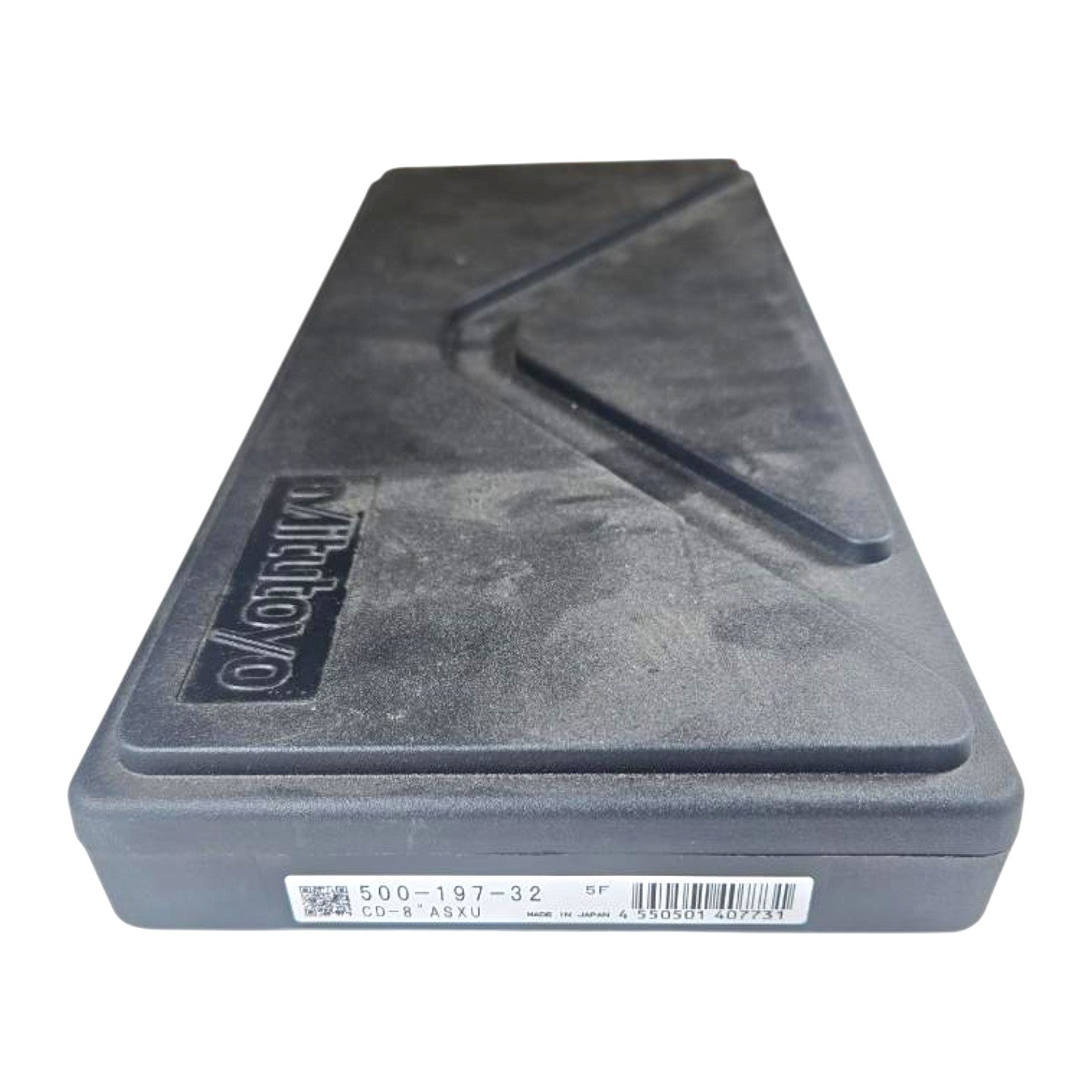

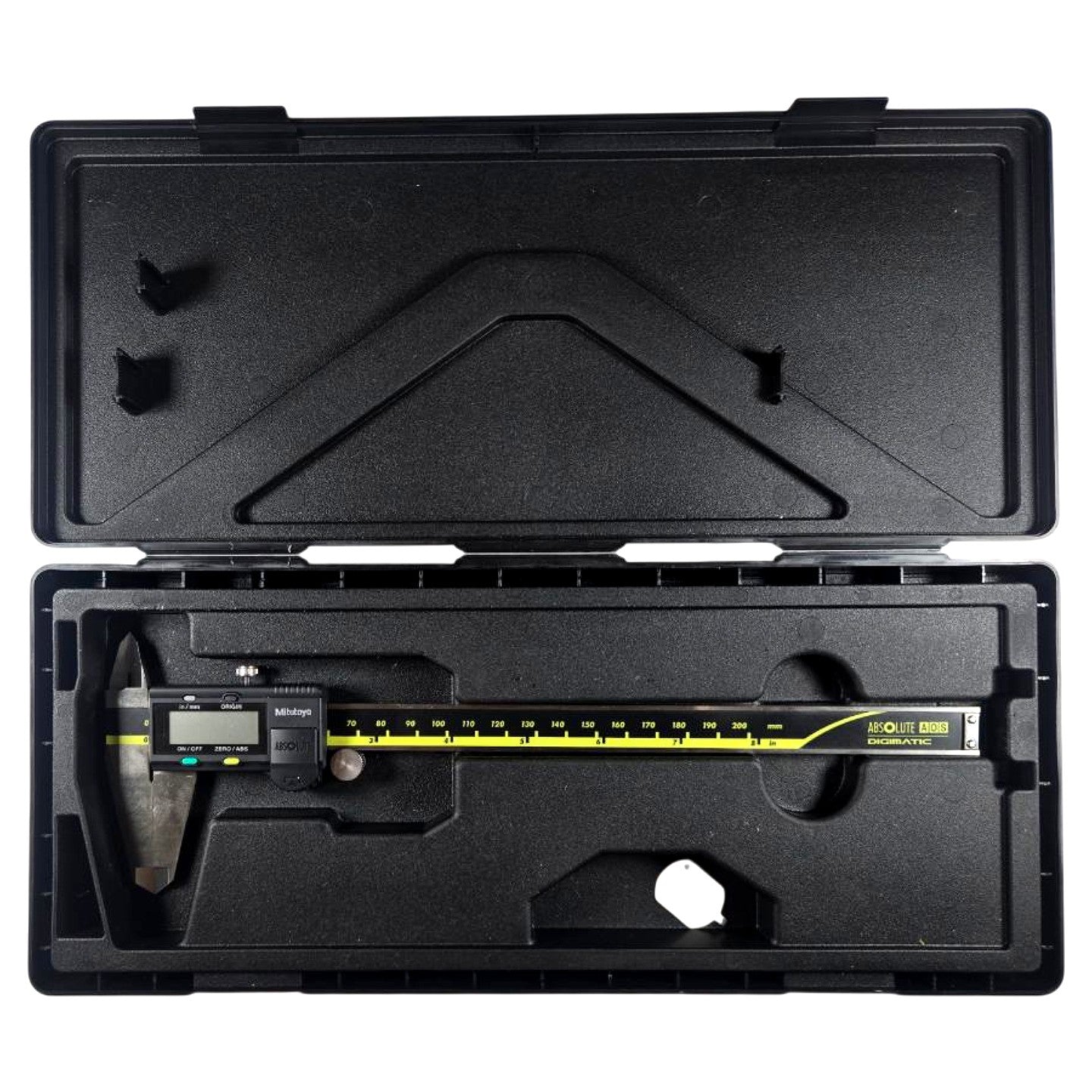

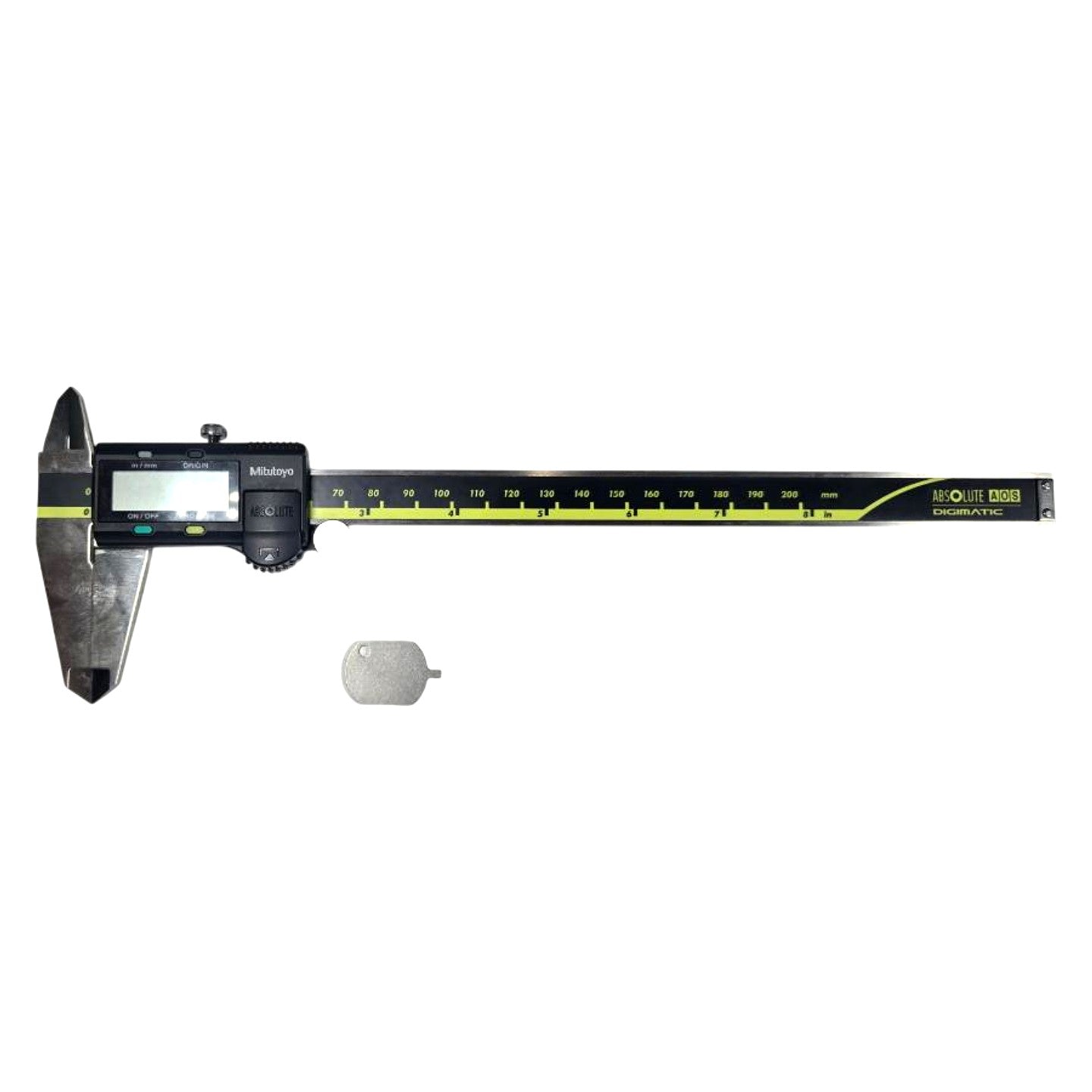

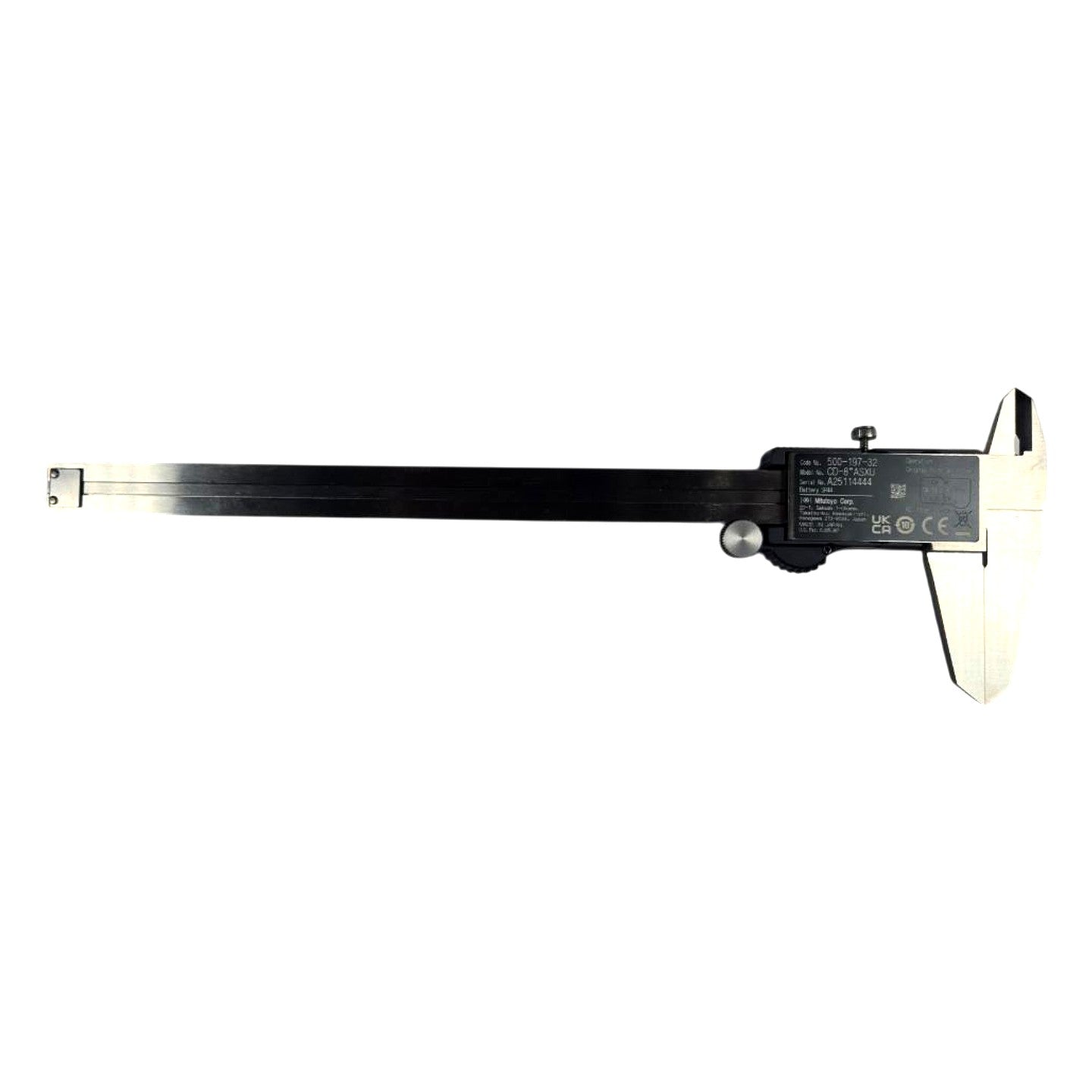

The Mitutoyo 500-197-32 is an 8-inch (200mm) Absolute Digimatic digital caliper from Mitutoyo's 500-series, featuring the AOS (Absolute Origin System) electromagnetic induction encoder that retains the absolute position on power-off and requires no re-zeroing at startup. The stainless steel beam and jaw construction provides durability for shop-floor use; the caliper reads in both inch and metric with a resolution of 0.0005 in / 0.01 mm and an accuracy of ±0.001 in / ±0.02 mm over the full range. Model designation CD-8"ASXU (confirmed on the rear label) indicates the 8-inch range with the ASXU suffix denoting the SPC data output port for connection to Mitutoyo's Digimatic data collection systems; battery is a single SR44 (938A) button cell. This unit is in used–excellent condition and ships in the original Mitutoyo molded plastic carrying case with battery cover; the small metallic accessory visible in the photos is the battery cover/door.
Product Specifications
| Brand | Mitutoyo |
| Model Number (MPN) | 500-197-32 |
| Model Name | CD-8"ASXU |
| Series | 500 Series Absolute Digimatic |
| Measurement Range | 0-8 in / 0-200 mm |
| Resolution | 0.0005 in / 0.01 mm |
| Accuracy | ±0.001 in / ±0.02 mm |
| Display Type | LCD digital readout |
| Measurement System | Inch and metric (switchable) |
| Encoder Type | AOS electromagnetic induction (absolute) |
| SPC Output | Yes — Digimatic SPC data output port |
| Battery | SR44 (938A) 1.55V button cell |
| Beam / Frame Material | Stainless steel |
| Origin of Manufacture | Japan |
| Includes | Caliper, battery cover, original Mitutoyo case |
| Condition | Used — excellent |
