Mitutoyo 505-743JCAL 6in 0.001in Dial Caliper w/ Calibration
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

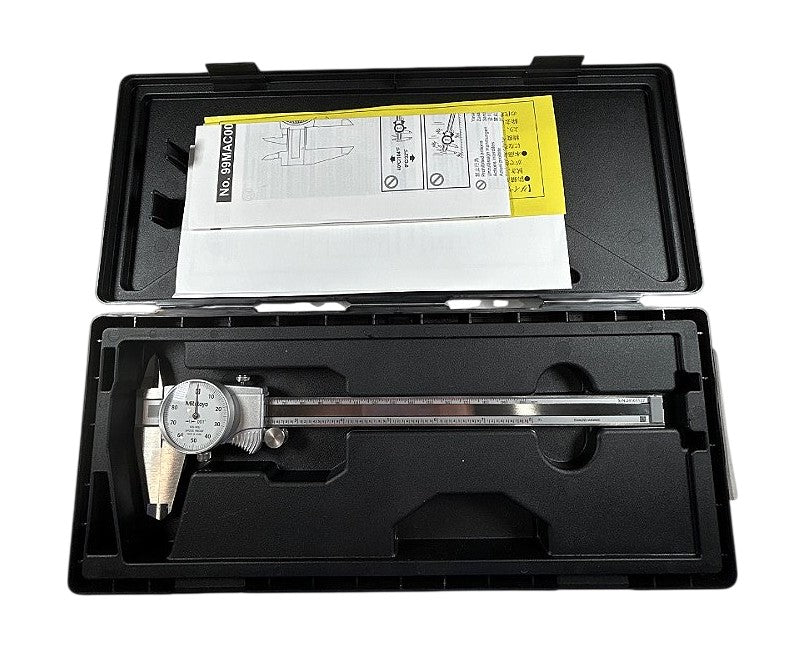

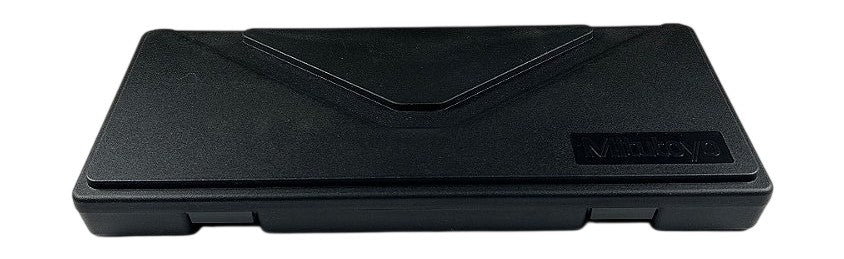

The Mitutoyo 505-743JCAL is a new, Japanese-manufactured 6-inch (150mm) dial caliper featuring a 0.001-inch graduation rack-and-pinion dial mechanism housed in a hardened stainless steel frame, supplied with a traceable calibration certificate (indicated by the 'CAL' suffix in the part number). The 505 series dial calipers measure outside diameter, inside diameter, depth, and step dimensions, with the dial indicator providing direct analog readout at 0.001 in resolution and an accuracy of ±0.001 in over the full 6-inch range. This instrument ships in the Mitutoyo plastic storage case with instruction manual as shown, and the included calibration documentation meets ISO/IEC 17025 traceability requirements for quality-controlled manufacturing and inspection environments.
Product Specifications
| Brand | Mitutoyo |
| MPN | 505-743JCAL |
| Series | 505 |
| Country of Origin | Japan |
| Measurement Range | 0-6 in (0-150 mm) |
| Graduation / Resolution | 0.001 in |
| Accuracy | ±0.001 in |
| Dial Reading | 0-100 (one revolution = 0.1 in) |
| Measurement Type | OD, ID, Depth, Step |
| Frame Material | Hardened stainless steel |
| Calibration Certificate | Included, traceable |
| Condition | New |
| Includes | Plastic storage case, instruction manual, cal cert |
| Unit System | Imperial (inch) |
